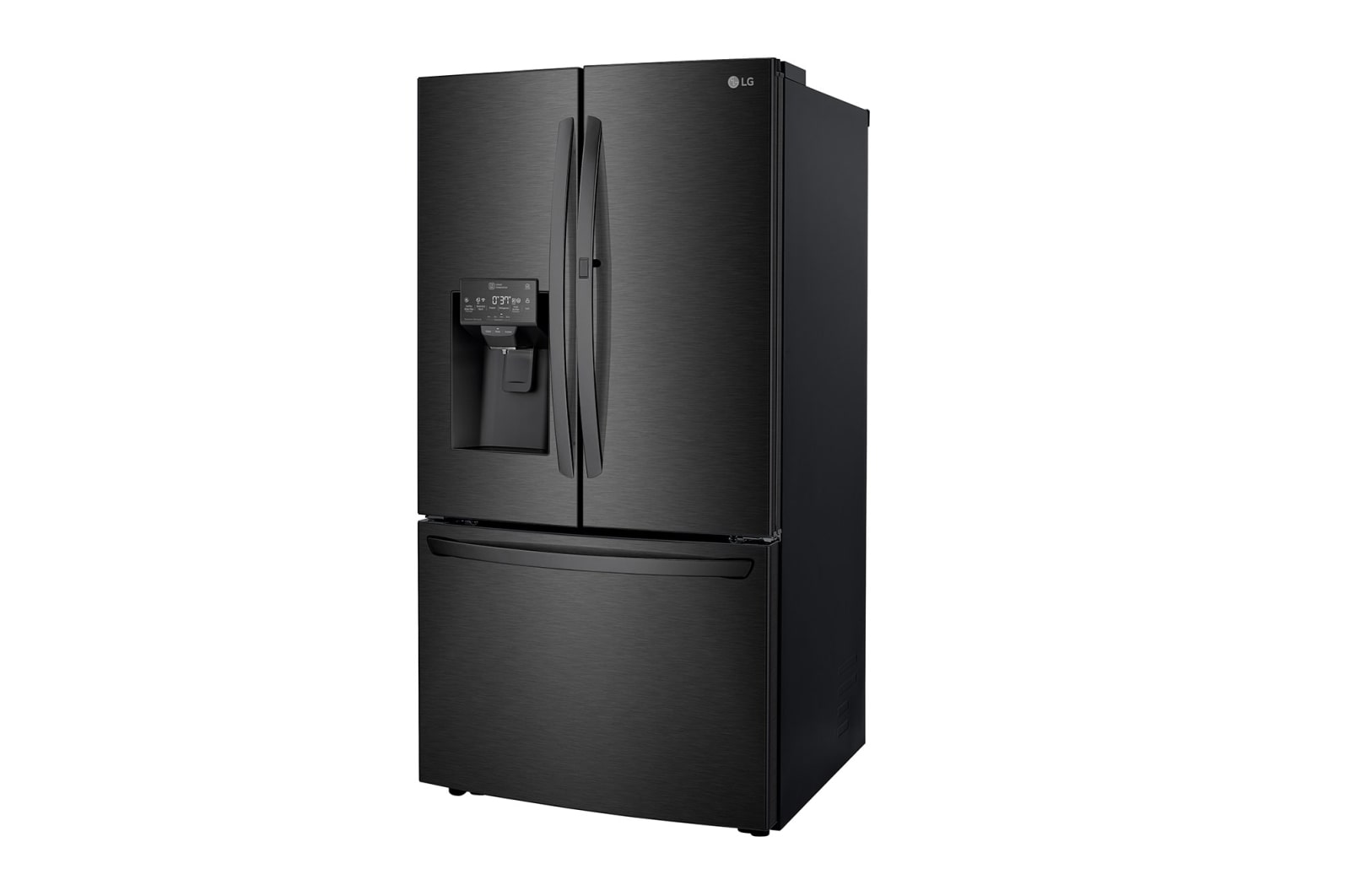

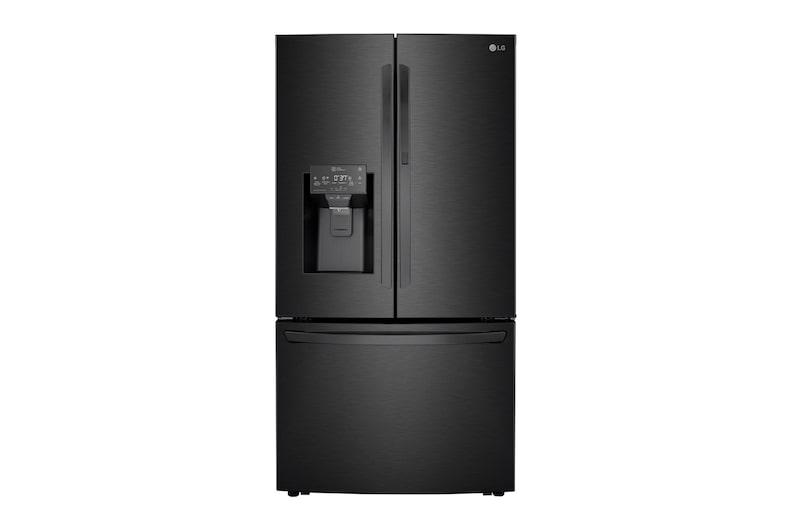

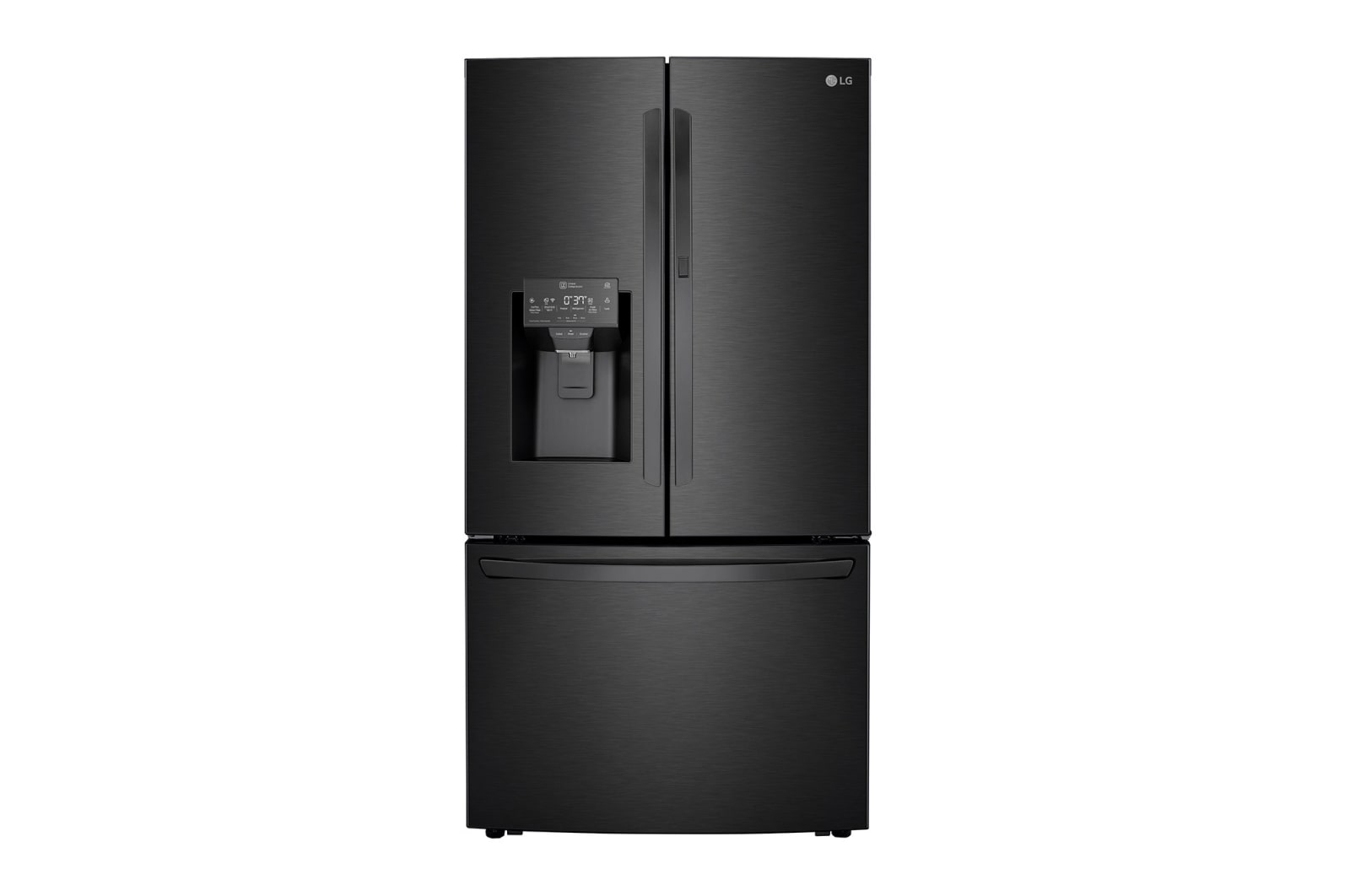

36'' French Door Refrigerator with ThinQ® Technology with Water and Ice Dispenser

Specs

Reviews

Support

36'' French Door Refrigerator with ThinQ® Technology with Water and Ice Dispenser

LRFDS3016M

36'' French Door Refrigerator with ThinQ® Technology with Water and Ice Dispenser

(1)

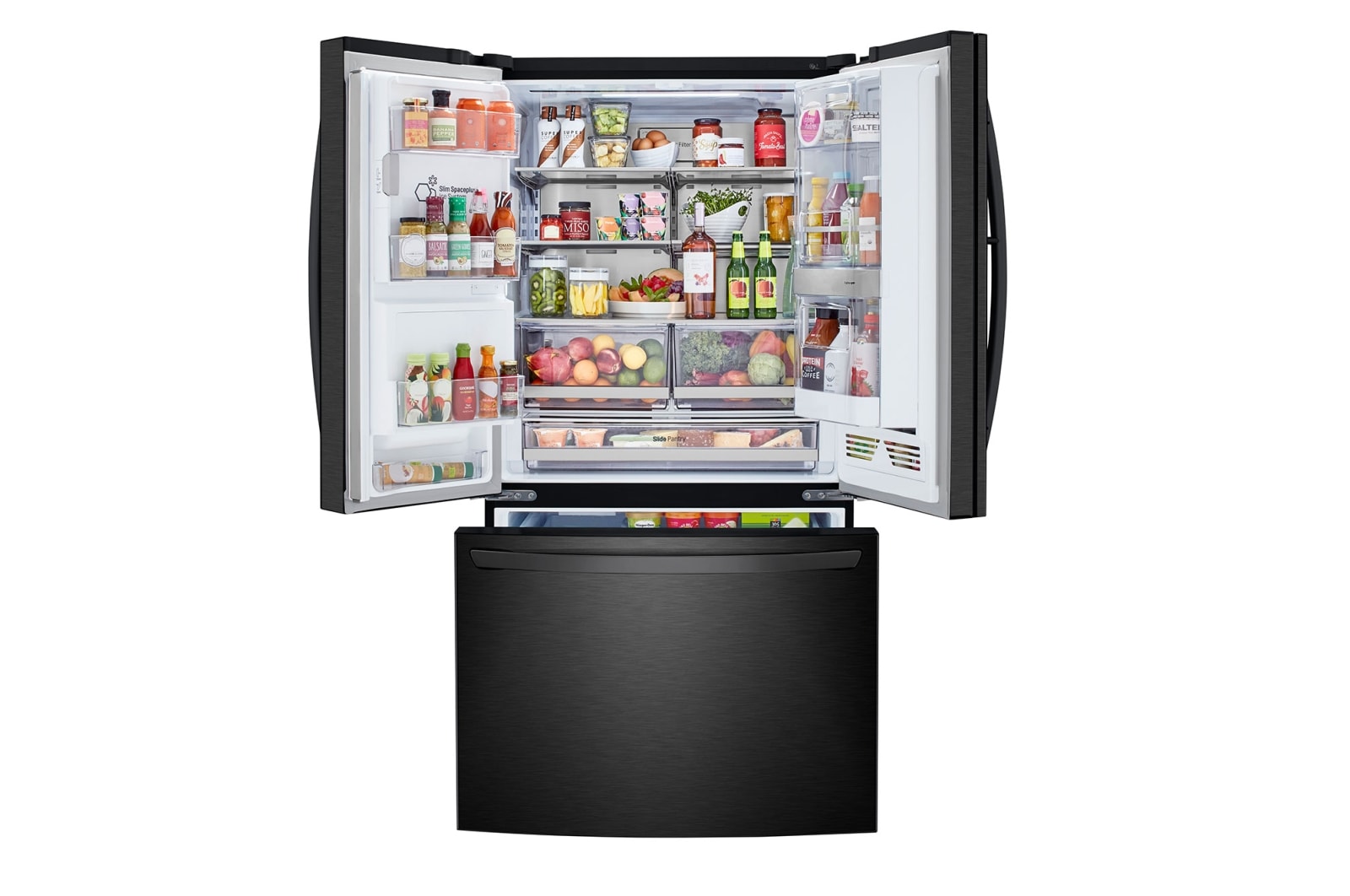

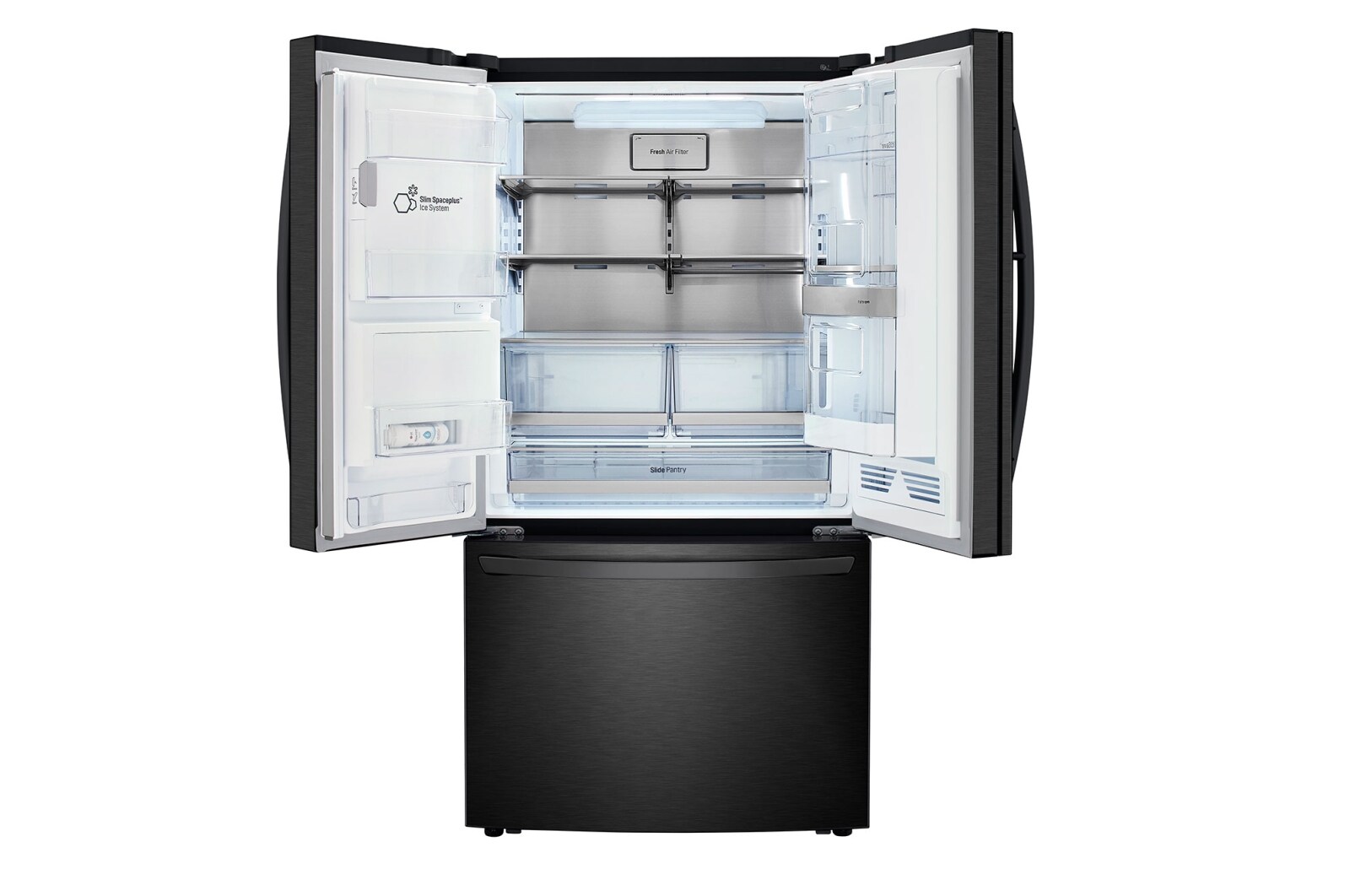

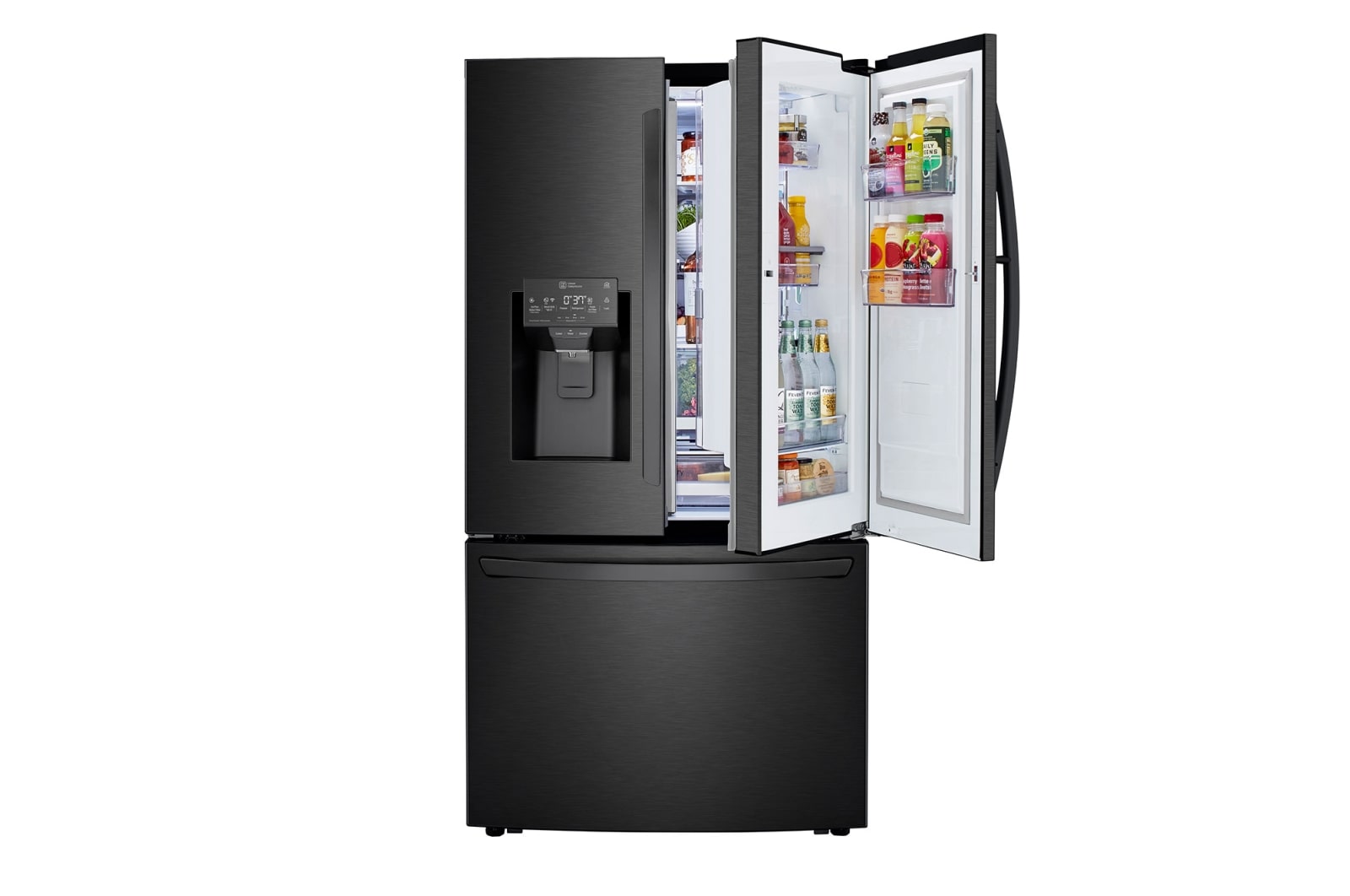

LRFDS3016M-Front view right door open

SUMMARY

Print

DIMENSIONS

CAPACITY
29.7 cu.ft.
MEASUREMENTS (WxHxD)
35 3/4" x 68 3/8" x 34 1/8"
InstaView®
No
ThinQ®
Yes

All Spec

BRAND

  • LG STUDIO

    No

  • LG Brand

    Yes

WIDTH

  • 36"

    Yes

DEPTH

  • Standard Depth

    Yes

  • Counter Depth

    No

CAPACITY(CU.FT.)

  • 30

    Yes

  • Refrigerator

    19.3

  • Freezer

    10.4

  • Total

    29.7

REFRIGERATOR FEATURE

  • Dispenser

    Ice & Water

  • SmartThinQ®

    WiFi

  • Smudge Resistant Finish

    Yes

  • ENERGY STAR®

    Yes

TYPE

  • Black Stainless

    Yes

  • Matte Stainless Steel

    Yes

FEATURES

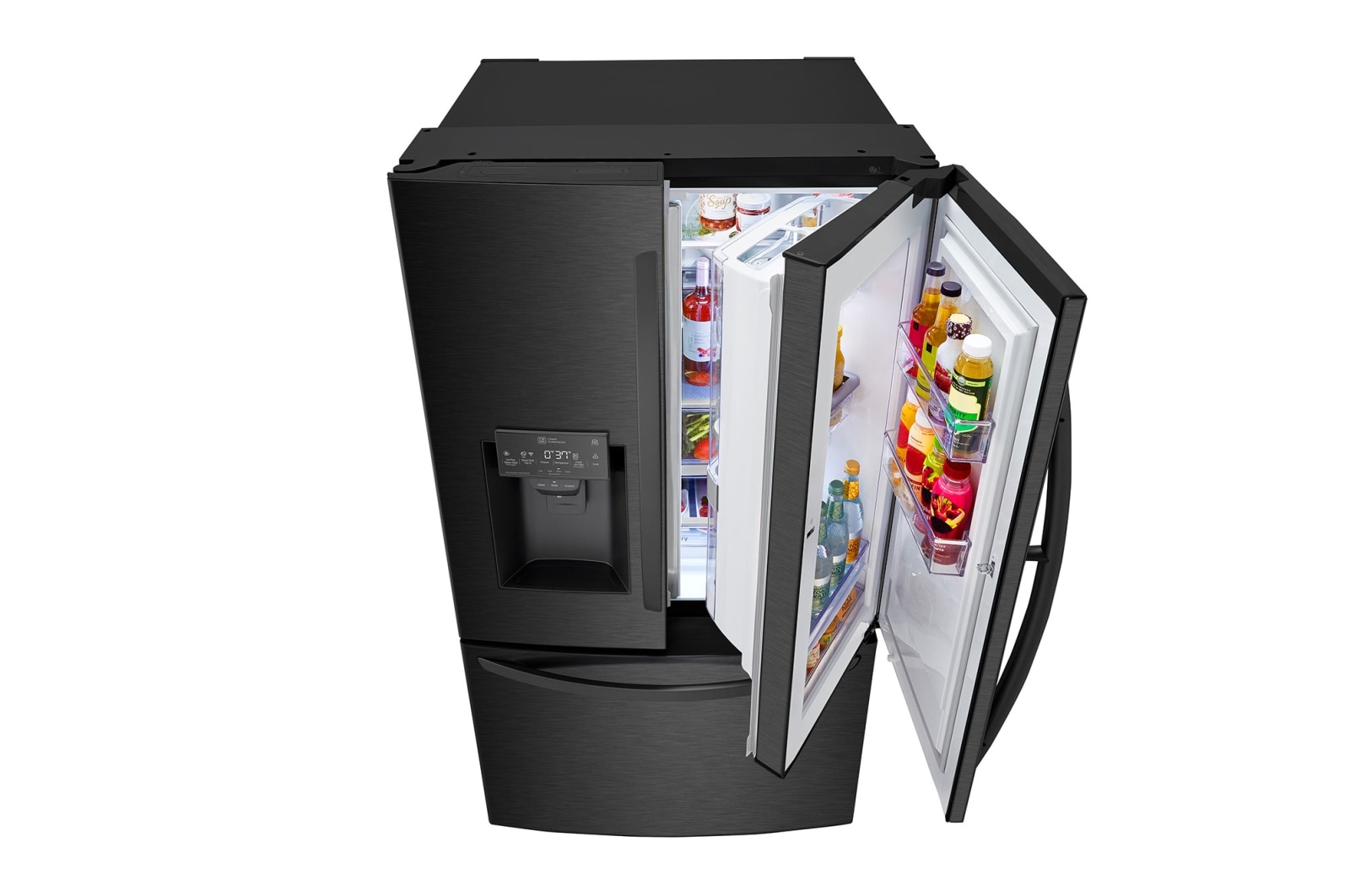

  • Door-in-Door™

    Yes

  • Linear Compressor

    Yes

  • ENERGY STAR®

    Yes

  • Energy Consumption (kWh/Year)

    770

  • Energy Consumption (kWh/Year)

    749

  • Ice & Water Dispenser

    Ice & Water

  • Control & Display

    Smooth Touch (White LED)

  • Dispenser Type

    Integrated Tall

  • Slim SpacePlus Ice System

    Yes

  • IcePlus™ System

    Yes

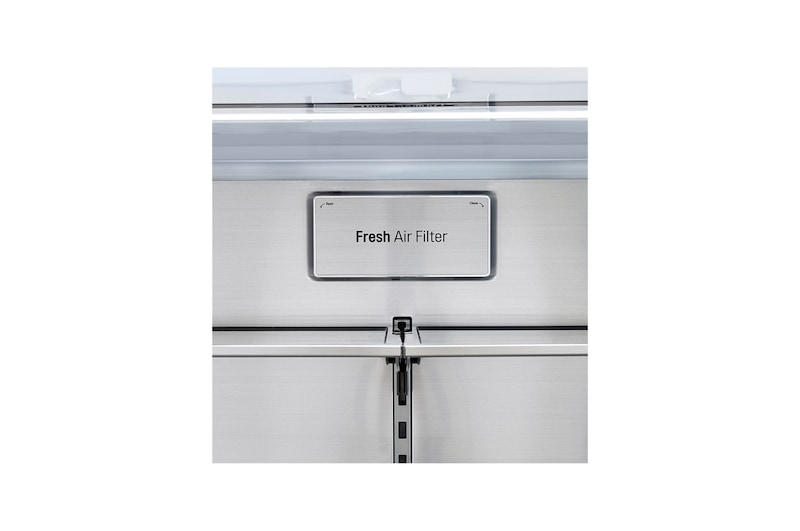

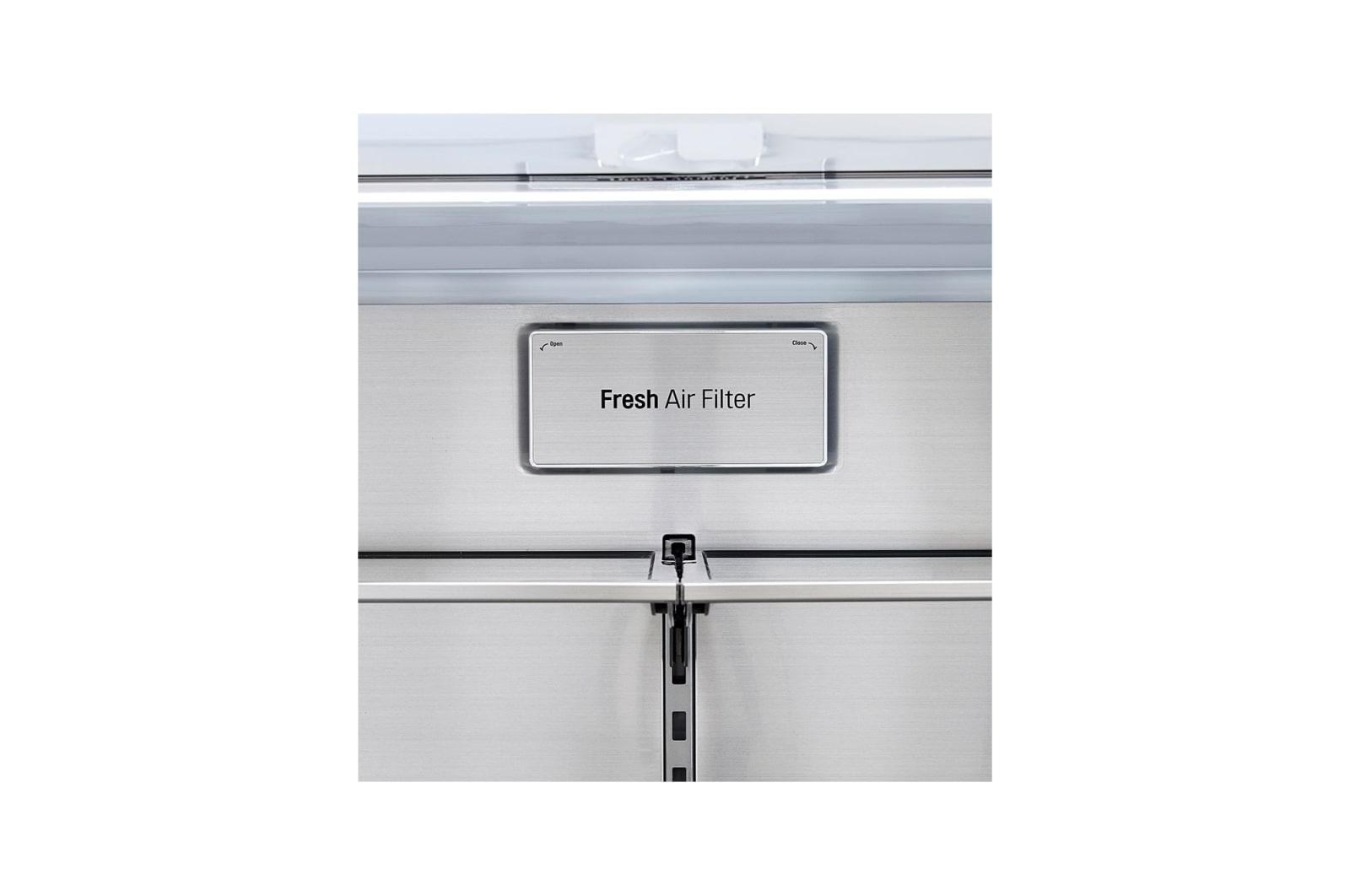

  • Fresh Air Filter

    Yes

  • Multi-Air Flow Cooling

    Yes

  • Temperature Control

    Electronic/Digital

  • Temperature Sensors

    9

  • Water Filtration

    LT1000P

  • Door Alarm

    Yes

  • LoDecibel™ Operation

    Yes

  • Smart Diagnosis™

    Yes

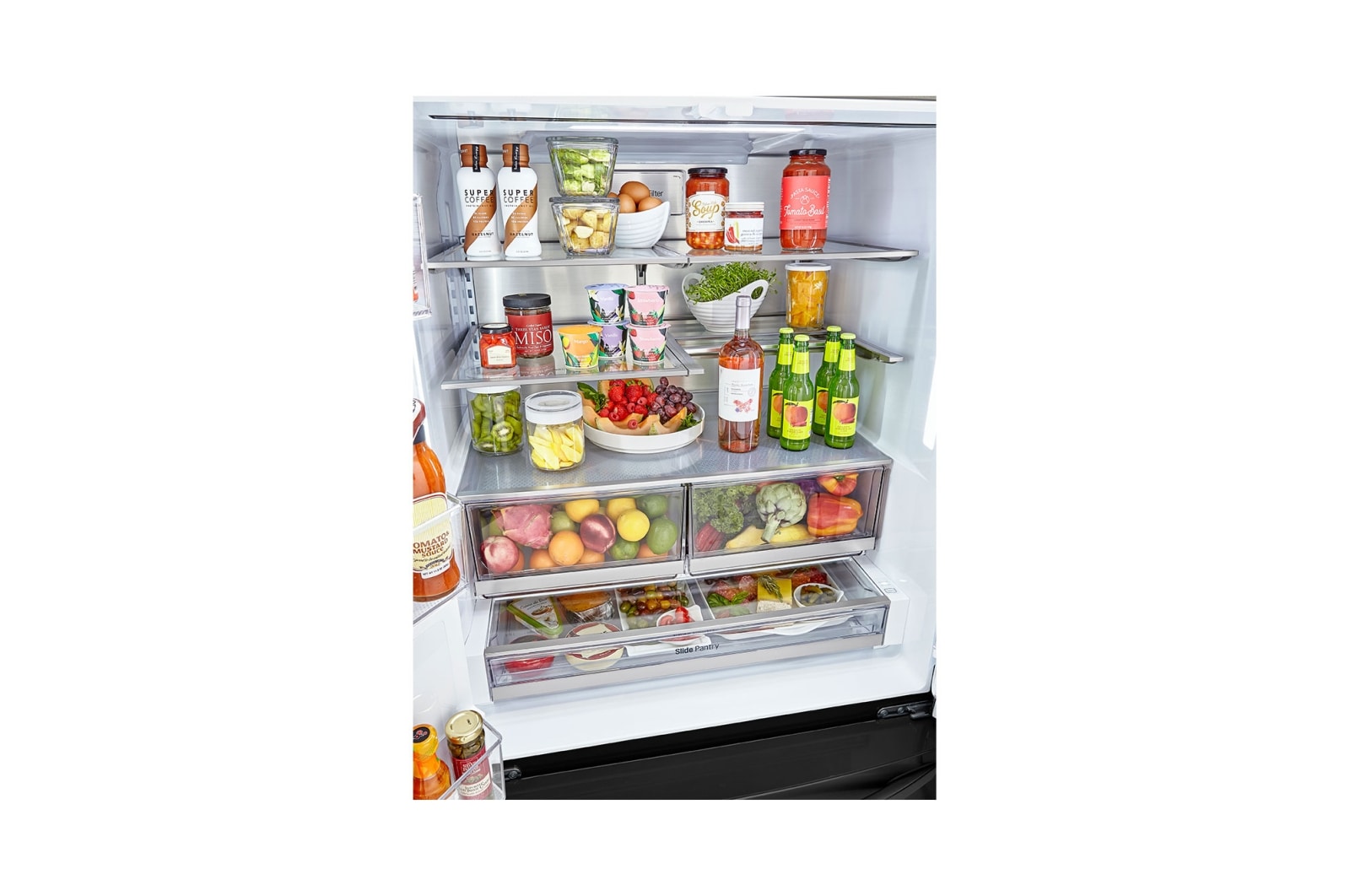

REFRIGERATOR

  • No. of Shelves

    4 Split (1 Folding)

  • Spill Protector™ Tempered Glass

    Yes

  • Shelf Construction

    Cantilever

  • Glide N' Access

    No

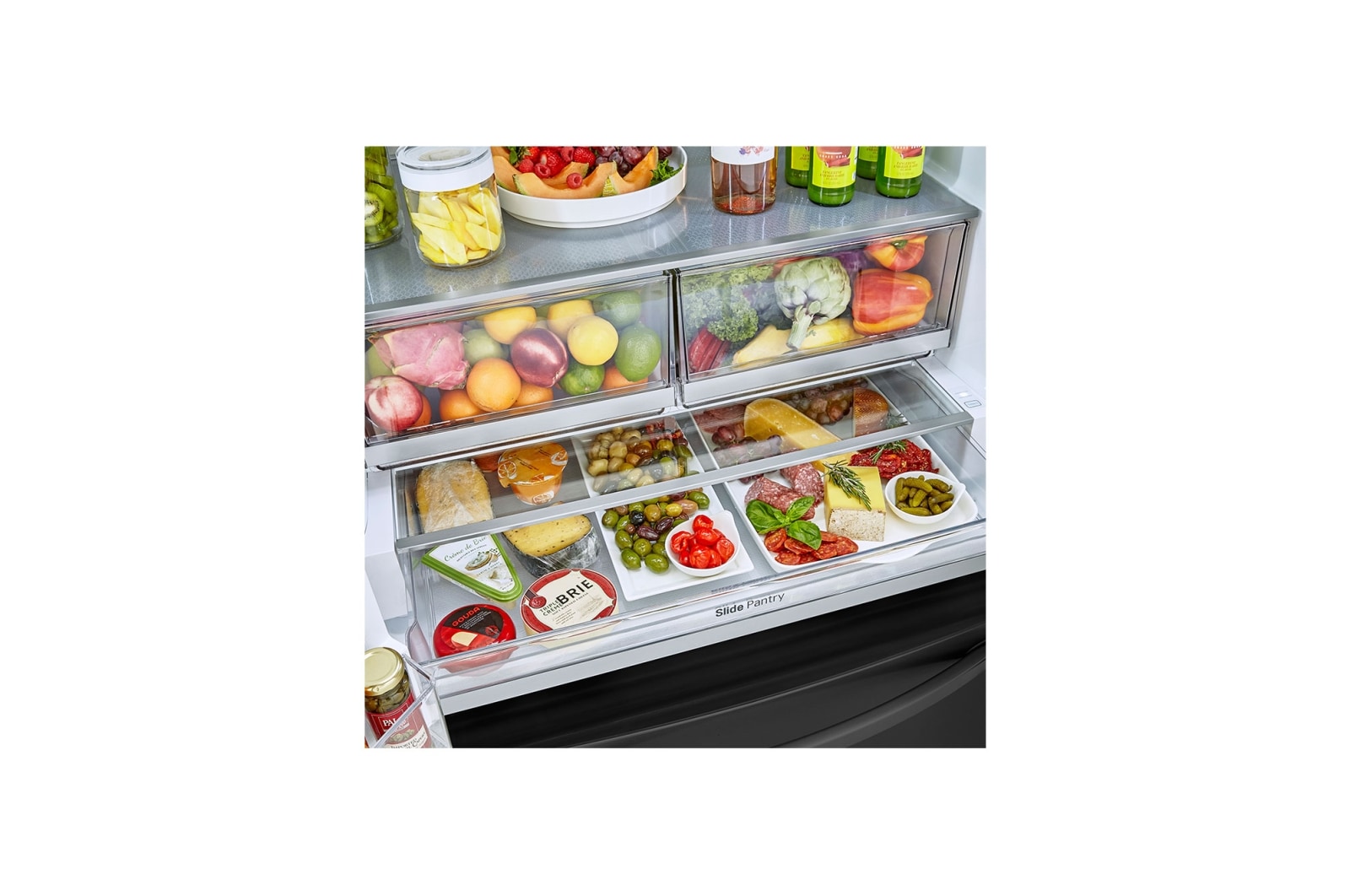

  • Glide N' Serve Pantry Drawer

    Yes

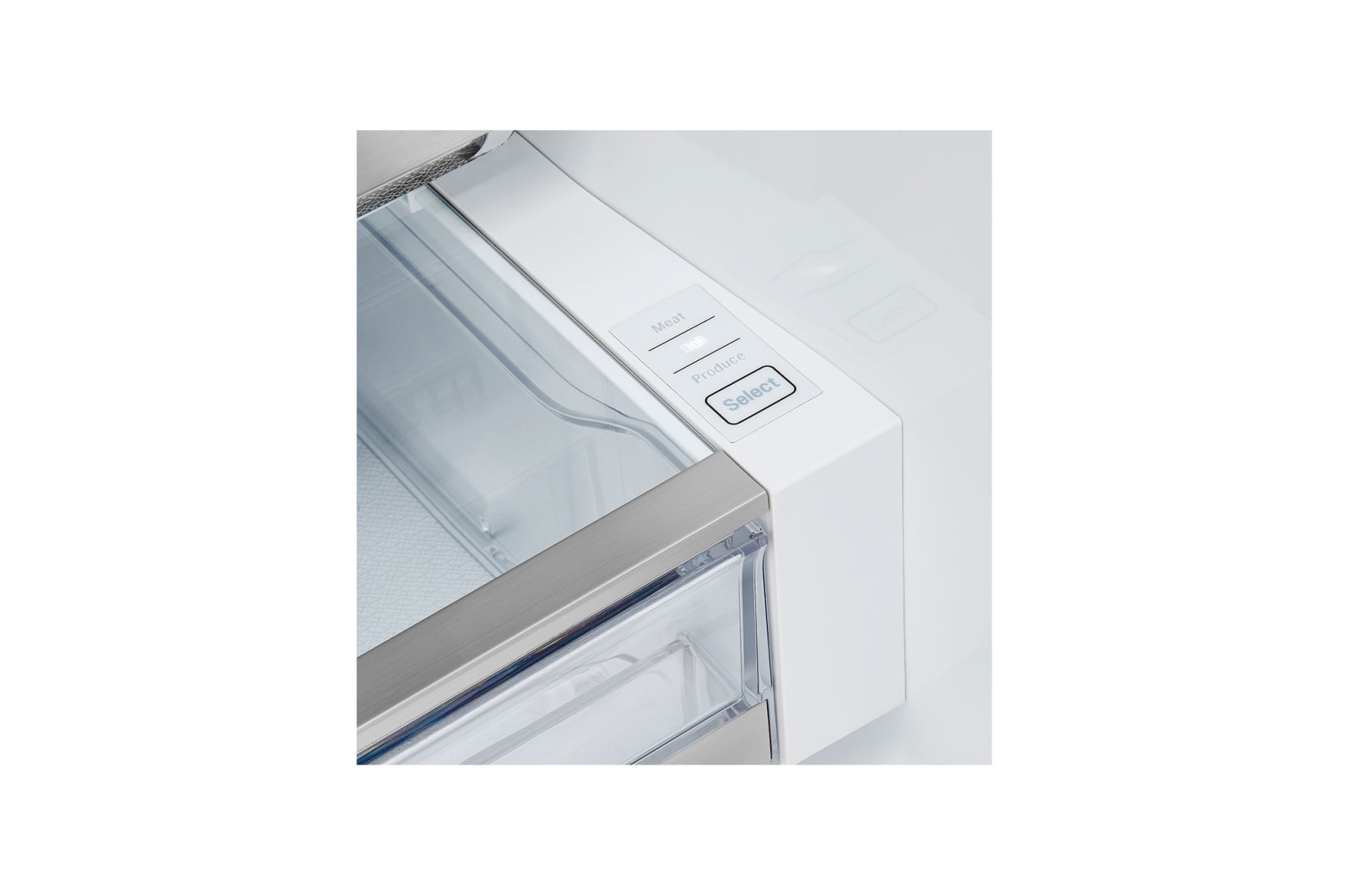

  • Crisper Bin

    2 Humidity Crispers

  • EasyReach™ Bin

    No

  • Refrigerator Lighting

    Micro Surface and Side LED

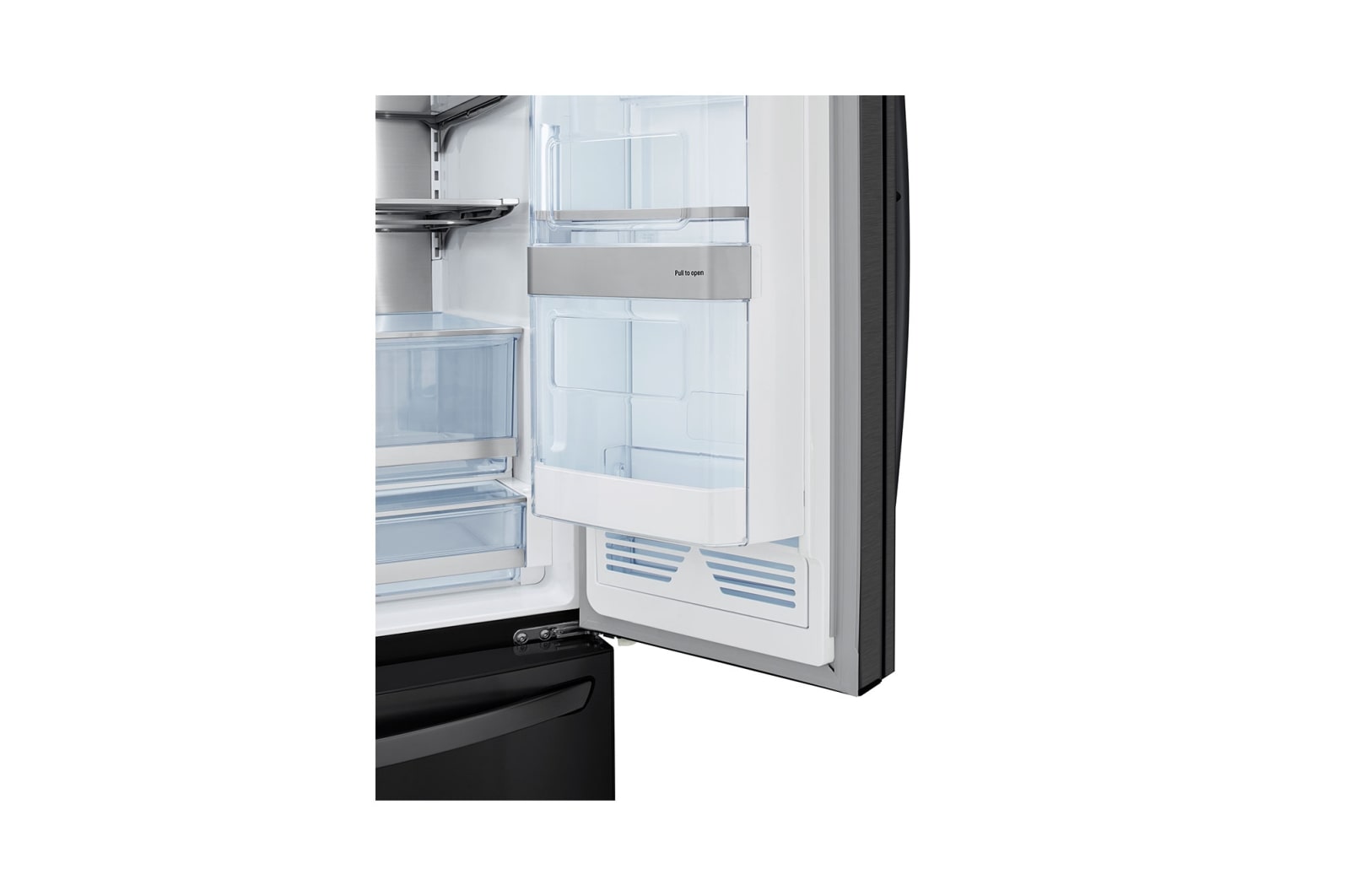

REFRIGERATOR DOOR

  • Dairy Bin

    No

  • No. of Door Bin

    8

  • No. of Door Bin

    10

  • Door Bin Material

    Clear (1PC)

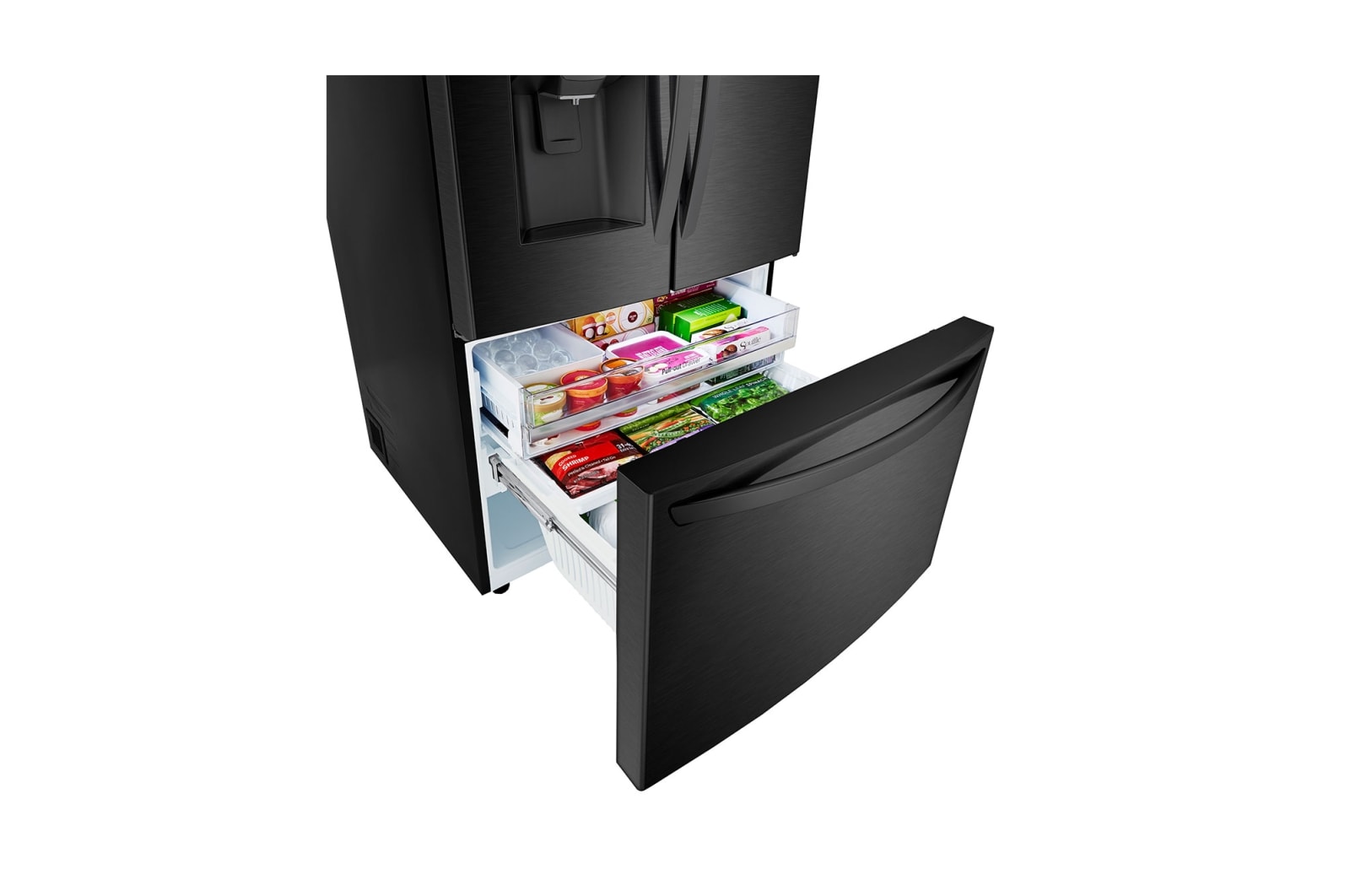

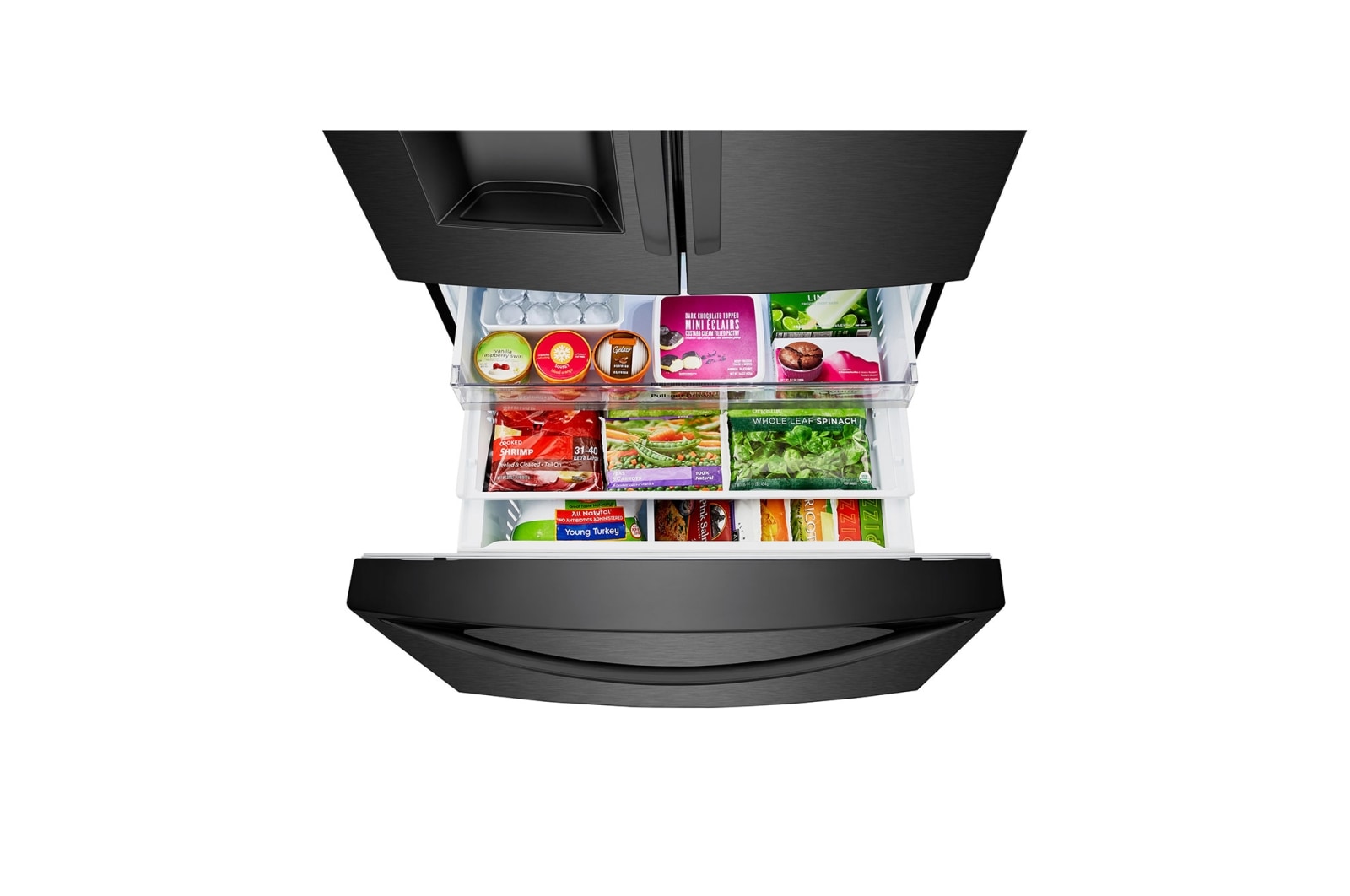

FREEZER

  • SmartPull™ Handle

    Yes

  • Door Type

    Drawer

  • No. of Drawers/Shelves

    3

  • Drawer Divider

    Yes

  • Freezer Ice Maker

    Craft Ice

  • Ice Bucket

    Yes

  • Freezer Light

    Premium LED

SMARTTHINQ®

  • SmartDiagnosis™

    Yes

MATERIALS/FINISHES

  • Door Style

    Contour

  • Hidden Hinge

    Yes

  • Flush Metal Plate Cover on Back

    Yes

  • Available Colours

    Smudge Resistant Black Stainless Steel
    Smudge Resistant Stainless Steel

  • Available Colours

    Smudge Resistant Matte Stainless Steel
    Smudge Resistant Stainless Steel

  • Handles

    Matching Commercial Handles

DIMENSIONS/CLEARANCES

  • Depth w/ Handles

    36 5/8"

  • Depth w/o Handles

    34 1/8"

  • Depth w/o Door

    29 7/8"

  • Depth (Total with Door Open)

    48 1/2"

  • Height to Top of Case

    68 7/8"

  • Height to Top of Door Hinge

    70 1/4"

  • Width

    35 3/4"

  • Width (door open 90 deg. w/ handle)

    44 1/4"

  • Width (door open 90 deg. w/o handle)

    40"

  • Door Edge Clearance w/Handle

    4 1/4"

  • Door Edge Clearance w/o Handle

    2 1/8"

  • Installation Clearance

    Sides 1/8", Top 1", Back 2"

  • Weight (lbs): Unit/Carton

    342 lbs./366 lbs.

  • Weight (lbs): Unit/Carton

    331 lbs./355 lbs.

  • Carton Dimensions(WxHxD)

    38" x 73" x 39"

WARRANTY

  • 1 Year parts and Labor

    Yes

  • 7 Years on the Sealed System

    Yes

  • 10 Year on Linear Compressor

    Yes
