*Depending on installation environment, cables may be visible.

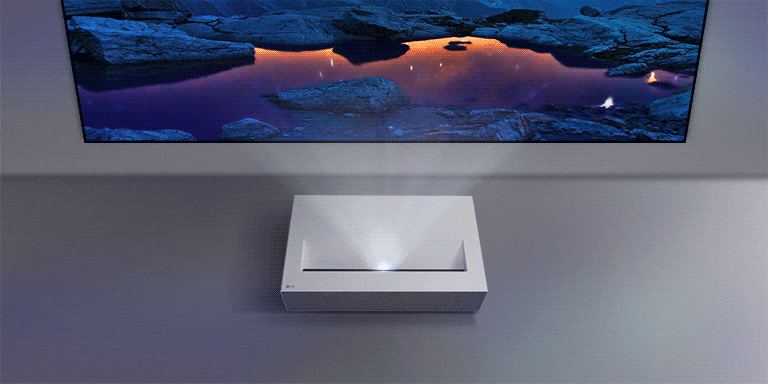

*It can project an 80-inch screen from a distance of 11.8cm, a 100-inch screen from a distance of 21.7cm, and a 120-inch screen from a distance of 31.7cm.

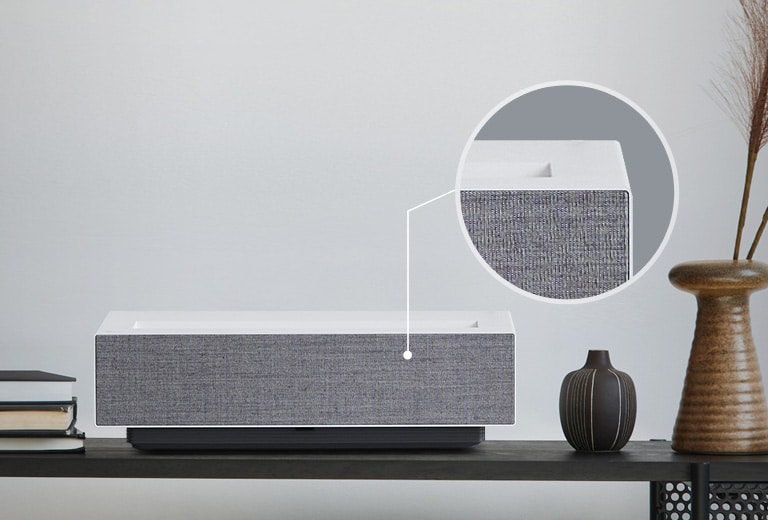

**Textiles by Kvadrat. Kvadrat is a Danish textile company.
comparison of FULL HD and 4K UHD
*Image illustrated to enhance feature understanding.
*The figures of contrast ratio and colour gamut are the measured value from internal testing.
*The marked brightness, the measured value from internal testing, is based on the brightness standard that users perceive.
*The above figures are based on ‘Brightest mode’ and may vary depending on your environment.
*The colour gamut is based on 'Vivid mode’ and the colour reproduction range may vary depending on the picture mode you choose.

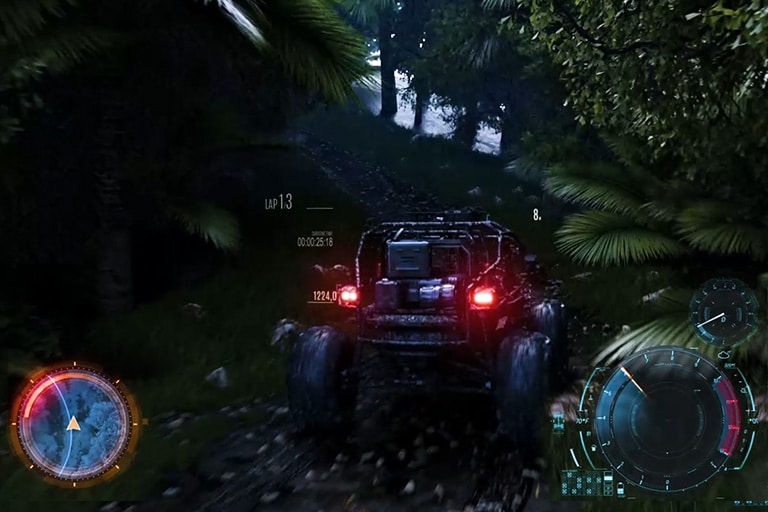

HGiG helps you to enjoy HDR console games from PlayStation® and Xbox®.
*HDR covers almost all HDR specifications, including HDR10, Dynamic Tone Mapping, HLG, HGiG and other specifications.
*The images simulated to enhance feature understanding. It may differ from actual use.

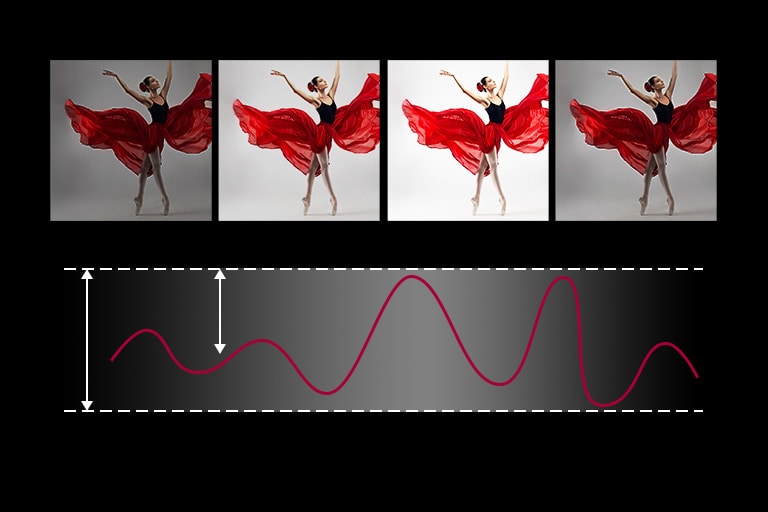

Brightness Optimizer Ⅱ
*Image quality is dependent on source material quality.

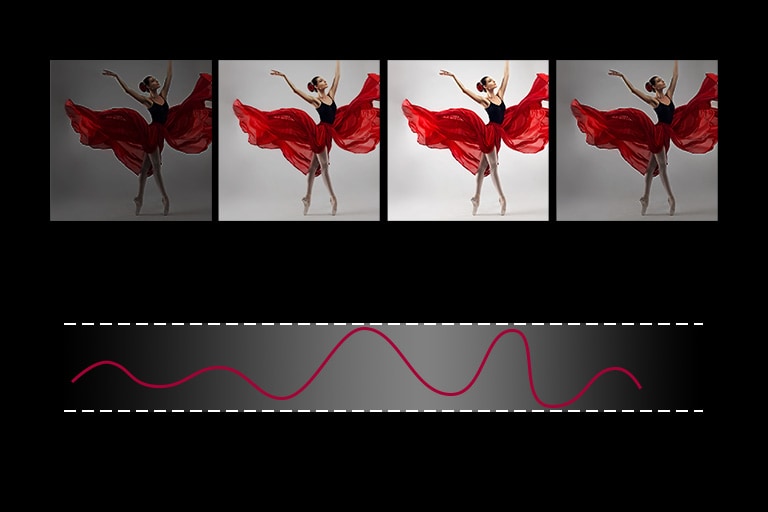

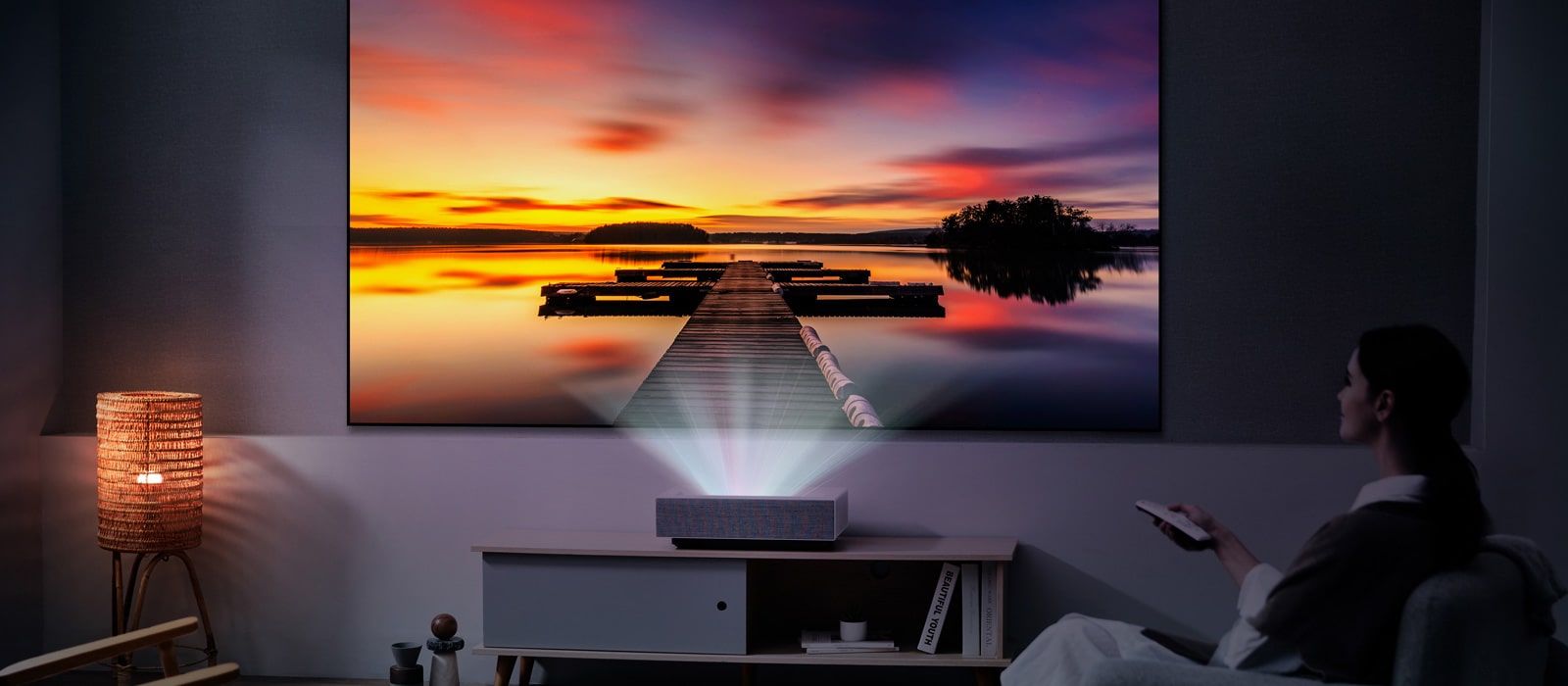

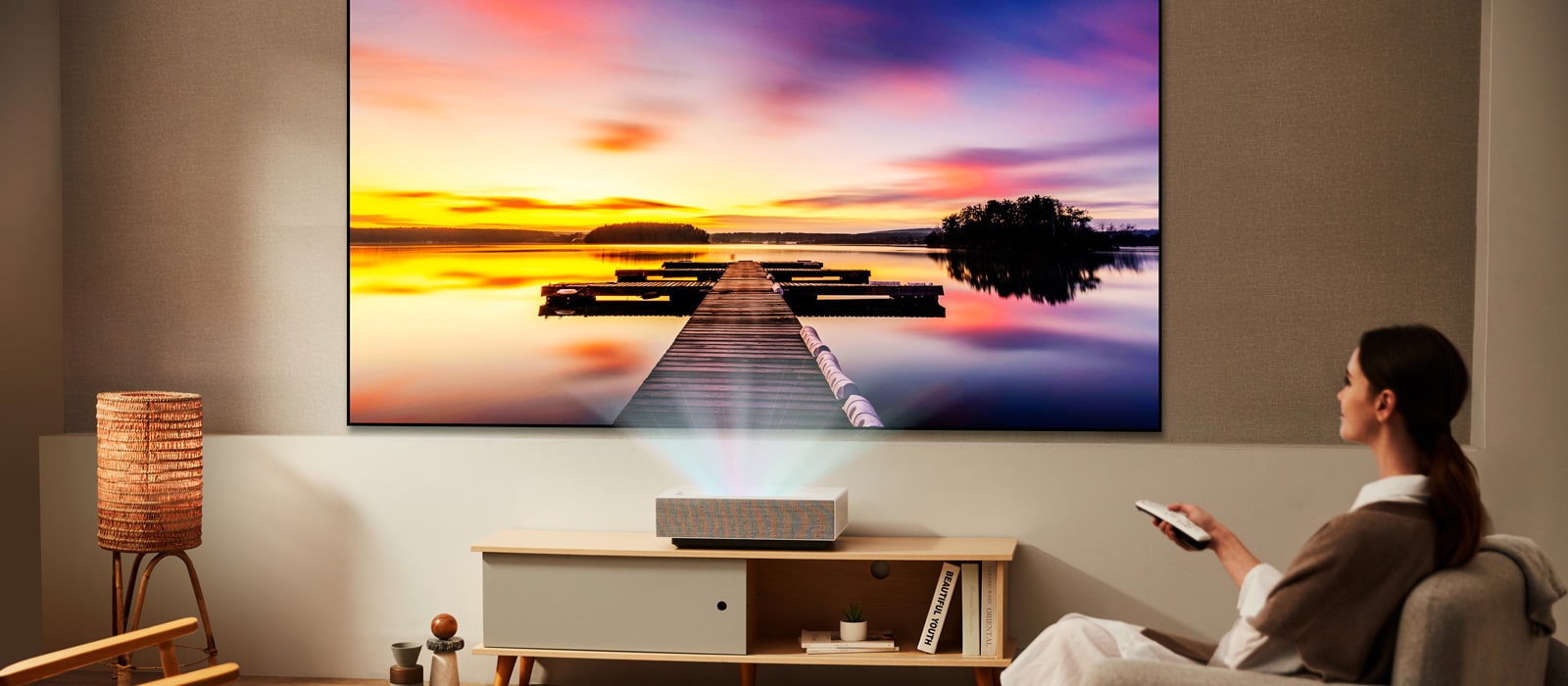

*Brightness OptimizerⅡ includes Auto Brightness and Adaptive Contrast. It controls the amount of electric current depending on the brightness of the original image, while the ambient sensor optimizes the brightness by automatically recognizing the ambient lighting conditions.
*The images simulated to enhance feature understanding. It may differ from actual use.

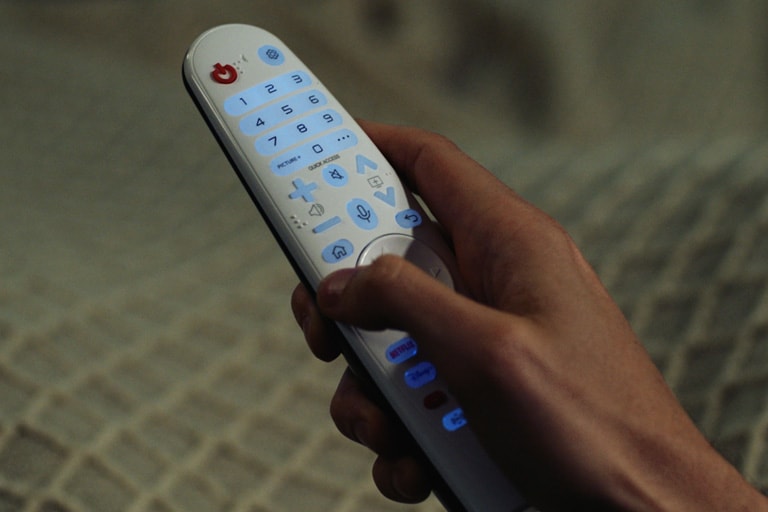

**To run 'Auto Brightness', you can turn on the ambient sensor by accessing the ‘Brightness OptimizerⅡ’ menu using the magic remote control and turning ON/OFF the 'Auto Brightness’. (During use this function, Energy saving menu is disabled).
**Iris mode that physically controls the contrast ratio is NOT supported.

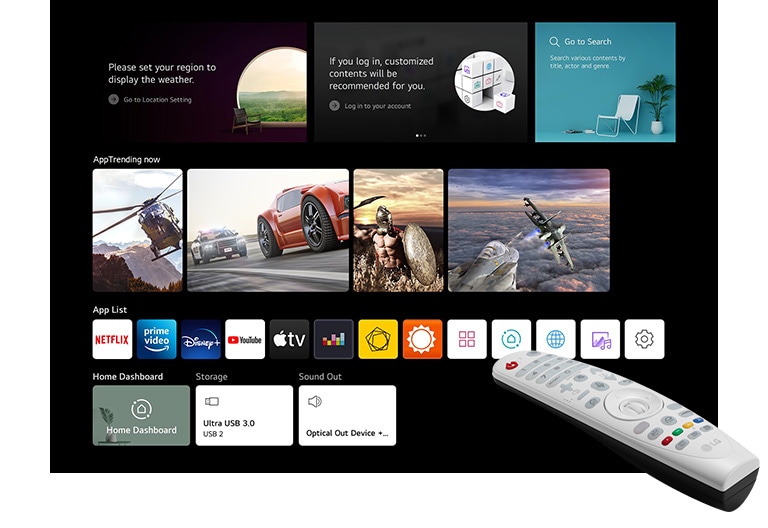

*Internet connection and subscription to streaming services are required.
*Supported services may differ by country.
*Internet connection and subscriptions may be required for certain features and to access certain content.
*Internet usage charges and conditions apply. Content, features and third party services will vary from time to time without notice.

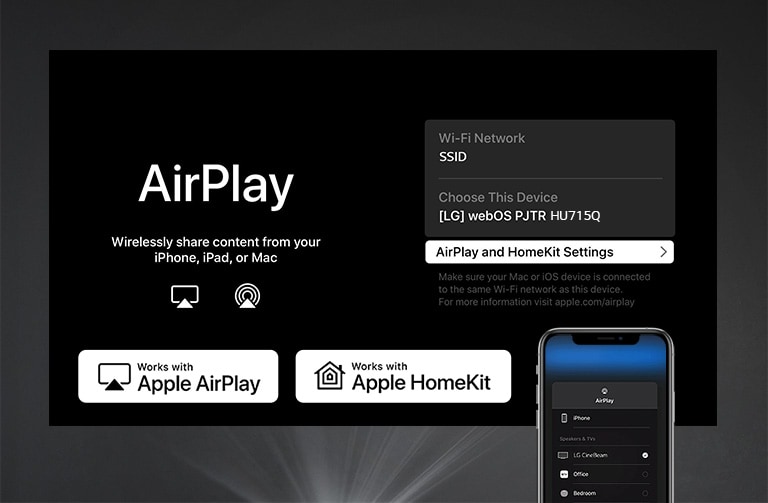

1. Find the video that you want to stream.
2. Tap AirPlay icon.
3. Choose your LG CineBeam projector.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
1. Open Control Center.
2. Tap Screen Mirroring.
3. Select your LG CineBeam from the list.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
1. On 2nd depth Launcher of webOS 6.0, click AirPlay.
2. Click Open Settings and Select 'Set up HomeKit’.
3. Scan the QR Code on LG CineBeam using your Apple device.
4. Complete HomeKit Setting on LG CineBeam.
*Your Apple device must be connected to the same Wi-Fi network as your projector.
*Apple, the Apple logo, AirPlay, Apple TV, and HomeKit are trademarks of Apple Inc., registered in the U.S. and other countries.
*This LG CineBeam supports AirPlay 2 and requires iOS 12.3 or later or macOS 10.14.5 or later.

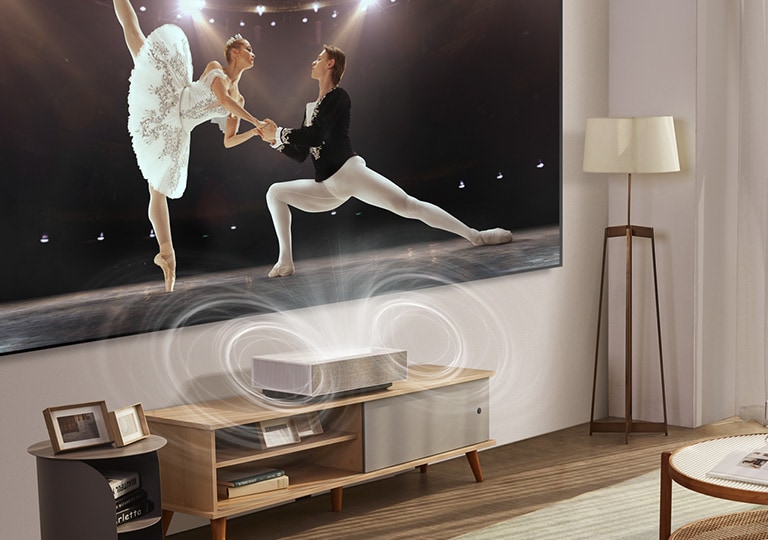

*Sound quality is dependent on source material.

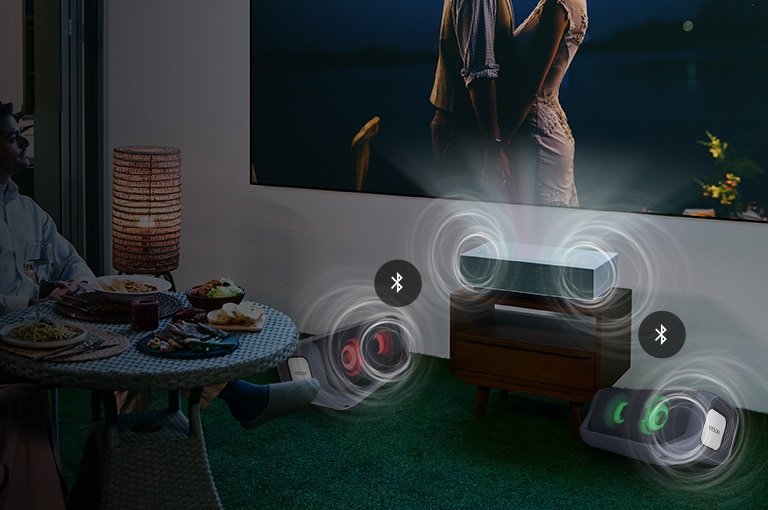

*Needs to purchase Bluetooth speakers to use this function.

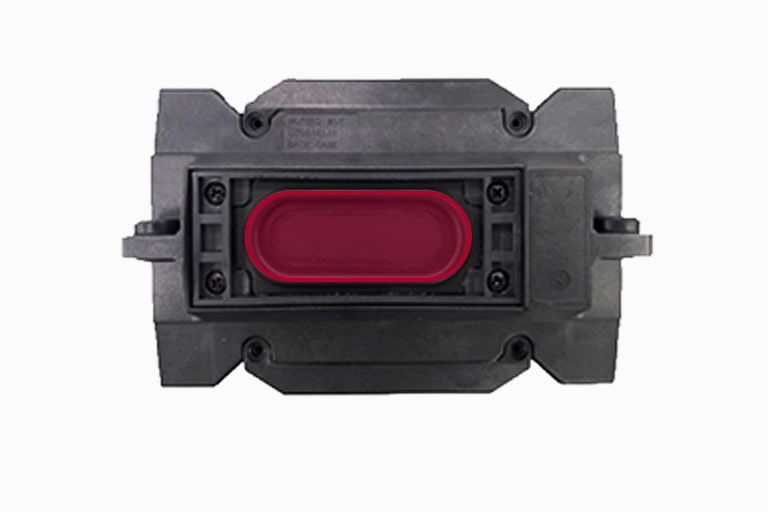

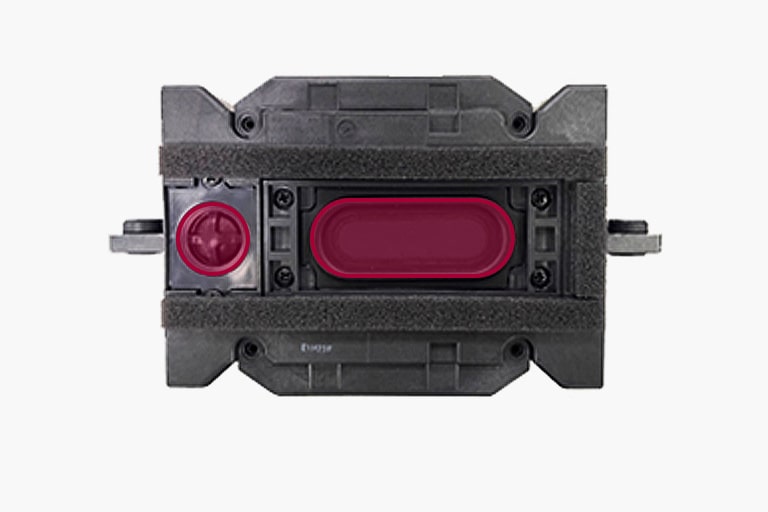

*4.2 channels effect : 2.2 Ch is implemented in virtual. Need to connect two Bluetooth speakers for 4.2 Ch effect.
*The images simulated to enhance feature understanding. It may differ from actual use.
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
2500
Contrast Ratio (Full On Full Off)
2,000,000:1
Noise (typical) - Energy Saving Min. (Bright)
30 dB(A)
Noise (typical) - Energy Saving Med.
28 dB(A)
Noise (typical) - Energy Saving Max. (Eco)
26 dB(A)
Uniformorty (JBMMA 9point)
85%

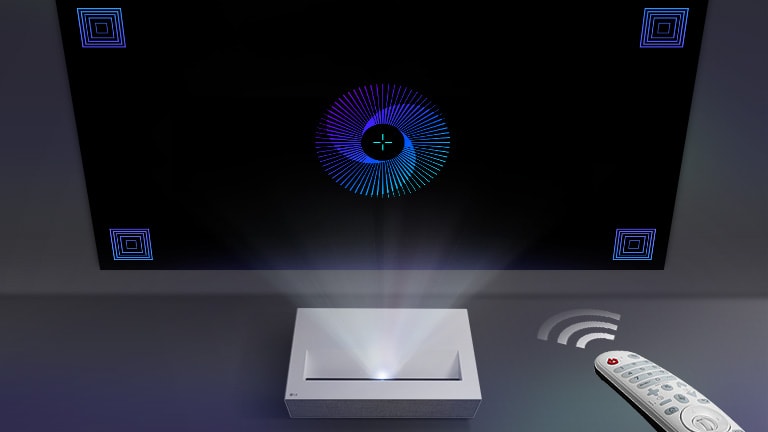

Projection Lens - Focus (Auto / Motorized / Manual)
Motorized
Projection Lens - Zoom
Fixed
Projection Image - Screen Size
80" - 120"
Projection Image - Standard / 100" (lens to wall)
Set to wall: 100"@21.7cmStandard: @49.6cm
Projection Image - Throw Ratio
0.22
Projection Offset
118%
Light source - Type
B-LD(105W) + P/W
Light source - Life High Brightness
20,000 Hrs
Light source - Life Economic
30,000 Hrs
Cabinet Colour
White
Local Key
Yes
Kensington Lock
Yes
Leg-Stand
Yes (4 Leg)
Ceiling mount hole (for bracket)
Yes
OSD Language
Korean / English / English(UK) / French / Spanish / German / Portuguese / Brazilian Portuguese / Dutch / Russian / Polish / Hungarian / Romanian / Slovenian / Croatian / Bulgarian / Serbian / Italian / Finnish / Swedish / Lithuanian / Norwegian / Latvian / Estonian / Canadian / Czech / Turkish / Slovak / Arabic / ChineseSimplified / Indonesian / L-Spanish / India / Japanese / Thai / Taiwanese / Vietnamese / Danish
Aspect Ratio Control
16:9 / Original / 4:3 / Vertical Zoom / All-Direction Zoom
Sound - Output
20W + 20W Stereo
Sound - Clear Voice
Yes (Clear Voice lll)
Sound - Dolby Atmos compatible
Yes (Pass Through)
Net Size (mm) (W x D x H)
533 x 315 x 153
Net Weight (kg or g)
11.1kg
Power Consumption (Max.)
350W
Stand-by Power
<0.5W
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
Operation Temperature
0 ~ 40℃
Input Signal Compatibility - Digital (HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
Manual (Full or Simple Book)
Simple Book
Quick User Guide (Quick Set-up Guide)
Yes
Cable - Power cord
1
Remote control (Battery included) - Motion
Yes (Magic Lighting Remote)
Conformances (Regulation)
KCC, KC, FCC, ETL, CE/CB, PSE

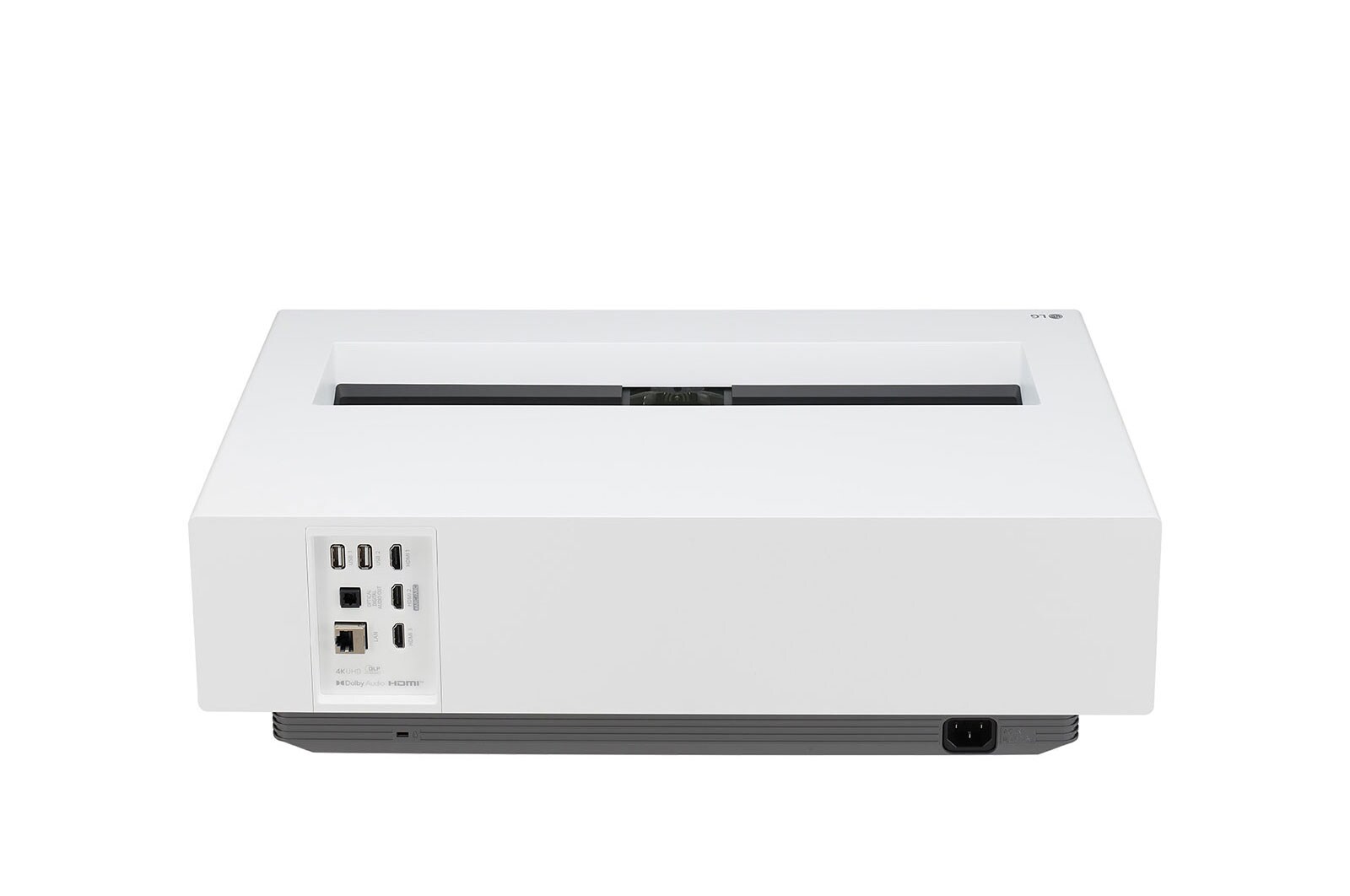

Audio out
S/PDIF 1(Optical)
IP control
Yes
RJ45
1
HDMI
3 (HDMI2.1* : 1EA / HDMI2.0 : 2EA) *ALLM (Auto Low Latency Mode), eARC (Enhanced Audio Return Channel), up to 24Gbps (input) / 4:4:4/RGB 10 bit (output)
USB Type-A
2 (USB2.0)
Processor
Quad Core
HDR
HDR10, HLG
HDR Tone Mapping
Yes (Auto, Dynamic/frame by frame)
Brightness Optimiser - Ambient Sensor (Auto Brightness)
Yes
Brightness Optimiser - Adaptive Contrast
Yes (High / Medium / Low / Off)
TruMotion
Yes (up to 4096x2160)
Cinema Screen (Real Cinema)
Yes (up to 4096x2160)
Upscaler
Yes (4K)
Super Resolution (Expert Control)
Yes (4K)
FILMMAKER mode
Yes
HGiG (HDR Gamming Interest Group) mode
Yes
Digital Keystone Correction
Edge Adjustment (4/9/15 Point Warping)
Image Flip
Yes (Horizontal/Vertical)
Black Level Control
Yes
Noise Reduction
Yes
Colour Temperature Adjustment
Yes
Dynamic Contrast (Expert control)
Yes
Dynamic Colour (Expert control)
Yes
Colour Management System (Expert control)
Yes
Colour gamut setting (Expert control)
Yes
Gamma Correction (Expert control)
Yes
White balance setting (Expert control)
Yes
Quick(Instant) Power on/off
Yes (on 12 Sec / off 2 Sec)
Store Mode
Yes
Self Diagnosis
Yes
Platform (OS, UI)
webOS 6.0 (Smart)
Home Dashboard (Input, IoT with OCF device)
Yes (OCF/UEI IoT not supported)
Background Image
Yes
Premium CP
Yes
Contents Store (LG App Store)
Yes
Contents Suggestion
Yes
Internet Browser
Yes
Voice Recognition - Built-in (Thru MIC on Magic Remote)
LG ThinQ
Voice Recognition - Speaker Compatible (works-with)
Apple Homekit
Screen Share (Wireless Mirroring with MiraCast supporting Android/Window device)
Yes (up to 4K/30Hz)
Airplay 2 (iOS/Mac Video Casting, mirroring, Audio Streaming)
Yes (up to 4K/30Hz)
Bluetooth Sound out
Yes
Bluetooth Surround Mode
Yes
Bluetooth AV Sync Control
Yes
LG Sound Sync (with Sound Bar)
Yes
HDMI ARC (Audio Return Channel)
Yes (eARC)
HDMI simplink (CEC)
Yes
HDCP
HDCP2.2
Plug & Play (RGB/DVI/HDMI Auto Source Detection)
Yes
USB Host (Movie, Music, Photo)
Yes
Setting Guide
Yes (Bean Bird)
HID (Keyboard/Mouse/GamePad Connection Thru USB)
Yes
Eco Function - Energy Saving Mode
Yes (Min/Med/Max)
Eco Function - Sleep Timer
Yes
Eco Function - Auto Off / Auto Sleep
Yes
Eco Function - Time Power On/Off (On Time / Off Time)
Yes (On / Off)
Eco Function - Automatic Standby / Auto Power Off
Yes
