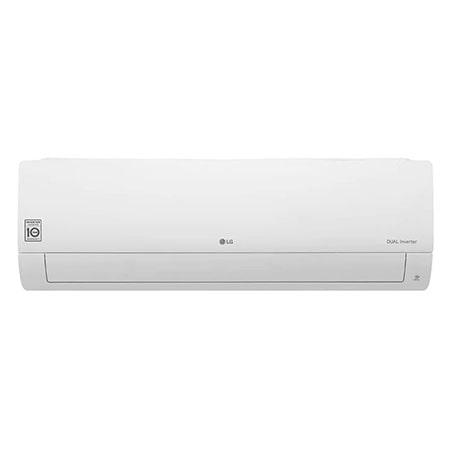

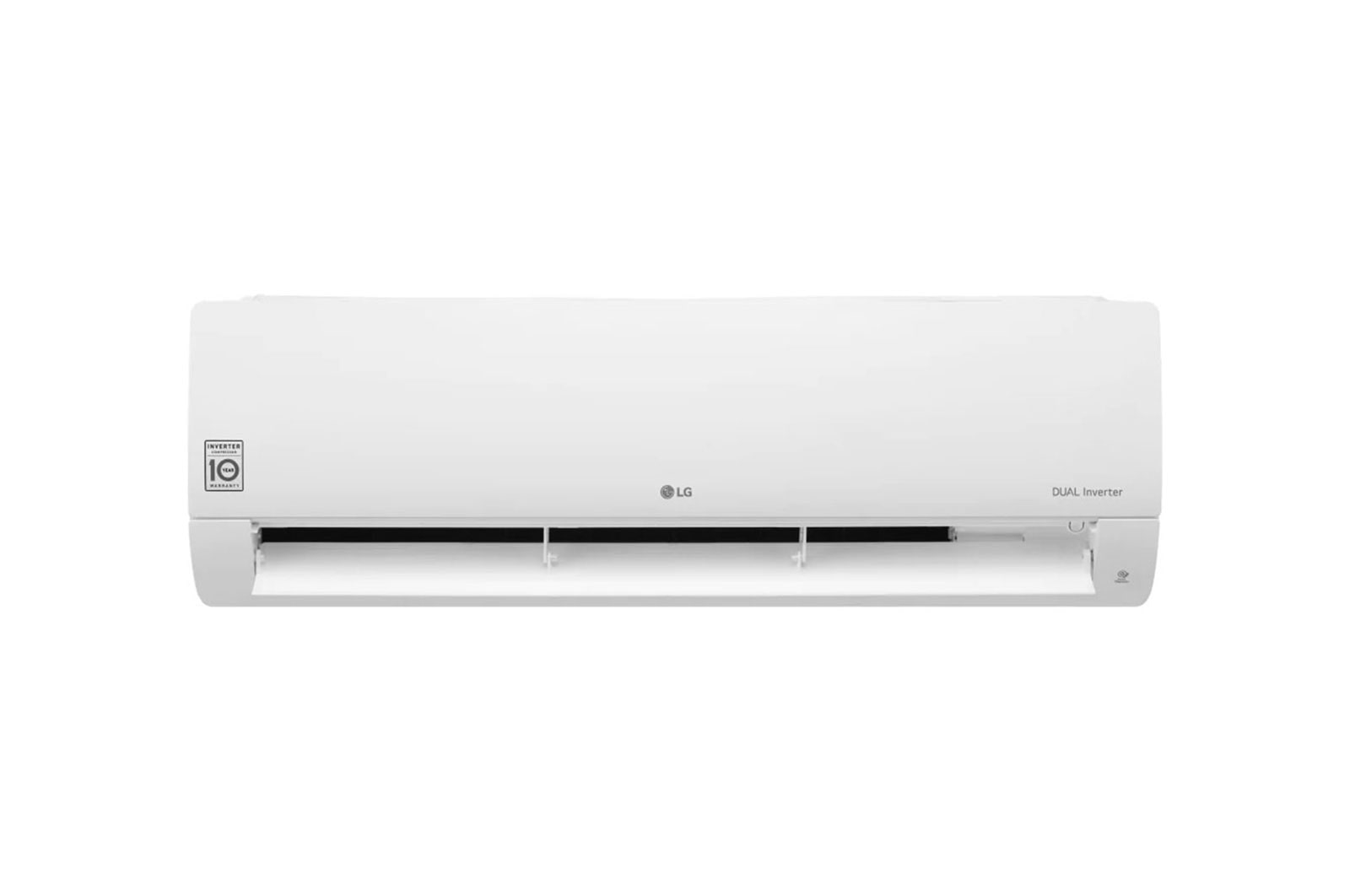

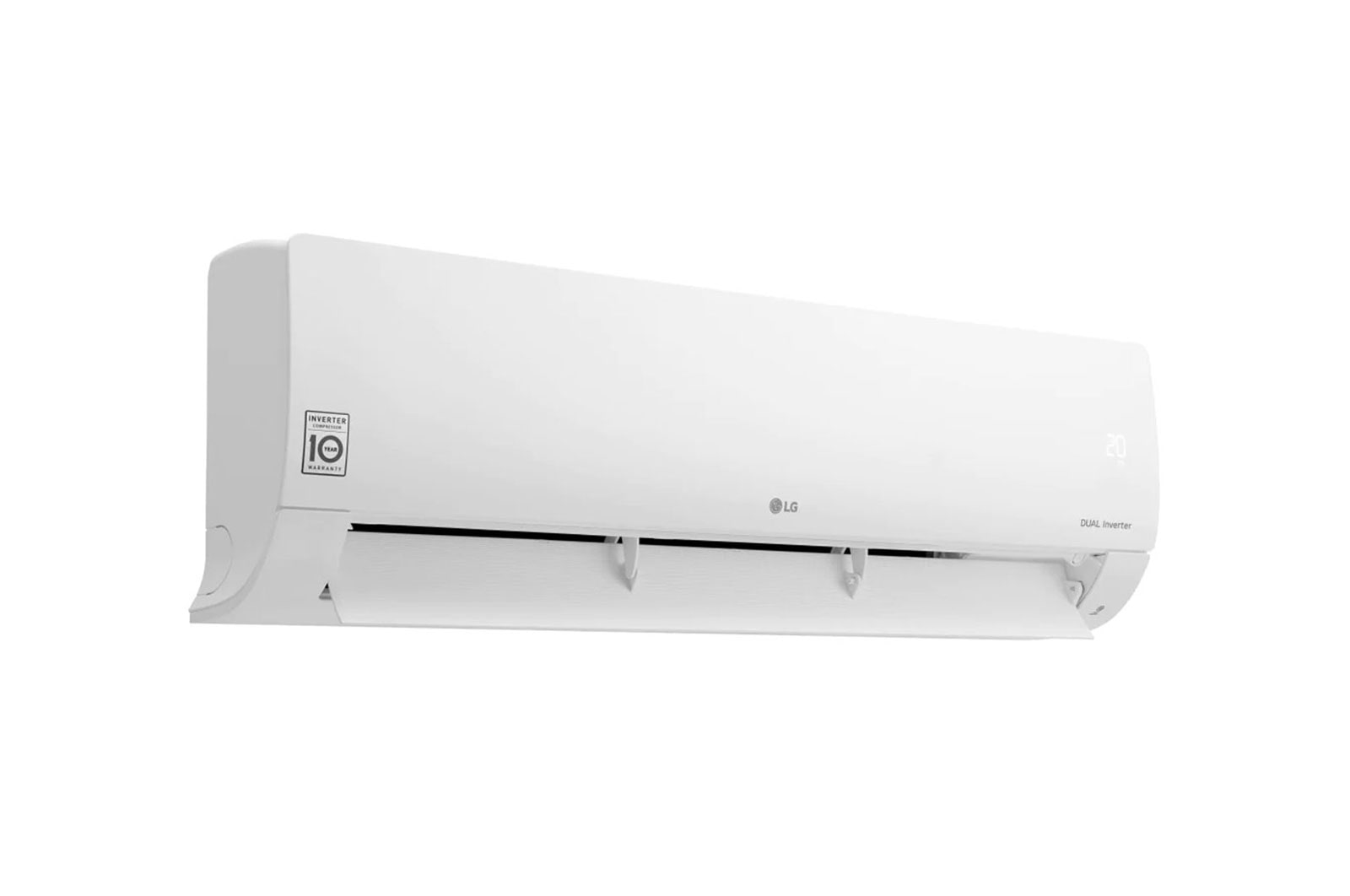

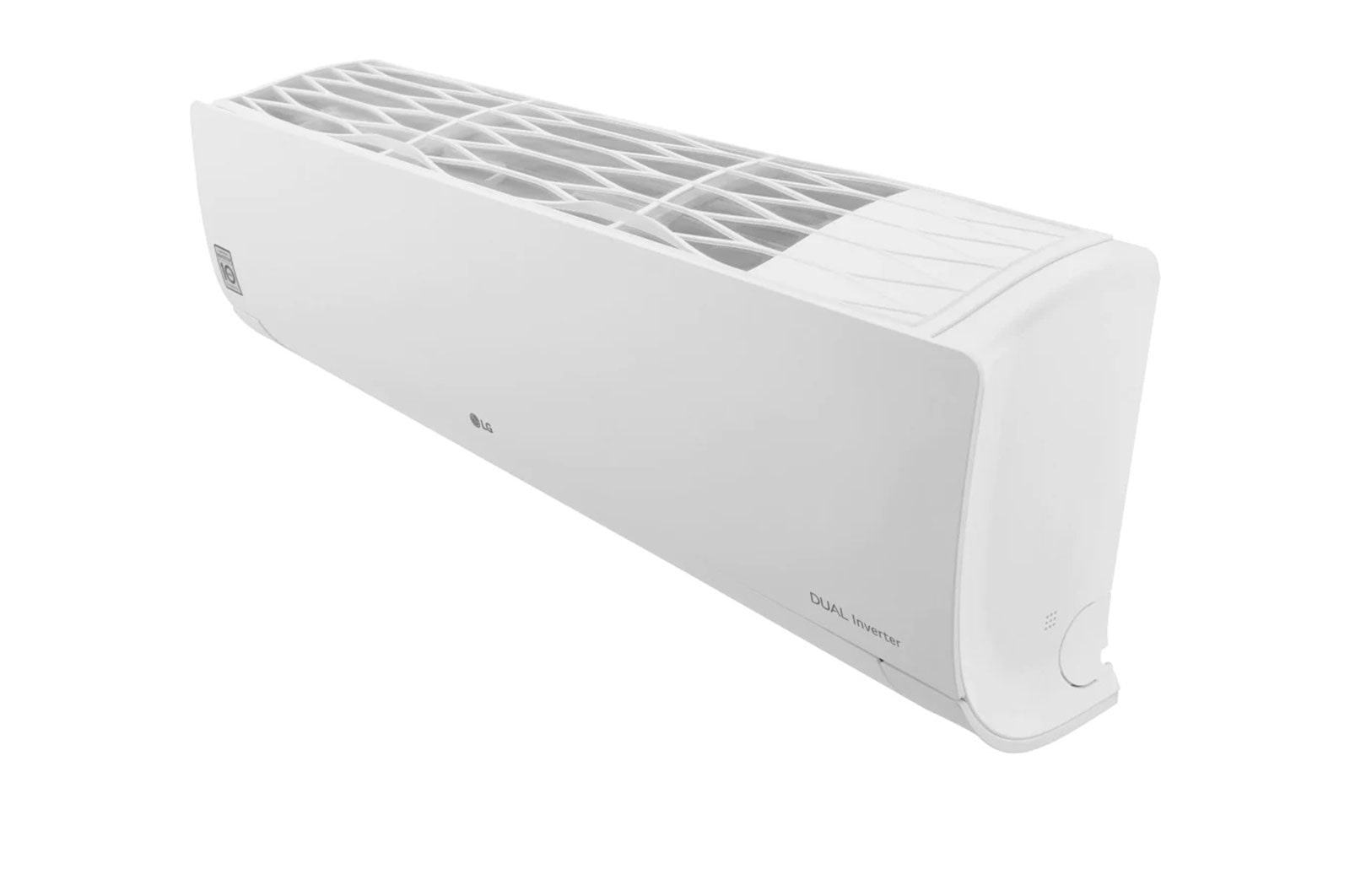

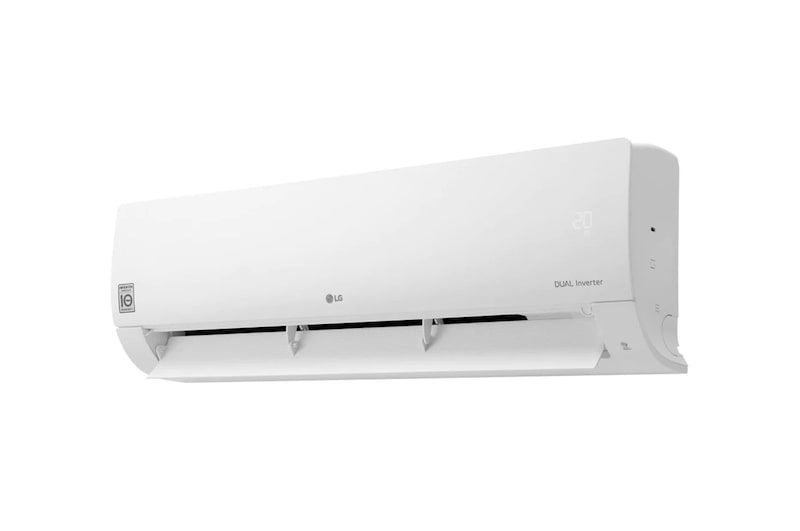

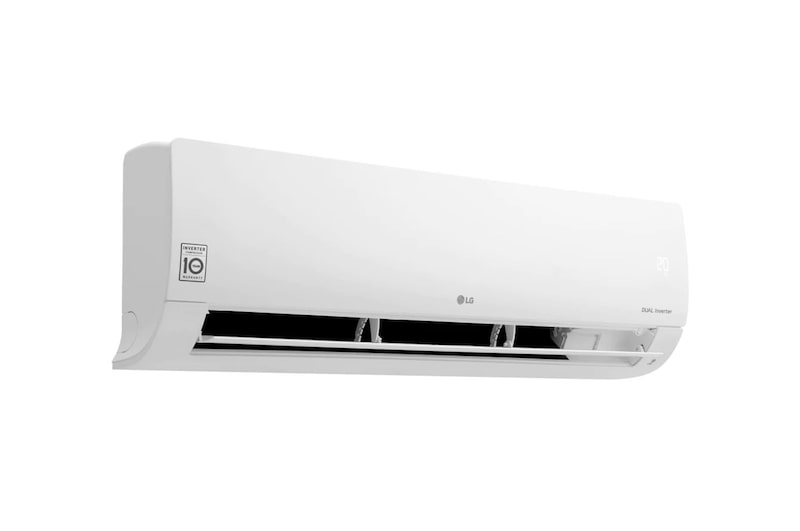

Split Type Dual Inverter Standard Aircon

Specs

Reviews

Support

Split Type Dual Inverter Standard Aircon

Split Type Dual Inverter Standard Aircon

HSN24ISY
  • HSN24ISY

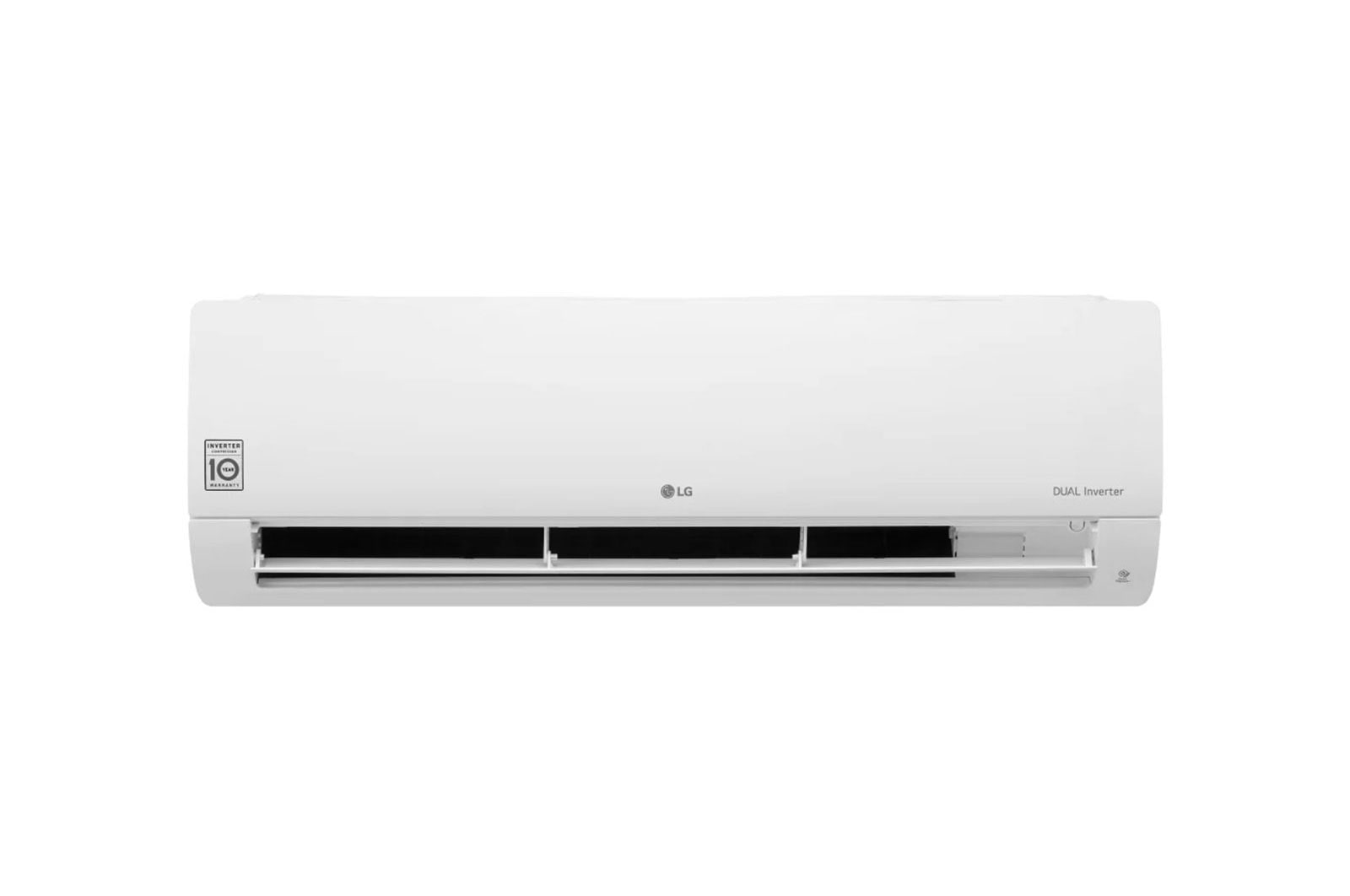

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

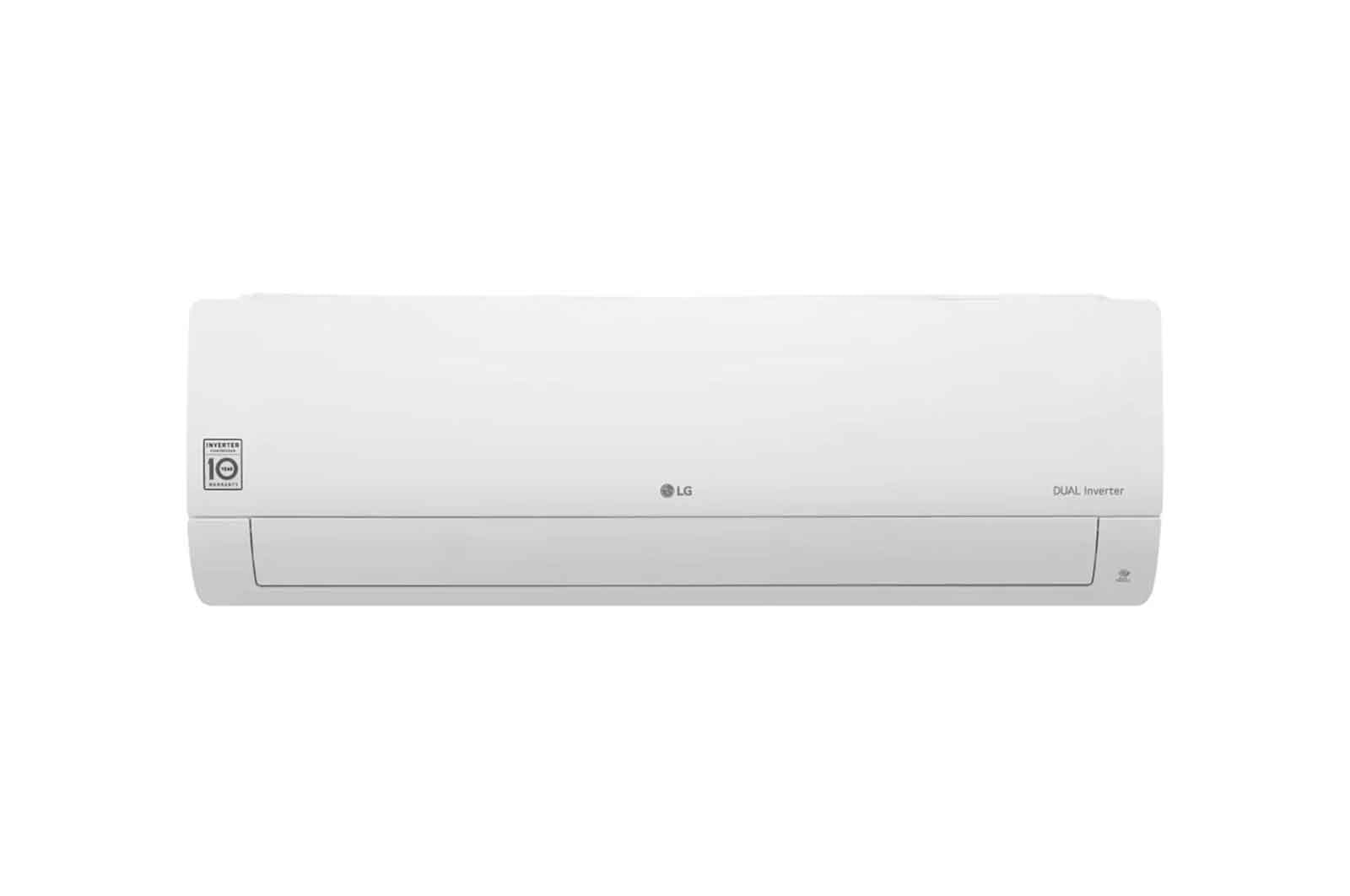

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

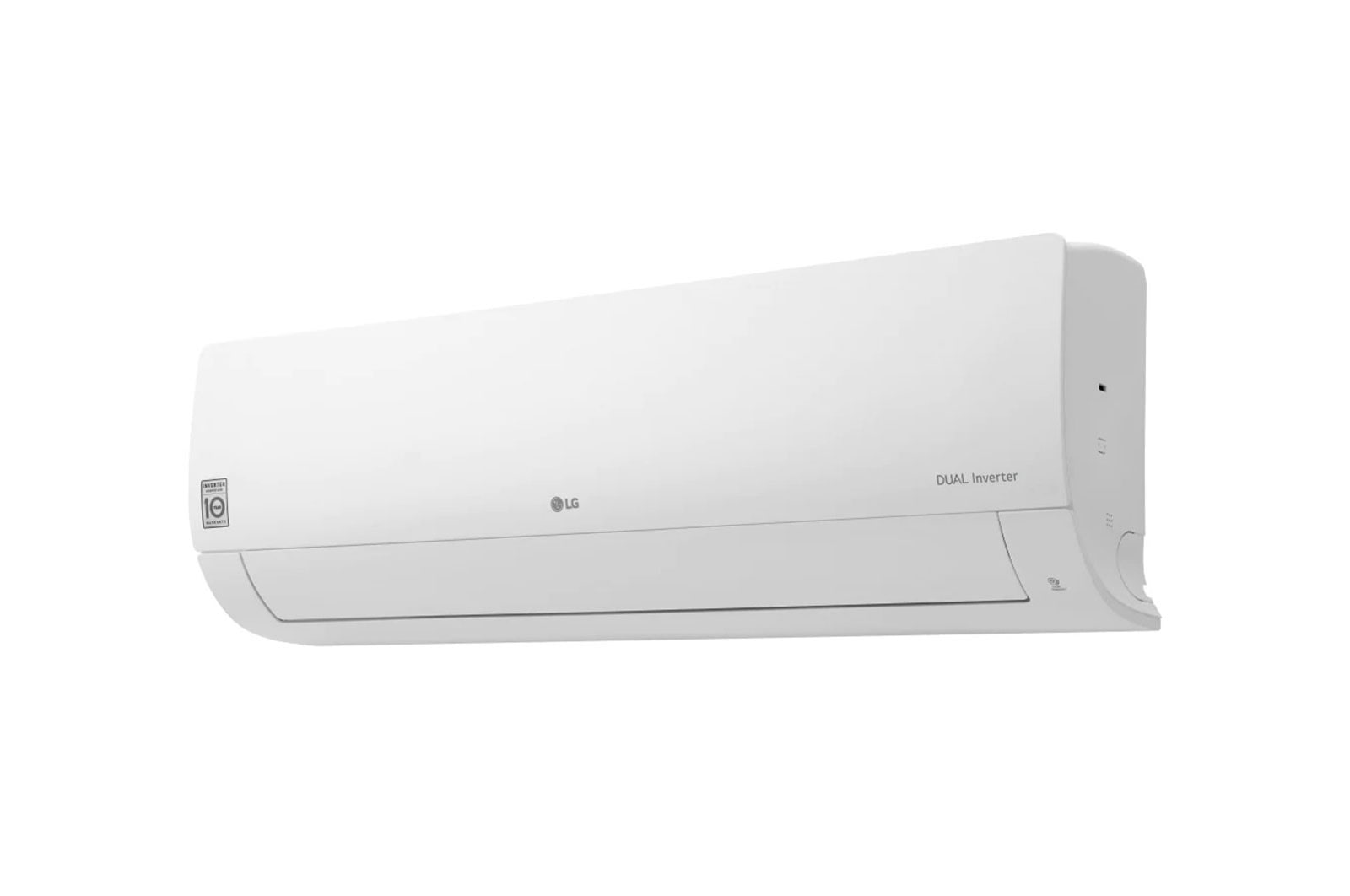

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

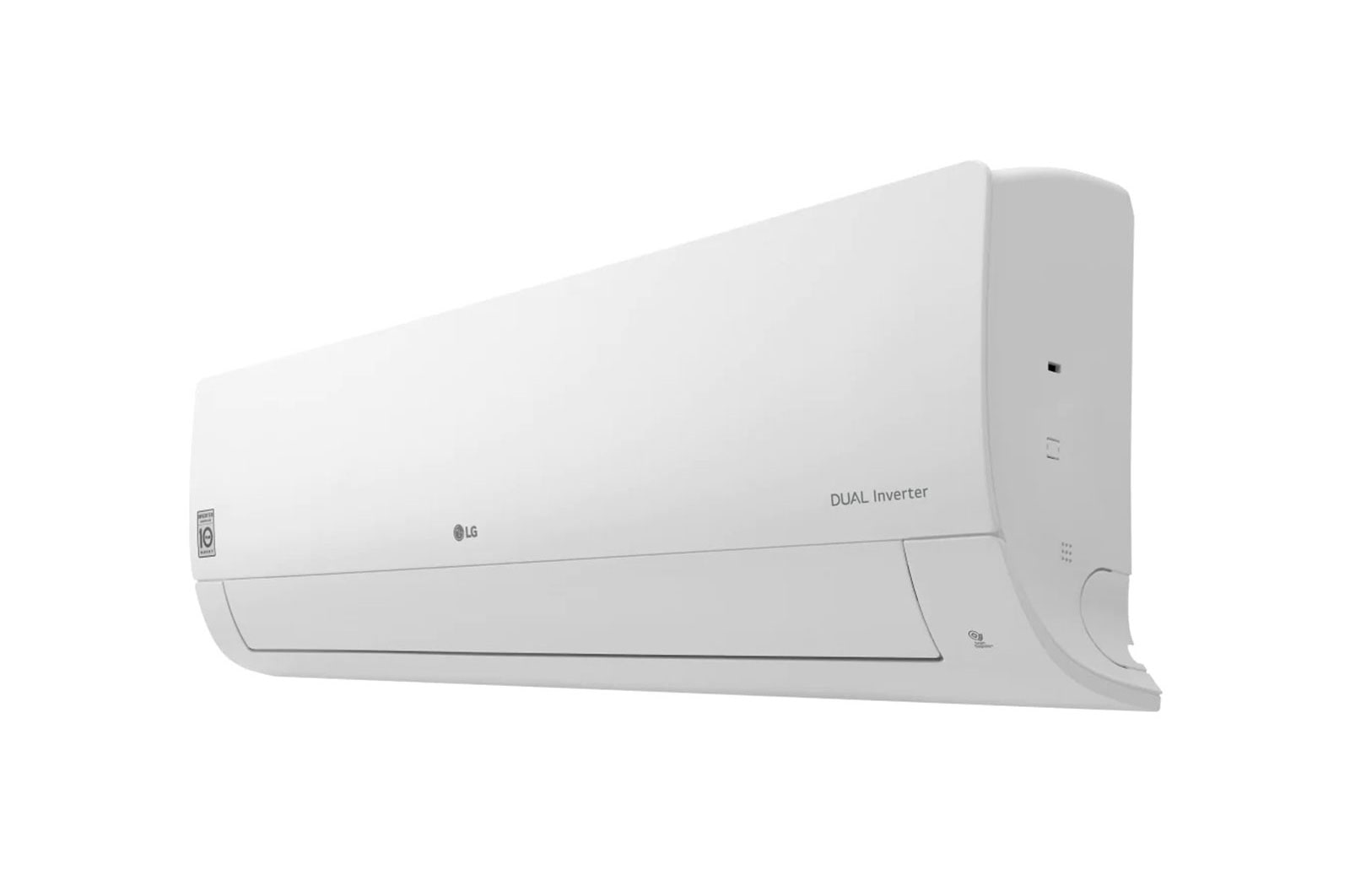

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

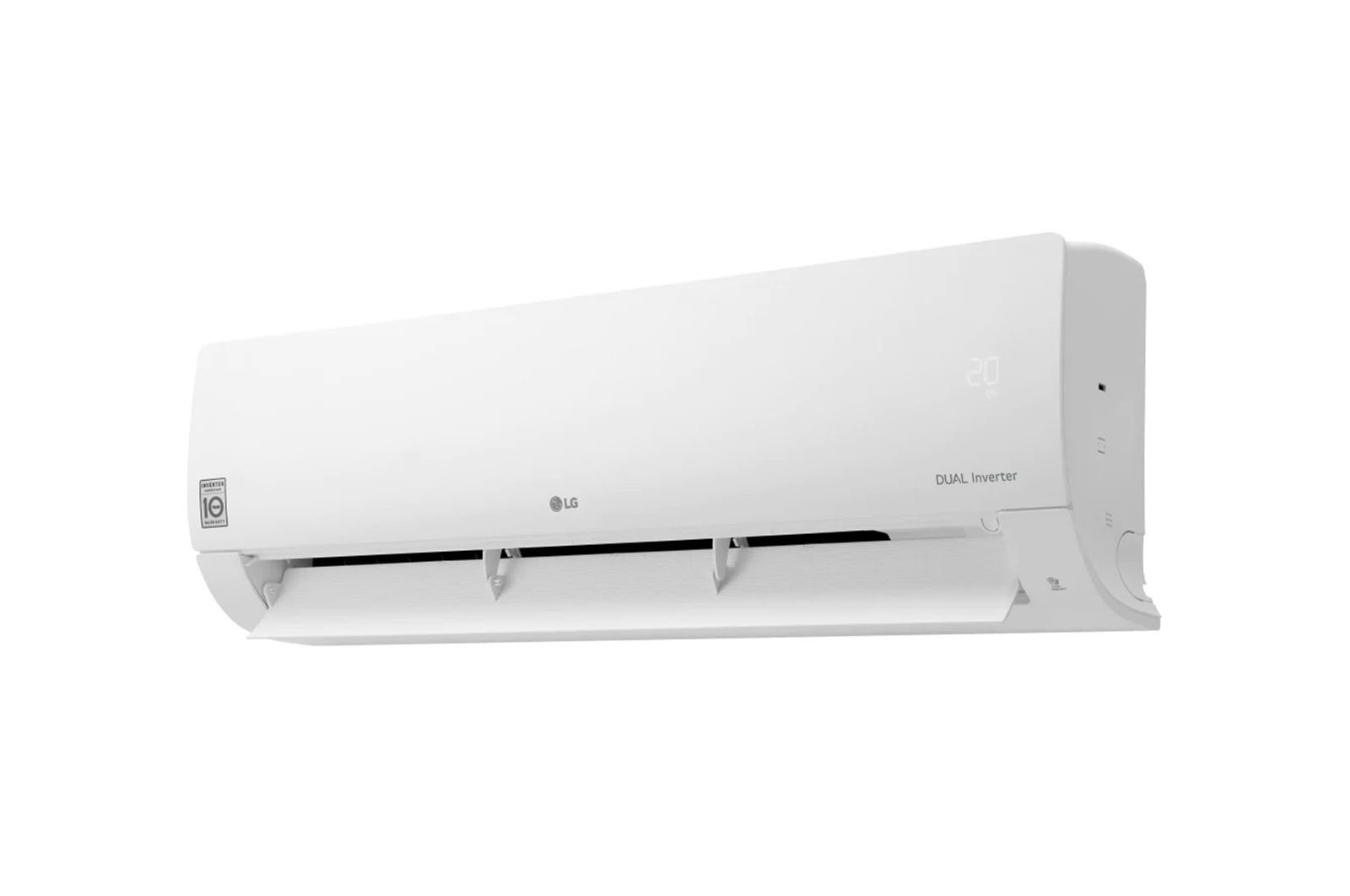

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

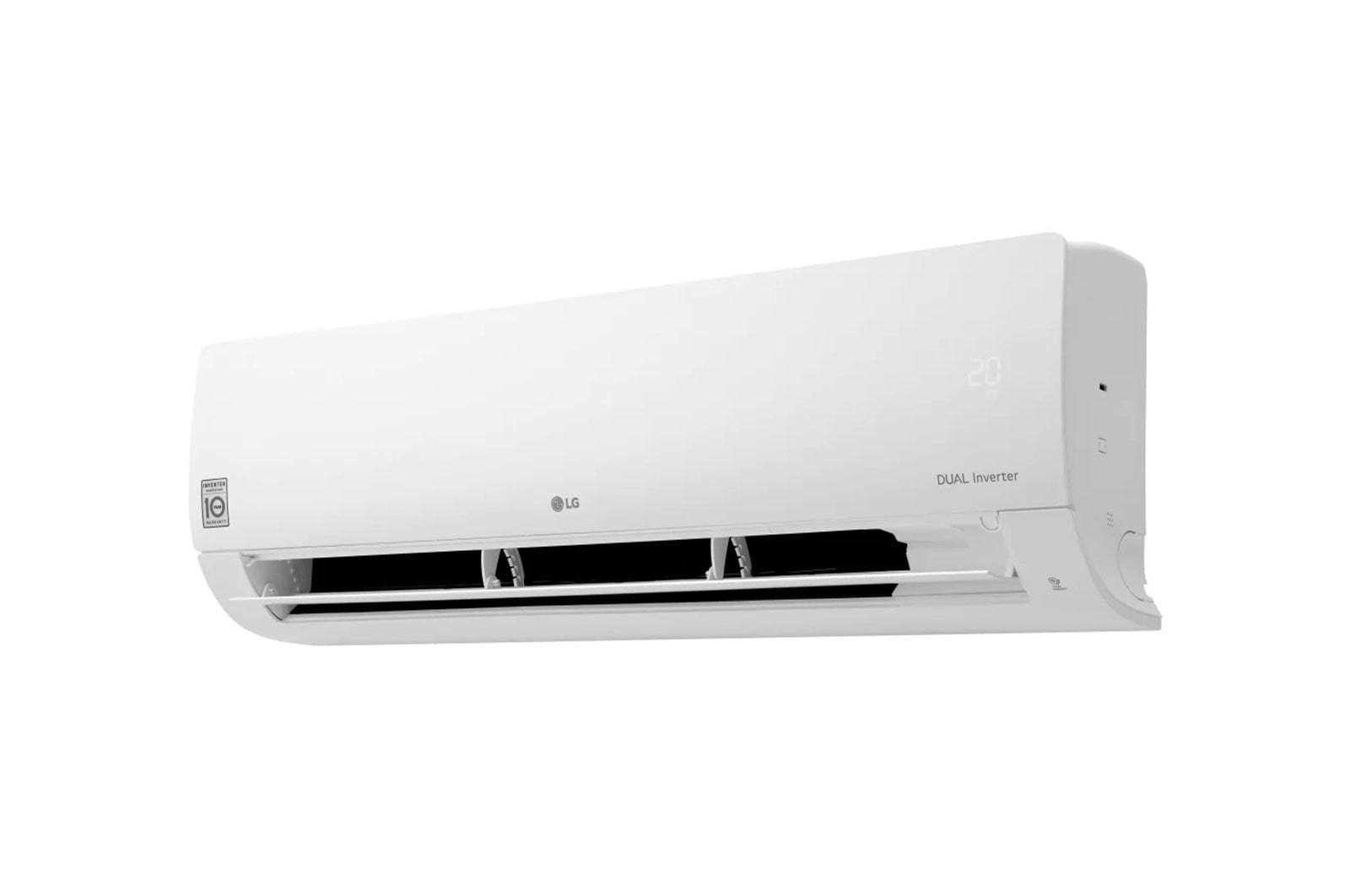

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

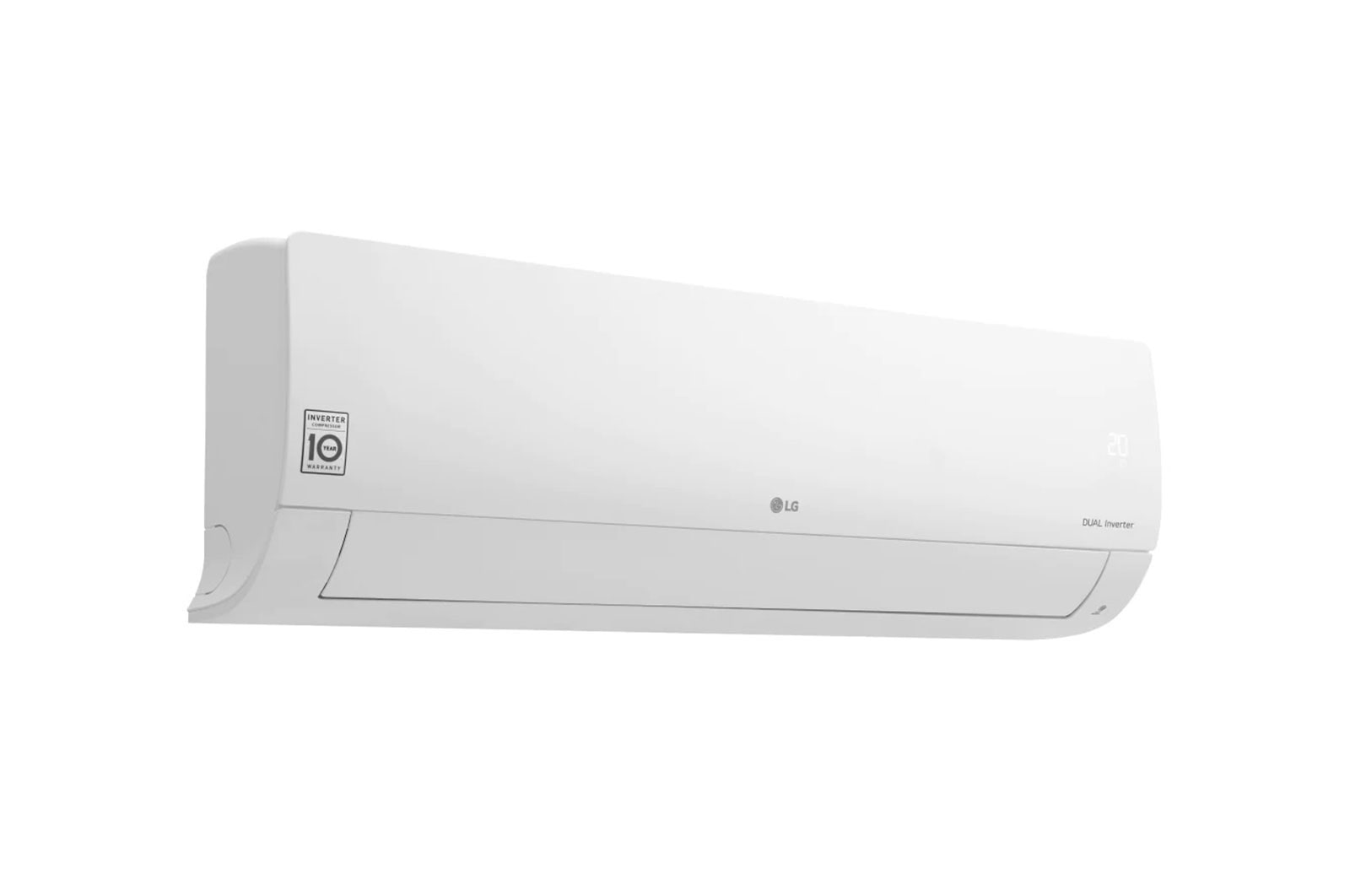

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY

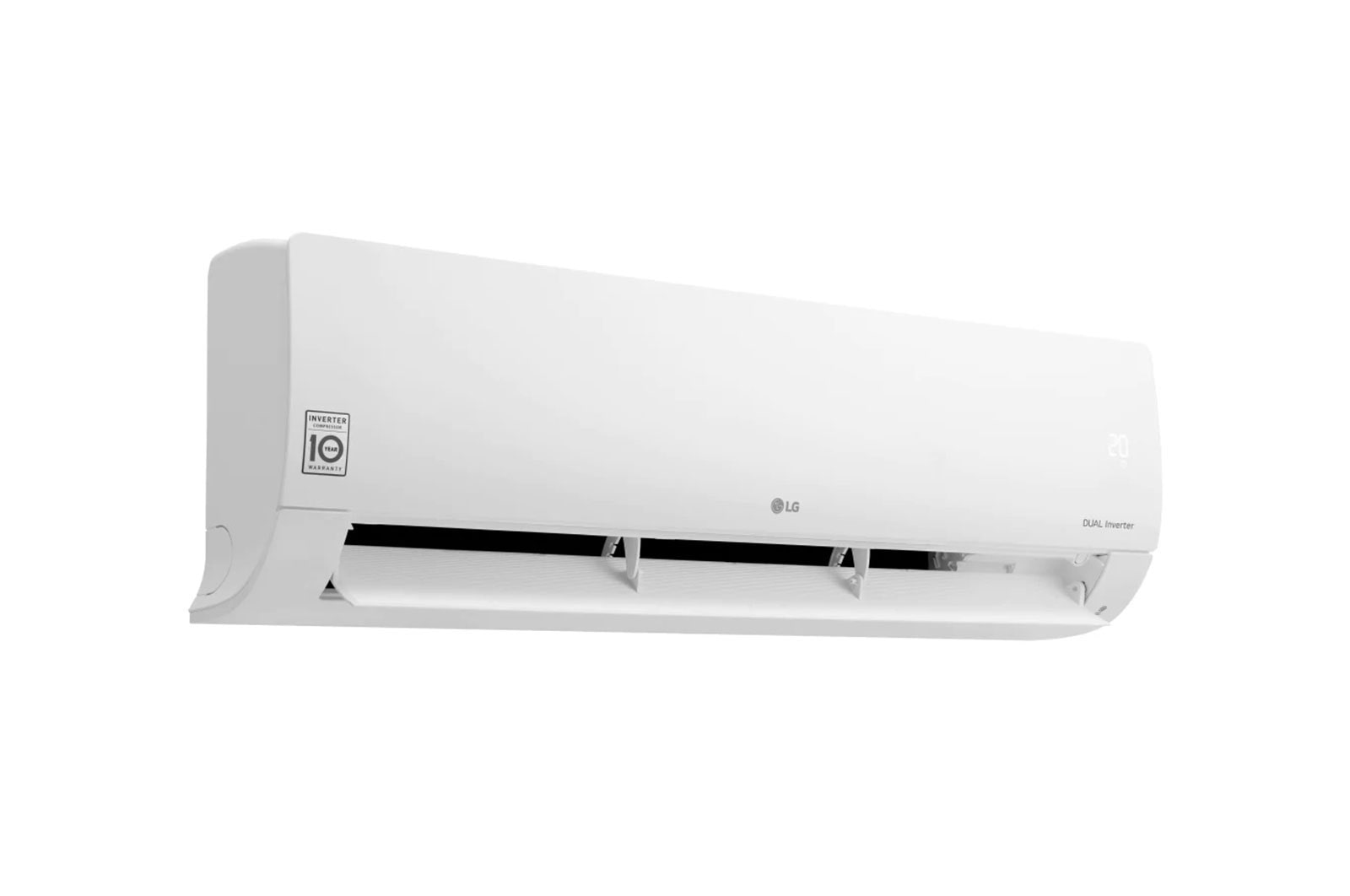

  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY
  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY
  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY
  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY
  • LG Split Type Dual Inverter Standard Aircon, HSN24ISY
HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY
LG Split Type Dual Inverter Standard Aircon, HSN24ISY

Key Features

  • Dual Inverter
  • Energy Saving
  • Fast Cooling
  • Low noise
  • Gold Fin
  • ThinQ
More

Summary

Print

DIMENSIONS

HSN24ISS
Capacity
2.5HP
Dimensions Net W x H x D (mm) Indoor / Outdoor
998 x 345 x 210 / 870 x 650 x 330
Main Technology
Dual Inverter
Additional Benefit
Active Energy Control

All Spec

CAPACITY

  • Cooling (Min ~ Rated ~ Max)

    6.30 kW
    21,500 Btu/h
    22,683 kJ/h

  • Capacity

    2.5HP

POWER INPUT

  • Cooling (Min ~ Rated ~ Max)

    1,850 W

RUNNING CURRENT

  • Cooling (Min ~ Rated ~ Max)

    8.50 A

EER

  • EER

    3.41 W/W
    11.62 (Btu/h)/W
    12.26 (kJ/h)/W

POWER SUPPLY

  • Power Supply

    1, 230, 60 (Ø, V, Hz)

  • Available Voltage Range

    187 ~ 276 V

  • Power Factor - Cooling

    97.2%

  • Moisture Removal

    2.80 l/h
    5.92 pts/h

  • Circuit Breaker

    30 A

  • Power Supply Cable

    3 × 1.5 No. × mm²

  • Power Supply to Unit

    Indoor

  • Power and Communication Cable

    4 × 1.5 No. × mm²

INDOOR UNIT

  • Air Flow Rate - Cooling, Max/H/M/L

    20/15/12.5/10.6 m³/min
    706/530/441.5/374 CFM

  • Fan Motor Speed - Cooling, Max/H/HM/M/ML/L/SL

    1600/1200/1100/1000/920/850/700 rpm

  • Sound Pressure Level - Cooling, Max/H/M/L/SL

    -/47/41/37/32 dB(A)

  • Dimensions (W × H × D) - Net

    998 x 345 x 210 mm

  • Dimensions (W × H × D) - Shipping

    1068 x 425 x 279 mm

  • Weight - Net

    11.6kg

  • Weight - Shipping

    13.4kg

  • Disconnect Switch

    30 A

  • Exterior Color Code

    Munsell 7.5BG 10/2 (RAL 9016)

  • Operation Range - Cooling

    16 ~ 32 °C DB
    61 ~ 90 °F DB
    10 ~ 23 °C WB
    50 ~ 73.4 °F WB

OUTDOOR UNIT

  • Air Flow Rate - Max

    49.0 m³/min
    1730 CFM

  • Sound Pressure Level - Cooling, Rated

    55 dB(A)

  • Dimensions (W × H × D) - Net

    870 x 650 x 330 mm

  • Dimensions (W × H × D) - Shipping

    1040 x 710 x 455 mm

  • Weight - Net

    42.5kg

  • Weight - Shipping

    45.9kg

  • Max. Fuse Size

    20A

  • Exterior Color Code

    Munsell 9.54Y 8.34/1.31 (RAL 9001)

  • Operation Range - Cooling

    18 ~ 48 °C DB

PIPING

  • Size - Liquid

    ø 6.35 mm

  • Size - Gas

    ø 15.88 mm

  • Connections Method - Indoor/Outdoor

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5, 16.0 mm

  • Max Piping Length Capacity

    94.8%

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max

    3/7.5/30 m

  • Piping Length - No Charge

    12.5 m

  • Max. Elevation Difference

    20m

  • Piping Connection Heat Insulation

    Both liquid and gas pipes

REFRIGERANT

  • Type

    R32

  • Pre Charge

    1150g

  • Additional Charge

    20g/m

  • Control

    Electronic Expansion Valve

  • Global Warning Potential

    675

  • t-CO₂ eq

    0.776

TOOL CODE(CHASSIS)

  • Indoor / Outdoor

    SK / U24A

COMPRESSOR

  • Type

    Twin Rotary

  • Model

    DAT156MAD

  • Motor Type

    BLDC

  • Oil Type / Maker

    PVE (FW68D) / IDEMITSU

  • Oil Charge

    400cc

  • Manufacturer / Country of Origin

    LG Electronics / China

FAN(INDOOR)

  • Type

    Cross Flow Fan

  • Motor Output

    30W

FAN(OUTDOOR)

  • Type

    Propeller Fan

  • Motor Type

    BLDC

  • Motor Output

    85W

  • Motor Insulation

    Class E

  • Motor Enclosure / Ingress Protection

    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin

    Cu/Al

  • Evaporator - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 16 x 20 x 744) x 1

  • Evaporator - Corrosion Protection

    PCM

  • Evaporator - Fin Type

    Slit

  • Condenser - Material, Tube / Fin

    Cu/Al

  • Condenser - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 28 x 18 x 940) x 1

  • Condenser - Corrosion Protection

    Gold

  • Condenser - Fin Type

    Louver
