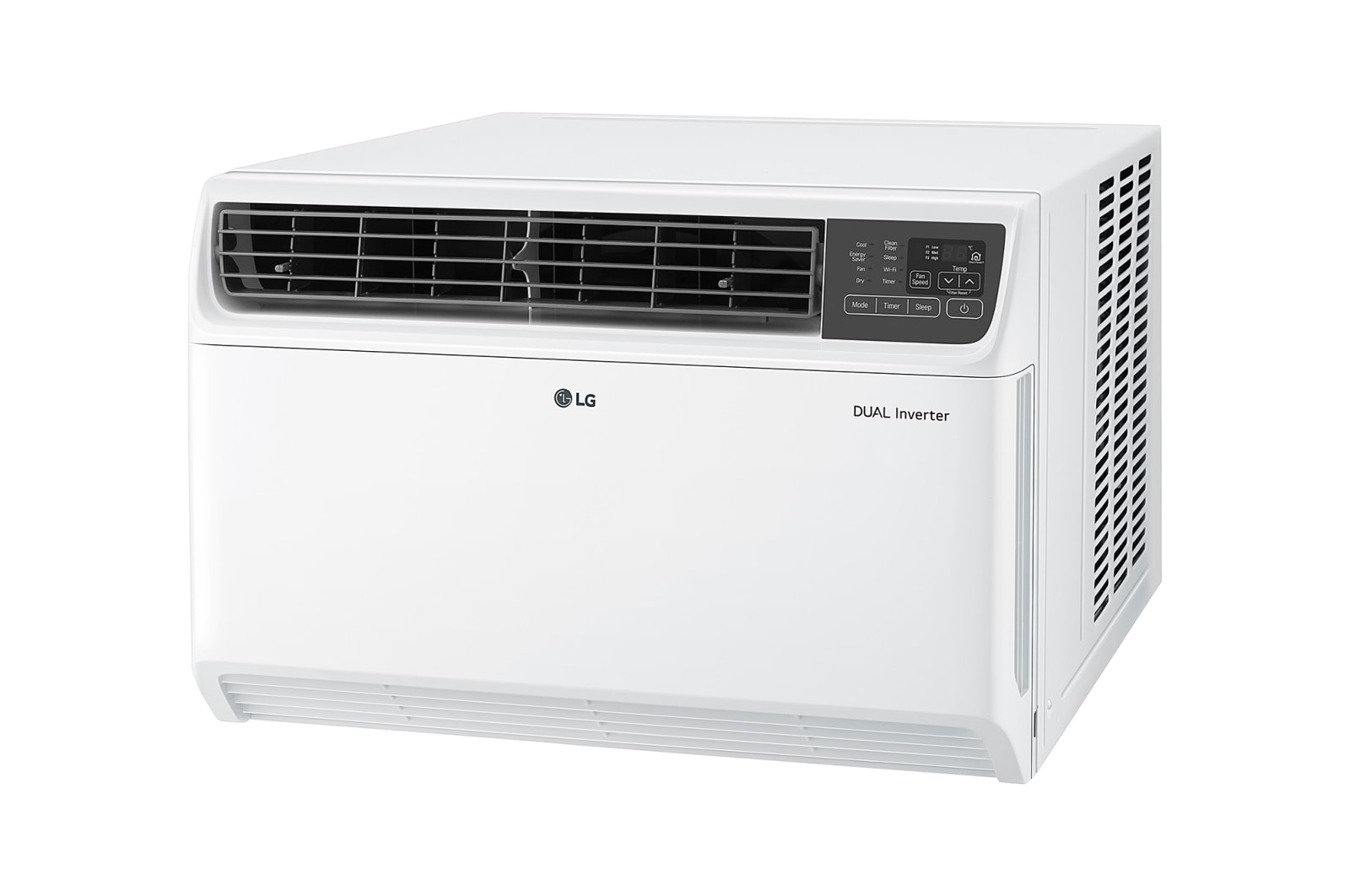

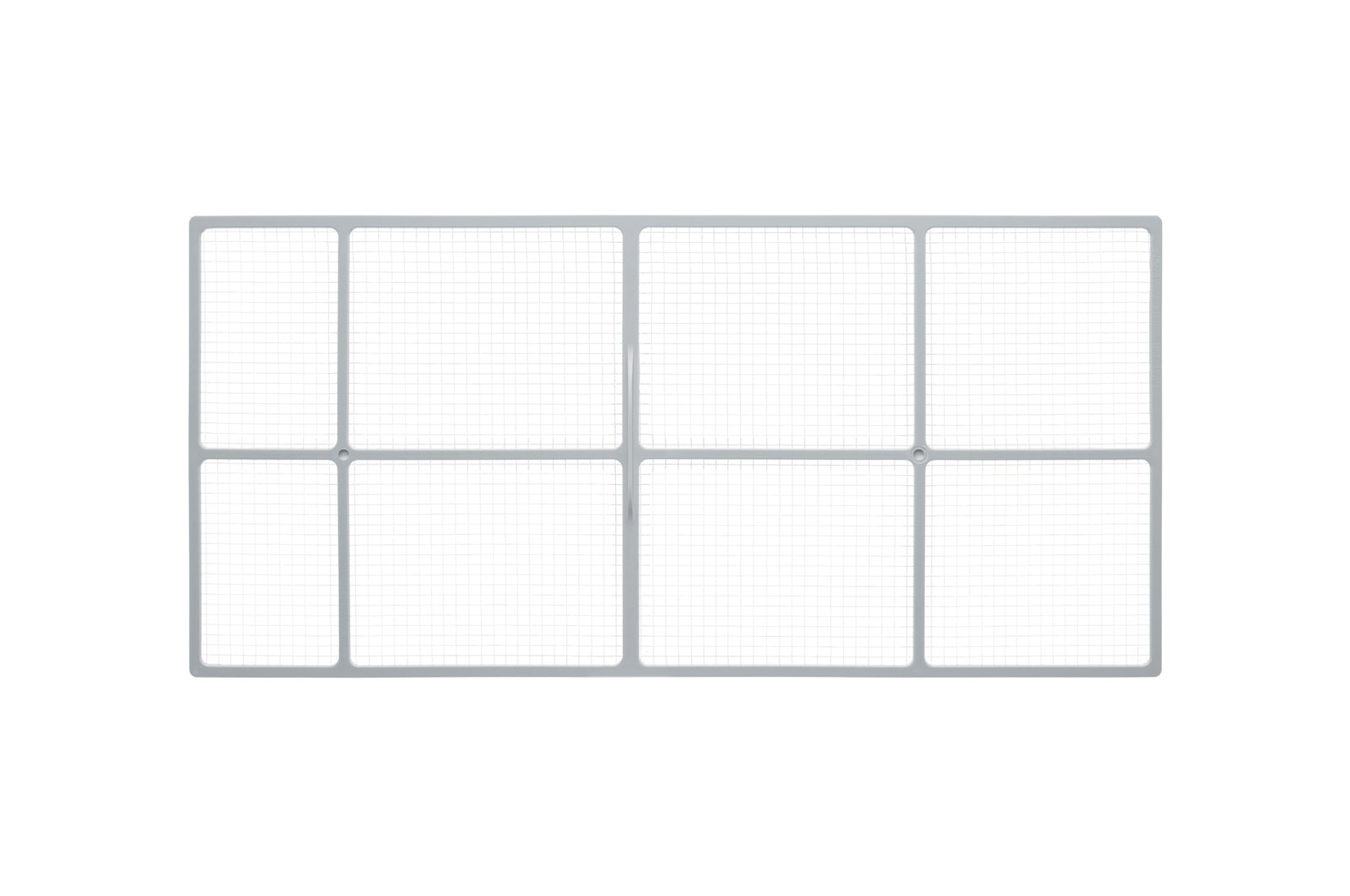

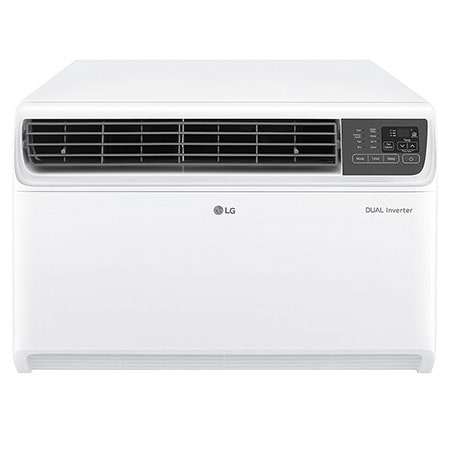

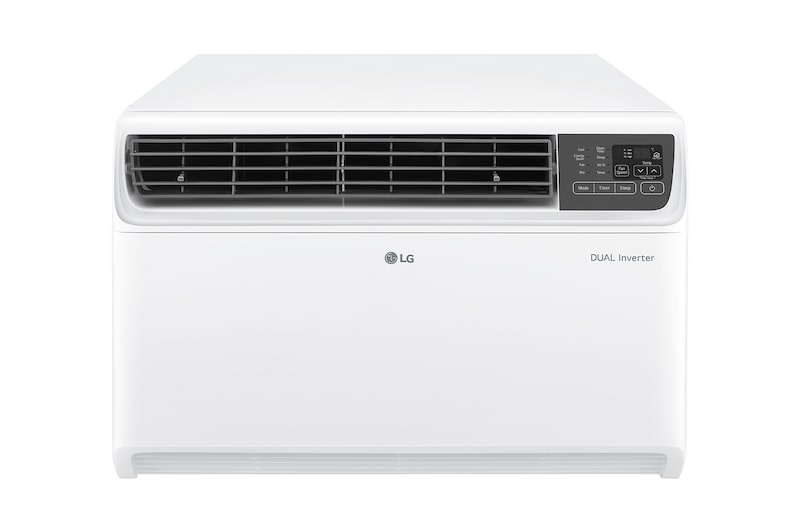

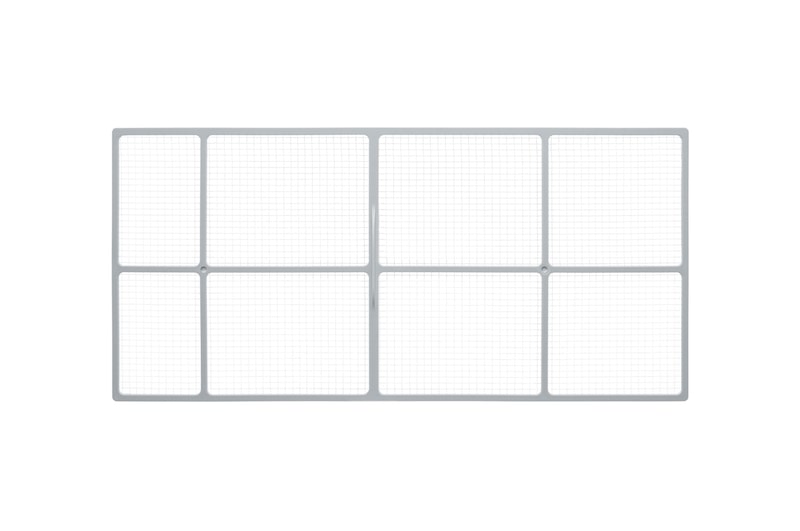

2.5 HP, Dual Inverter Compressor, 70% Energy Saving, Anti-bacterial Filter, Sleep Mode, Window Inverter, Fast Cooling, 10-Year Compressor Warranty
2.5 HP, Dual Inverter Compressor, 70% Energy Saving, Anti-bacterial Filter, Sleep Mode, Window Inverter, Fast Cooling, 10-Year Compressor Warranty
Summary
DIMENSIONS
All Spec
PERFORMANCE
-
Cooling - Capacity
21,000 (kJ/h)
-
Cooling - Capa. Range (Btu/h)
7,600 ~ 22,000 (kJ/h)
-
Cooling - Power (W)
2,140 ( 640 ~ 2,240)
-
Cooling - Current (A)
10.0 (3.1~10.2)
-
Cooling - EER
9.8 (9.8~11.8) (kJ/hW)
-
Cooling - Refrigerant (g)
640 (R32)
ELECTRICAL RATINGS
-
Voltage / 60 Hz
230V/60Hz
FEATURE
-
WiFi Connection
Yes
-
Temperature display
℃
-
Temp Control
Thermistor
-
Air Diflection
4-Way (Manual)
-

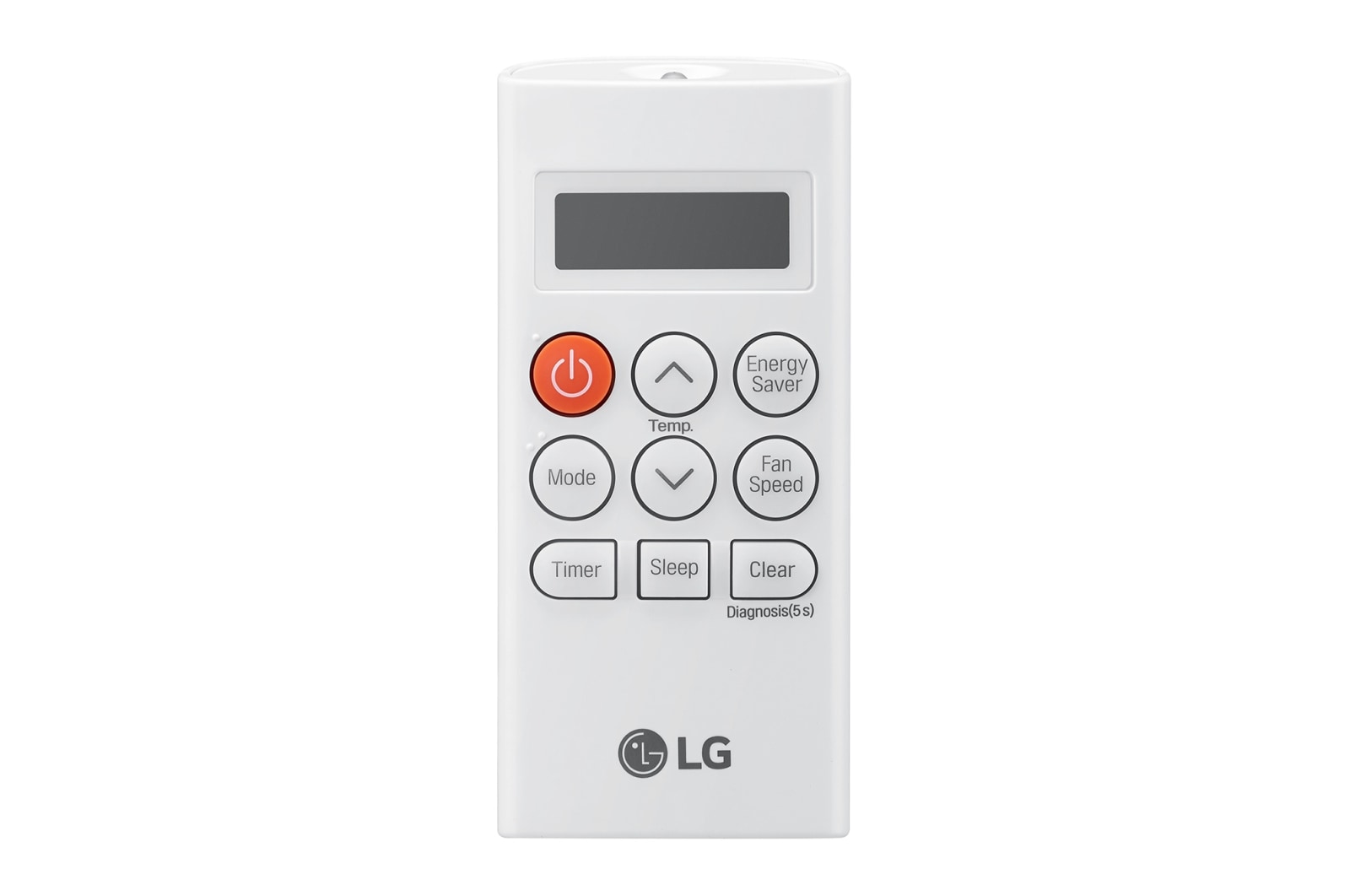

Remote controller
Good LCD
-
Auto Restart
Yes
-
Filter Alarm Function
Yes
-
Timer
24Hr,On/Off
-
Sleep
7hr,On/Off
-
Energy saver Fuction
Yes
-
Outdoor Vent / Exhaust
Yes
-
Mode
Hig /Mid/Low/Sleep
-
Fan Speed - Cooling
4
-
Fan Speed - Fan Only
4
-
Fan Type (ID/OD)
Turbo/Axial
-
Chassis Type
Slide In-Out
WT+ Chassis -
Type Air Discharge
TOP Discharge
OTHERS
-
Noise - Indoor dB(A) (High/Mid/Low/Sleep)
62/59/55/44
-
Noise - Outdoor dB(A) (High/Mid/Low/Sleep)
67/65/63/55
-
Carton (mm) - Height
629
-
Carton (mm) - Width
747
-
Carton (mm) - Depth
771
-

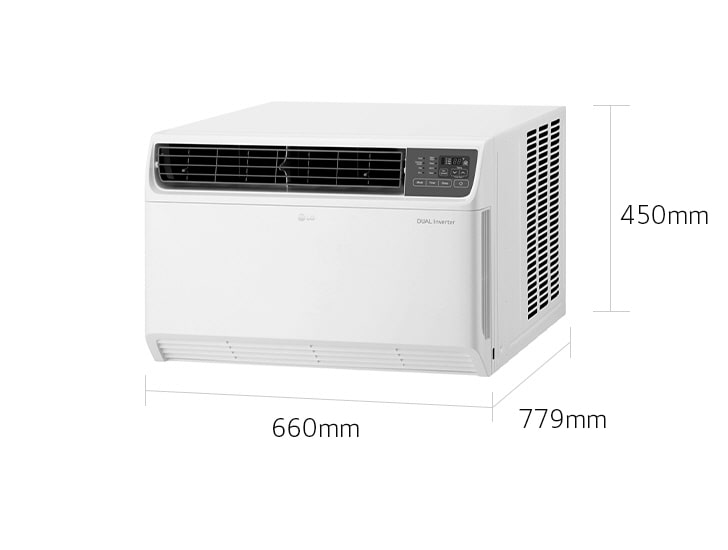

Demension (Include Front Grille, mm) - Height
450
-
Demension (Include Front Grille, mm) - Width
660
-
Demension (Include Front Grille, mm) - Depth
779
-
Demension (Front Grille) - Depth
113
-
Demension (Except Front Grille, mm) - Height
450
-
Demension (Except Front Grille, mm) - Width
660
-
Demension (Except Front Grille, mm) - Depth
666
-
Net Weight (kg)
50.0
-
Gross Weight (kg)
56.0
-
Stuffing quantity (20ft/40ft/40ft High)
63/144/192
-
Compressor
DAT156MAE
CYCLE PART
-
Compressor
DAT156MAE
-
Evaporator
Φ7 544 × 3R × 15C 21FPI
-
Condenser
Φ5 561.7 × 3R × 21C 20FPI
-
Capillary Tube (ID/OD/Length/EA)
1.0/2.6/1,400/4
