XF3E Series - 55" High Brightness Signage

Specs

XF3E Series - 55" High Brightness Signage

XF3E Series - 55" High Brightness Signage

55XF3E-B
  • font view

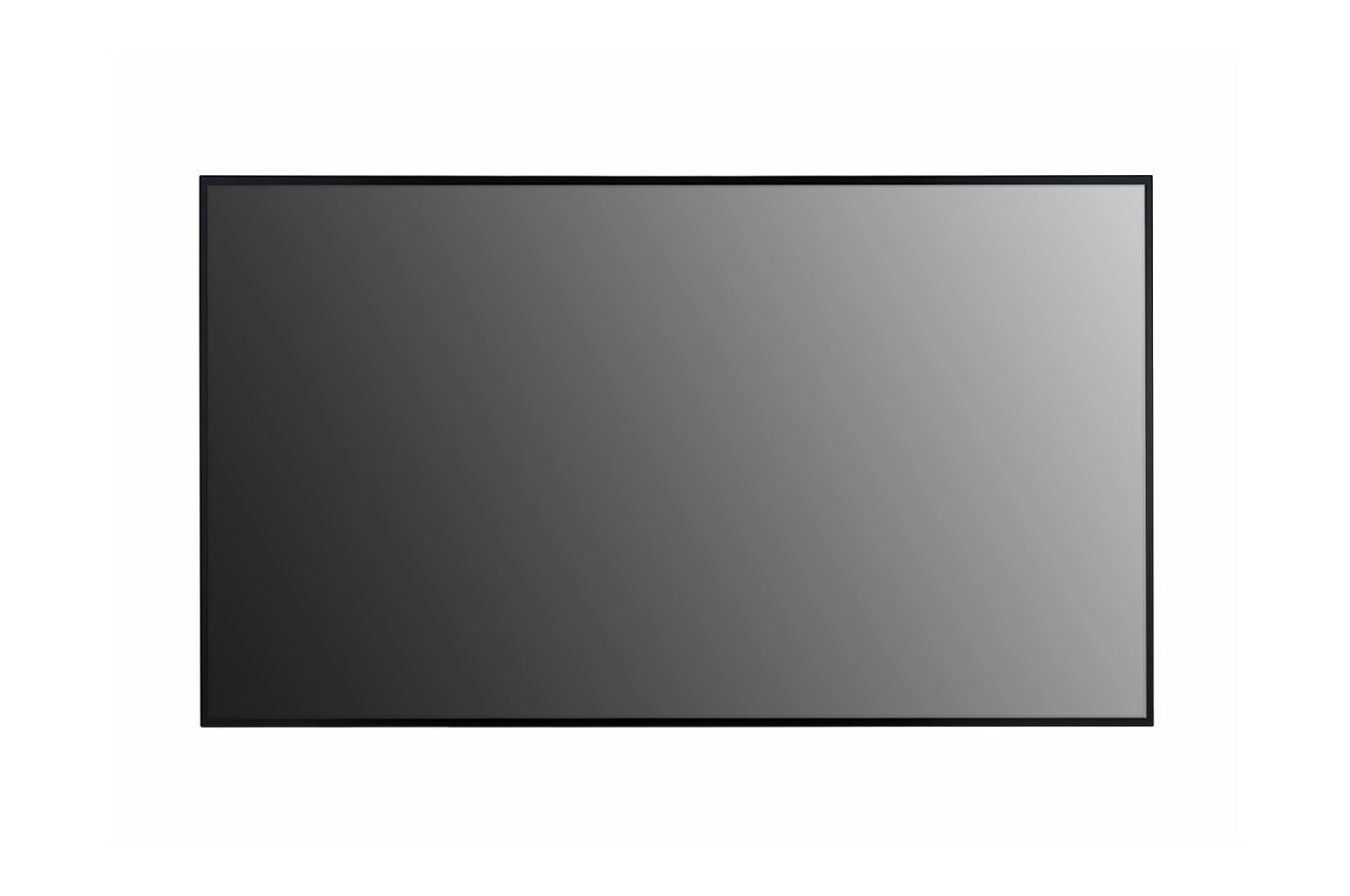

  • front view

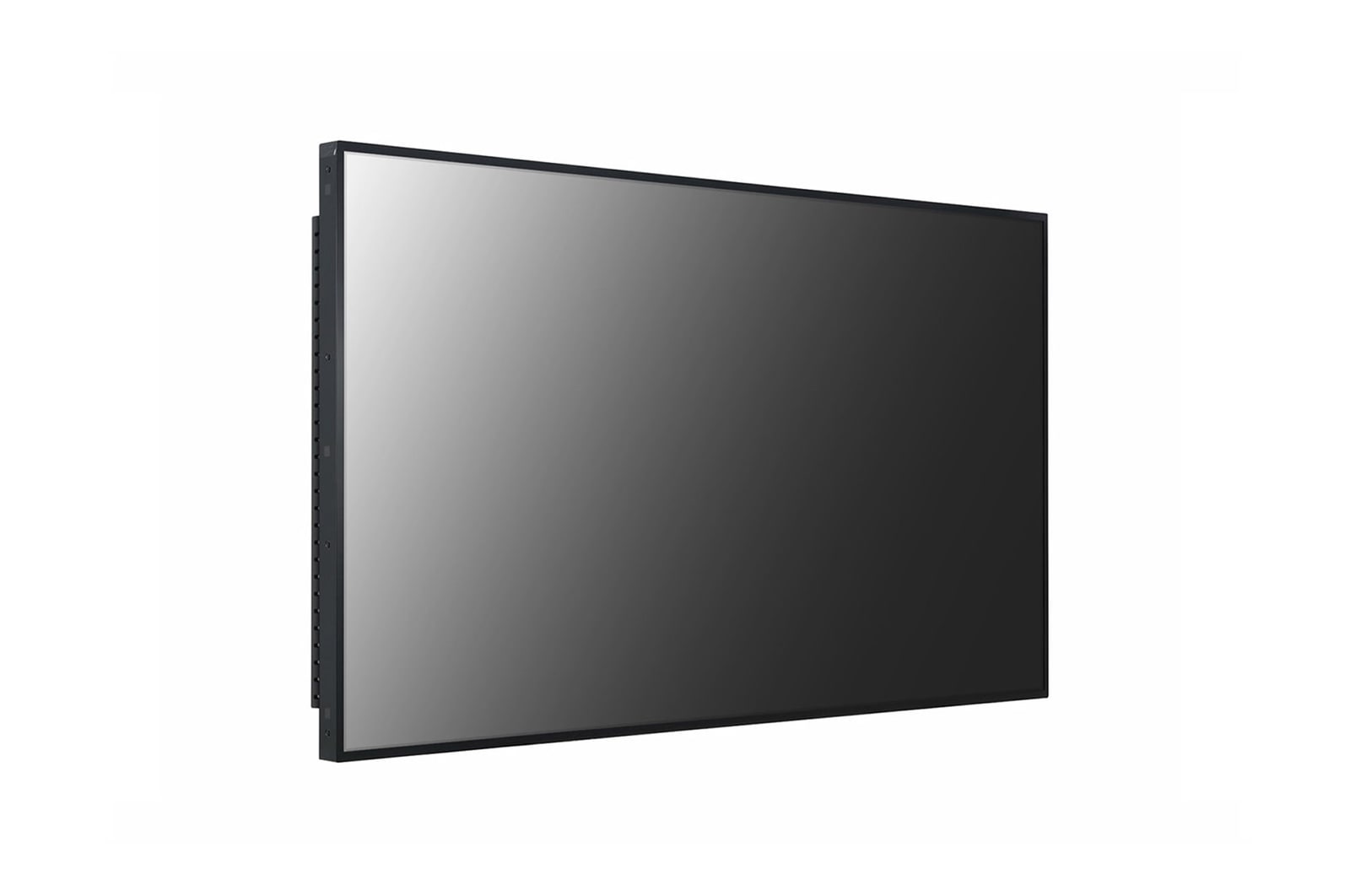

  • -15 degree side view

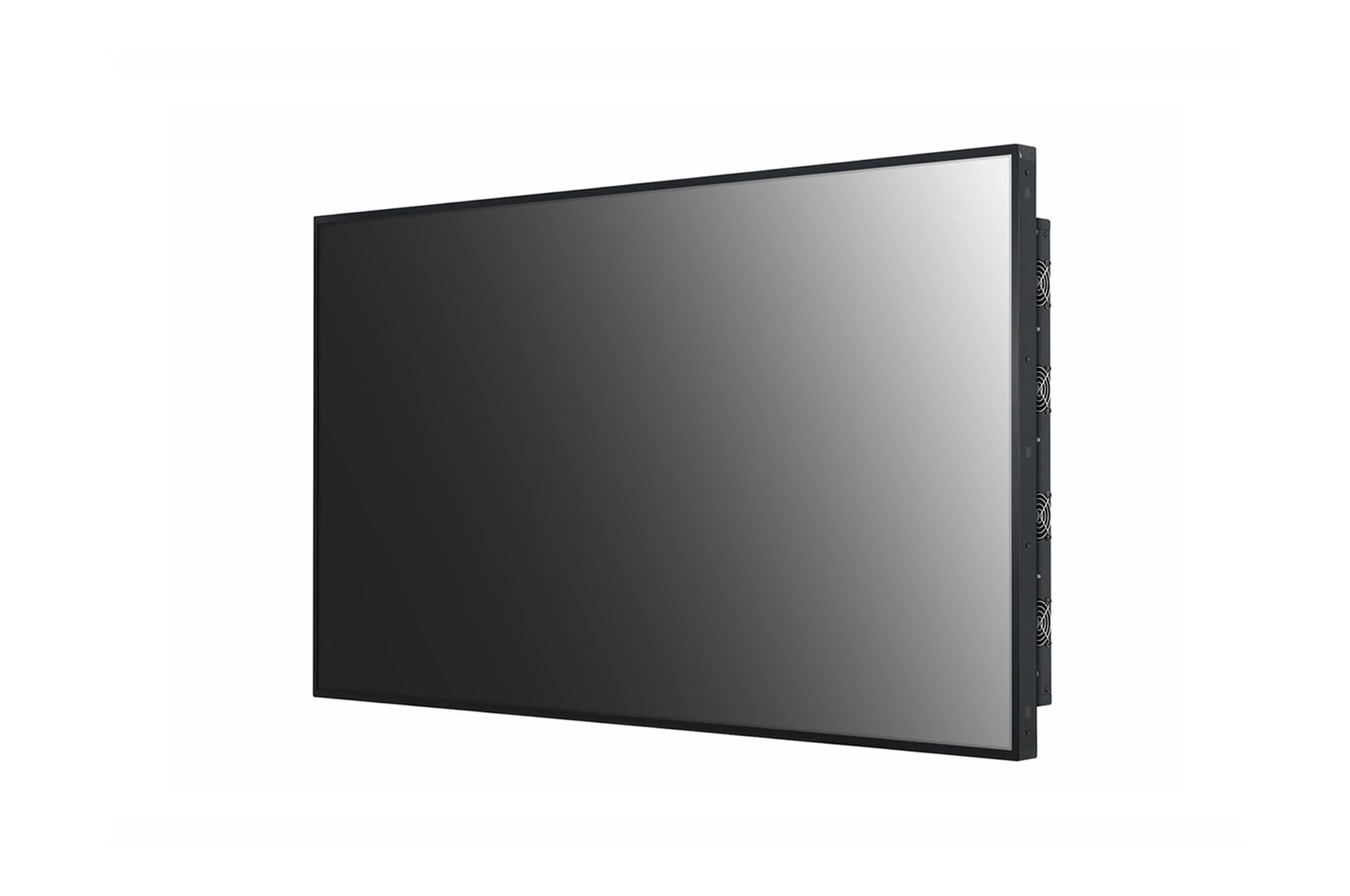

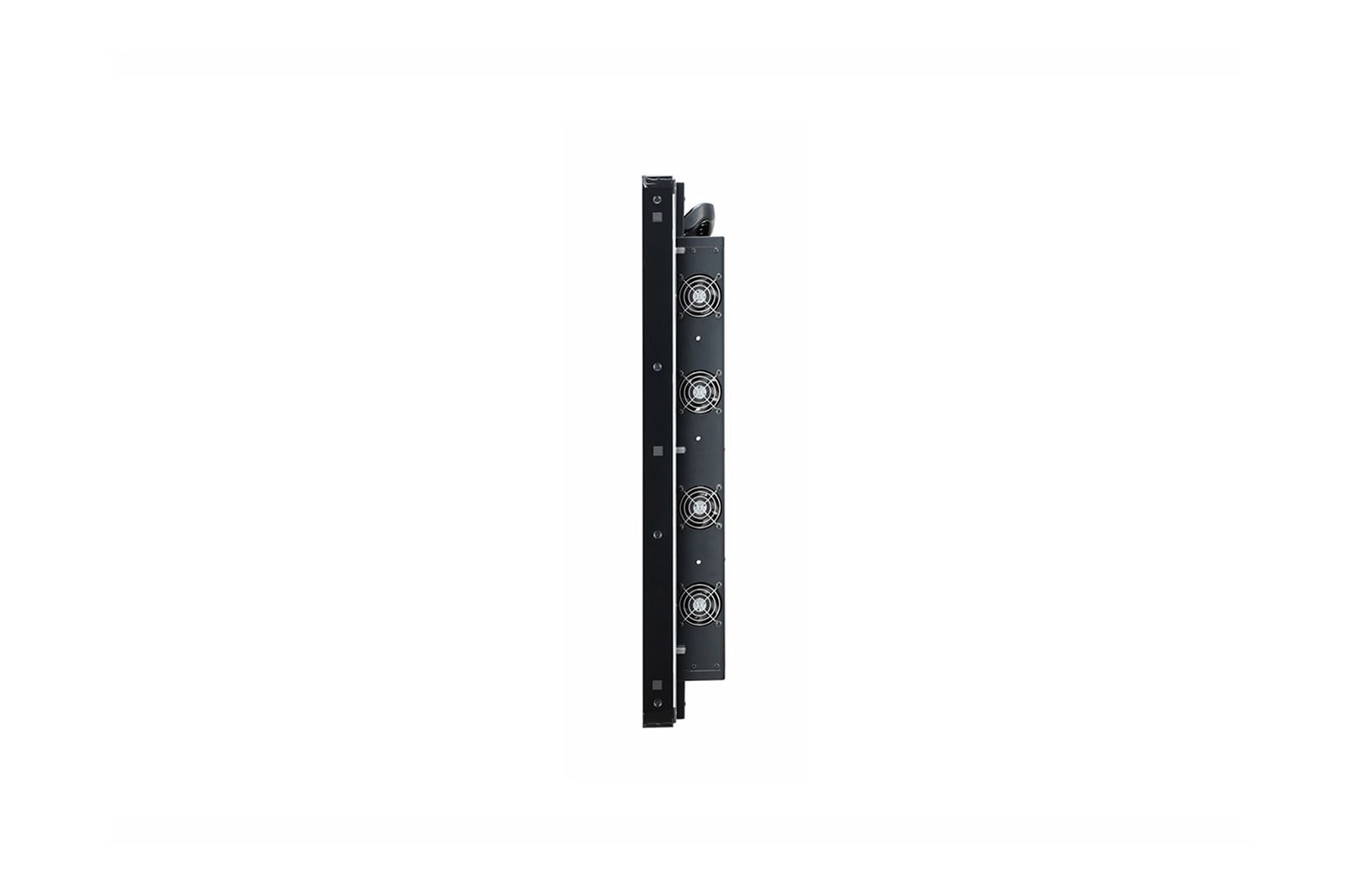

  • side view
  • side view
  • side view

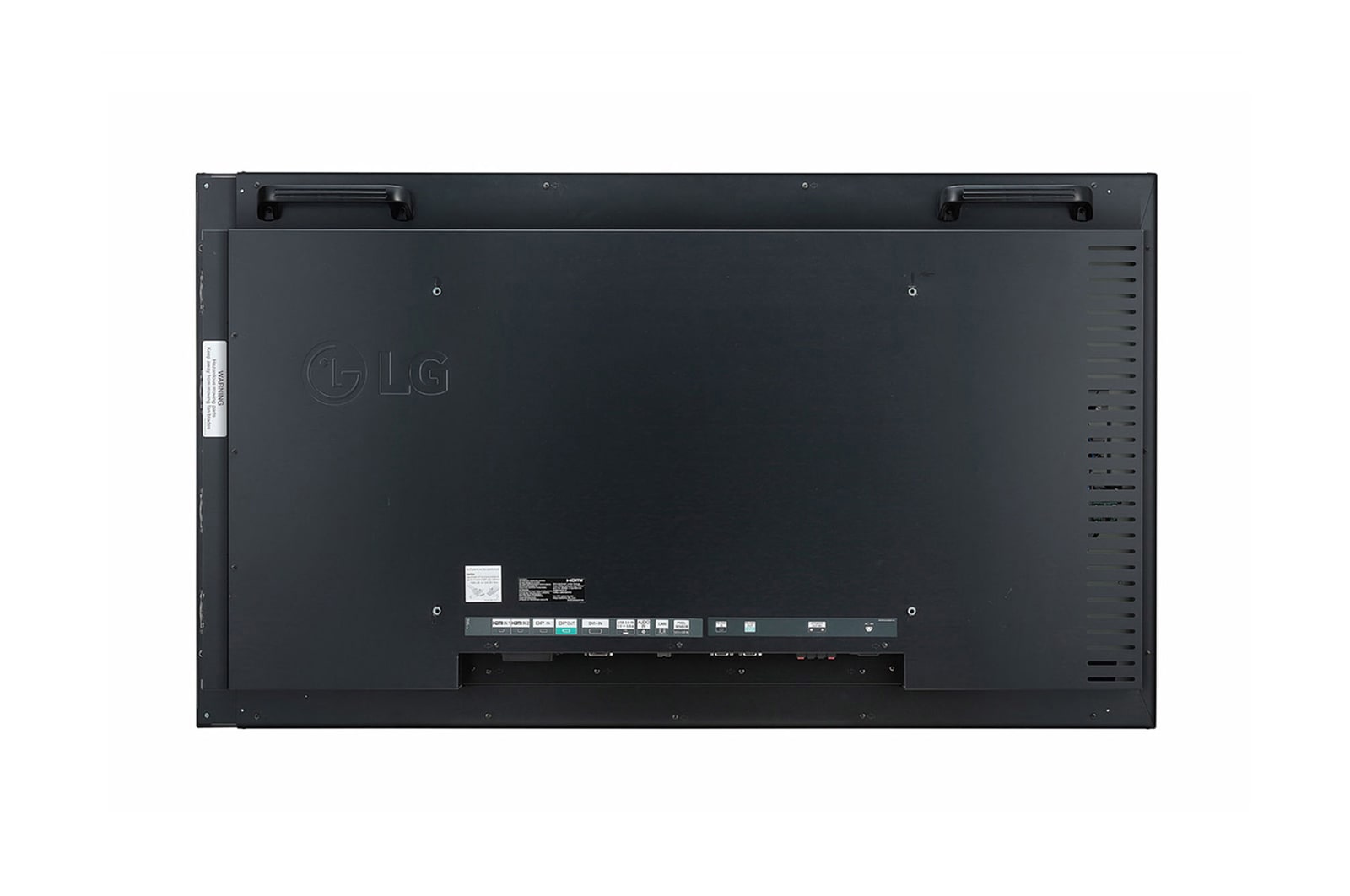

  • rear view

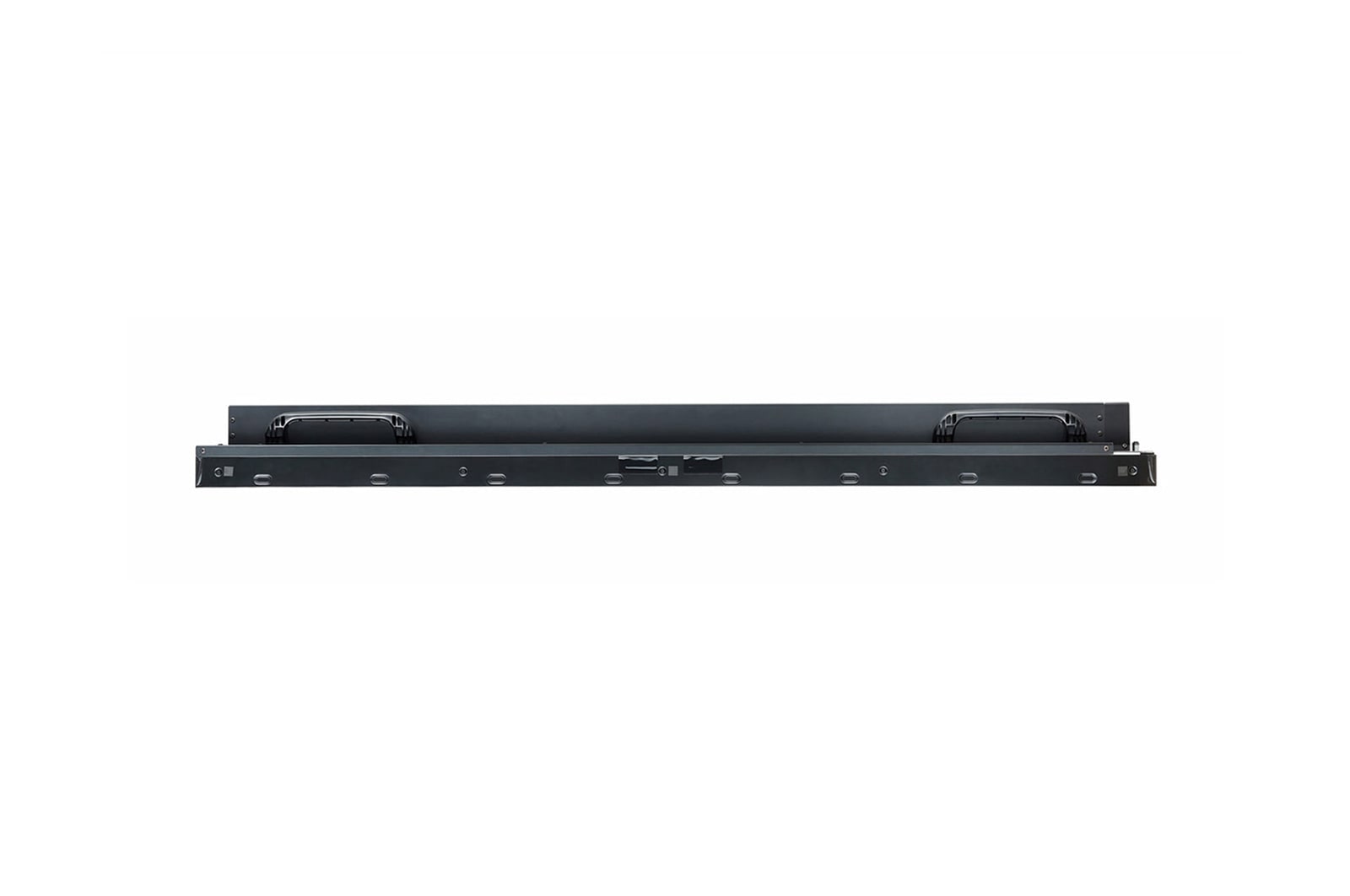

  • top view
font view
front view
-15 degree side view
side view
side view
side view
rear view
top view

Key Features

  • Brightness: 3,000 cd/m²
  • 106.8 mm slim design
  • Built-in Content Management System and media player
  • 50,000 hours life time
  • Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB / External speaker out (L/R)
More
Print

All specs

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    NO / NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ACCESSORY

  • Optional

    AN-WF500 (Stand is not available)

  • Basic

    Remote Controller(including battery 2ea), Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)

DEDICATED FEATURE - TOUCH

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

  • Accuracy (Typ.)

    N/A

  • Available Object Size for Touch

    N/A

  • Interface

    N/A

  • Multi Touch Point

    N/A

  • Operating System Support

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 50 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 40 °C (Direct Sunlight)

MECHANICAL SPECIFICATION

  • Bezel Width

    T/R/L/B : 12/9.9/9.9/12mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    1344 x 820 x 236mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1235.5 x 709.4 x 106.8mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    32.25Kg

  • VESA Standard Mount Interface

    600 x 400 mm

  • Weight (Head)

    26.5Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

PROTECTION GLASS

  • Anti-Reflective

    N/A

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Thickness

    N/A

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    YES

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

PANEL

  • Contrast Ratio

    1,300:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    3,000nit (Typ.), 2,400nit (Min.)

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Color Gamut

    NTSC 67%

  • Dynamic CR

    500,000:1

  • Life time

    50,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS / M+

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    YES

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 3%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    YES

  • Humidity Sensor

    YES

  • Internal Memory (eMMC)

    8GB

  • Pixel Sensor

    NO

  • Power Indicator

    YES

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    YES

  • Audio Out

    NO

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    YES

  • External Speaker Out

    YES

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    NO

  • Auto Set ID

    YES

  • Backlight Sync

    YES

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    NO

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    NO

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    NO

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 3.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (2 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    853 BTU/Hr(Typ.), 1024 BTU/Hr(Max.)

  • DPM

    0.5W(DP, DVI-D, HDMI)

  • Power off

    0.5W

  • Max.

    300W

  • Typ.

    250W (Full White) 230W (IEC 62087)
