49" 500 nits UHD Signage

Specs

49" 500 nits UHD Signage

49" 500 nits UHD Signage

49UH5E-B

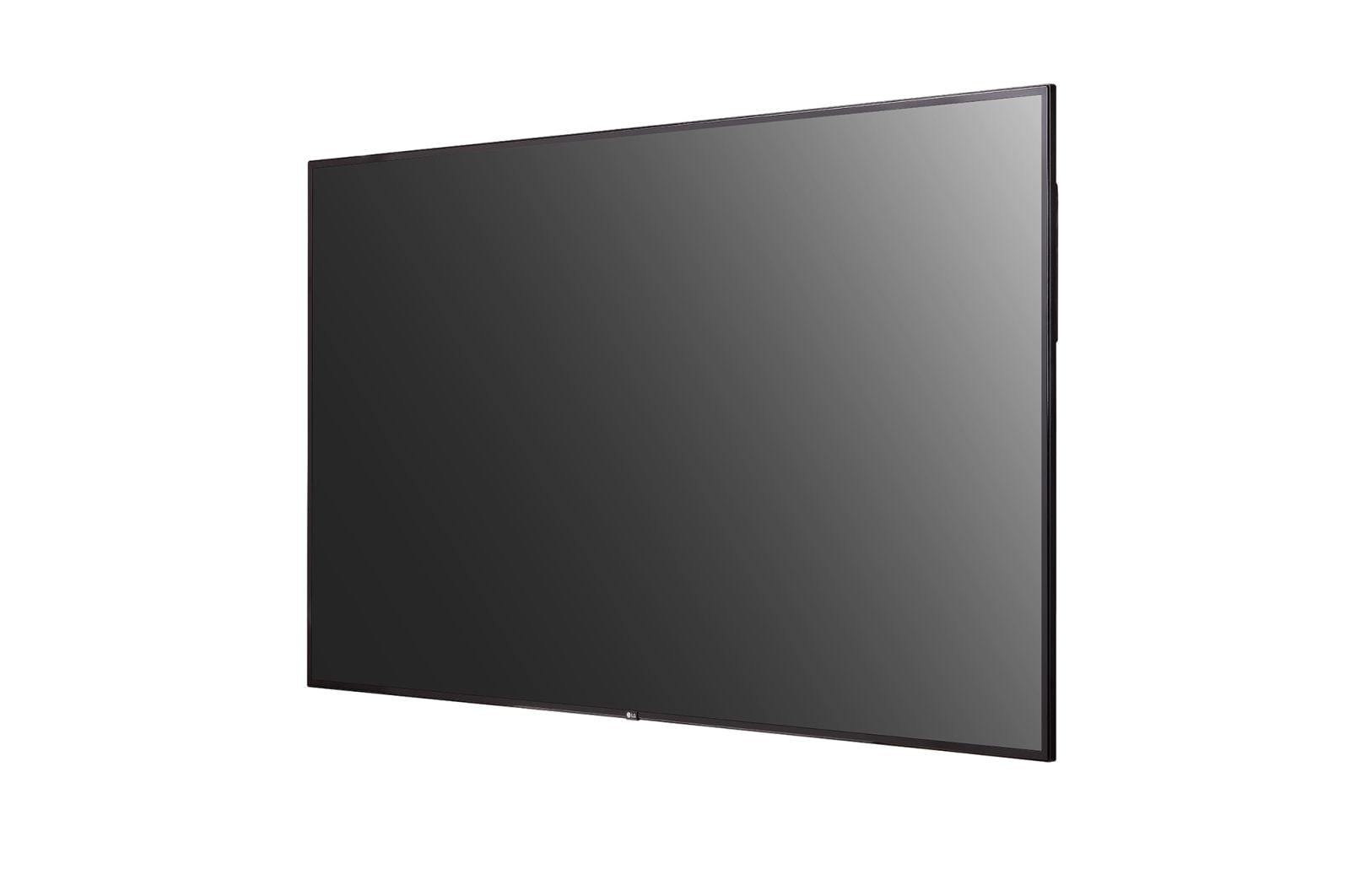

  • Front view of 49" 500 nits UHD Signage 49UH5E-B
  • LG 49" 500 nits UHD Signage, 49UH5E-B
  • LG 49" 500 nits UHD Signage, 49UH5E-B
  • LG 49" 500 nits UHD Signage, 49UH5E-B
  • LG 49" 500 nits UHD Signage, 49UH5E-B
  • LG 49" 500 nits UHD Signage, 49UH5E-B
  • LG 49" 500 nits UHD Signage, 49UH5E-B
Front view of 49" 500 nits UHD Signage 49UH5E-B
LG 49" 500 nits UHD Signage, 49UH5E-B
LG 49" 500 nits UHD Signage, 49UH5E-B
LG 49" 500 nits UHD Signage, 49UH5E-B
LG 49" 500 nits UHD Signage, 49UH5E-B
LG 49" 500 nits UHD Signage, 49UH5E-B
LG 49" 500 nits UHD Signage, 49UH5E-B

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B)
  • Depth : 38.6 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out
  • Haze 28%
More
Print

All specs

ACCESSORY

  • Included:

    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Speaker (SP-5200), Stand (ST-201T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes(EU Only) / No

  • Safety

    CB / NRTL

CONNECTIVITY

  • External Control

    RS232C In/out, RJ45 (LAN) In, IR In

  • Input

    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

  • Output

    DP, Audio (Off/Fixed/Variable), External Speaker

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10% to 80%

  • Operation Temperature

    0°C to 40°C

KEY FEATURE

  • Key Feature

    Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Video Tag (2), Play via URL, OSD Rotation, Content Rotation, PIP/PBP (4), Tile Mode Setting (Max 15 x 15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron ConnectedⓇ1), Control Manager, DPM, Smart Energy Saving, Wake on LAN, Beacon, HDMI-CEC2), SI Server Setting, Detachable Logo

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B)

  • Carton Dimensions (W × H × D)

    1,197 x 760 x 166 mm

  • Handle

    No

  • Monitor Dimension (W × H × D)

    1,103.2 x 648 x 38.6 mm

  • Packed Weight

    17.7 kg

  • VESA™ Standard Mount Interface

    300 x 300 mm

  • Weight (Head)

    13.3 kg

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

PANEL

  • Aspect Ratio

    16 : 9

  • Brightness (Typ., cd/m²)

    500

  • Contrast Ratio

    1,100:1

  • Life Time (Typ.)

    50,000 Hrs

  • Resolution

    3,840 x 2,160 (UHD, RGB)

  • Operation Hours

    24 Hrs

  • Orientation

    Landscape & Portrait

  • Panel Technology

    IPS

  • Response Time

    8ms (G to G)

  • Screen Size

    49"

  • Surface Treatment

    Haze 28%

  • Viewing Angle (H x V)

    178 x 178

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Smart Energy Saving

    74 W

  • Typ. / Max.

    105 W / 150 W

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+
