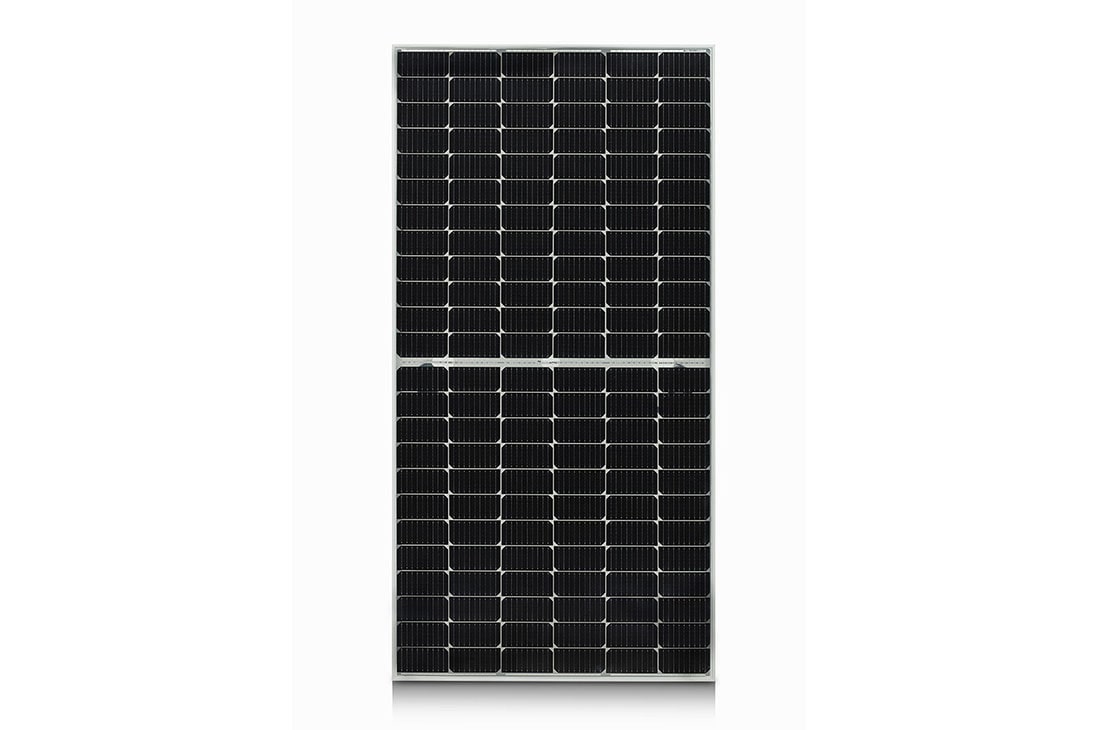

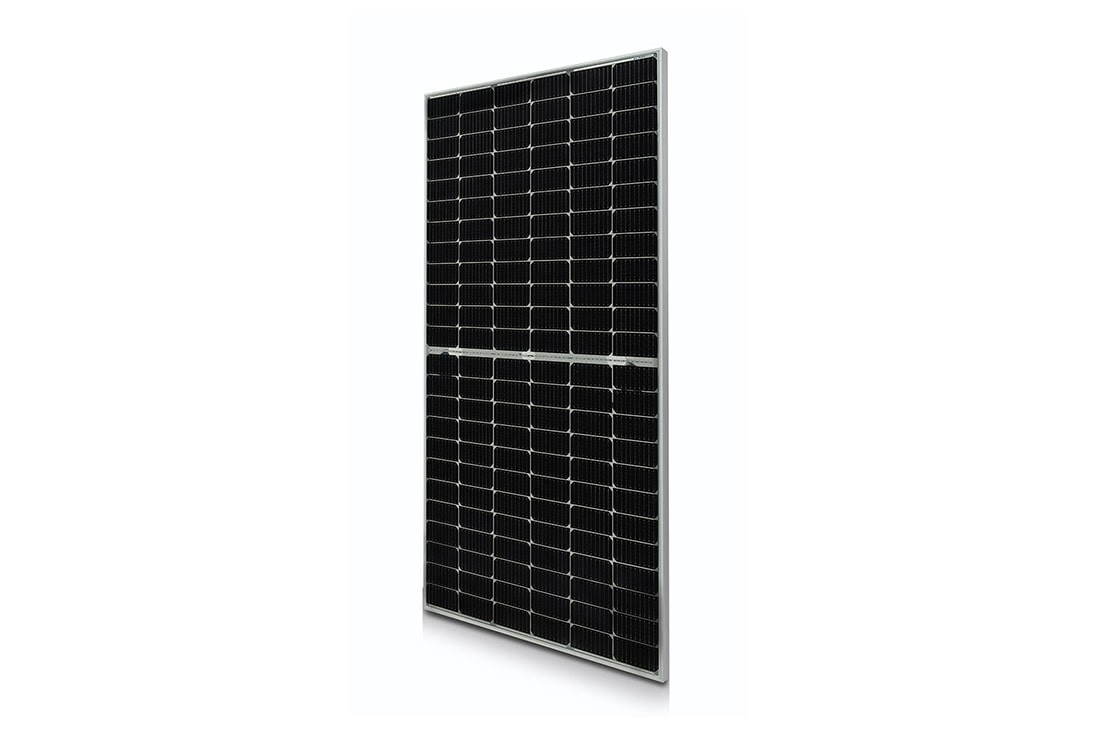

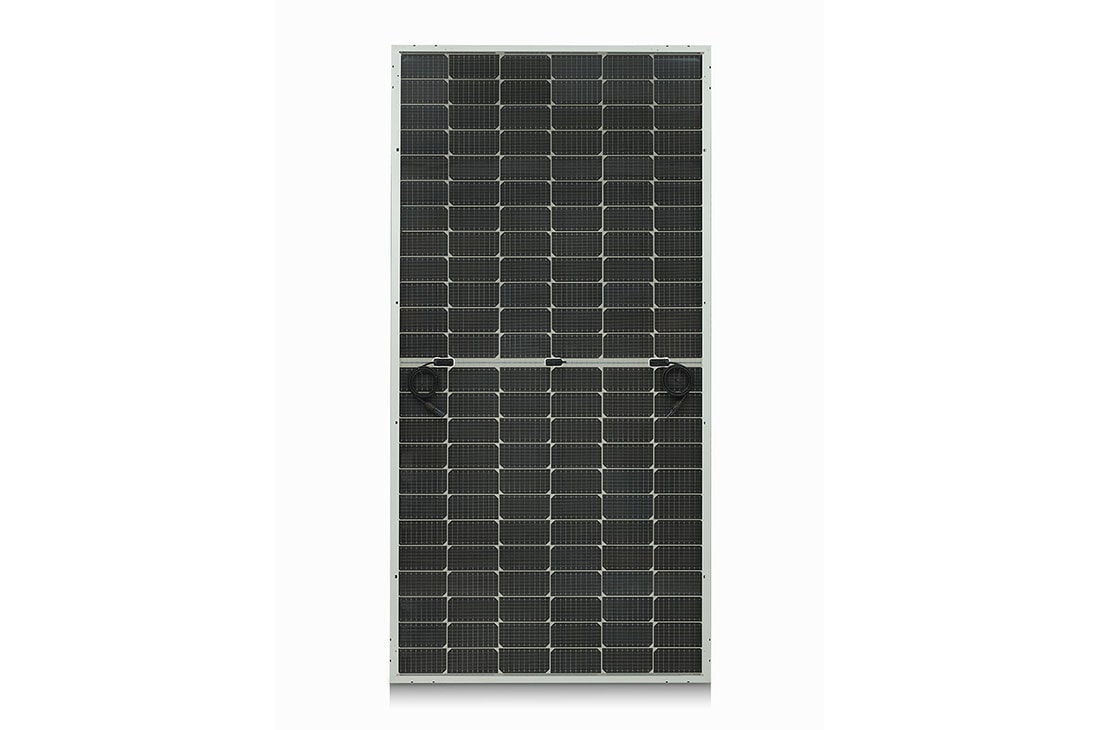

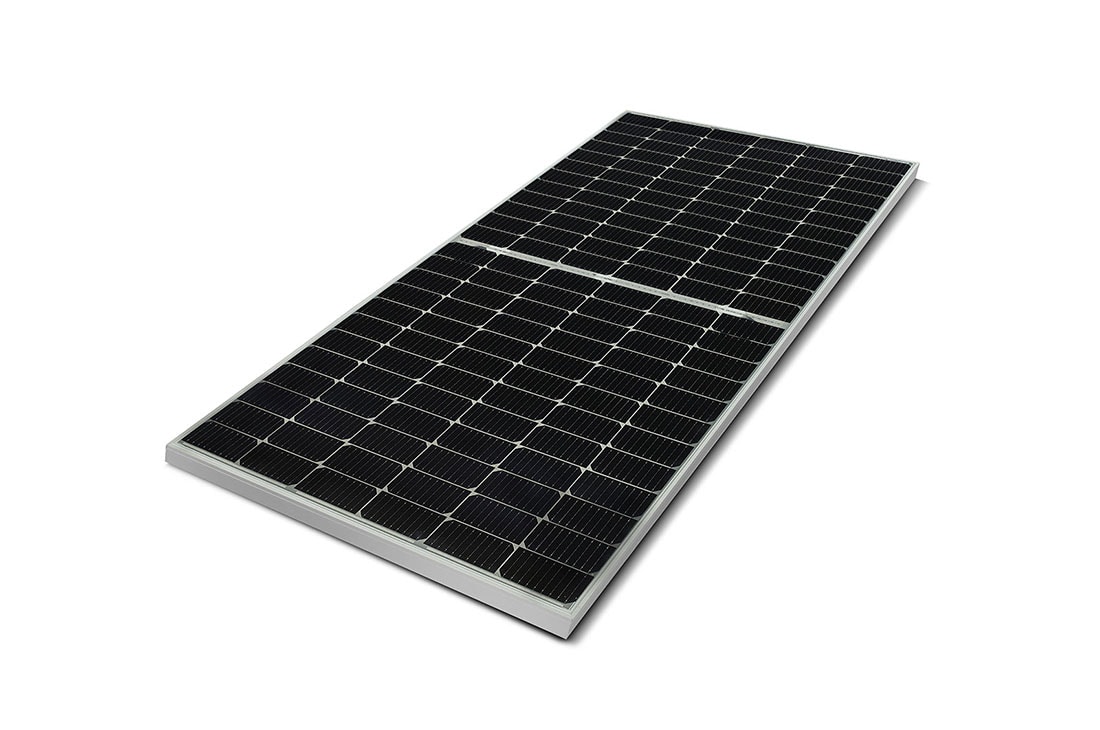

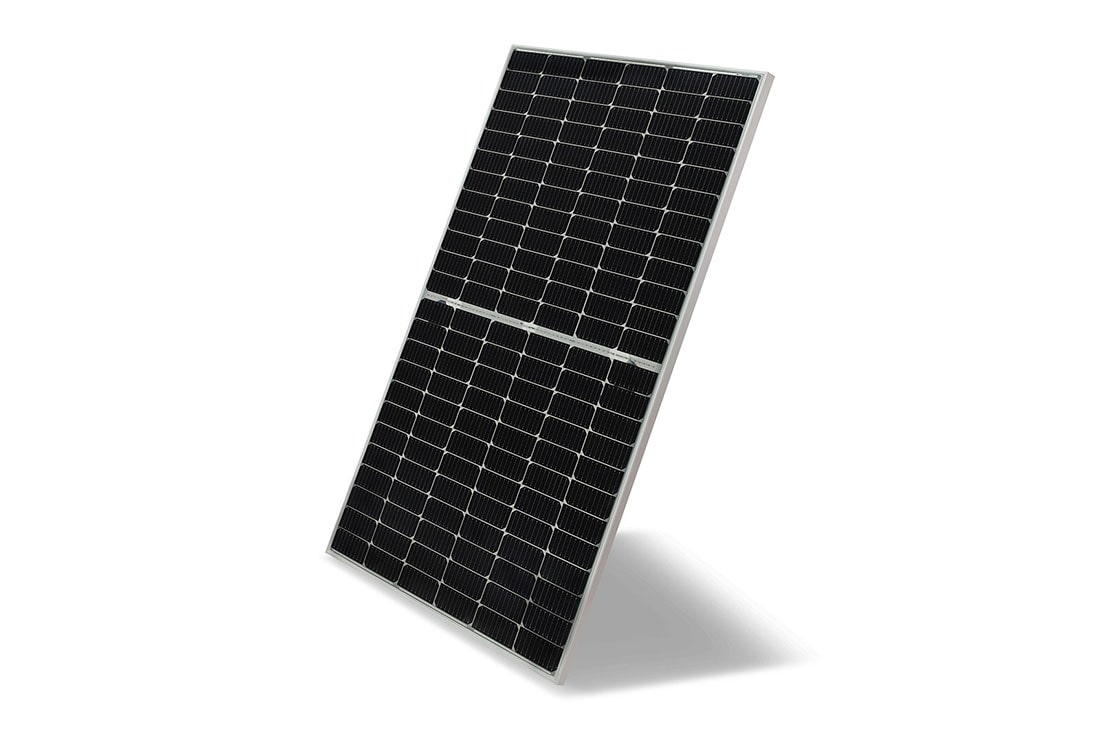

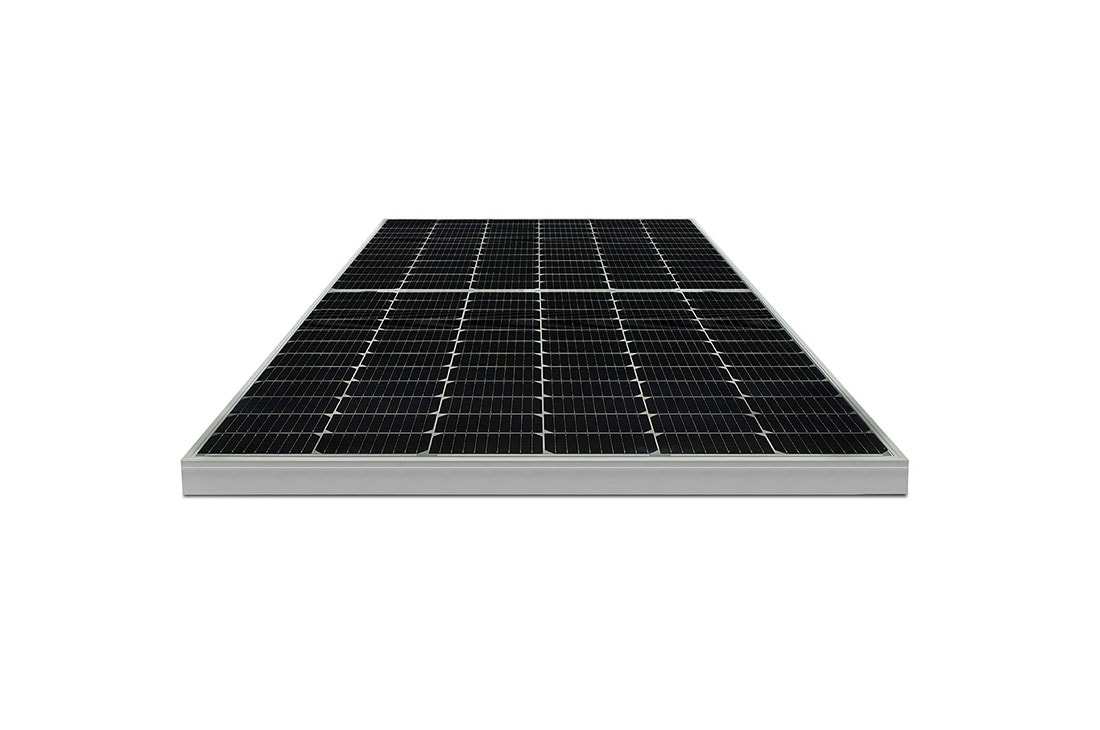

LG435N2T-E6

435W High Efficiency LG NeON® H BiFacial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 19.6%, Connector Type: MC4

KEY FEATURES

  • 25 Year Limited Warranty
  • Bi-facial energy yield
  • Allows for more generation on a cloudy day
  • Absorbs up to 30% more light than conventional models
  • Streamlined, Uniform Roof Aesthetic
  • Durable design
435W High Efficiency LG NeON® H BiFacial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 19.6%, Connector Type: MC4
$
  • 25-Year Warranty

    The NeON® H BiFacial series offers a 25-year limited warranty for performance and labor. At 25 years, the modules are guaranteed to produce at least 96.4% of their labeled power output.

  • Bifacial Energy Yield

    LG NeON® H BiFacial modules use highly efficient bifacial solar cell, “NeON” applied Cello technology. Through the Cello technology, the NeON® H BiFacial solar panel can achieve up to 30% more energy than standard PV module.

*based on BiFi 100.
  • Better Performance on a Sunny Day

    LG NeON® H BiFacial now performs better on sunny days thanks to its improved temperature coefficient.

  • More Generation on a Cloudy Day

    LG NeON® H BiFacial has good performance even on a cloudy day; weak sunlight conditions case a low energy reduction.

  • BOS (Balance Of System) Saving

    LG NeON® H BiFacial can reduce the total number of strings due to its high module efficiency resulting in a more cost effective and efficient solar power system.

  • Near Zero LID (Light Induced Degradation)

    The n-type cells used in LG NeON® H BiFacial have almost no boron, which may cause the initial efficiency to drop, leading to less LID.

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 144 Cells (6 x 24)
    • Number of Busbars
    • 9EA
    • Module Dimensions (L x W x H)
    • 2,130mm x 1,042mm x 40mm
    • Weight
    • 22kg
    • Glass (Thickness/Material)
    • 2.8mm/Tempered Glass with AR Coating
    • Backsheet (Color)
    • Transparent
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,400mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 61701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 1
    • Fire Rating
    • Class C (UL 790, ULC/ORD C 1703)
    • Solar Module Product Warranty
    • 25 Years
    • Solar Module Output Warranty
    • Linear Warranty*
    • *
    • Initial 107%, 1st year 105.4%, After 1st year : -0.35%/year, 96.4% at year 25 (Based on BiFi100)

Temperature Characteristics

    • NMOT* [°C]
    • 42 ± 3
    • Pmax [%/°C]
    • -0.33
    • Voc [%/°C]
    • -0.26
    • Isc [%/°C]
    • 0.04
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Model
    • TBD
    • Maximum Power (Pmax) [W] - STC
    • 327
    • Maximum Power (Pmax) [W] - BiFi100
    • 349
    • Maximum Power (Pmax) [W] - BiFi200
    • 372
    • MPP Voltage (Vmpp) [V] - STC
    • 38.2
    • MPP Voltage (Vmpp) [V] - BiFi100
    • 38.2
    • MPP Voltage (Vmpp) [V] - BiFi200
    • 38.2
    • MPP Current (Impp) [A] - STC
    • 8.55
    • MPP Current (Impp) [A] - BiFi100
    • 9.14
    • MPP Current (Impp) [A] - BiFi200
    • 9.73
    • Open Circuit Voltage (Voc) [V] - STC
    • 45.9
    • Open Circuit Voltage (Voc) [V] - BiFi100
    • 45.9
    • Open Circuit Voltage (Voc) [V] - BiFi200
    • 45.9
    • Short Circuit Current (Isc) [A] - STC
    • 8.98
    • Short Circuit Current (Isc) [A] - BiFi100
    • 9.60
    • Short Circuit Current (Isc) [A] - BiFi200
    • 10.22

Electrical Properties

    • Model
    • TBD
    • Maximum Power (Pmax) [W] - STC*
    • 435
    • Maximum Power (Pmax) [W] - BiFi100**
    • 465
    • Maximum Power (Pmax) [W] - BiFi200**
    • 495
    • MPP Voltage (Vmpp) [V] - STC*
    • 40.7
    • MPP Voltage (Vmpp) [V] - BiFi100**
    • 40.7
    • MPP Voltage (Vmpp) [V] - BiFi200**
    • 40.7
    • MPP Current (Impp) [A] - STC*
    • 10.70
    • MPP Current (Impp) [A] - BiFi100**
    • 11.44
    • MPP Current (Impp) [A] - BiFi200**
    • 12.17
    • Open Circuit Voltage (Voc) [V] - STC*
    • 48.7
    • Open Circuit Voltage (Voc) [V] - BiFi100**
    • 48.7
    • Open Circuit Voltage (Voc) [V] - BiFi200**
    • 48.7
    • Short Circuit Current (Isc) [A] - STC*
    • 11.15
    • Short Circuit Current (Isc) [A] - BiFi100**
    • 11.92
    • Short Circuit Current (Isc) [A] - BiFi200**
    • 12.68
    • Module Efficiency [%] - STC*
    • 19.6
    • Module Efficiency [%] - BiFi100**
    • 21.0
    • Module Efficiency [%] - BiFi200**
    • 22.3
    • Pmax Bifaciality Coefficient [%]
    • 75 ± 5
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000W/m2, Cell temperature 25OC, AM 1.5, Measure Tolerance: 3%
    • **
    • The electrical properties of BiFi100 and BiFi200 measure under the front side irradiance 1000W/m2 + (100W/m2 or 200W/m2) x BiFi. Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200.

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+85
    • Maximum System Voltage [V]
    • 1,000(IEC)/1500(UL)
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 3,000/63
    • *
    • Test Load = Design load x Safety Factor (1.5)

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 550
    • Number of Modules per 53' HQ Container [EA]
    • 750
    • Packaging Box Dimensions (L x W x H) [mm]
    • 2,160 x 1,120 x 1,213
    • Packaging Box Dimensions (L x W x H) [in]
    • TBD
    • Packaging Box Gross Weight [kg]
    • 610
    • Packaging Box Gross Weight [lb]
    • TBD
