KEY FEATURES

  • Brightness (Typ.): 400cd/m² (Average Picture Level 25%)
  • Depth: 12.4mm (Head Only)
  • Supported Curvature: Up to 1,000R (Concave/Convex)
  • Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR

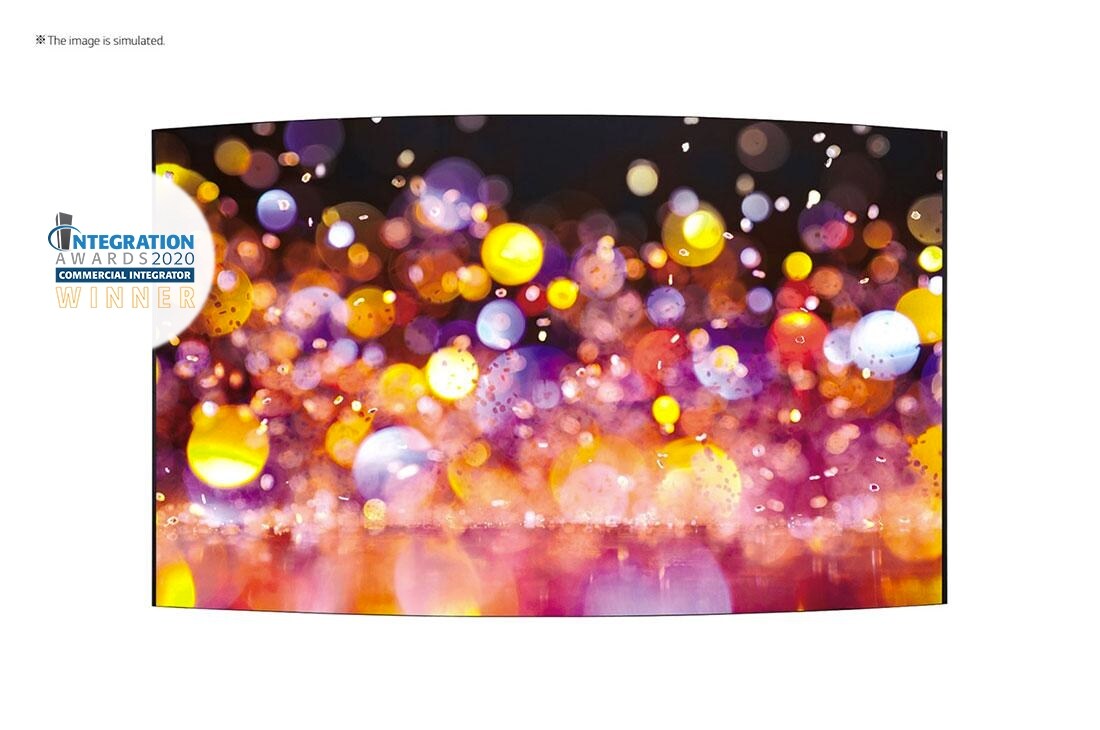

Flexible Curvable Open Frame Tiling OLED

PANEL

    • Panel Size
    • 55"
    • Resolution
    • 1,920 x 1,080 (FHD)
    • Brightness (Average Picture Level 25%, Typ., cd/m²)
    • 400
    • Brightness (Average Picture Level 100%, Typ., cd/m²)
    • 150

CONNECTIVITY

    • Input
    • HDMI, DP, USB 2.0 (2)
    • Output
    • DP, Audio (Fixed/Off/Variable)
    • External Control
    • RS232C In/out, RJ45 In/out, IR In

PHYSICAL SPECIFICATIONS

    • Bezel Width
    • 0.6/0.6/6.7/6.7 mm (Flat, Off Bezel) 5.0/10.6/7.6/7.6 mm (Flat, On Bezel)
    • Dimension (Monitor) (W x H x D)
    • 1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut) 1,224.9 x 696.2 x 12.4 mm (Head Only)
    • Weight
    • Set: 9.9kg Signage Box: 3.5kg
    • Carton Dimensions (W x H x D)
    • 1,350 x 837 x 250 mm

ENVIRONMENTAL CONDITIONS

    • Operation Temperature
    • 0°C to 40°C
    • Operation Humidity
    • 10% to 80%

POWER

    • Power Supply
    • 100-240V~, 50/60Hz
    • Power Type
    • Built-in Power
    • Power Consumption(Typ./Max., Based on 8 Color Bar)
    • 309W/318W

STANDARD CERTIFICATIONS

    • Safety
    • IEC 60950-1 / EN 60950-1 / UL 60950-1
    • EMC
    • FCC Class "A" / CE / KCC

MEDIA PLAYER COMPATIBILITY

    • OPS type compatible
    • No
    • External Media player Attatchable
    • Yes

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign CMS
    • Control and Monitoring Software
    • SuperSign Control+/Control

ACCESSORIES

    • Basic
    • Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
    • Optional
    • Curvature Calibrator (ACC-CC-EF5E)
