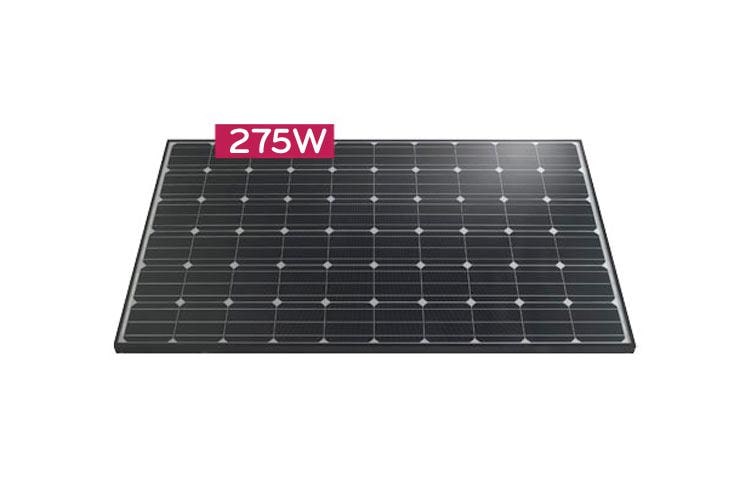

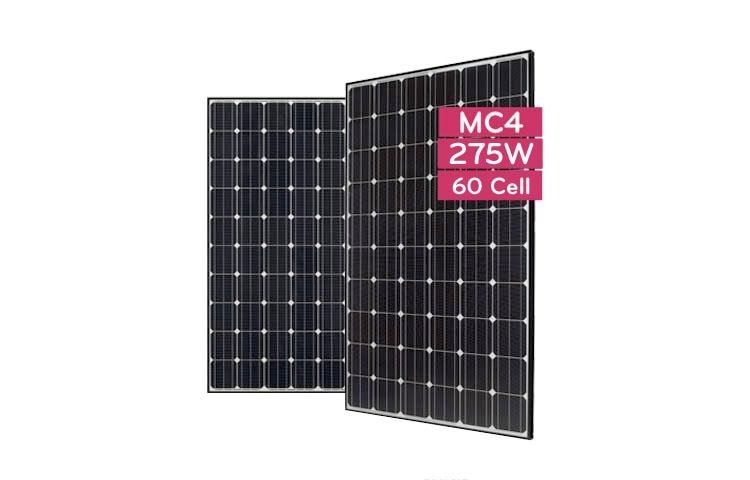

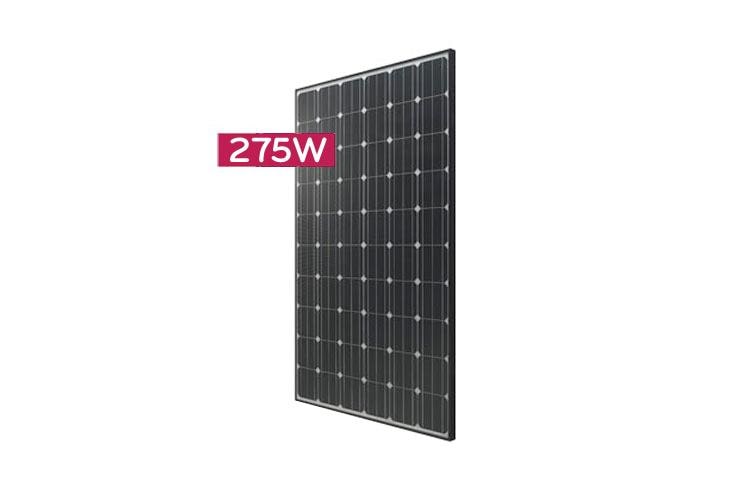

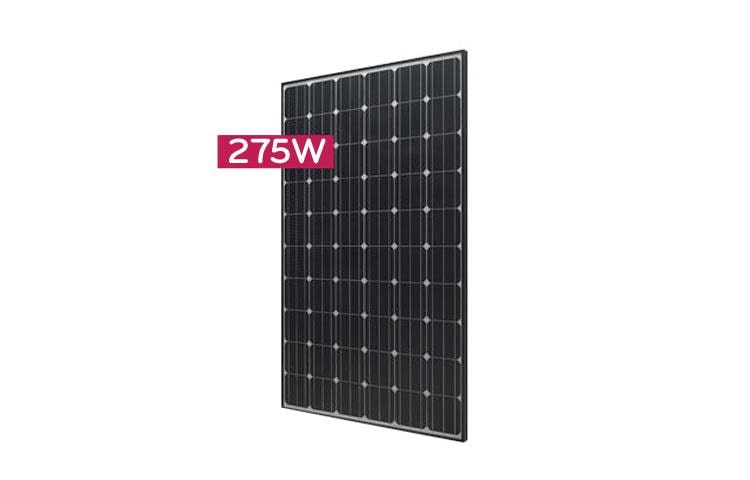

LG275S1C-B3

High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.8% Connector Type: MC4 connector IP67

High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.8% Connector Type: MC4 connector IP67

Mechanical Properties

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell type
    • Monocrystalline
    • Cell dimensions
    • 156.5 x 156.5 mm / 6 x 6 in
    • # of busbar
    • 3
    • Dimensions (L x W x H)
    • 1640 x 1000 x 35 mm / 64.57 x 39.37 x 1.38 in
    • Static snow load
    • 5400 Pa / 113 psf
    • Static wind load
    • 2400 Pa / 50 psf
    • Weight
    • 16.8 ± 0.5 kg / 36.96 ± 1.1 lb
    • Connector type
    • MC4 connector IP 67
    • Junction box
    • IP 67 with 3 bypass diodes
    • Length of cables
    • 1000 mm / 39.37 in
    • Glass
    • High transmission tempered glass
    • Frame
    • Anodized aluminum

Certifications and Warranty

    • Certifications
    • IEC 61215, IEC 61730-1/-2, IEC 61701, Salt Mist Corrosion Test (IEC61701), DLG-Fokus Test "Ammonia Resistance", UL1703, ISO 9001
    • Module Fire Performance (UL1703)
    • Type 2
    • Product warranty
    • 10 years
    • Output warranty of Pmax (measurement Tolerance ± 3%)
    • Limited Linear Warranty *
    • *
    • 1) 1st year: 97%, 2) After 2nd year: 0.7%p annual degradation, 3) 80.2% for 25 years

Temperature Coefficients

    • NOCT
    • 45.0 ± 2 °C
    • Pmpp
    • -0.43 %/ºC
    • Voc
    • -0.31 %/°C
    • Isc
    • 0.04 %/°C

Electrical Properties (STC*)

    • Maximum power at STC (Pmpp)
    • 275
    • MPP voltage (Vmpp)
    • 31.7
    • MPP current (Impp)
    • 8.68
    • Open circuit voltage (Voc)
    • 38.7
    • Short circuit current (Isc)
    • 9.26
    • Module efficiency (%)
    • 16.8
    • Operating temperature (°C)
    • -40 ~ +90
    • Maximum system voltage (V)
    • 1000 (IEC), 600 (UL)
    • Maximum series fuse rating (A)
    • 15
    • Power tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.

Electrical Properties (NOCT*)

    • Maximum power at NOCT (Pmpp)
    • 202
    • MPP voltage (Vmpp)
    • 29.1
    • MPP current (Impp)
    • 6.92
    • Open circuit voltage (Voc)
    • 35.9
    • Short circuit current (Isc)
    • 7.46
    • Efficiency reduction (from 1000 W/m2 to 200 W/m2)
    • < 4.5 %
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
