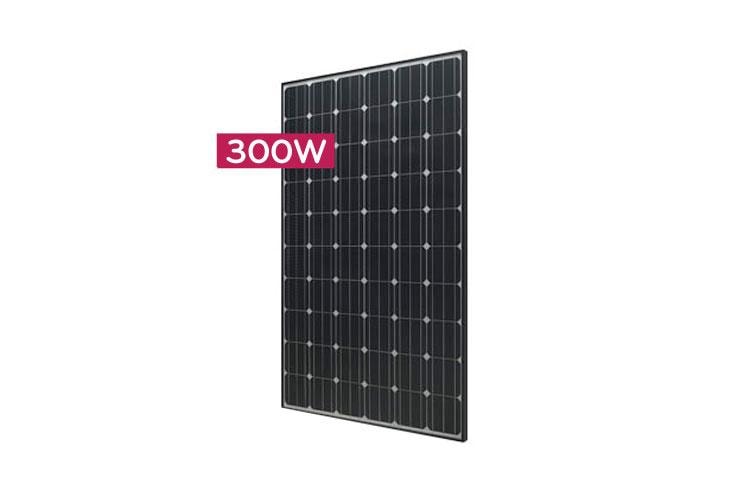

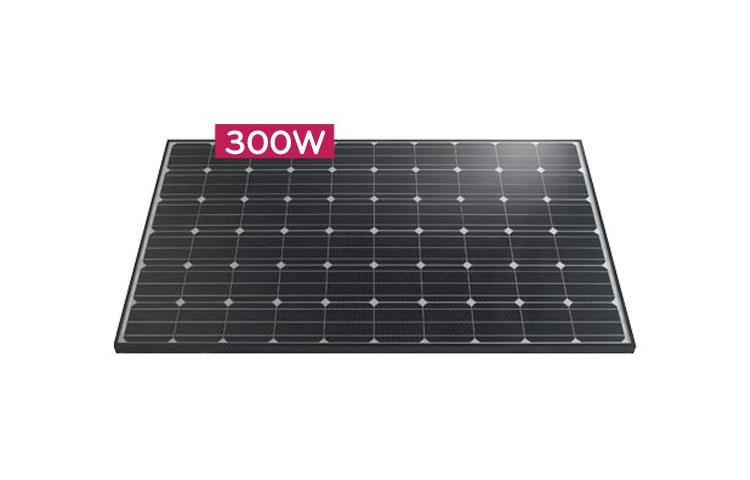

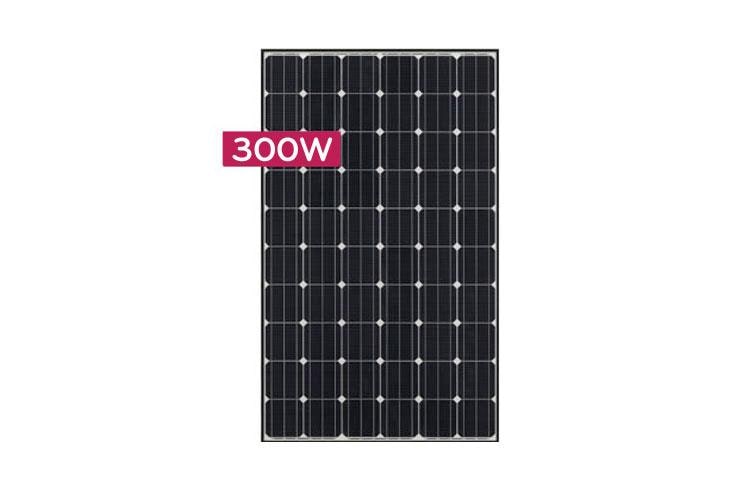

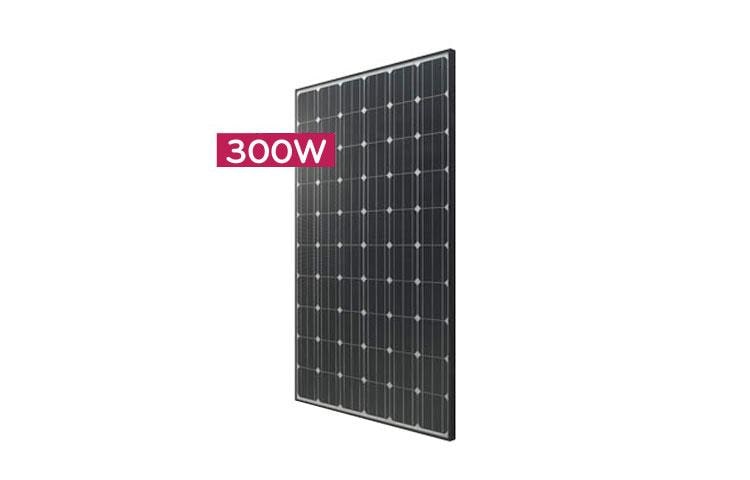

LG300N1C-A3
High Efficiency Mono X™ NeON Module Cells: 6 x 10 Module efficiency 18.3% Connector Type: MC4 connector IP67
  • N-type Material
  • Near Zero LID (Light Induced Degradation)
  • Nano Level Control
  • Double Sided Cell Structure
High Efficiency Mono X™ NeON Module Cells: 6 x 10 Module efficiency 18.3% Connector Type: MC4 connector IP67

N-TYPE CELL MATERIAL

  • MonoX™ NeON uses n-type cells, which boasts higher mobility of electric charge, resulting in higher generation efficiency.

LESS LIGHT INDUCED DEGRADATION

  • The n-type cells used in Mono™ NeON have almost no boron which may cause the initial efficiency to drop, which leads to less LID.(Light Induced Degradation)

NANO LEVEL CONTROL

  • MonoX™ NeON uses the Nano-level process control predominant in semiconductor processing process, which ensures less electric loss from internal defects.

DOUBLE SIDED CELL STRUCTURE

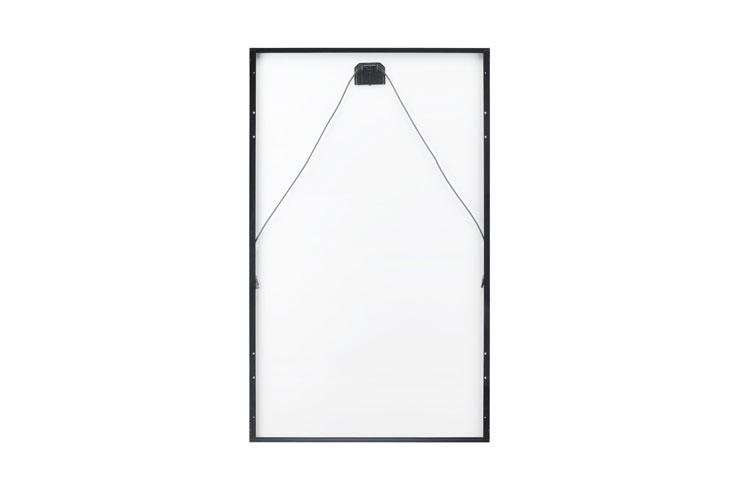

  • The rear of the cell used in MonoX™ NeON will contribute to generation; the light beam reflected from the rear of the module is reabsorbed to generate a great amount of additional power.

Mechanical Properties

  • Cells
    6 x 10
    Cell vendor
    LG
  • Cell type
    Monocrystalline
    Cell dimensions
    156 x 156 mm / 6 x 6 in
  • # of busbar
    3
    Dimensions (L x W x H)
    1640 x 1000 x 35 mm / 64.57 x 39.37 x 1.38 in
  • Static snow load
    5400 Pa / 113 psf
    Static wind load
    2400 Pa / 50 psf
  • Weight
    16.8 ± 0.5 kg / 36.96 ± 1.1 lb

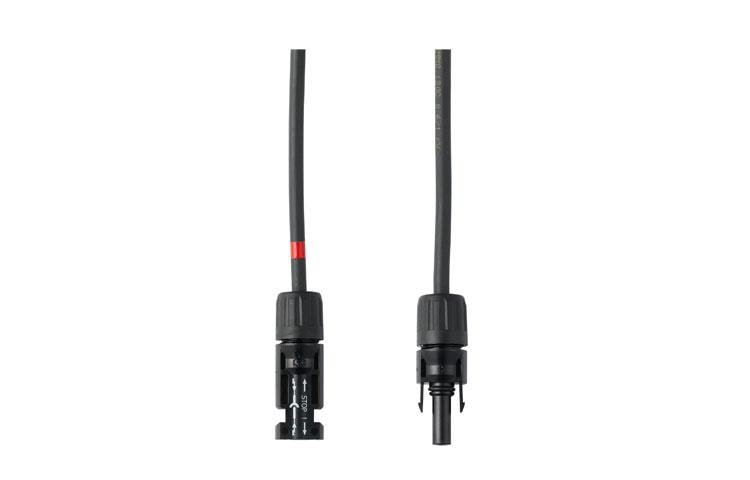

    Connector type
    MC4 connector IP 67

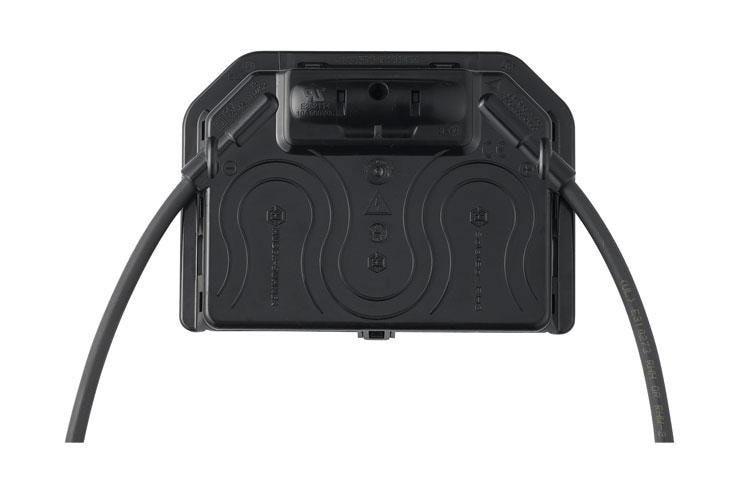

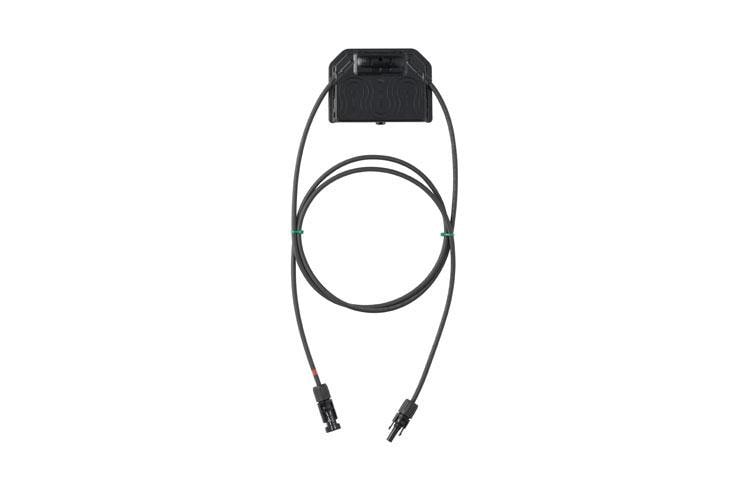

  • Junction box
    IP 67 with 3 bypass diodes
    Length of cables
    2 x 1000 mm / 2 x 39.37 in
  • Glass
    High transmission tempered glass

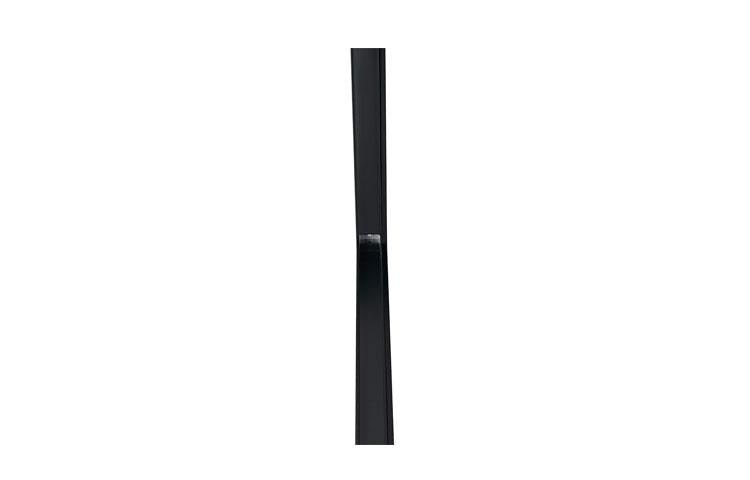

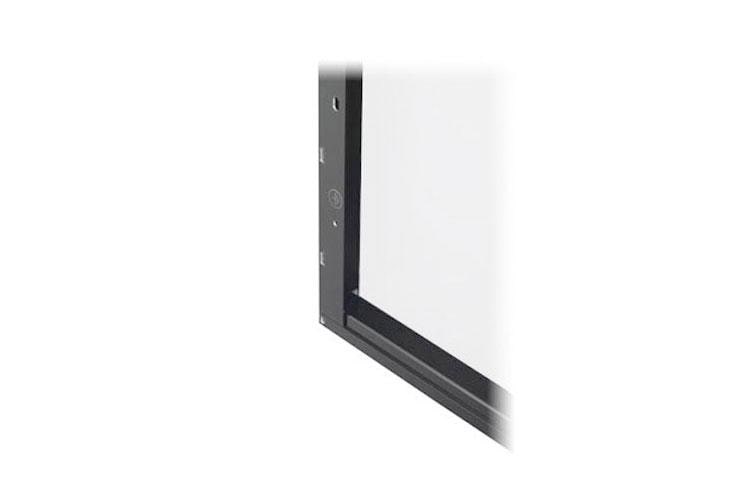

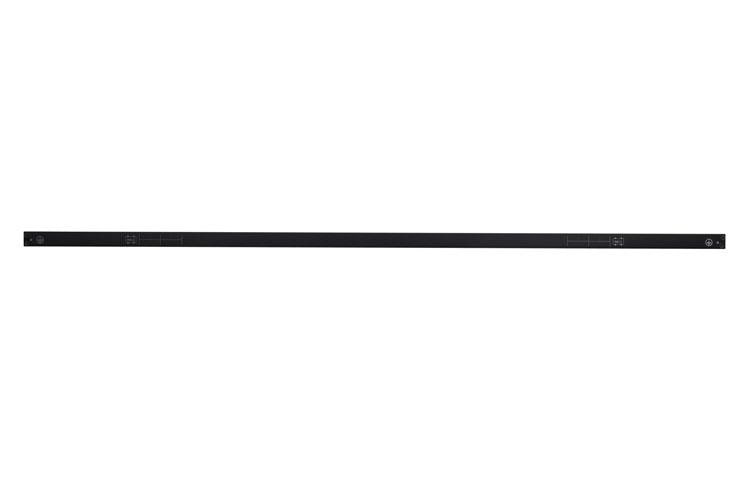

    Frame
    Anodized aluminum

Certifications and Warranty

  • Certifications
    IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 61701, IEC 62716
    Product warranty
    10 years
  • Output warranty of Pmax (measurement Tolerance ± 3%)
    Linear warranty*
    *
    1) 1st year: 98%, 2) After 2nd year: 0.7%p annual degradation, 3) 81.2% for 25 years

Temperature Coefficients

  • NOCT
    45 ± 2 °C
    Pmpp
    -0.41 %/°C
  • Voc
    -0.29 %/°C
    Isc
    0.04 %/°C

Electrical Properties (STC*)

  • MPP voltage (Vmpp)
    32.0
    MPP current (Impp)
    9.40
  • Open circuit voltage (Voc)
    39.8
    Short circuit current (Isc)
    9.98
  • Module efficiency (%)
    18.3
    Operating temperature (°C)
    -40 ~ +90
  • Maximum system voltage (V)
    1000 (IEC), 600 (UL)
    Maximum series fuse rating (A)
    20
  • Power tolerance (%)
    0 ~ +3
    *
    STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.

Electrical Properties (NOCT*)

  • Maximum power at NOCT (Pmpp)
    220
    MPP voltage (Vmpp)
    29.3
  • MPP current (Impp)
    7.50
    Open circuit voltage (Voc)
    36.9
  • Short circuit current (Isc)
    8.05
    Efficiency reduction (from 1000 W/m2 to 200 W/m2)
    < 3.5%
  • *
    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
