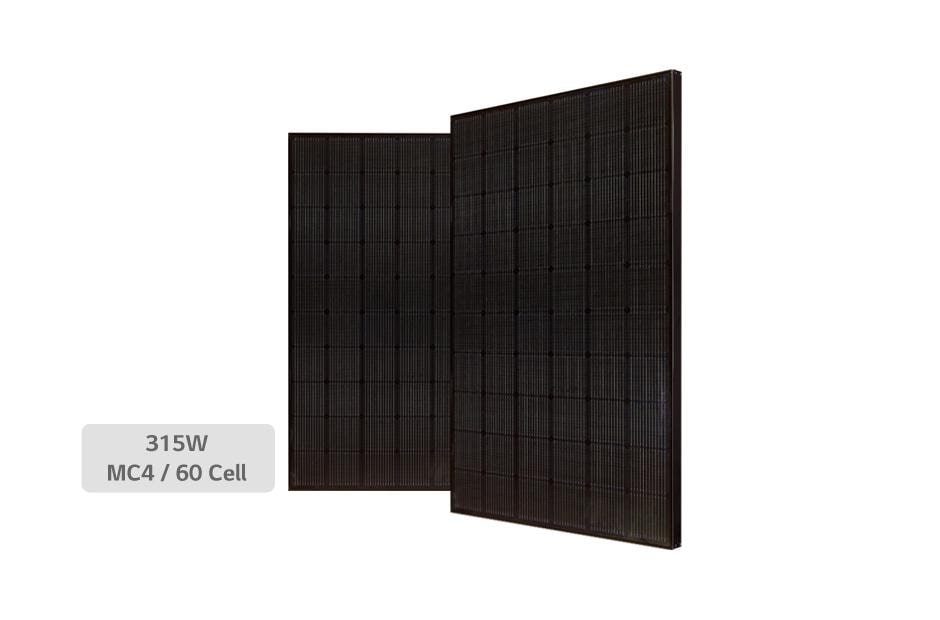

LG315N1K-A5

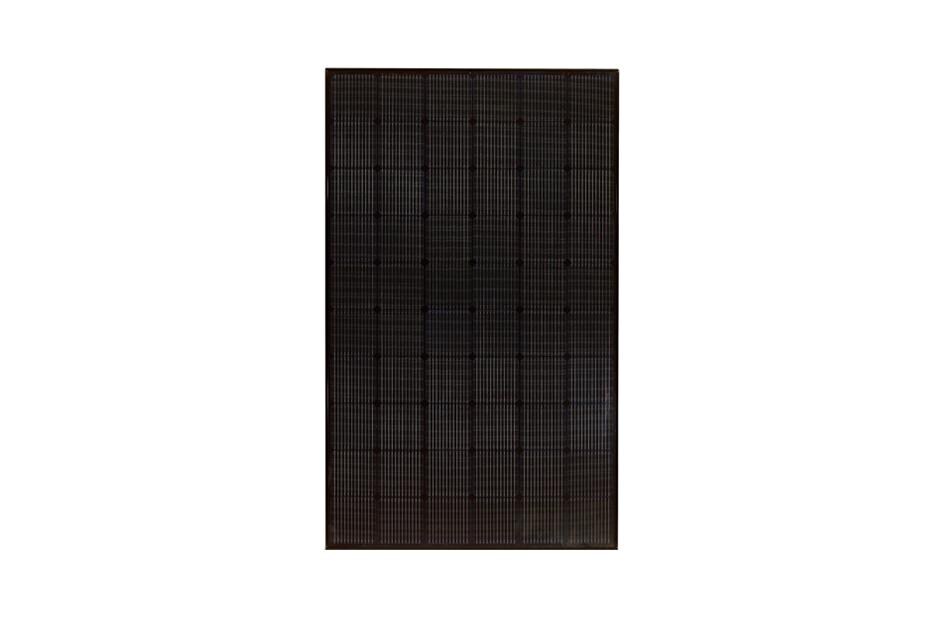

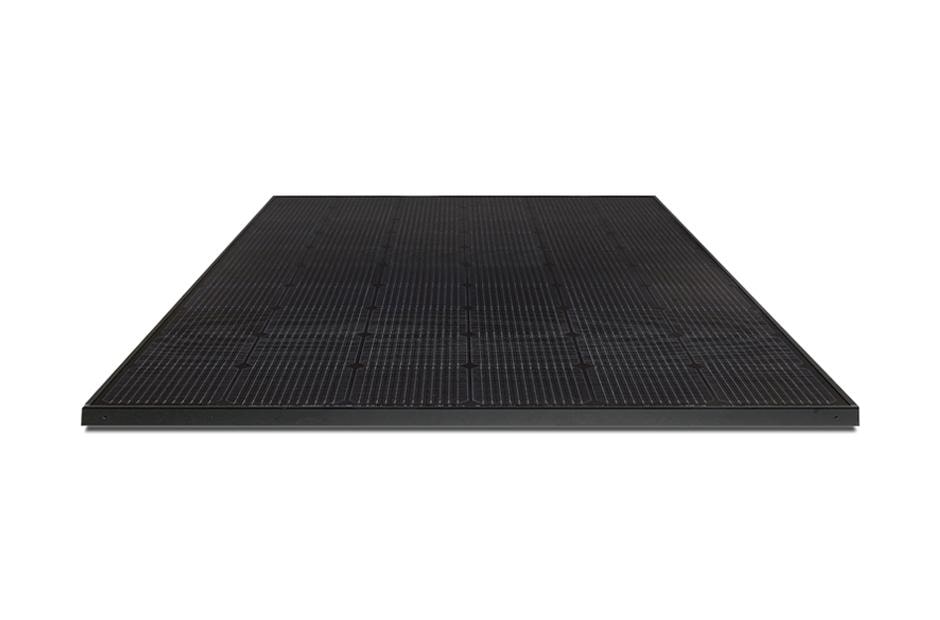

High Efficiency LG NeON® 2 Black Module Cells: 6 x 10 Module efficiency 18.4% Connector Type: MC4
  • Enhanced Performance Warranty
  • High Power Output
  • Roof Aesthetics
High Efficiency LG NeON® 2 Black Module Cells: 6 x 10 Module efficiency 18.4% Connector Type: MC4
$
Enhanced Performance Warranty1

Enhanced Performance Warranty

LG NeON® 2 has an enhanced performance warranty. The annual degradation has fallen from -0.6%/yr to -0.5%/yr. Even after 25 years, the cell guarantees 2.4% more output than the previous LG NeON® 2 modules.

High Power Output1

High Power Output

Compared with previous models, the LG NeON® 2 Black has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

Roof Aesthetics1

Roof Aesthetics

LG NeON® 2 Black has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

Outstanding Durability1

Outstanding Durability

With its newly reinforced frame design, LG has extended the warranty of the NeON® 2 from 15 years to 25 years, including labor. In addition, LG NeON® 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

Improved Performance on Sunny Days1

Improved Performance on Sunny Days

LG NeON 2 Black now performs better on sunny days, thanks to its improved temperature coefficient.

Near Zero LID1

Near Zero LID

The n-type cells used in LG NeON® 2 have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

CERTIFICATIONS & WARRANTY

  • Certifications
    IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion t est), IEC 62716 (Ammonia corrosion test), ISO 9001
    Module Fire Performance
    Type 1
  • Product Warranty
    25 years
    Output Warranty of Pmax
    Linear warranty**
  • **
    1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86%
    Fire Rating (for CANADA)
    Class C

ELECTRICAL PROPERTIES(NOCT*)

  • Maximum Power(Pmax)
    232
    MPP Voltage (Vmpp)
    30.4
  • MPP Current (Impp)
    7.63
    Open Circuit Voltage (Voc)
    37.9
  • Short Circuit Current (Isc)
    8.17
    *
    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

ELECTRICAL PROPERTIES(STC*)

  • MPP Voltage (Vmpp)
    32.9
    MPP Current (Impp)
    9.58
  • Open Circuit Voltage (Voc)
    40.7
    Short Circuit Current (Isc)
    10.15
  • Module Efficiency (%)
    18.4
    Operating Temperature (°C)
    -40 ~ +90
  • Maximum System Voltage (V)
    1000
    Maximum Series Fuse Rating (A)
    20
  • Power Tolerance (%)
    0 ~ +3
    *
    STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0%.
  • Maximum Power (Pmax)
    315

MECHANICAL PROPERTIES

  • Cells
    6 x 10
    Cell vendor
    LG
  • Cell Type
    Monocrystalline / N-type
    Cell Dimensions
    161.7 x 161.7 mm / 6 inches
  • # of Busbar
    12 (Multi Wire Busbar)
    Dimensions (L x W x H)
    1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch
  • Front Load
    6000Pa
    Rear Load
    5400Pa
  • Weight
    18 kg
    Connector Type
    MC4

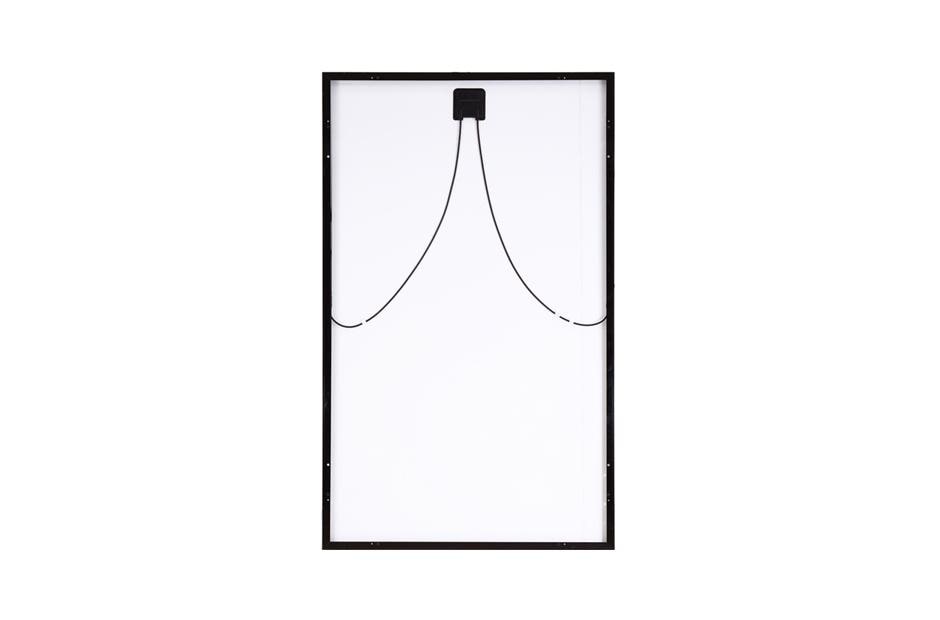

  • Junction Box
    IP68 with 3 Bypass Diodes
    Frame
    Anodized aluminum
  • Glass
    Tempered Glass with AR Coating
    Cables
    1000 mm x 2 ea

TEMPERATURE CHARACTERISTICS

  • NOCT
    45 ± 3 °C
    Pmpp
    -0.37%/°C
  • Voc
    -0.27%/°C
    Isc
    0.03 %/°C

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
