Discontinued
LG320E1K-A5

High Efficiency LG NeON® 2 Black ACe Module Cells: 6 x 10 Module efficiency 18.7%

  • Enhanced Long-term Reliability
  • Safer Solar Roof System
  • Simplified Logistics
High Efficiency LG NeON® 2 Black ACe Module Cells: 6 x 10 Module efficiency 18.7%
  • Enhanced Long-Term Reliability

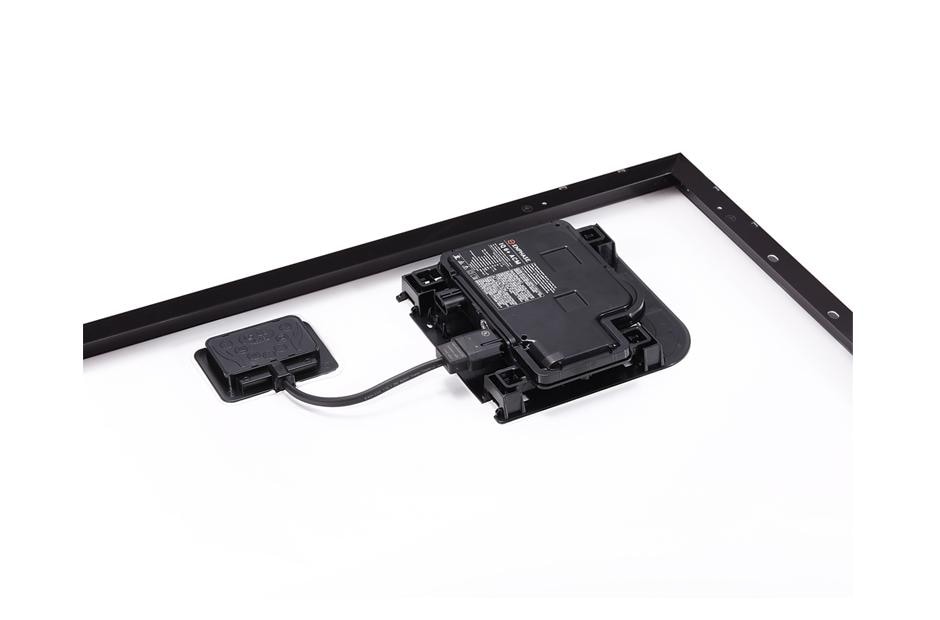

    The LG NeON 2 Black ACe has a 15 mm distance between the DC module and the Microinverter. The distance mitigates any impact to performance and reliability by allowing sufficient air-flow for cooling.
  • High Power Output

    LG NeON 2 series modules produce high energy output from high-efficiency n-type cells, enabling more flexible use of available roof space.
  • Safer Solar Roof System

    The LG NeON 2 Black ACe produces safe AC voltage and complies with NEC 2014 and 2017 standards.
  • User Friendly Monitoring

    Remote Monitoring and Management with Enphase Enlighten software is featured. The LG NeON 2 Black ACe is easy to monitor and manage from any web-connected device.
  • Simplified Logistics

    The LG NeON 2 Black ACe consolidates multiple PV system components into a single product SKU. This makes it easier to order, store and transport the modules.
  • Quick Installation

    Installation of the LG NeON 2 Black ACe is a two-step process of lifting the inverter and connecting the cable without the need to install the inverter. This reduces installation labor requirements.

AC ELECTRICAL PROPERTIES

    • Number of Maximum AC Modules
    • 13
    • Peak Output Power (VA)
    • 290
    • Max. Continuous Output Power (VA)
    • 280
    • Nominal Voltage / Range (V)
    • 240 / 211~264
    • Nominal Output Current (A)
    • 1.17
    • Nominal Frequency / Range (Hz)
    • 60.0 / 59.3~60.5
    • Power Factor / Adjustable
    • 1 / 0.7leading…0.7lagging
    • CEC Weighted Efficiency (%)
    • 97
    • Max. Branch Circuit Over Current Protection (A)
    • 20

CERTIFICATIONS & WARRANTY

    • Certifications (AC Module)
    • UL 1741, UL 1703
    • Module Fire Performance (UL1703)
    • Type 2
    • Output Warranty of Pmax (DC) (Measurement Tolerance ± 3%)
    • Linear Warranty*
    • *
    • 1) 1st year: 98%, 2) After 1st year: 0.55% annual degradation, 3) 25 years: 84.8%
    • Certifications (Micro Inverter)
    • UL 1741 / IEEE 1547, UL 62109-1, FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01
    • Solar Module Product Warranty
    • 12 years
    • Micro Inverter Warranty
    • 25 years

DC ELECTRICAL PROPERTIES(STC*)

    • Maximum Power (Pmax)*
    • 320
    • Module Efficiency
    • 18.7
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0%

DC Temperature Characteristics

    • NOCT*
    • 45 ± 3 °C
    • Voc
    • -0.27%/°C
    • Isc
    • 0.03 %/°C
    • Pmpp
    • -0.37 %/°C

MECHANICAL PROPERTIES

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm / 6 inches
    • # of Busbar
    • 12 (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch
    • Front Load
    • 6000Pa
    • Rear Load
    • 5400Pa
    • Weight
    • 19.0 kg / 41.88 lbs
    • Frame
    • Anodized aluminum
    • Glass
    • Tempered Glass with AR Coating
    • Cooling
    • Natural Convection - No Fans
    • Enclosure Environmental Rating
    • Outdoor - NEMA 250 type 6 (MIC)
    • Operating Ambient Temperature
    • -40 ~ +65 °C (-40 ~ +149 °F)
    • Inverter Model (Utility Interactive)
    • Enphase IQ6+ Microinverter
    • Storage Temperature
    • 40 ~ +85 °C (-40 ~ +185°F)
