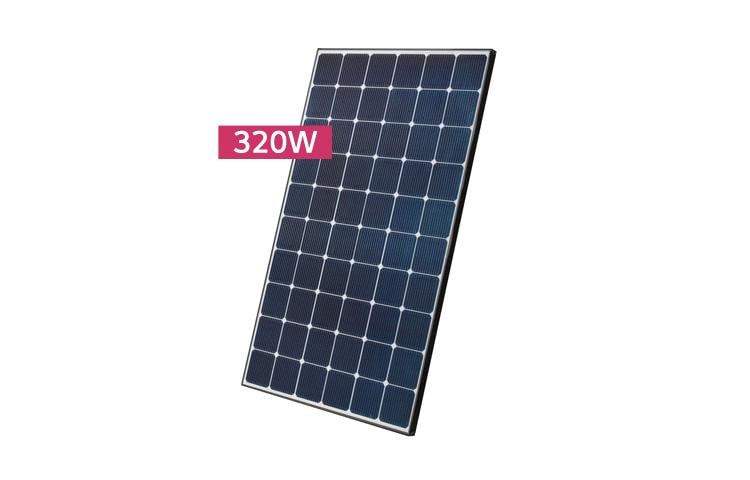

LG320N1C-G4
High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.5% Connector Type: MC4, MC4 Compatible, IP67
  • Enhanced Performance Warranty
  • Roof Aesthetics
  • High Power Output
High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.5% Connector Type: MC4, MC4 Compatible, IP67
$
Enhanced Performance Warranty1

Enhanced Performance Warranty

LG offers a 25-year product warranty for LG NeON® R in additional to an enhanced performance warranty. After 25 years, LG NeON® R is guaranteed to produce at least 88.4% of its initial power output.

High Power Output1

High Power Output

Compared with previous models, the LG NeON® 2 has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

Roof Aesthetics1

Roof Aesthetics

LG NeON® 2 has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

Outstanding Durability1

Outstanding Durability

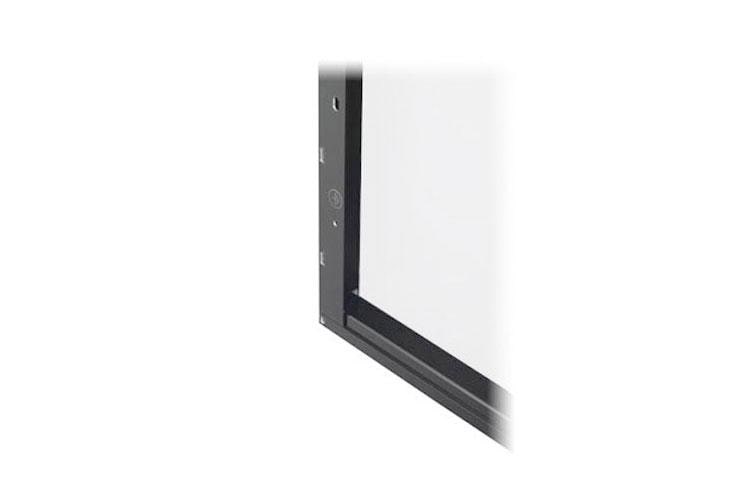

With its newly reinforced frame design, LG has extended the warranty of the LG NeON® 2 for an additional 3 years. Additionally, LG NeON® 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

Improved Performance on Sunny Days   1

Improved Performance on Sunny Days

LG NeON 2 now performs better on sunny days, thanks to its improved temperature coefficient.

Double-Sided Cell Structure 1

Double-Sided Cell Structure

The rear of the cell used in the LG NeON® 2 contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.

CERTIFICATIONS & WARRANTY

  • Certifications
    IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test)
    Module Fire Performance
    Type 1 (UL 1703)(LGxxxN1C-G4.AUF)
  • Product Warranty
    12 years
    Output Warranty of Pmax
    Linear warranty*
  • *
    1) 1st year: 98%, 2) After 2nd year: 0.6% annual degradation, 3) 83.6% for 25 years
    Fire Rating (for CANADA)
    Class C (ULC/ORD C1703)

ELECTRICAL PROPERTIES(NOCT*)

  • Maximum Power(Pmax)
    234
    MPP Voltage (Vmpp)
    30.7
  • MPP Current (Impp)
    7.6
    Open Circuit Voltage (Voc)
    37.9
  • Short Circuit Current (Isc)
    8.1
    *
    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

ELECTRICAL PROPERTIES(STC*)

  • MPP Voltage (Vmpp)
    33.6
    MPP Current (Impp)
    9.53
  • Open Circuit Voltage (Voc)
    40.9
    Short Circuit Current (Isc)
    10.05
  • Module Efficiency (%)
    19.5
    Operating Temperature (°C)
    -40 ~ +90
  • Maximum System Voltage (V)
    1000
    Maximum Series Fuse Rating (A)
    20
  • Power Tolerance (%)
    0 ~ +3
    *
    STC (Standard Test Condition): Irradiance 1000 W/m2, Module Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The typical change in module efficiency at 200 W/m2 in relation to 1000 W/m2 is -2.0%.

MECHANICAL PROPERTIES

  • Cells
    6 x 10
    Cell vendor
    LG
  • Cell Type
    Monocrystalline / N-type
    Cell Dimensions
    156.75 x 156.75 mm / 6 inches
  • # of Busbar
    12 (Multi Wire Busbar)
    Dimensions (L x W x H)
    1640 x 1000 x 40 mm 64.57 x 39.37 x 1.57 inch
  • Front Load
    6000 Pa / 125 psf
    Rear Load
    5400 Pa / 113 psf
  • Weight
    17.0 ± 0.5 kg / 37.48 ± 1.1 lbs

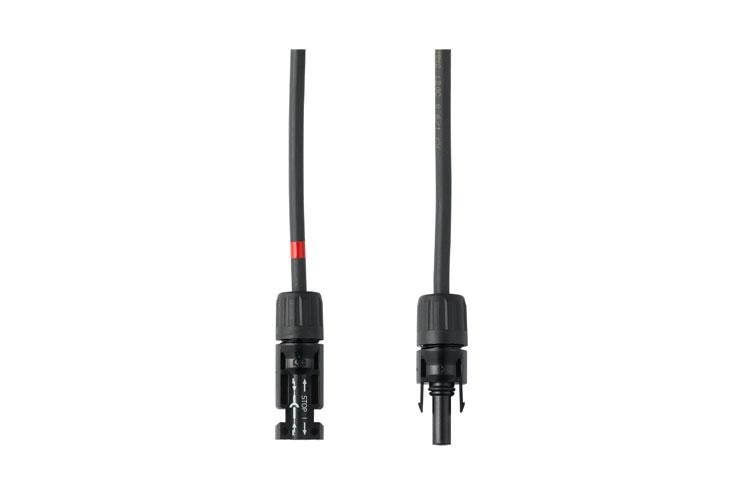

    Connector Type
    MC4, MC4 Compatible, IP67

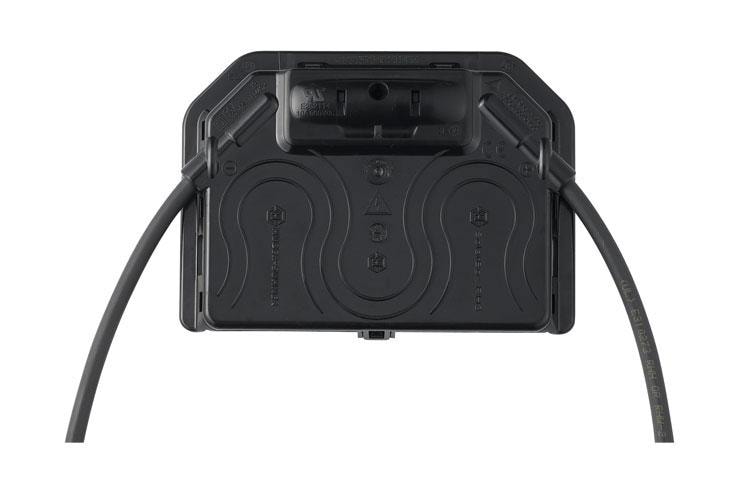

  • Junction Box
    IP 67 with 3 bypass diodes

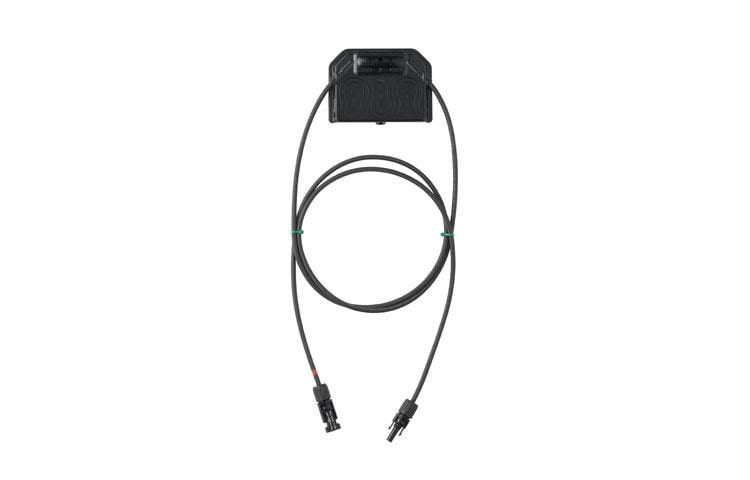

    Length of Cables
    2 x 1000 mm / 2 x 39.37 in

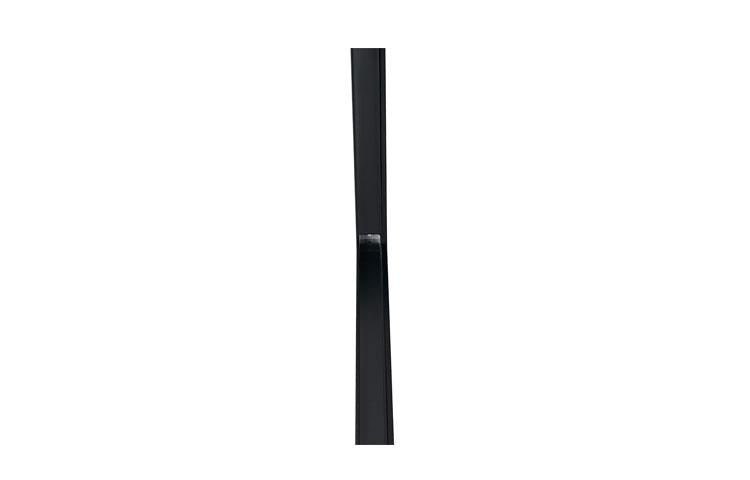

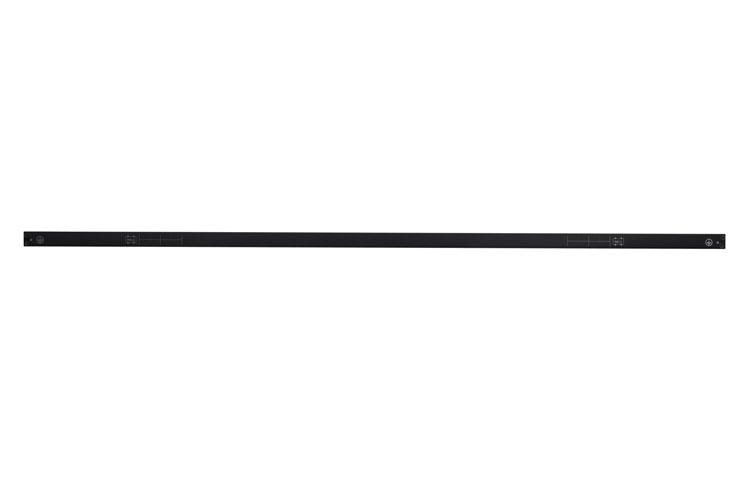

  • Frame
    Anodized aluminum
    Glass
    Tempered Glass with AR Coating

TEMPERATURE CHARACTERISTICS

  • NOCT
    46 ± 3 °C
    Pmpp
    -0.38 %/°C
  • Voc
    -0.28 %/°C
    Isc
    0.03 %/°C

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
