KEY FEATURES

  • Enhanced Performance Warranty
  • High Power Output
  • Roof Aesthetics

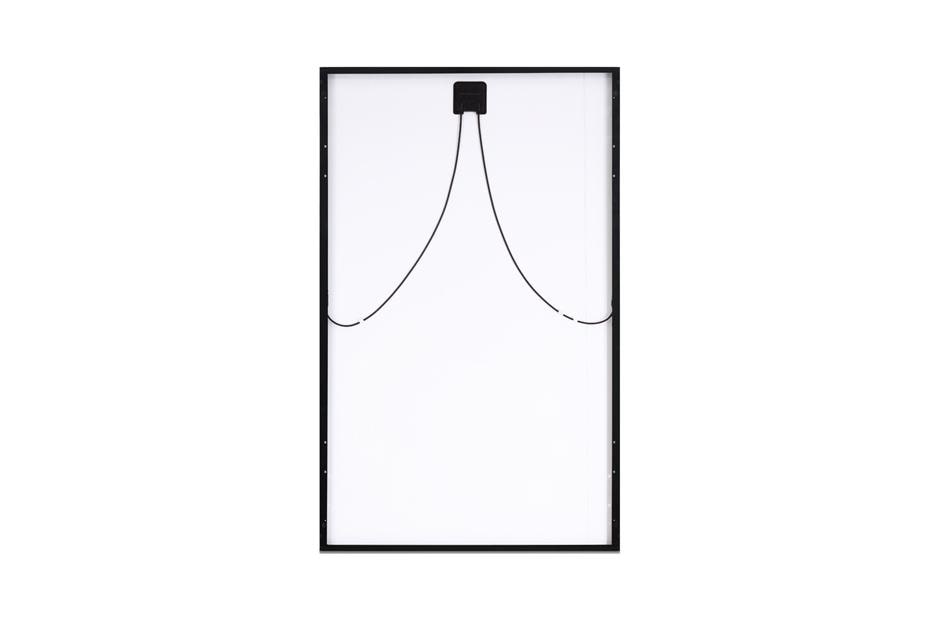

High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 20.3% Connector Type: MC4
$
  • Enhanced Performance Warranty

    LG offers a 25-year product warranty for LG NeON® R, including labor, in addition to an enhanced performance warranty. After 25 years, LG NeON® R is guaranteed to produce at least 88.4% of its initial power output.

  • High Power Output

    The LG NeON® R has been designed to significantly enhance its output, making it efficient even in limited space.

  • Roof Aesthetics

    LG NeON® R has been designed with aesthetics in mind: the lack of any electrodes on the front creates an improved, modern aesthetic.

  • Outstanding Durability

    With its newly reinforced frame design, LG NeON® R can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

  • Improved Performance on Sunny Days

    LG NeON R now performs better on sunny days, thanks to its improved temperature coefficient.

  • Near Zero LID

    The n-type cells used in LG NeON® R have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
    • Module Fire Performance
    • Type 1
    • Product Warranty
    • 25 years
    • Output Warranty of Pmax
    • Linear warranty**
    • **
    • 1) First 5 years : 95%, 2) After 5th year : 0.4% annual degradation, 3) 25 years : 88.4%
    • Fire Rating (for CANADA)
    • Class C (ULC/ORD C1703)

ELECTRICAL PROPERTIES(NOCT*)

    • Maximum Power(Pmax)
    • 264
    • MPP Voltage (Vmpp)
    • 36.3
    • MPP Current (Impp)
    • 7.26
    • Open Circuit Voltage (Voc)
    • 40.9
    • Short Circuit Current (Isc)
    • 8.54
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

Electrical Properties (STC*)

    • MPP Voltage (Vmpp)
    • 36.4
    • MPP Current (Impp)
    • 9.62
    • Open Circuit Voltage (Voc)
    • 43.5
    • Short Circuit Current (Isc)
    • 10.60
    • Module Efficiency (%)
    • 20.3
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1000
    • Maximum Series Fuse Rating (A)
    • 20
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
    • Maximum Power (Pmax)
    • 350

MECHANICAL PROPERTIES

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm / 6 inches
    • # of Busbar
    • 30 (Multi Ribbon Busbar)
    • Dimensions (L x W x H)
    • 1700 x 1016 x 40 mm / 66.93 x 40.0 x 1.57 inch
    • Front Load
    • 6000 Pa / 125 psf
    • Rear Load
    • 5400 Pa / 113 psf
    • Weight
    • 18.5 kg
    • Connector Type
    • MC4
    • Junction Box
    • IP 67 with 3 bypass diodes
    • Length of Cables
    • 1000 mm x 2 ea
    • Frame
    • Anodized aluminium
    • Glass
    • Tempered Glass with AR Coating

Temperature Characteristics

    • NOCT
    • 44 ± 3 °C
    • Pmpp
    • -0.30 %/°C
    • Voc
    • -0.24 %/°C
    • Isc
    • 0.04 %/°C
