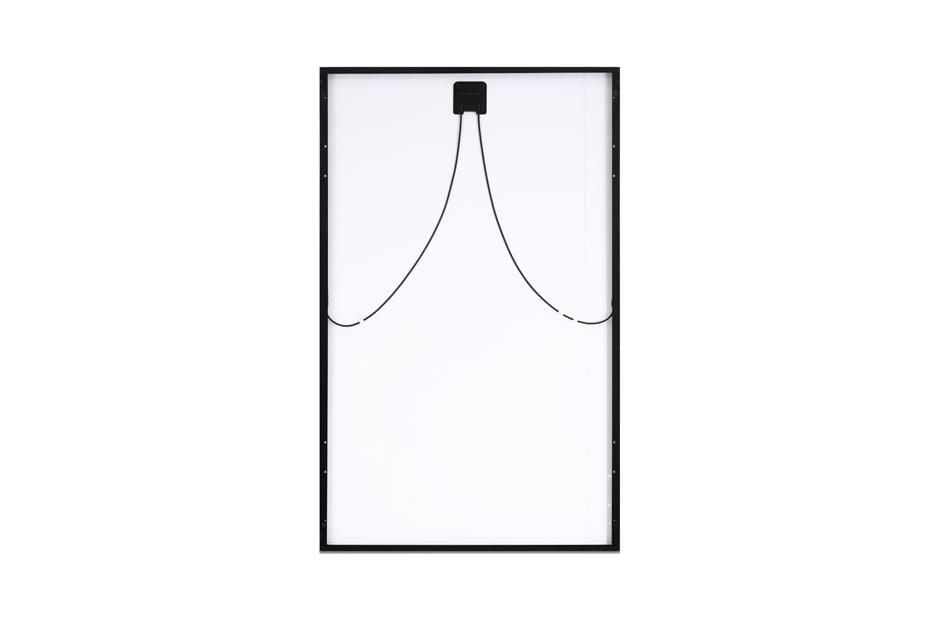

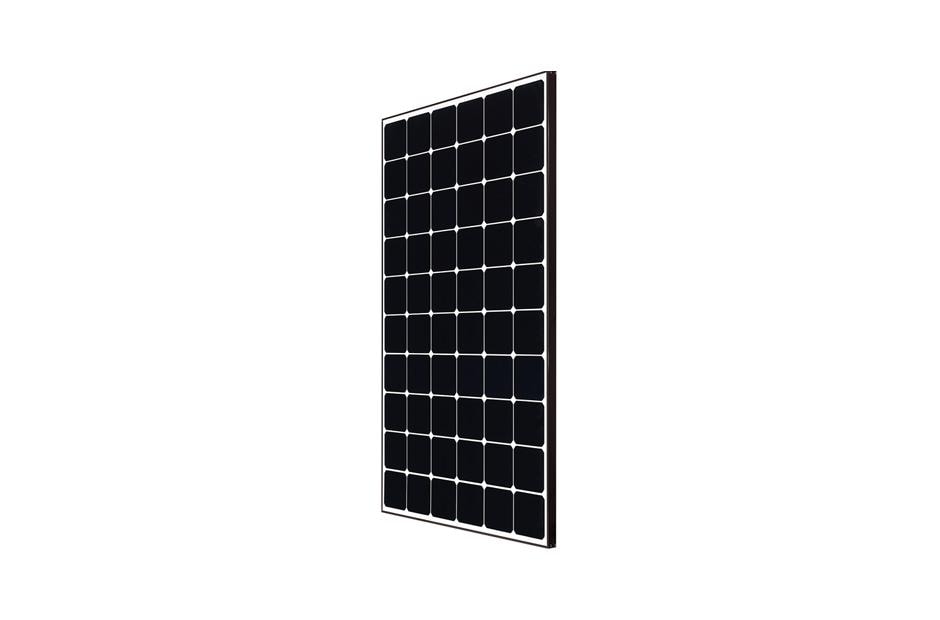

LG360Q1C-A5

High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 20.8% Connector Type: MC4

High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 20.8% Connector Type: MC4
$
  • Enhanced Performance Warranty

    LG offers a 25-year product warranty for LG NeON® R, including labor, in addition to an enhanced performance warranty. After 25 years, LG NeON® R is guaranteed to produce at least 88.4% of its initial power output.

  • High Power Output

    The LG NeON® R has been designed to significantly enhance its output, making it efficient even in limited space.

  • Roof Aesthetics

    LG NeON® R has been designed with aesthetics in mind: the lack of any electrodes on the front creates an improved, modern aesthetic.

  • Outstanding Durability

    With its newly reinforced frame design, LG NeON® R can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

  • Improved Performance on Sunny Days

    LG NeON R now performs better on sunny days, thanks to its improved temperature coefficient.

  • Near Zero LID

    The n-type cells used in LG NeON® R have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test)
    • Module Fire Performance
    • Type 2
    • Fire Resistance Class (CANADA)
    • Class C (ULC / ORD C1703)
    • Product Warranty
    • 25 years
    • Output Warranty of Pmax
    • Linear warranty**
    • **
    • 1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86%

ELECTRICAL PROPERTIES(NOCT*)

    • Maximum Power(Pmax)
    • 271
    • MPP Voltage (Vmpp)
    • 36.4
    • MPP Current (Impp)
    • 7.45
    • Open Circuit Voltage (Voc)
    • 40.2
    • Short Circuit Current (Isc)
    • 8.69
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

Electrical Properties (STC*)

    • MPP Voltage (Vmpp)
    • 36.5
    • MPP Current (Impp)
    • 9.87
    • Open Circuit Voltage (Voc)
    • 42.7
    • Short Circuit Current (Isc)
    • 10.79
    • Module Efficiency (%)
    • 20.8
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1000
    • Maximum Series Fuse Rating (A)
    • 20
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0%.
    • Maximum Power (Pmax)
    • 360

MECHANICAL PROPERTIES

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm / 6 inches
    • # of Busbar
    • 12 (Multi Ribbon Busbar)
    • Dimensions (L x W x H)
    • 1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch
    • Front Load
    • 6000 Pa / 125 psf
    • Rear Load
    • 5400 Pa / 113 psf
    • Weight
    • 18 kg
    • Connector Type
    • MC4
    • Junction Box
    • IP68 with 3 Bypass Diodes
    • Frame
    • Anodized aluminum
    • Glass
    • Tempered Glass with AR Coating
    • Cables
    • 1000 mm x 2 ea

Temperature Characteristics

    • NOCT
    • 45 ± 3 °C
    • Pmpp
    • -0.37%/°C
    • Voc
    • -0.27%/°C
    • Isc
    • 0.03 %/°C
