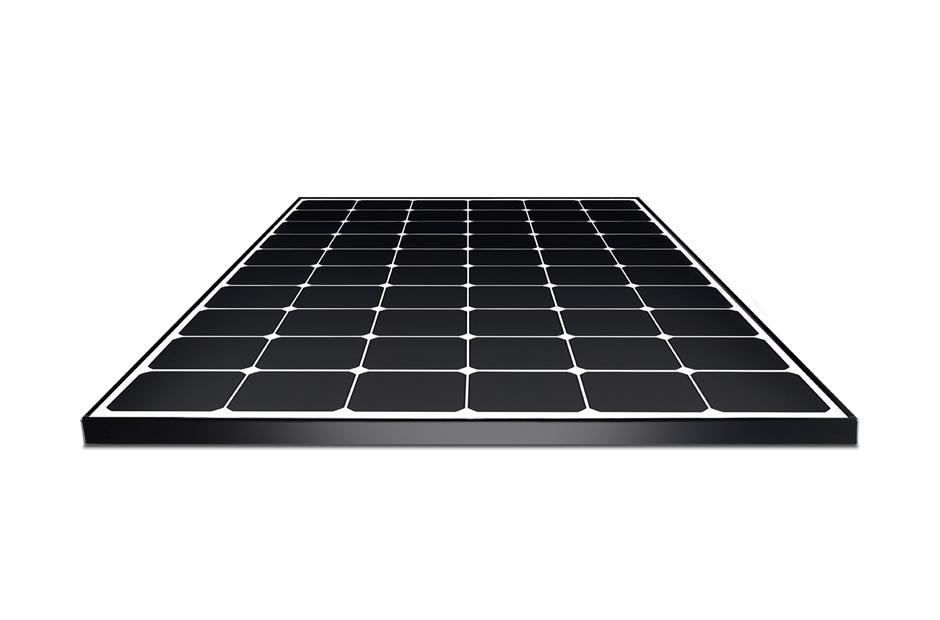

LG365Q1C-A5
High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 21.1% Connector Type: MC4
  • Enhanced Performance Warranty
  • High Power Output
  • Roof Aesthetics
High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 21.1% Connector Type: MC4
$
Enhanced Performance Warranty1

Enhanced Performance Warranty

LG offers a 25-year product warranty for LG NeON® R, including labor, in addition to an enhanced performance warranty. After 25 years, LG NeON® R is guaranteed to produce at least 88.4% of its initial power output.

High Power Output1

High Power Output

The LG NeON® R has been designed to significantly enhance its output, making it efficient even in limited space.

Roof Aesthetics1

Roof Aesthetics

LG NeON® R has been designed with aesthetics in mind: the lack of any electrodes on the front creates an improved, modern aesthetic.

Outstanding Durability1

Outstanding Durability

With its newly reinforced frame design, LG NeON® R can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

Improved Performance on Sunny Days1

Improved Performance on Sunny Days

LG NeON R now performs better on sunny days, thanks to its improved temperature coefficient.

Near Zero LID1

Near Zero LID

The n-type cells used in LG NeON® R have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

CERTIFICATIONS & WARRANTY

  • Certifications
    IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
    Module Fire Performance
    Type 1
  • Fire Resistance Class (CANADA)
    Class C (ULC / ORD C1703)
    Product Warranty
    25 years
  • Output Warranty of Pmax
    Linear warranty**
    **
    1) First 5 years : 95%, 2) After 5th year : 0.4% annual degradation, 3) 25 years : 88.4%

ELECTRICAL PROPERTIES(NOCT*)

  • Maximum Power(Pmax)
    275
    MPP Voltage (Vmpp)
    36.6
  • MPP Current (Impp)
    7.51
    Open Circuit Voltage (Voc)
    40.2
  • Short Circuit Current (Isc)
    8.70
    *
    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

ELECTRICAL PROPERTIES(STC*)

  • MPP Voltage (Vmpp)
    36.7
    MPP Current (Impp)
    9.95
  • Open Circuit Voltage (Voc)
    42.8
    Short Circuit Current (Isc)
    10.8
  • Module Efficiency (%)
    21.1
    Operating Temperature (°C)
    -40 ~ +90
  • Maximum System Voltage (V)
    1000
    Maximum Series Fuse Rating (A)
    20
  • Power Tolerance (%)
    0 ~ +3
    *
    STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0%.
  • Maximum Power (Pmax)
    365

MECHANICAL PROPERTIES

  • Cells
    6 x 10
    Cell vendor
    LG
  • Cell Type
    Monocrystalline / N-type
    Cell Dimensions
    161.7 x 161.7 mm / 6 inches
  • Dimensions (L x W x H)
    1700 x 1016 x 40 mm / 66.93 x 40.0 x 1.57 inch
    Front Load
    6000 Pa / 125 psf
  • Rear Load
    5400 Pa / 113 psf
    Weight
    18.5 kg
  • Connector Type
    MC4
    Junction Box
    IP 67 with 3 bypass diodes
  • Length of Cables
    1000 mm x 2 ea
    Frame
    Anodized aluminium
  • Glass
    Tempered Glass with AR Coating

TEMPERATURE CHARACTERISTICS

  • NOCT
    44 ± 3 °C
    Pmpp
    -0.30 %/°C
  • Voc
    -0.24 %/°C
    Isc
    0.04 %/°C
