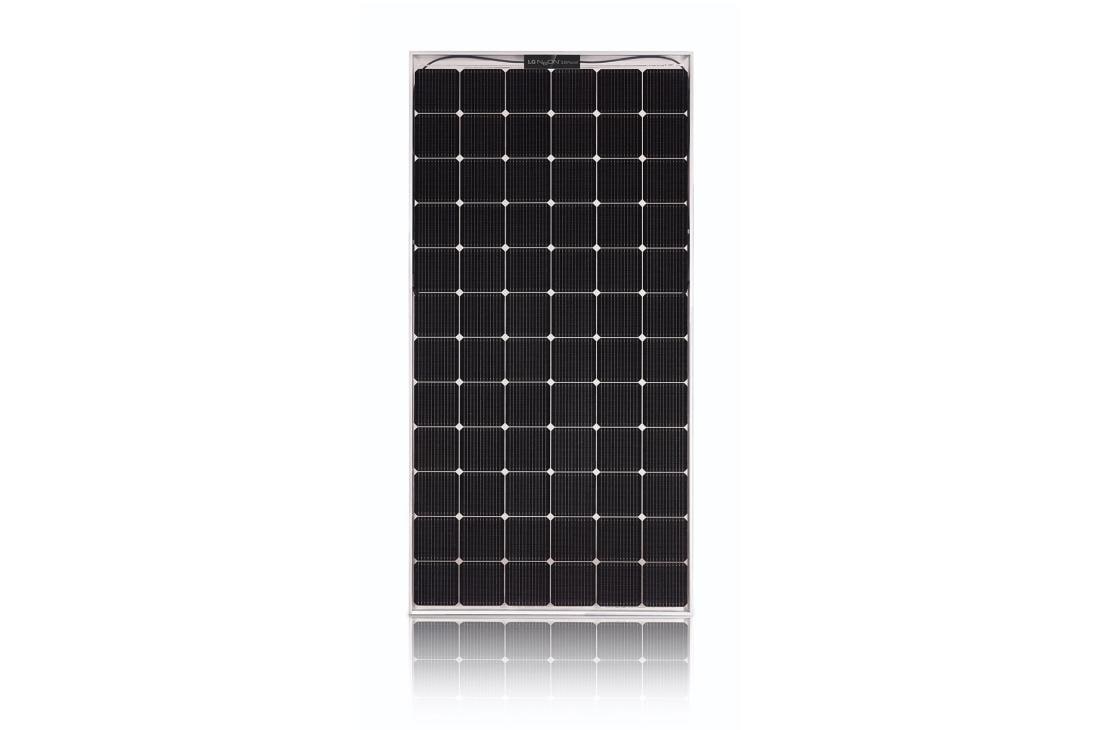

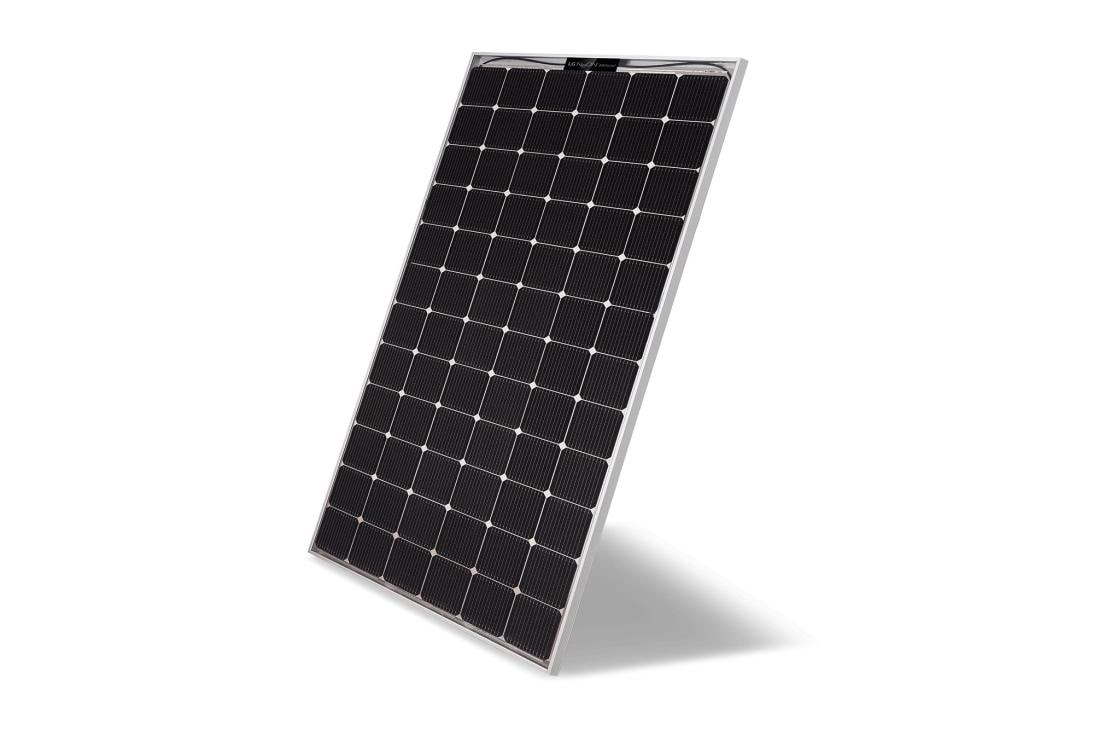

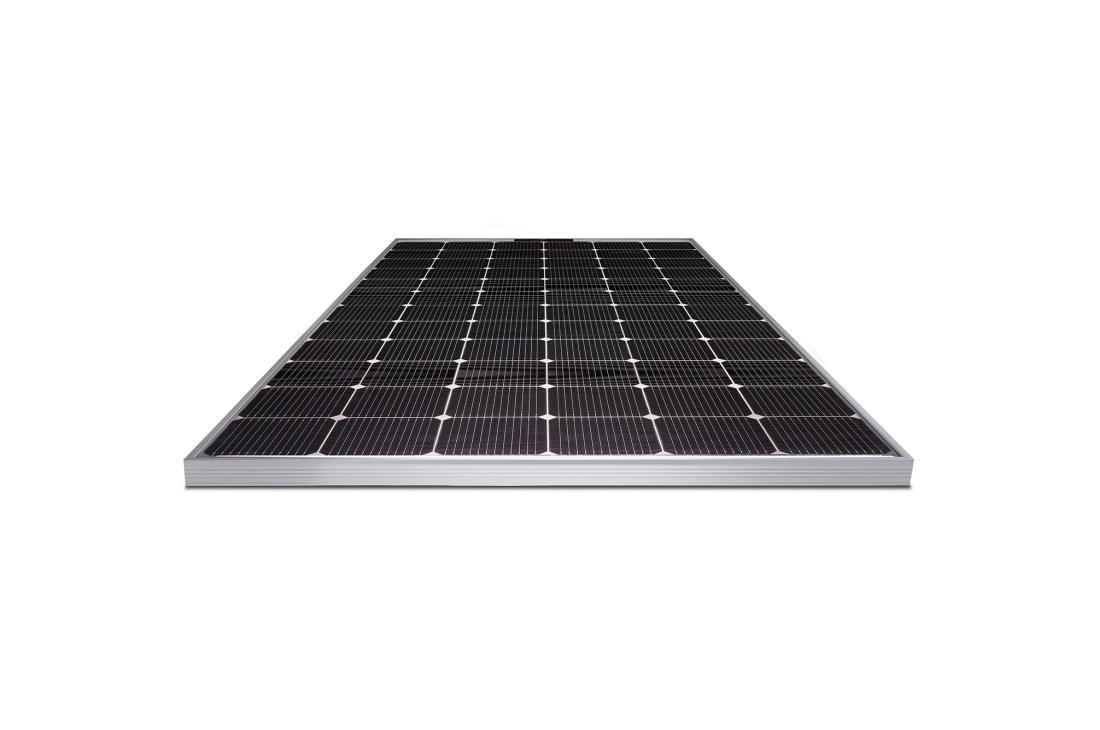

LG390N2T-A5
High Efficiency LG NeON® 2 BiFacial Module Cells: 6 x 12 Module efficiency 18.5% Connector Type: MC4
  • Enhanced Performance Warranty
  • High Power Output
  • Double-sided Generation
High Efficiency LG NeON® 2 BiFacial Module Cells: 6 x 12 Module efficiency 18.5% Connector Type: MC4
$
Enhanced Performance Warranty1

Enhanced Performance Warranty

LG NeON® 2 BiFacial has an enhanced
performance warranty.
LG NeON® 2 BiFacial is guaranteed at least
86% of initial performance.
Bifacial Energy Yield1

Bifacial Energy Yield

LG NeON® 2 BiFacial modules use highly
efficient bifacial solar cell, “NeON” applied Cello
technology. Through the Cello technology,
LG NeON® 2 BiFacial can achieve up to 30 more
energy than standard PV module.
Better Performance<br> on a Sunny Day1

Better Performance
on a Sunny Day

LG NeON® 2 BiFacial now performs better on
sunny days thanks to its improved temperature
coefficient.
More Generation<br>on a Cloudy Day1

More Generation
on a Cloudy Day

LG NeON® 2 BiFacial gives good performance
even on a cloudy day due to its low energy
reduction in weak sunlight.
BOS (Balance Of System) Saving1

BOS (Balance Of System) Saving

LG NeON® 2 BiFacial can reduce the total number
of strings due to its high module
efficiency resulting in a more cost effective and
efficient solar power system.
Near Zero LID<br>(Light Induced Degradation)1

Near Zero LID
(Light Induced Degradation)

The n-type cells used in LG NeON® 2 BiFacial
have almost no boron, which may cause the
initial efficiency to drop, leading to less LID.
Desktop_1538439162094 mobile_1538439170027

CERTIFICATIONS & WARRANTY

  • Certifications
    UL 1703,IEC 61215, IEC 61730-1/-2,IEC 61701 (Salt mist corrosion test),IEC 62716 (Ammonia corrosion test),;ISO 9001
    Module Fire Performance
    Type 1(UL 1703)
  • Fire Resistance Class
    Class C (ULC/ORD C1703, IEC 61730)
    Product Warranty
    25 Years
  • Output Warranty of Pmax
    Linear warranty*
    *
    1) 1st year: 98%, 2) After 1st year: 0.5% annual degradation, 3) 86% for 25 years

ELECTRICAL PROPERTIES(NOCT*)

  • Maximum Power(Pmax)
    289
    MPP Voltage (Vmpp)
    38.3
  • MPP Current (Impp)
    7.54
    Open Circuit Voltage (Voc)
    45.9
  • Short Circuit Current (Isc)
    8.17
    *
    NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C,<br>wind speed 1 m/s

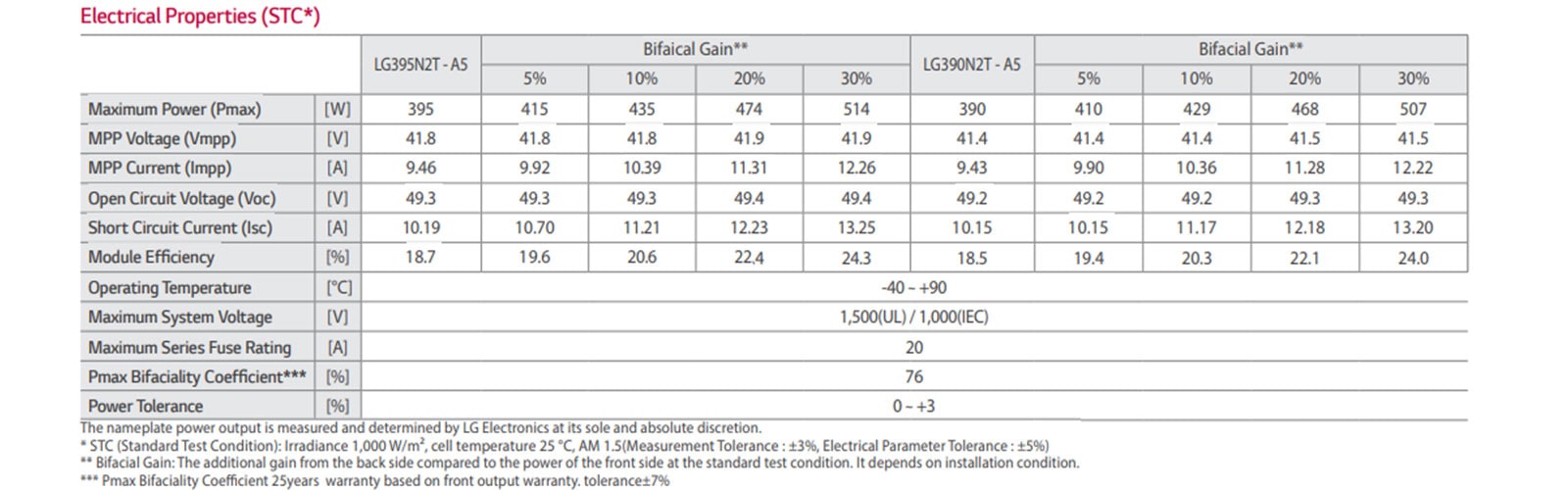

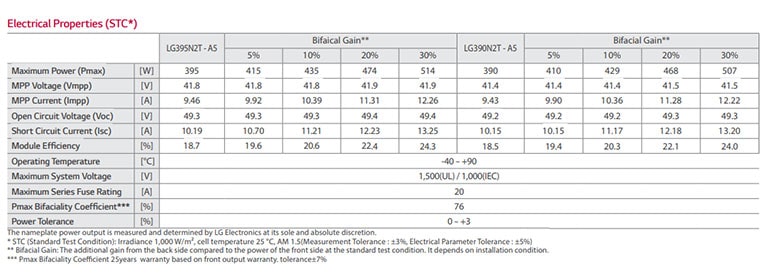

ELECTRICAL PROPERTIES(STC*)

  • MPP Voltage (Vmpp)
    41.4
    MPP Current (Impp)
    9.43
  • Open Circuit Voltage (Voc)
    49.2
    Short Circuit Current (Isc)
    10.15
  • Module Efficiency (%)
    18.5
    Operating Temperature (°C)
    -40 ~ +90
  • Maximum System Voltage (V)
    1,500(UL) / 1,000(IEC)
    Maximum Series Fuse Rating (A)
    20
  • Power Tolerance (%)
    0 ~ +3
    *
    STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
  • Pmax Bifaciality Coefficient*** [%]
    76
    <br>
    The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
  • **
    Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on installation condition.
    ***
    Pmax Bifaciality Coefficient 25years warranty based on front output warranty. tolerance±7%

MECHANICAL PROPERTIES

  • Cells
    6 x 12
    Cell Type
    Monocrystalline / N-type
  • Cell Dimensions
    161.7 x 161.7 mm / 6 inches
    # of Busbar
    12(Multi Wire Busbar)
  • Dimensions (L x W x H)
    2,064 x 1,024 x 40 mm / 81.26 x 40.31 x 1.57 in
    Front Load
    5,400 Pa / 113 psf*
  • Rear Load
    4,300 Pa / 90 psf*
    Weight
    22.0 kg / 48.72 lb
  • Connector Type
    MC4 (MC), PV-JM601A (JMTHY)
    Junction Box
    IP68 with 3 Bypass Diodes
  • Frame
    Anodized aluminium
    Glass
    Tempered Glass with AR Coating
  • *
    Please refer to the installation manual for the details
    Cables
    1,200 mm x 2 ea / 47.24 in x 2 ea

TEMPERATURE CHARACTERISTICS

  • NOCT
    45 ± 3
    Pmpp
    0.0036
  • Voc
    -0.0027
    Isc
    0.03 %/°C
  • Pmax [%/°C]
    -0.36

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
