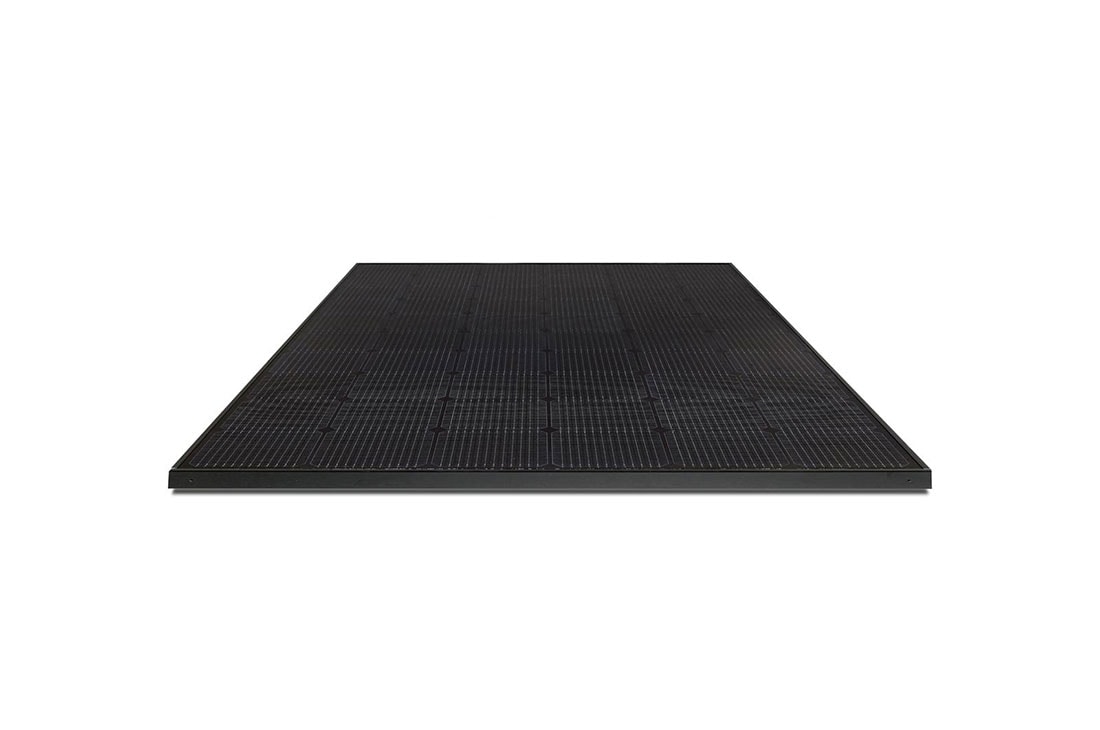

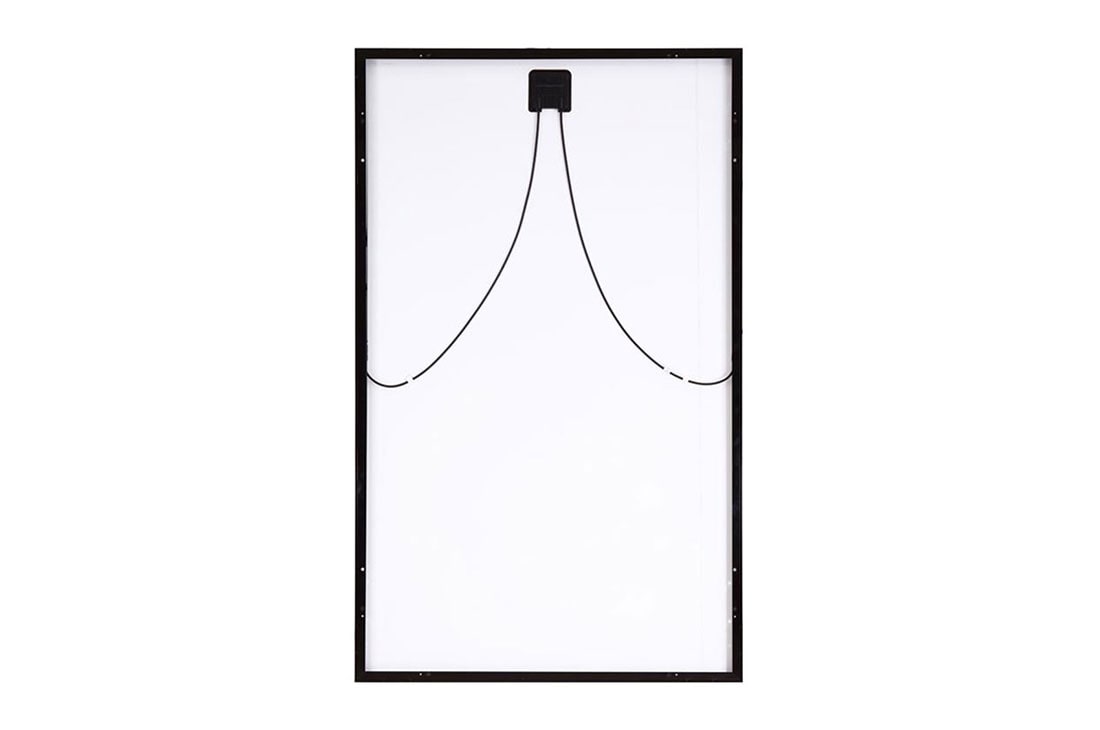

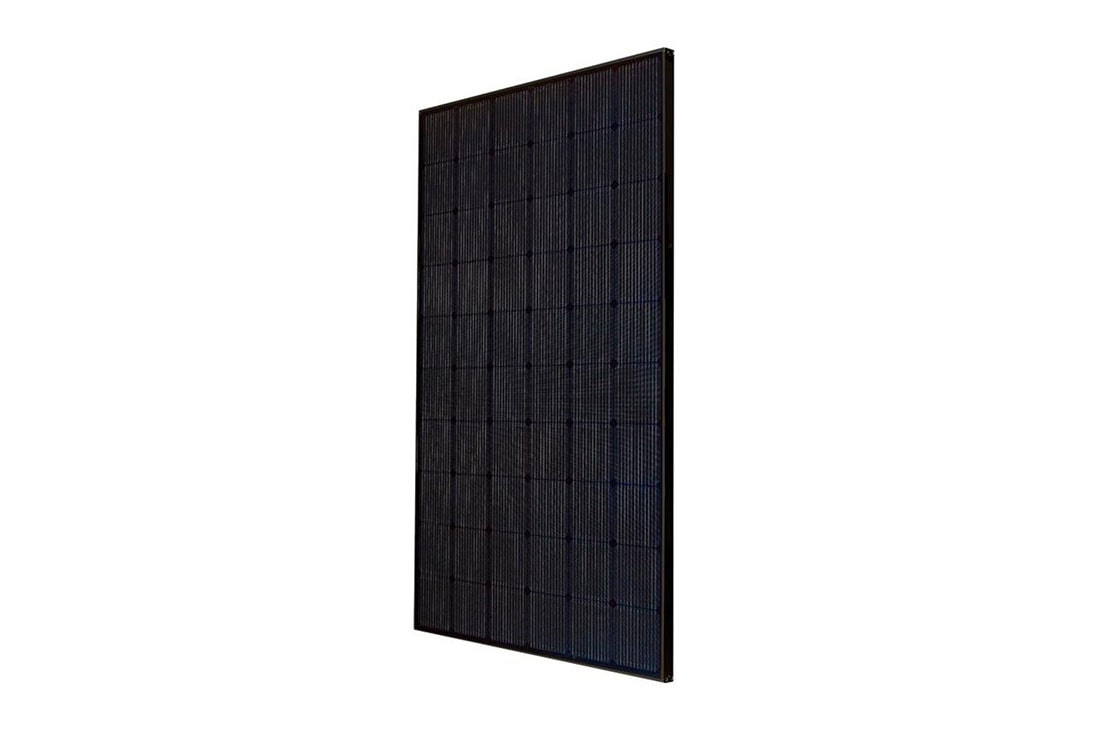

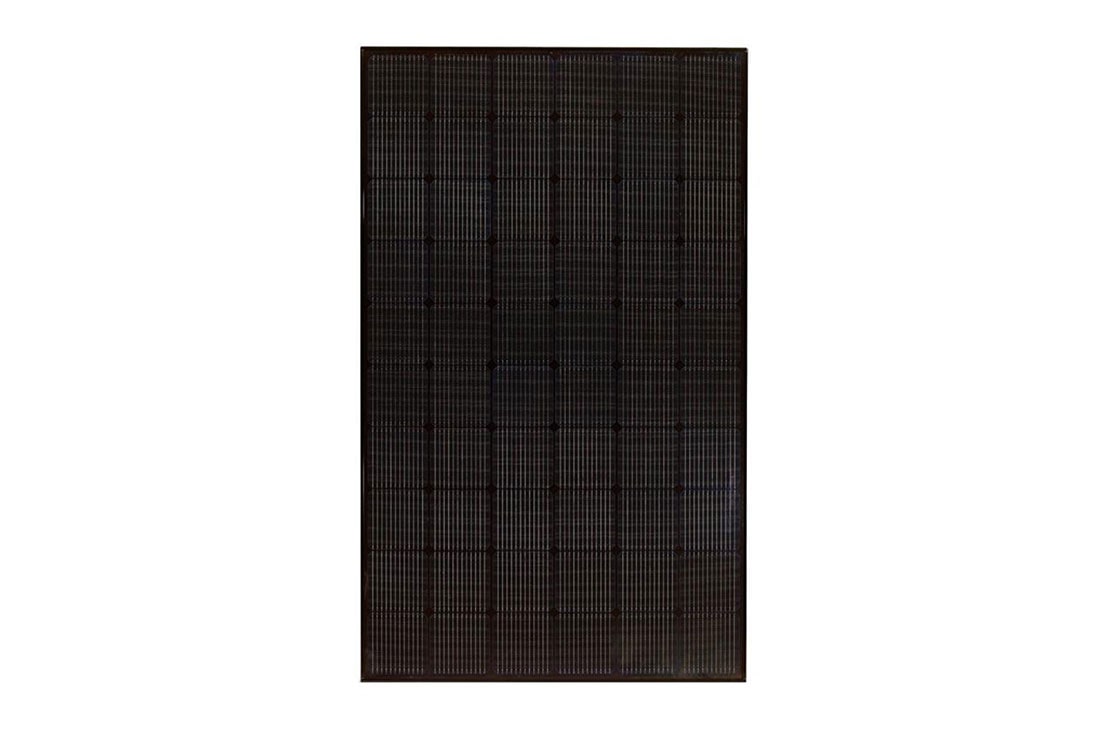

LG340N1K-V5

335W NeON® R Prime High Efficiency Solar Panel for Home

KEY FEATURES

  • 25-Year Product Warranty
  • High Power Output
  • Durability
  • Roof Aesthetics
335W NeON® R Prime High Efficiency Solar Panel for Home
$
  • Enhanced Performance Warranty

    LG NeON® 2 has an enhanced performance warranty. The annual degradation has fallen from -0.6%/yr to -0.5%/yr. Even after 25 years, the cell guarantees 2.4% more output than the previous LG NeON® 2 modules.

  • High Power Output

    Compared with previous models, the LG NeON® 2 Black has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

  • Roof Aesthetics

    LG NeON® 2 Black has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

  • Outstanding Durability

    With its newly reinforced frame design, LG has extended the warranty of the NeON® 2 from 15 years to 25 years, including labor. In addition, LG NeON® 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

  • Improved Performance on Sunny Days

    LG NeON 2 Black now performs better on sunny days, thanks to its improved temperature coefficient.

  • Near Zero LID

    The n-type cells used in LG NeON® 2 have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

  • Bifacial Energy Yield

    LG NeON® 2 modules use a highly efficient bifacial solar cell, “NeON” applied Cello technology for better energy production than standard monofacial PV module.

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 60 Cells (6 x 10)
    • Number of Busbars
    • 12EA
    • Module Dimensions (L x W x H)
    • 1,686mm x 1,016mm x 40 mm
    • Weight
    • 17.1 kg
    • Glass (Material)
    • Tempered Glass with AR Coating
    • Backsheet (Color)
    • Black
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP 68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,000mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730- 1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 62701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 2 (UL 1703)
    • Fire Rating
    • Class C (UL 790, ULC/ORD C 1703)
    • Solar Module Product Warranty
    • 25 Years
    • Solar Module Output Warranty
    • Linear Warranty*
    • *
    • Improved: 1st year 98%, from 2-24th year: 0.33%/year down, after 25th year: 90.08%

Temperature Characteristics

    • NMOT* [°C]
    • 42 ± 3
    • Pmax [%/°C]
    • -0.36
    • Voc [%/°C]
    • -0.27
    • Isc [%/°C]
    • 0.03
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2 , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Model
    • LG335N1K-V5
    • Maximum Power (Pmax) [W]
    • 250
    • MPP Voltage (Vmpp) [V]
    • 32.3
    • MPP Current (Impp) [A]
    • 7.75
    • Open Circuit Voltage (Voc) [V]
    • 38.6
    • Short Circuit Current (Isc) [A]
    • 8.29

Electrical Properties (STC*)

    • Maximum Power (Pmax) [W]
    • 335
    • MPP Voltage (Vmpp) [V]
    • 34.5
    • MPP Current (Impp) [A]
    • 9.72
    • Open Circuit Voltage (Voc± 5%) [V]
    • 41.1
    • Short Circuit Current (Isc± 5%) [A]
    • 10.31
    • Module Efficiency [%]
    • 19.6
    • Bifaciality Coefficient of Power [%]
    • 10
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², Cell temperature 25°C, AM 1.5, Measure Tolerance: ± 3%.

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+90
    • Maximum System Voltage [V]
    • 1,000(UL), 1000(IEC)
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000/84
    • *
    • Manufacturer Declaration according to IEC 61215:2005 Mechanical Test Loads 5,400 Pa/4,000 Pa based on IEC 61215-2:2016 (Test Load = Design Load x Safety Factor (1.5))

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 650
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,750 x 1,120 x 1,221
    • Packaging Box Gross Weight [kg]
    • 464
