KEY FEATURES

  • Enhanced Performance Warranty
  • Enhanced Product Warranty
  • Better Performance on a Sunny Day
  • Roof Aesthetics

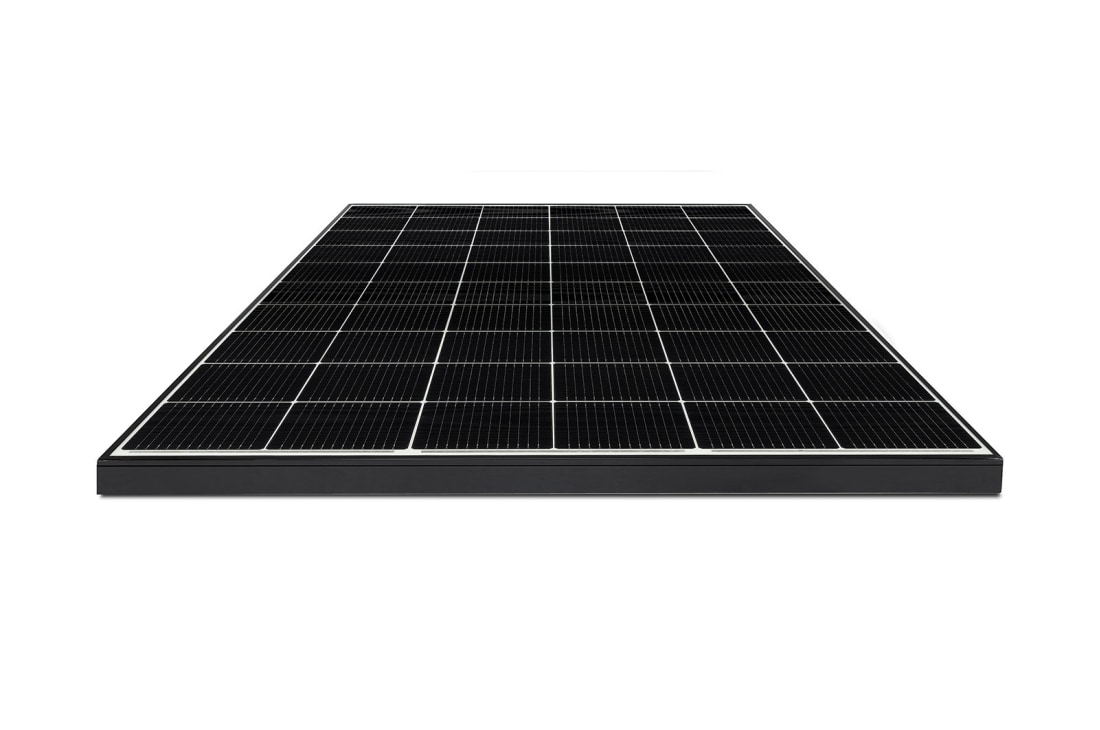

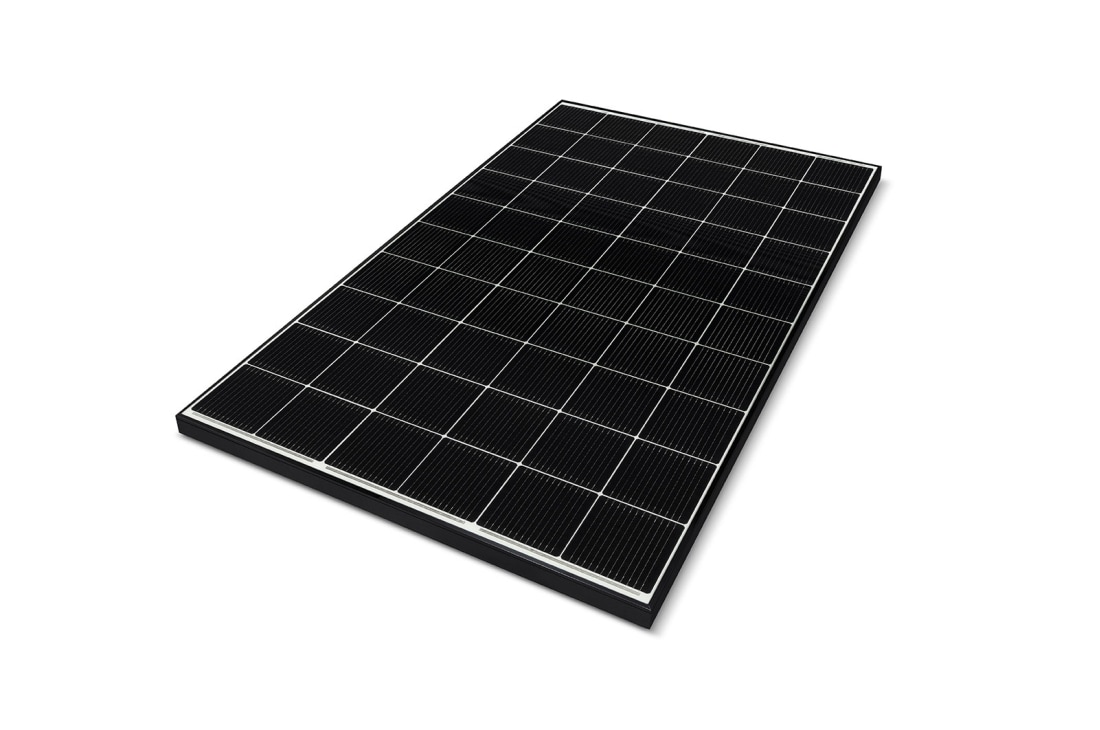

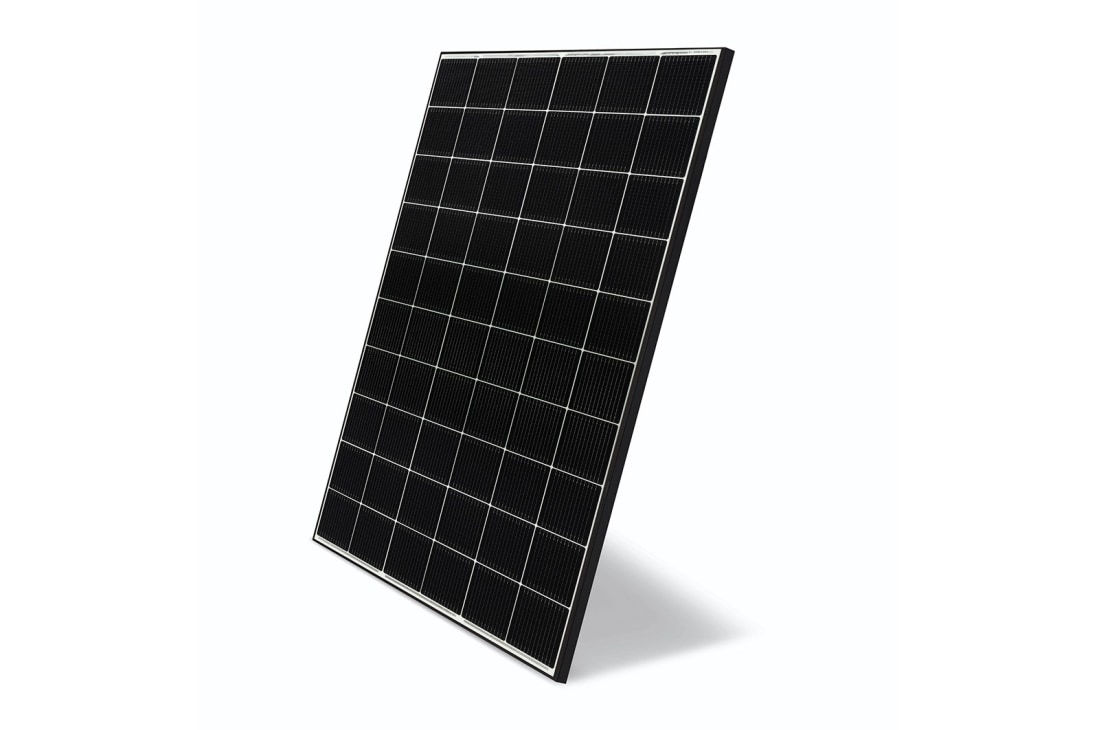

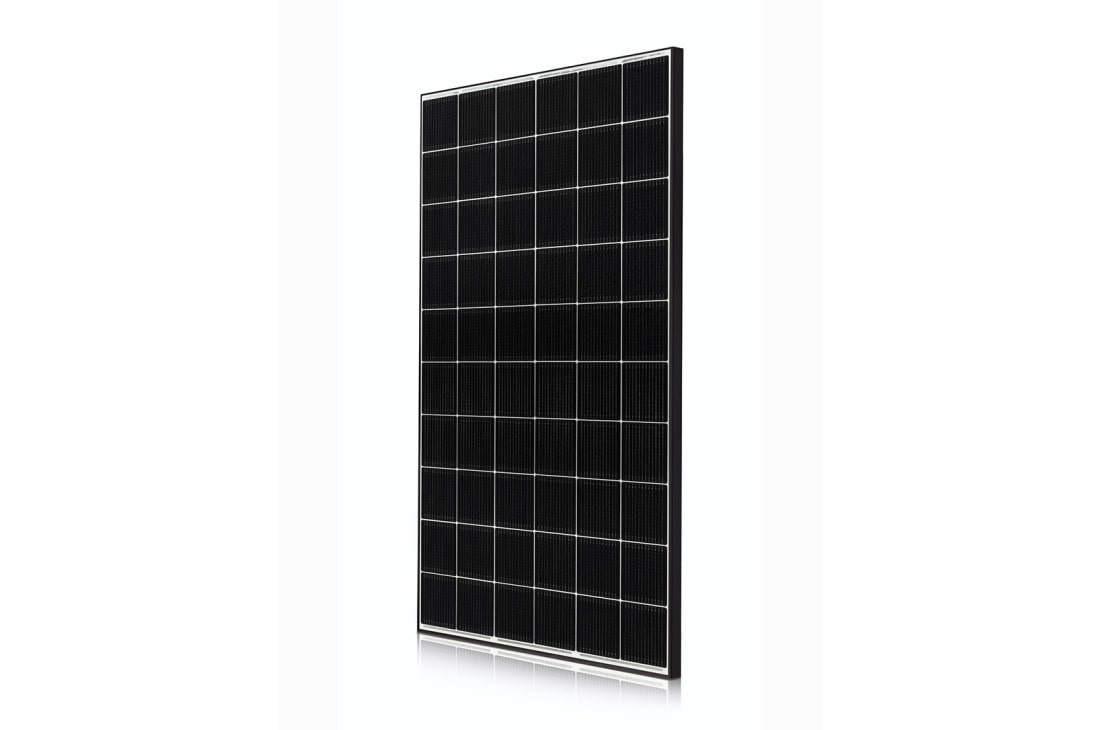

LG345N1C-V5
$

    VDE

    CE

    Intertek-ETL

    25 Year Warranty

  • Enhanced Performance Warranty

    LG NeON® 2 has an enhanced performance warranty. After 25 years, LG NeON® 2 is guaranteed at least 90.08% of initial performance.

  • Enhanced Product Warranty

    LG has extended the warranty of the NeON® 2 to 25 years including labor, which is top level in the industry.

  • Better Performance on a Sunny Day

    LG NeON® 2 now performs better on sunny days, thanks to its improved temperature coefficient.

  • Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind using thinner wires that appear all black at a distance. The LG NeON® 2 can increase the aesthetic value of your home with a more modern design.

  • Bifacial Energy Yield

    LG NeON® 2 modules use a highly efficient bifacial solar cell, “NeON” applied Cello technology for better energy production than standard monofacial PV module.

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 60 Cells (6 x 10)
    • Number of Busbars
    • 12EA
    • Module Dimensions (L x W x H)
    • 1,686mm x 1,016mm x 40 mm
    • Weight
    • 17.1kg
    • Glass (Material)
    • Tempered Glass with AR Coating
    • Backsheet (Color)
    • White
    • Frame (Material)
    • Anodized Aluminium

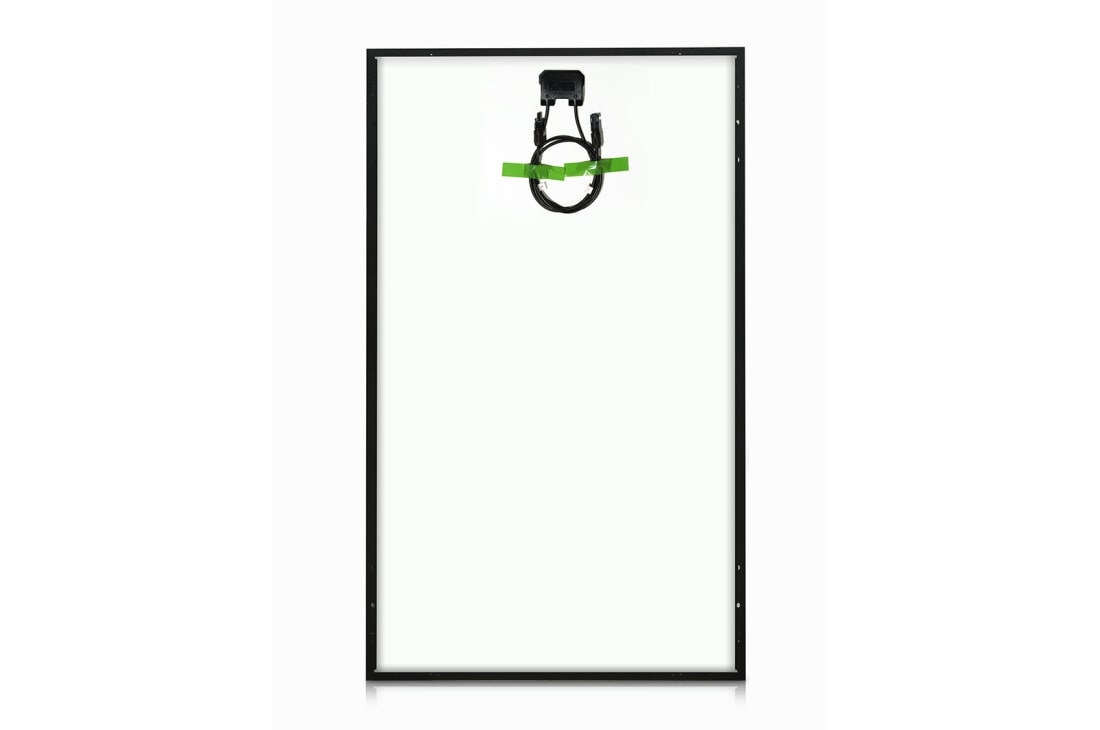

    • Junction Box (Protection Degree)
    • IP 68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,000mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 61701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 1 (UL 1703)
    • Fire Rating
    • Class C (UL 790, ULC/ORD C 1703)
    • Solar Module Product Warranty
    • 25 Years
    • Solar Module Output Warranty
    • Linear Warranty*
    • *
    • Improved: 1st year 98%, from 2-24th year: 0.33%/year down, after 25th year: 90.08%

Temperature Characteristics

    • NMOT* [°C]
    • 42 ± 3
    • Pmax [%/°C]
    • -0.36
    • Voc [%/°C]
    • -0.26
    • Isc [%/°C]
    • 0.03
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m², Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Model
    • LG345N1C-V5
    • Maximum Power (Pmax) [W]
    • 259
    • MPP Voltage (Vmpp) [V]
    • 32.8
    • MPP Current (Impp) [A]
    • 7.89
    • Open Circuit Voltage (Voc) [V]
    • 38.8
    • Short Circuit Current (Isc) [A]
    • 8.49

Electrical Properties (STC*)

    • Model
    • LG345N1C-V5
    • Maximum Power (Pmax) [W]
    • 345
    • MPP Voltage (Vmpp) [V]
    • 34.9
    • MPP Current (Impp) [A]
    • 9.89
    • Open Circuit Voltage (Voc± 5%) [V]
    • 41.2
    • Short Circuit Current (Isc± 5%) [A]
    • 10.57
    • Module Efficiency [%]
    • 20.1
    • Bifaciality Coefficient of Power [%]
    • 10
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², cell temperature 25 °C, AM 1.5.
    • **
    • Measurement Tolerance: 3%

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+90
    • Maximum System Voltage [V]
    • 1,000
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000/84
    • *
    • Mechanical Test Load 5,400Pa/4,000Pa based on IEC 61215-2 : 2016, Test Load = Design Load x Safety Factor (1.5)

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 650
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,750 x 1,120 x 1,221
    • Packaging Box Gross Weight [kg]
    • 464

Limited Warranty

Specification Sheet
