KEY FEATURES

  • 60 Cell (6 x 10) Solar Panel for Home
  • 25-Year Limited Warranty
  • Solid Performance on a Sunny Day
  • Award-Winning Cello Technology™
  • Attractive Roof Aesthetic

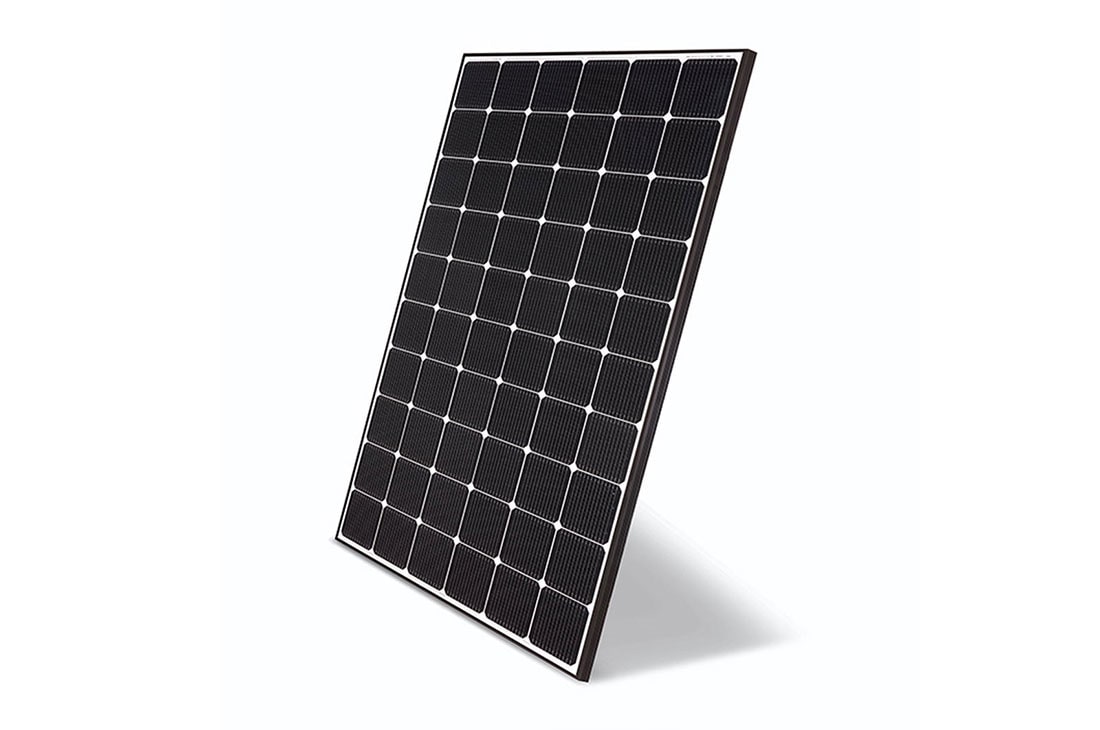

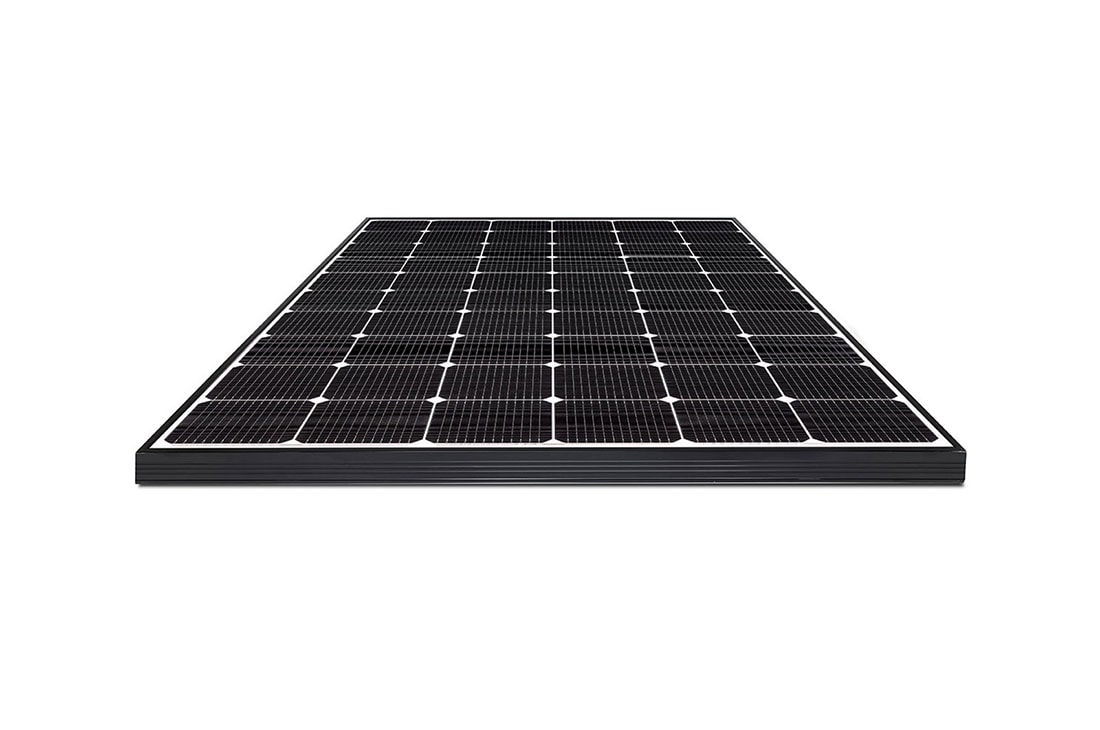

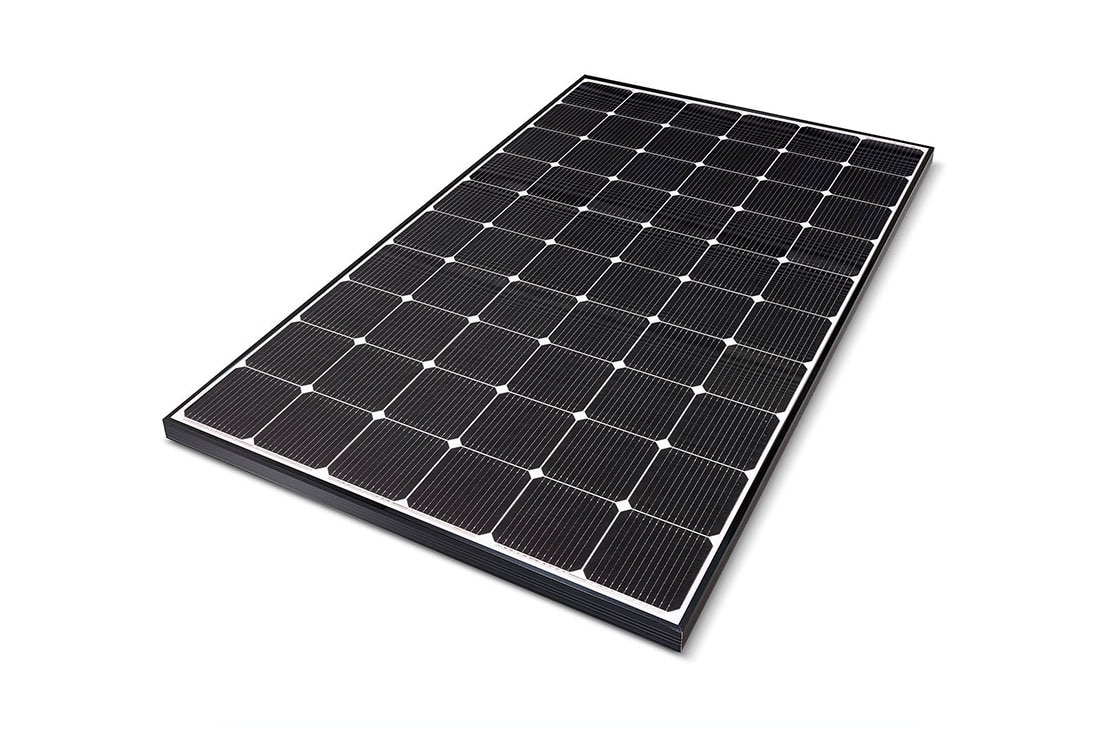

360W NeON® 2 Solar Panel for Home
$
  • Enhanced Performance Warranty

    LG NeON® 2 has an enhanced performance warranty. After 25 years, LG NeON® 2 is guaranteed at least 90.1% of initial performance.

  • 25-Year Limited Product Warranty

    The NeON® 2 is covered by a 25-year limited product warranty. In addition, up to $450 of labor costs will be covered in the rare case that a module needs to be repaired or replaced.

  • Solid Performance on Hot Days

    LG NeON® 2 performs well on hot days due to its low temperature coefficient.

  • Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind using thinner wires that appear all black at a distance.

  • Bifacial Energy Yield

    LG NeON® 2 modules use a highly efficient bifacial solar cell, “NeON” applied Cello technology for better energy production than standard monofacial PV module.

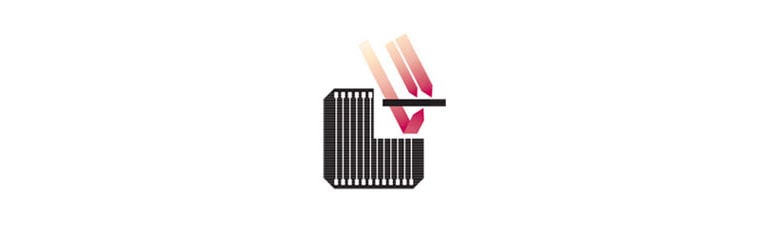

  • Double-Sided Cell Structure

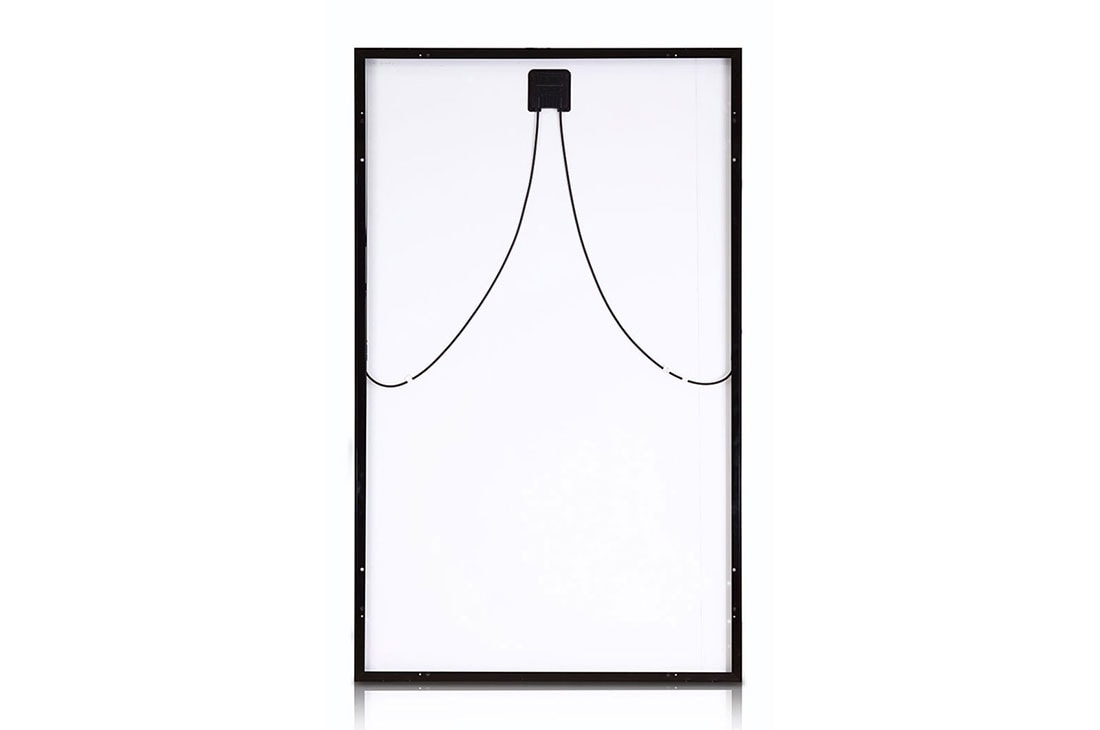

    The rear of the cell used in the LG NeON® 2 contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.

General Data

    • Cell Properties (Material/Type)
    • TBD
    • Cell Maker
    • TBD
    • Cell Configuration
    • TBD
    • Number of Busbars
    • TBD
    • Module Dimensions (L x W x H)
    • TBD
    • Weight
    • TBD
    • Glass (Material)
    • TBD
    • Backsheet (Color)
    • TBD
    • Frame (Material)
    • TBD
    • Junction Box (Protection Degree)
    • TBD
    • Cables (Length)
    • TBD
    • Connector (Type/Maker)
    • TBD

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 1703, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test)
    • Salt Mist Corrosion Test
    • TBD
    • Ammonia Corrosion Test
    • TBD
    • Module Fire Performance
    • Type 1
    • Fire Rating
    • Class C (UL 790, ULC/ORD C 1703)
    • Product Warranty
    • 25 Year Limited
    • Output Warranty of Pmax
    • Linear warranty*
    • *
    • Improved: 1st year 98%, from 2-24th year: 0.33%/year down, 90.1% at year 25

Temperature Characteristics

    • NMOT
    • 42 ± 3
    • Pmax
    • -0.34
    • Voc
    • -0.26
    • Isc
    • 0.03%/°C
    • *
    • NMOT (Nominal Module Operating Temperature):Irradiance 800W/m², Ambient temperature 20℃, Wind speed 1m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Model
    • TBD
    • Maximum Power (Pmax)
    • 270
    • MPP Voltage (Vmpp)
    • 33.0
    • MPP Current (Impp)
    • 8.20
    • Open Circuit Voltage (Voc)
    • 39.2
    • Short Circuit Current (Isc)
    • 8.71

Electrical Properties (STC*)

    • Model
    • TBD
    • MPP Voltage (Vmpp)
    • 35.1
    • MPP Current (Impp)
    • 10.28
    • Open Circuit Voltage (Voc)
    • 41.6
    • Short Circuit Current (Isc)
    • 10.84
    • Module Efficiency (%)
    • 20.8
    • Power Tolerance (%)
    • 0 ~ +3
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1000 (IEC/UL)
    • Maximum Series Fuse Rating (A)
    • 20
    • Bifaciality Coefficient of Power [%]
    • 10
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², cell temperature 25°C, AM 1.5 Measurement Tolerance of Pmax: 3%

Operating Conditions

    • Maximum System Voltage [V]
    • TBD
    • Operating Temperature [°C]
    • TBD
    • Maximum Series Fuse Rating [A]
    • TBD
    • Mechanical Test Load (Front) [Pa/psf]
    • TBD
    • Mechanical Test Load (Rear) [Pa/psf]
    • TBD
    • *
    • Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • TBD
    • Number of Modules per 40ft HQ Container [EA]
    • TBD
    • Number of Modules per 53' HQ Cont
    • TBD
    • Packaging Box Dimensions (L x W x H) [mm]
    • TBD
    • Packaging Box Dimensions (L x W x H) [in]
    • TBD
    • Packaging Box Gross Weight [kg]
    • TBD
    • Packaging Box Gross Weight [lb]
    • TBD

MECHANICAL PROPERTIES

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 162mm x 162mm/6.37”
    • # of Busbar
    • 12 (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 1,750mm x 1,120mm x 1,221mm
    • Front Load
    • 5,400 Pa/113 psf
    • Rear Load
    • 4,000 Pa/84 psf
    • Weight
    • 18.0kg
    • Connector Type
    • MC4, MC4 Compatible, IP67
    • Junction Box
    • IP 67 with 3 bypass diodes
    • Frame
    • Anodized aluminium
    • Glass
    • 2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating
    • Cables
    • 1000mm x 2ea
