KEY FEATURES

  • 25-Year Product Warranty
  • High Power Output
  • Durable design
  • Enhanced performance on sunny days
  • Streamlined, Uniform Roof Aesthetic

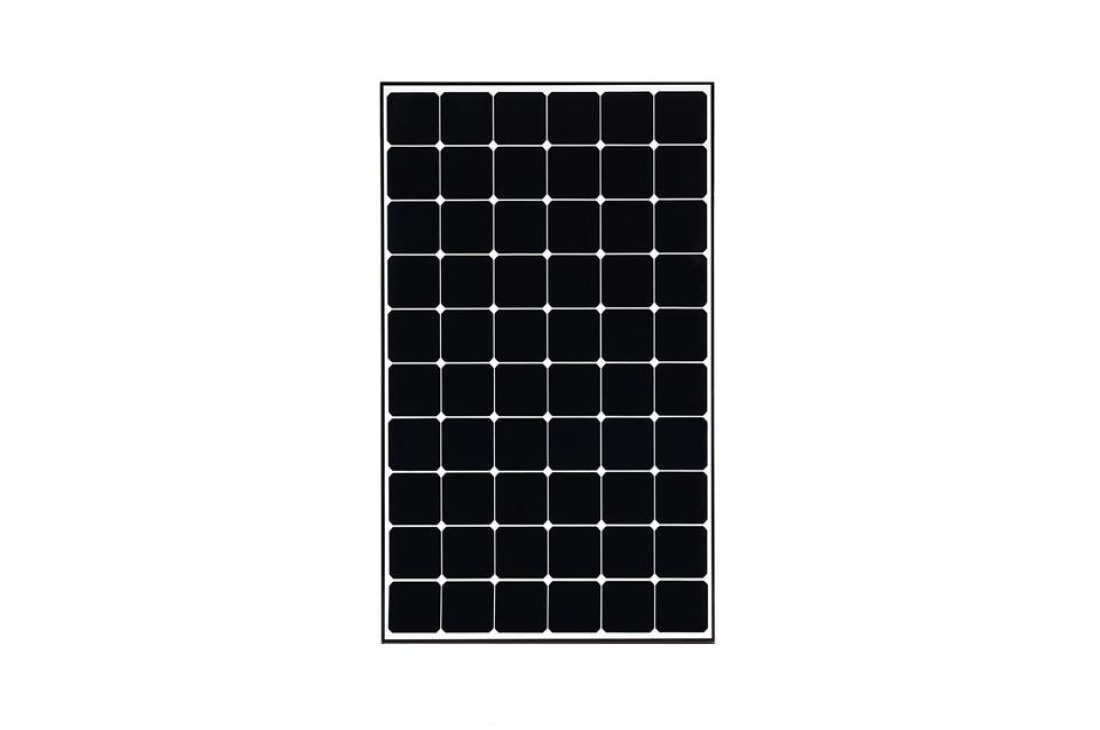

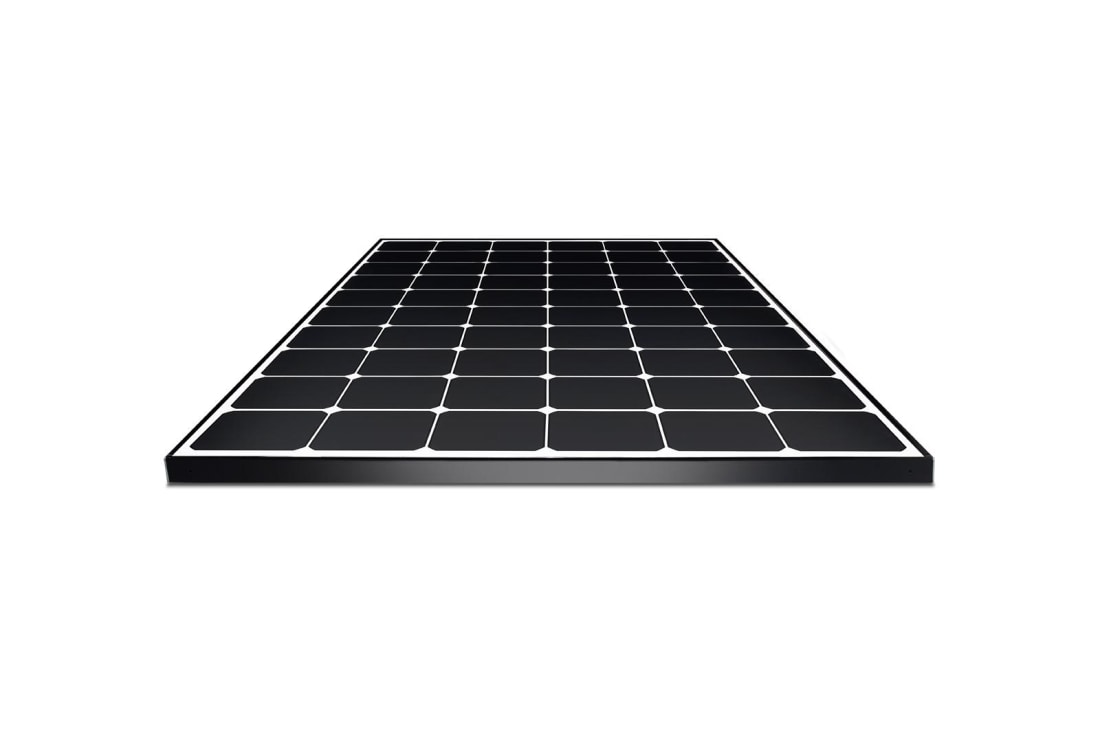

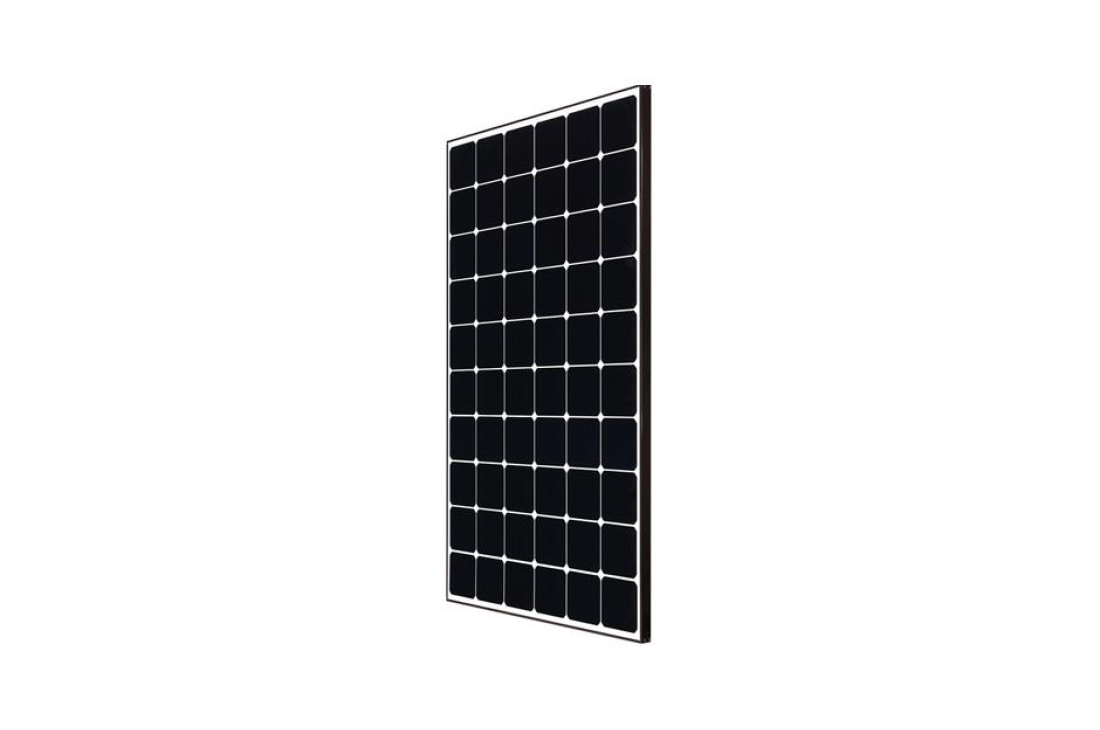

375W High Efficiency LG NeON® R Solar Panel with 60 Cells(6 x 10), Module Efficiency: 21.7%, Connector Type: MC4

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 60 Cells (6 x 10)
    • Module Dimensions (L x W x H)
    • 1,700mm x 1,016mm x 40mm
    • Weight
    • 17.5 kg
    • Glass (Thickness/Material)
    • 2.8mm/Tempered Glass with AR Coating
    • Backsheet (Color)
    • White
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,000mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 61701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 1
    • Fire Rating
    • Class C (UL 790)
    • Product Warranty
    • 25 Years
    • Output Warranty of Pmax
    • Linear Warranty*
    • *
    • Improved: 1st year 98%, from 2-24th year: 0.3%/year down, at 25th year: 90.8%
    • **
    • Full warranty details can be found below.

Temperature Characteristics

    • NMOT* [°C]
    • 44 ± 3
    • Pmax [%/°C]
    • -0.30
    • Voc [%/°C]
    • -0.24
    • Isc [%/°C]
    • 0.037
    • *
    • NMOT(Nominal Module Operating Temperature) : Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Maximum Power (Pmax) [W]
    • 282
    • MPP Voltage (Vmpp) [V]
    • 37.1
    • MPP Current (Impp) [A]
    • 7.61
    • Open Circuit Voltage (Voc) [V]
    • 40.3
    • Short Circuit Current (Isc) [A]
    • 8.72

Electrical Properties (STC*)

    • Maximum Power (Pmax) [W]
    • 375
    • MPP Voltage (Vmpp) [V]
    • 37.2
    • MPP Current (Impp) [A]
    • 10.09
    • Open Circuit Voltage (Voc, 5%) [V]
    • 42.8
    • Short Circuit Current (Isc, 5%) [A]
    • 10.83
    • Module Efficiency [%]
    • 21.7
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², Cell Temperature 25 °C, AM 1.5, Measure Tolerance ± 3%

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+90
    • Maximum System Voltage [V]
    • 1,000
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000/83.5
    • *
    • 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5))

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 650
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,750 x 1,120 x 1,221
    • Packaging Box Gross Weight [kg]
    • 473
