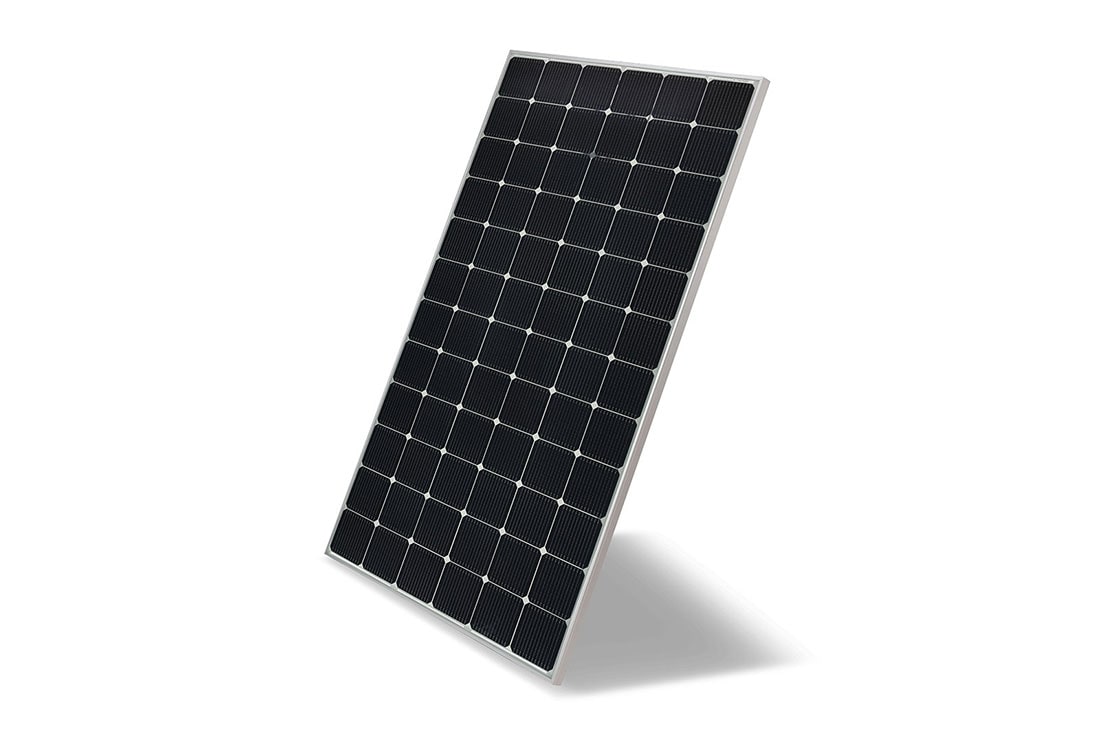

LG405N2W-V5
405W High Efficiency LG NeON®2 Solar Panel with 72 Cells(6 x 12), Module Efficiency: 20.3%, Connector Type: MC4
  • 25-Year Product Warranty
  • Improved temperature coefficient
  • Near zero light-induced degradation
  • Clean, Aesthetically-Pleasing Roof Design
  • Durable design
405W High Efficiency LG NeON®2 Solar Panel with 72 Cells(6 x 12), Module Efficiency: 20.3%, Connector Type: MC4
$
  • 25 Year Product Warranty1

    25 Year Product Warranty

    LG NeON® 2 has a 25 year product warranty. The annual degradation has fallen from -0.6%/yr to -0.5%/yr. Even at 25 years, the cell guarantees 2.4% more output than the previous LG NeON® 2 modules.

  • High Power Output1

    High Power Output

    Compared with previous models, the LG NeON® 2 72 cell has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

  • Roof Aesthetics1

    Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

  • Outstanding Durability1

    Outstanding Durability

    With its reinforced frame design the LG NeON® 2 can endure a front load up to 5,400/113 Pa/psf, and a rear load up to 3,000/63 Pa/psf.

  • Improved Performance on Sunny Days1

    Improved Performance on Sunny Days

    LG NeON 2 now performs better on sunny days, thanks to its improved temperature coefficient.

  • Near Zero LID1

    Near Zero LID

    The n-type cells used in LG NeON® 2 have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

General Data

  • Cell Properties (Material/Type)
    Monocrystalline/N-type
    Cell Maker
    LG
  • Cell Configuration
    72 Cells (6 x 12)
    Number of Busbars
    12EA
  • Module Dimensions (L x W x H)
    2,024mm x 1,024mm x 40 mm
    Weight
    20.3 kg
  • Glass (Material)
    Tempered Glass with AR Coating
    Backsheet (Color)
    White
  • Frame (Material)
    Anodized Aluminium
    Junction Box (Protection Degree)
    IP68
  • Cables (Length)
    1,200mm x 2EA
    Connector (Type/Maker)
    MC 4/MC

Certifications and Warranty

  • Certifications
    IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    Salt Mist Corrosion Test
    IEC 61701:2012 Severity 6
  • Ammonia Corrosion Test
    IEC 62716:2013
    Module Fire Performance
    Type 1 (UL 1703)
  • Fire Rating
    Class C (UL 790, ULC/ORD C 1703)
    Solar Module Product Warranty
    25 Years
  • Solar Module Output Warranty
    Full warranty details can be found below.
    *
    Improved: 1st year 98%, from 2-24th year: 0.3%/year down, at 25th year: 90.8%

Temperature Characteristics

  • NMOT* [°C]
    42 ± 3
    Pmax [%/°C]
    -0.36
  • Voc [%/°C]
    -0.26
    Isc [%/°C]
    0.02
  • *
    NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties(NMOT)

  • Maximum Power (Pmax) [W]
    304
    MPP Voltage (Vmpp) [V]
    38.4
  • MPP Current (Impp) [A]
    7.91
    Open Circuit Voltage (Voc) [V]
    46.6
  • Short Circuit Current (Isc) [A]
    8.44

Electrical Properties(STC*)

  • Maximum Power (Pmax) [W]
    405
    MPP Voltage (Vmpp) [V]
    41.0
  • MPP Current (Impp) [A]
    9.89
    Open Circuit Voltage (Voc, 5%) [V]
    49.4
  • Short Circuit Current (Isc, 5%) [A]
    10.51
    Module Efficiency [%]
    19.5
  • Power Tolerance [%]
    0 ~ +3
    *
    STC (Standard Test Condition): Irradiance 1000 W/m², cell temperature 25 °C, AM 1.5

Operating Conditions

  • Operating Temperature [°C]
    -40 ~+90
    Maximum System Voltage [V]
    1,500(UL), 1000(IEC)
  • Maximum Series Fuse Rating [A]
    20
    Mechanical Test Load (Front) [Pa/psf]
    5,400/113
  • Mechanical Test Load (Rear) [Pa/psf]
    3,000/63
    *
    Test Load = Design load x Safety Factor (1.5)

Packaging Configuration

  • Number of Modules per Pallet [EA]
    25
    Number of Modules per 40ft HQ Container [EA]
    550
  • Packaging Box Dimensions (L x W x H) [mm]
    2,080 x 1,120 x 1,226
    Packaging Box Gross Weight [kg]
    551

Certification

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
