UHD Signage

55UL5Q-E

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 500 nit (Typ.)
24Hr Usage Scene (24 Hours / 7 Days)
Face Up/Down with Tilt Support
Even Bezel
High-Performance with webOS 6.1

Inside the cosmetics shop, two signage displays are mounted high on the wall with a downward tilt, each vividly showcasing cosmetic advertisements.

* All images in this page are for illustrative purposes only.

Presenting vivid and lively screen quality by magnifying part of the display’s content.

Superb Picture Quality with Ultra HD Resolution

The UL5Q-E series, with UHD resolution, enhances the realism of colors and details in the content. Its wide viewing angle offers clear visuals, while its 500-nit brightness vividly showcases the content.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

High-Performance with LG webOS 6.1

LG webOS 6.1 is available on the UL5Q-E series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.

* GUI : Graphical User Interface

One UL3Q is mounted on the wall in landscape orientation, and the other in portrait orientation, with an enlarged image showing the uniform bezel thickness of the UL3Q.

Even Bezel Design

The UL5Q-E series features even bezels, enhancing the aesthetic appeal of various spaces. These uniform bezels not only facilitate easy installation but also transform standard displays into elegant focal points.

One UL3Q is installed on the store ceiling with a Face Down tilt, and the other is mounted below the counter with a Face Up tilt, both displaying content.

Adaptive Viewing Experience

Experience the flexibility with the UL5Q-E series' up/down tilt capability. Whether mounted high or low, the display can be adjusted to eye level, offering viewer engagement regardless of installation height. This versatility not only enhances spatial efficiency but also provides visual comfort, delivering clear information from various viewing angles.

* 75”/86” are not supported.
** This display tilts up/down up to 15 degrees; do not exceed this range to prevent damage.

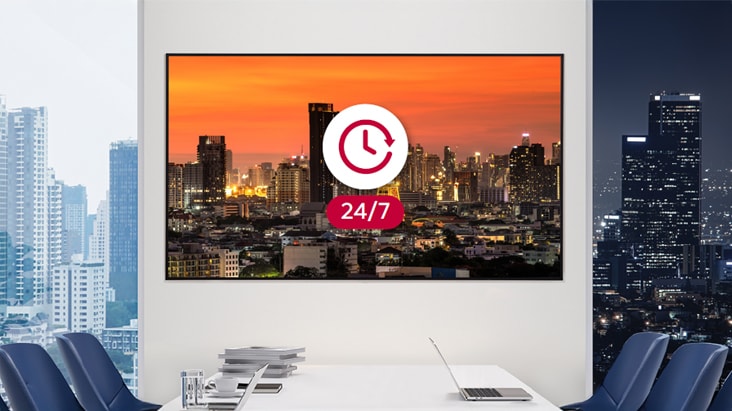

The UL5Q-E series supports 24/7 operation.

Engineered for 24/7 Operation

Built for environments that never sleep, the UL5Q-E series features panel technology that enables 24/7 operation.

* The UL5Q-E series includes the same standard warranty period as other signage models and offers an optional extended warranty, providing coverage for up to 5 years in total. If the extended warranty is purchased, coverage ends when either 30,000 hours of usage is reached or the 5-year period expires, whichever comes first.

A UL3Q is mounted on the wall, with a close-up of the brightness sensor located on the lower front of the display.

Built-In Brightness Sensor

The UL5Q-E series' front-mounted brightness sensor automatically adjusts brightness to match various lighting conditions, optimizing viewing quality and energy efficiency without manual intervention. This adaptive feature offers consistent display performance while also supporting power optimization, delivering a visual experience that dynamically responds to environmental changes.

The UL3Q series provides security features to protect important data from external access or attacks.

Advanced Security Architecture

The UL5Q-E series incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/ IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.

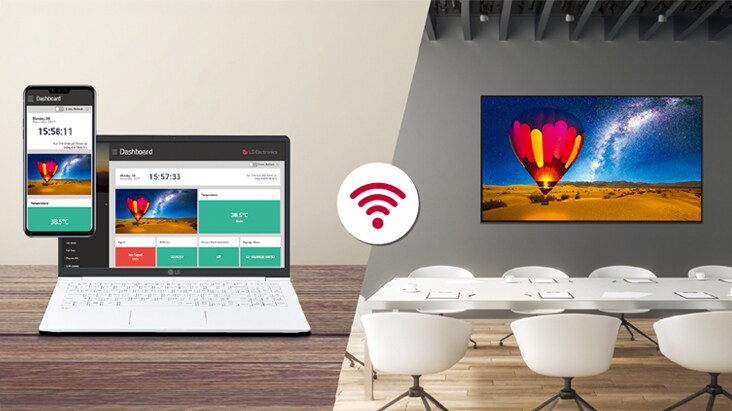

The UL5Q-E series can be remotely controlled and monitored through Control Manager via mobile devices and/or laptops.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anytime, anywhere from their mobile phone & PC in a network-accessible environment, with access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

It is demonstrating that the UL5Q-E series is EPEAT verified.

EPEAT Registered

The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL5Q-E series is an EPEAT Bronze-certified* display which means that it meets all the required criteria in the Computers and Displays category.

* Registered in August 2025

The LG employee is remotely monitoring the UL5Q-E series installed in another location.

LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

All Spec

PANEL

Screen Size (Inch)
55"
Panel Technology
ADS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840x2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color Gamut
DCI 80%
Viewing Angle (H x V)
178 x 178
Color Depth (Number of Colors)
10bit, 1.07Billon colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
1%
Life time
30,000Hrs (Min)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes/Yes
Transparency
NO
QWP (Quarter Wave Plate)
NO

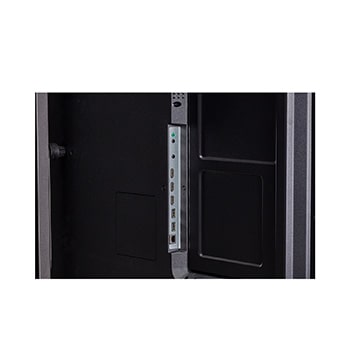

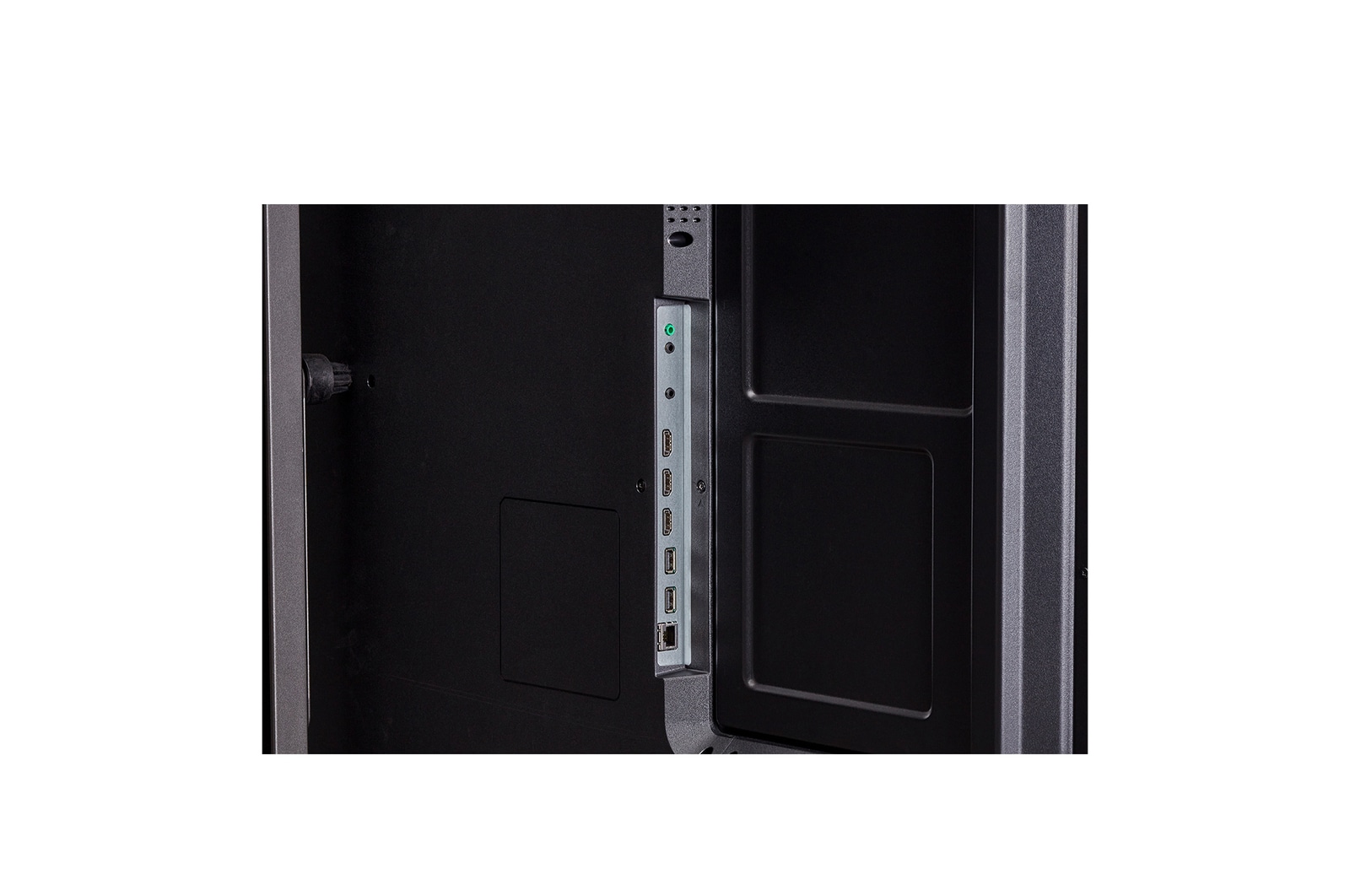

CONNECTIVITY

HDMI In
Yes(3), HDCP2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
Yes(1), 4pin Phone-jack
RJ45(LAN) In
Yes(1)
IR In
NO
USB In
USB2.0 Type A(2)
HDMI Out
NO
DP Out
NO
Audio Out
Yes(1)
Touch USB
N/A
External Speaker Out
NO
RS232C Out
Yes
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
10.8mm Even
Weight (Head)
12
Weight (Head+Stand)
-
Packed Weight
15.4
Monitor Dimensions (W x H x D)
1234.2 X 706.7X 58.9
Monitor Dimension with Stand (W x H x D)
-
Carton Dimensions (W x H x D)
1380 X 118 X 825
Handle
NO
VESA Standard Mount Interface
300 x 300

PROTECTION GLASS

Thickness
N/A
Degree of Protection
N/A
Tempered / Chemical strengthening
N/A
Anti-Reflective
N/A
Infrared - Resistance (IR)
N/A
Shatter-Proof
N/A

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
Yes
Power Indicator
NO
Local Key Operation
Yes (Power On/Off only)
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS6.1
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
Yes
Video Tag
Yes(4, Max One HDMI input)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

Typ.
124W
Max.
191W
BTU (British Thermal Unit)
423.2BTU/Hr(Typ.), 764.4BTU/Hr(Max.)
Smart Energy Saving (70%)
86.8W
DPM
0.5 W
Power off
0.5 W

SOUND

Speaker (Built-in)
Yes (10W X 2)

CERTIFICATION

Safety
CB
EMC
FCC Class "B" / CE
ERP / Energy Star
Yes(New ERP)/Yes
ePEAT(US only)
Yes

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Promota
NO
Mobile CMS
Yes
Connected Care
Yes

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
