UHD IR-type Touch CreateBoard

UHD IR-type Touch CreateBoard

UHD IR-type Touch CreateBoard

65TR3PJ-B

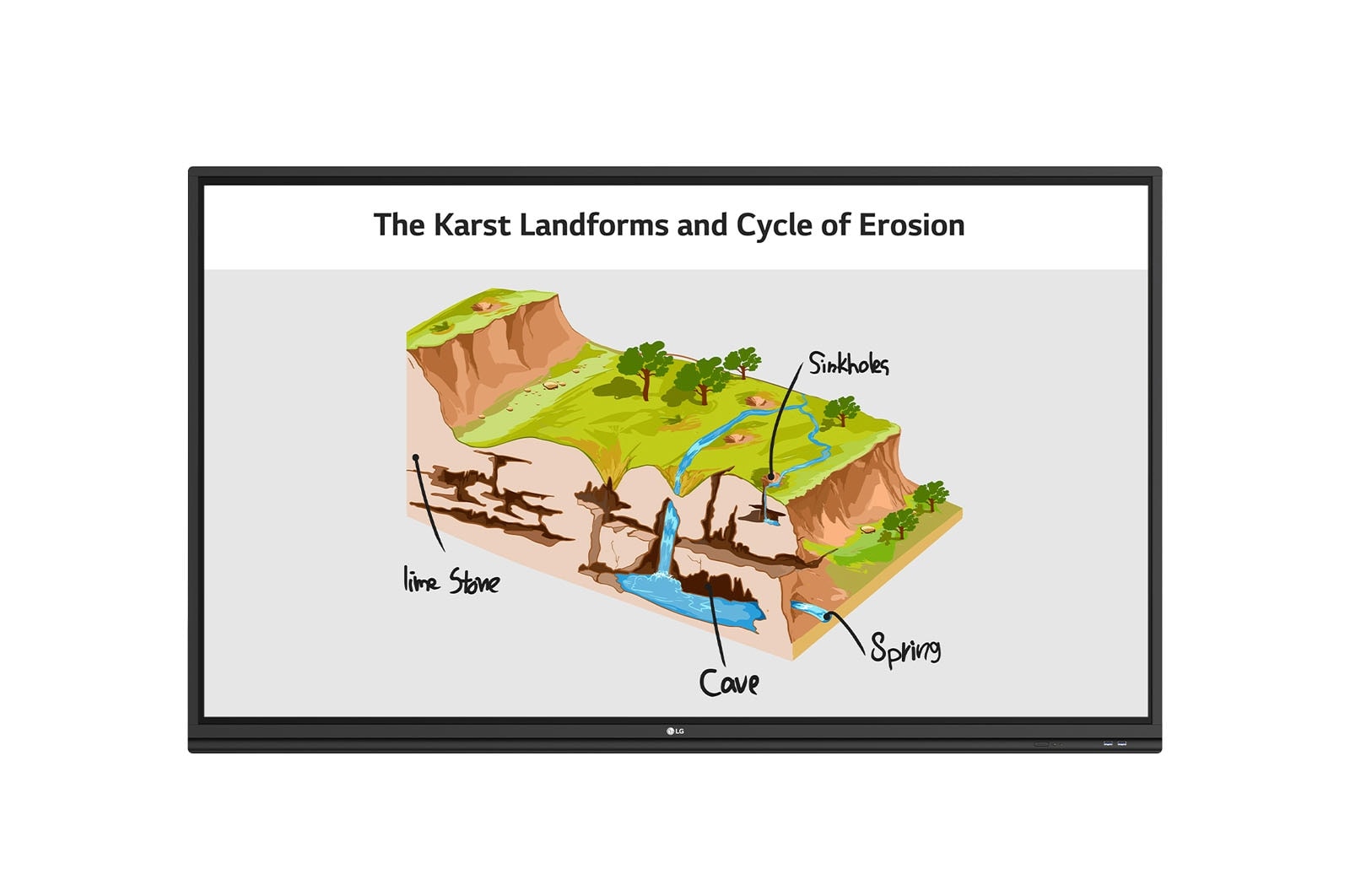

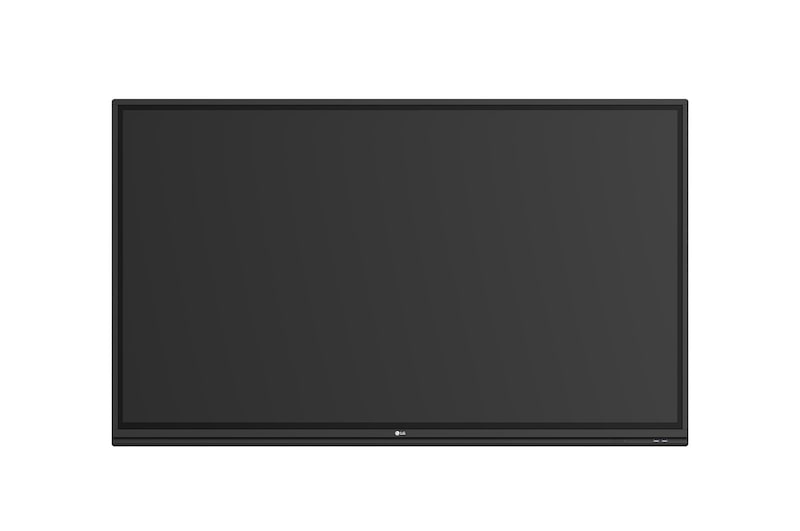

Front view of UHD IR-type Touch CreateBoard 65TR3PJ-B

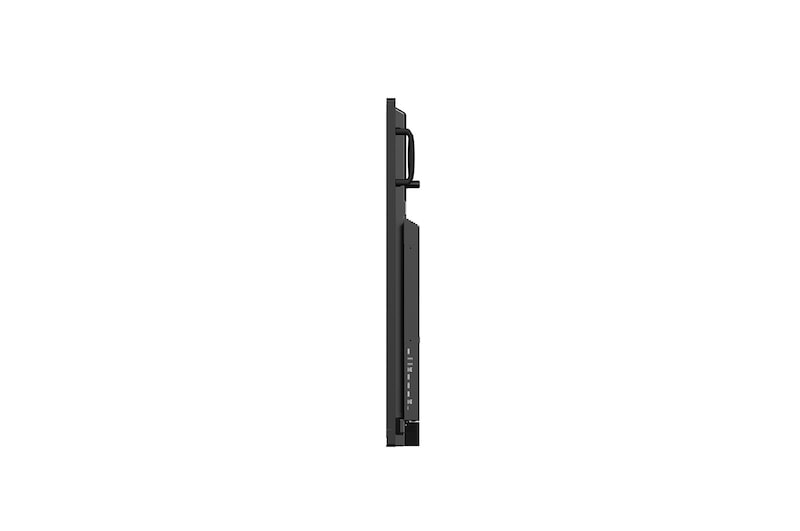

LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B

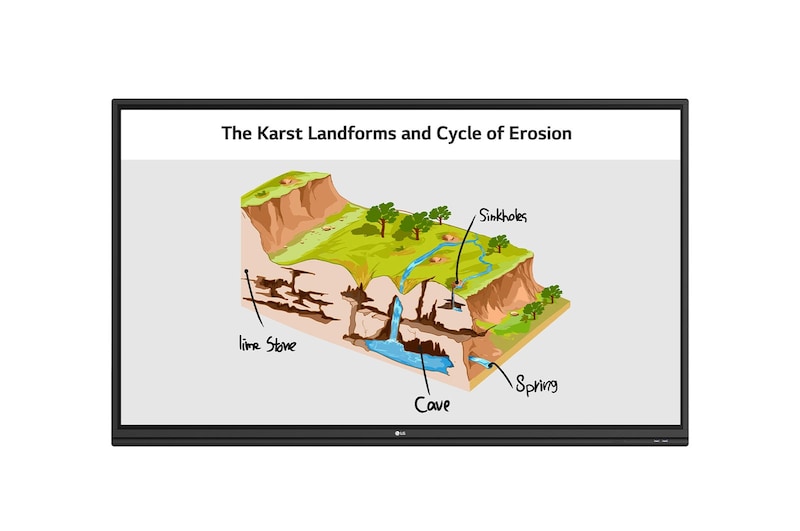

Front view of UHD IR-type Touch CreateBoard 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B
LG UHD IR-type Touch CreateBoard, 65TR3PJ-B

Key Features

  • Brightness : 390 nit (w/o Glass, Typ.)
  • Multi Touch Point : 20 Points (Max.)
  • Interface : HDMI (3), RGB (1), Audio In (1), RS-232C In (1), RJ45 (1), USB 3.0 Type A (3), USB 2.0 Type A (1), USB 3.1 Type C (1), Audio Out / Optical Output, Touch USB (2)
Print

All Spec

PANEL

  • Screen Size (Inch)

    65

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    390nit (Typ., without Glass)

  • Contrast Ratio

    5,000:1

  • Dynamic CR

    NO

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Response Time

    6.5ms (G to G)

  • Surface Treatment (Haze)

    Haze 25%

  • Life time

    30,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    NO / YES

CONNECTIVITY

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    NO

  • DVI-D In

    NO

  • RGB In

    YES

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    NO

  • USB In

    USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)

  • HDMI Out

    YES

  • DP Out

    NO

  • Audio Out

    YES

  • Touch USB

    USB3.0 Type B (2ea)

  • External Speaker Out

    NO

  • RS232C Out

    NO

  • RJ45(LAN) Out

    YES

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 17.7/17.7/17.7/45.7mm

  • Weight (Head)

    40.2Kg

  • Packed Weight

    48.8Kg

  • Monitor Dimensions (W x H x D)

    1489 × 897 × 87.0mm

  • Carton Dimensions (W x H x D)

    1628 × 1005 x 208mm

  • Handle

    YES

  • VESA Standard Mount Interface

    600 x 400 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    32GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    NO

  • Auto Brightness Sensor

    YES

  • Power Indicator

    YES

  • Local Key Operation

    YES

FEATURE - SOFTWARE

  • Booting Logo Image

    YES

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    YES

  • Setting Data Cloning

    NO

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    NO

  • Wake on LAN

    YES

  • Network Ready

    NO

  • HDMI-CEC

    YES

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 90 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    190W

  • Max.

    400W

  • BTU (British Thermal Unit)

    648 BTU/Hr(Typ.), 1365 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    YES (16W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE

  • ERP / Energy Star

    YES / NO

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Slot)

  • OPS Power Built-in

    YES

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Latvian, Thai

ACCESSORY

  • Basic

    Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

  • Optional

    NO

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø2 mm ↑

  • Response Time ('Paint' app on Windows 10 PC)

    10ms ↓

  • Accuracy (Typ.)

    ±1mm

  • Interface

    USB3.0

  • Protection Glass Thickness

    4mm (Anti-Glare)

  • Protection Glass Transmission

    0.87

  • Operating System Support

    Windows 7/8/10/XP/Linux/Mac/Android (Windows XP/Linux/Mac Support one point touch)

  • Multi Touch Point

    Max. 20 Points

DEDICATED FEATURE - CREATE BOARD

  • CPU

    Quad core A73

  • GPU

    Mail G52 Multicore 2

  • Memory(RAM)

    4GB

  • Storage

    32GB

  • Wi-Fi

    802.11a/b/g/n/ac/ax

  • LAN

    Gigabit LAN

  • Bluetooth

    Bluetooth 5.0

  • OS ver. (Android)

    Android 9

Leaflet

extension : pdf
TR3PJ_Series_LG Interactive_Digital_Board_220330.pdf
Download

To access more technical documentation and resources, please visit the LG B2B partner portal.
