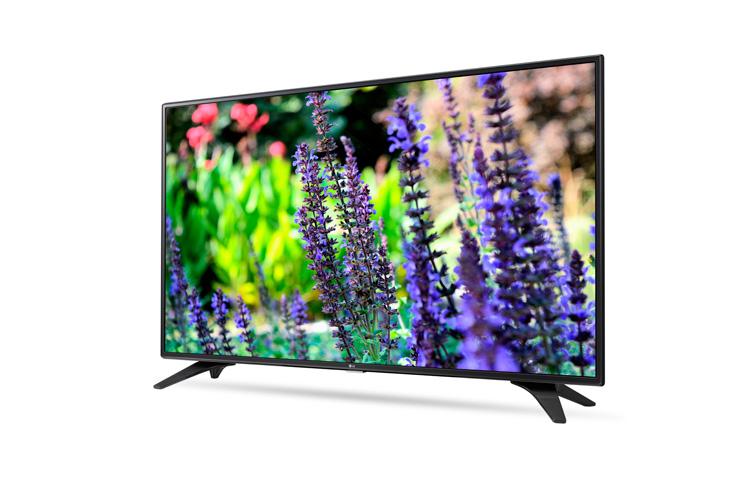

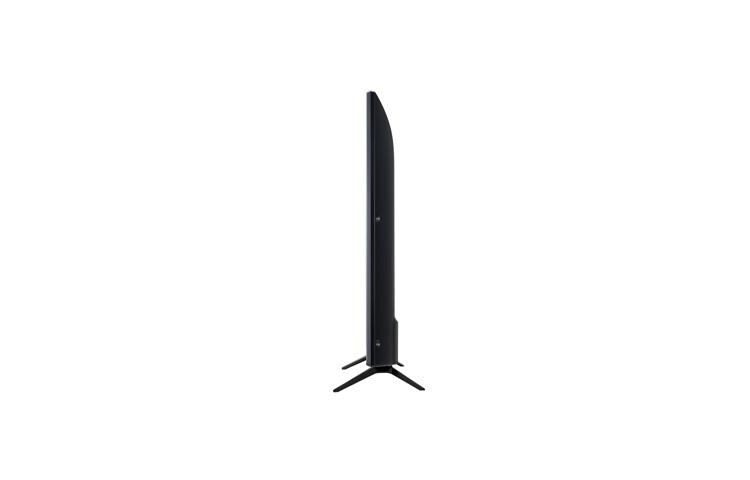

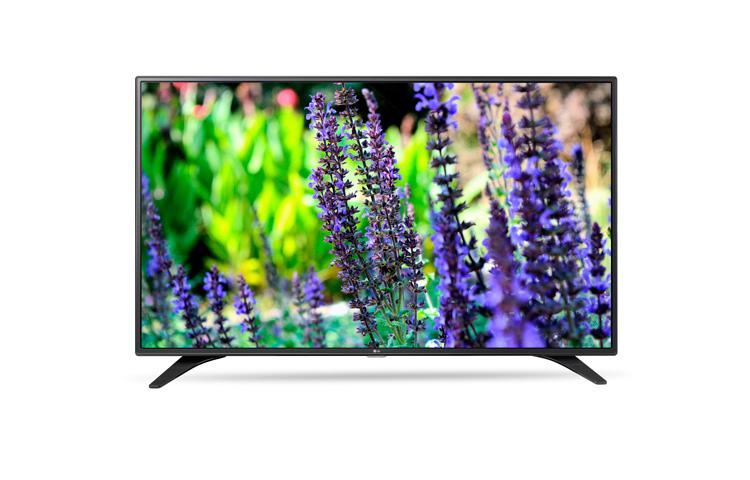

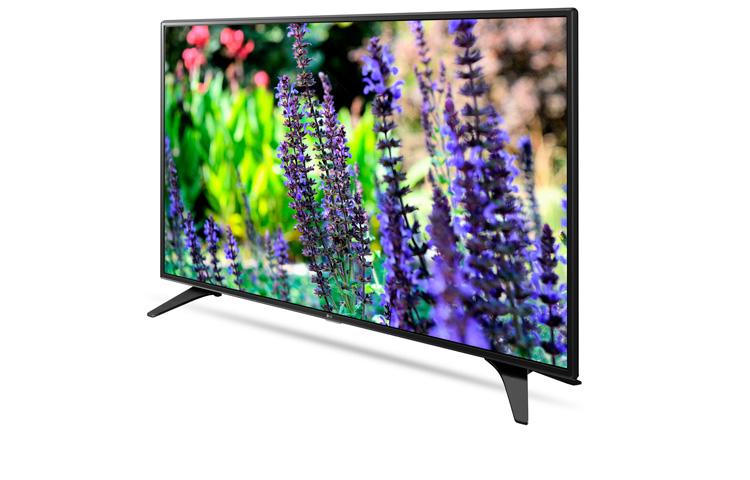

55" Class (TBD" diagonal) Direct LED Commercial Lite Integrated HDTV

  • 55LW340C

  • Discontinued Product

Key Features

  • Public Display Mode
  • USB Cloning
  • USB Auto Playback +
  • RS-232C
PANEL
Panel TechnologyDirect LED
Resolution1920x1080 (FHD)
Frame Rate60Hz
Brightness350cd/m2
Response Time9ms(G to G)
Viewing Angle ( H x V)178° x 178°
Static (Panel) Contrast Ratio1,200:1
GENERAL FEATURES
ManagementSelf Diagnostics via USB / EZ-Manager Wizard (for Initial Confi guration)
InteractivityHTNG / HDMI-CEC
RJP CompatibilityTeleadapt (RS232C), Teleadapt / Guestlink (HDMI CEC)
Supported Media Formats for USBMoving Picture Playback (Divx HD), Picture (JPEG), Audio Codec (MP3, AC3, MPEG, AAC, HEAAC, CDDA, LPCM)
Kensington LockYes
Advanced Setting OptionAuto Off / Auto Sleep, Smart Energy Saving, Motion Eye Care
BROADCASTING SYSTEM
AnalogNTSC
DigitalATSC/VSB/Clear QAM
VIDEO
Dynamic Color EnhancerYes
Triple XD EngineYes
Real Cinema 24p (3:3 pull down)Yes
Aspect Ratio6 modes ( 16:9, Just scan,Set by program, 4:3,Zoom,Cinema zoom1)
AUDIO
Audio Output5W + 5W/2.0 ch
Clear VoiceYes
Sound Mode6 modes (Standard, News, Music, Cinema, Sport, Game)
Optical Sound SyncYes
Sound OptimizerYes, 3 Modes (Normal, Wall-Mount Type, Stand Type)
INTERFACE (Side)
HDMI InYes
USB (2.0)Yes
INTERFACE (Rear)
RF InYes
Component In1 (Y, Pb,Pr) + Audio (L/R)
RGB InYes
AV In1 (Sharing with Component in)
HDMI/HDCP InputYes
RS232 InYes
LAN Port1
External Speaker OutYes
POWER
Voltage110 ~ 240V, 50/60Hz
Stand-by (Watts)0.5W
WARRANTY
WARRANTY2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
DIMENSIONS
VESA®300mm x 300mm
Bezel Width On (L/R, U, B)12.9mm, 12.9mm, 15.9mm
Bezel Width Off (L/R, U, B)10.4mm, 10.4mm, 13.4mm
WxHxD / weight (with stand)48.85" x 30.51" x 8.50" / 35.60lb
WxHxD Packing53.54" x 32.87" x 5.98" / 46.96lb
WxHxD / weight (w/o stand)48.85" x 30.51" x 8.50" / 35.60lb
CERTIFICATION
Safety / EMC / ETC.UL / FCC / RoHS, cUL, NOM, Energy Star 7.0
EPEAT SilverYes
