65" class (64.53" diagonal) TV tuner built-in Digital Signage

  • 65LY540S

Key Features

  • Brightness 300nit
  • Buit-in TV Tuner
  • Built-in Speaker

DOWNLOAD SUPERSIGN SIMPLE EDITOR SOFTWARE

Click here to download SuperSign Simple Editor Software

<span>DELIVER YOUR MESSAGES WHILE BROADCASTING LIVE CHANNELS SIMULTANEOUSLY.</span>

DELIVER YOUR MESSAGES WHILE BROADCASTING LIVE CHANNELS SIMULTANEOUSLY.

AN AFFORDABLE ALL-IN-ONE DISPLAY SOLUTION

No need to purchase any additional hardware or software.

AN AFFORDABLE <span>ALL-IN-ONE DISPLAY SOLUTION</span>
<span>SIMPLE CONNECTIVITY </span>

SIMPLE CONNECTIVITY

Needs only a power, LAN connection and a USB to operate.

FREE SUPERSIGN LITE

- 32 pre-installed templates for multiple verticals - Schedule your messages to show on which TVs, and when they show - Remotely control maximum 50 TVs over the network

<span>FREE SUPERSIGN LITE</span>
HOW TO USE SUPERSIGN TV - Option 1.<span> As a stand-alone use</span>

HOW TO USE SUPERSIGN TV - Option 1. As a stand-alone use

1. Create & schedule your content 2. Export the content onto a USB 3. Plug & Play USB on SuperSign TV

HOW TO USE SUPERSIGN TV - Option 2. Networked TVs

1. Create & schedule your content 2. Transfer the content to SuperSign TVs through the network. A maximum of 50 TVs can be operated.

HOW TO USE SUPERSIGN TV - Option 2. <span>Networked TVs</span>

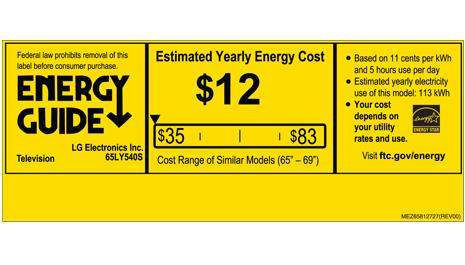

<span>65LY540S Energy Guide</span>

65LY540S Energy Guide

The estimated annual energy cost determined in accordance with 16 CFR Part 305.5 for models 65LY540S is $12. “Your energy cost depends on your utility rates and use. The estimated cost is based on 11 cents per kWh and 5 hours of use per day. For more information, visit www.ftc.gov/energy.”* *FTC Television labeling rule (18 CFR Part 305, as added by 76 Fed. Reg. 1038 (Jan 6, 2011)).

PANEL
Panel TechnologySlim Direct LED
Panel Size (Measured Diagonally)65” Class(64.53”)
Response Time9 ms (G to G)
Native Resolution1920x1080 (FHD)
Brightness230 cd/m2
Static (Panel) Contrast Ratio1,400:1
Dynamic Contrast Ratio (Dynamic MCI (Hz))4,000,000:1
Frame Rate120Hz
Viewing Angle(HxV)178° x 178°
BROADCASTING SYSTEM
AnalogYes (NTSC)
DigitalYes (ATSC/Clear QAM/VSB)
AUDIO
Audio Output10W + 10W
Speaker System2.0 ch
Sound ModeYes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
Optical Sound SyncYes
Clear Voice IIYes
Invisible SpeakerYes
VIDEO
Triple XD EngineYes
Dynamic Color EnhancerYes
Aspect RatioYes, 6 Modes (16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom1)
Real Cinema 24p (3:3 pull down)Yes
INTERFACE (Side)
USB (2.0)2 Side
HDMI In1 Side
INTERFACE (Rear)
Digital Audio Out (Coaxial / Optical)1 (Optical)
RS-232C (D-Sub 9pin)1 (Control & Service)
PC Audio Input1(Share with component audio input)
AV In1 (Sharing with Component in)
RGB In (D-sub 15pin) - PC1 Rear
RF In1 Rear
Component in (Y,Pb,Pr) + Audio1 (5)
External Speaker Out1 Rear (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω), Digital Opitical
HDMI/HDCP Input1 Rear
POWER
Stand-by0.5W↓
Watts (typical)61W
Power Source110 ~ 240V, 50/60Hz
SPECIAL FEATURES
Digital Signage CMSYes (SuperSign lite)
IR OutYes (RS232C)
Remote DiagnosisYes (USB)
HTNG-CECYes (1.3)
Welcome Screen (Splash Image)Yes
HDMI-CECYes
Multi IR CodeYes
Lock ModeYes
Motion Eye Care (Intelligent Sensor)Yes
USB Auto Play BackYes
USBYes (USB 2.0)
External Speaker OutYes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)
Audio CodecMP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM
RJP CompatibilityYes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
One Channel Map/ Logical Channel MapYes
Smart Energy SavingYes
USB CloningYes
MHLYes
Kensington LockYes
Auto Off / Auto SleepYes / Yes
RJP InterfaceYes (RS232C, HDMI CEC)
Hotel Mode/ PDM /Installer MenuYes
PictureJPEG
Moving Picture Playback (SD/HD/Plus HD)Divx HD
CABINET
Bezel Width (on Bezel) (mm)12mm/12m/7.5mm
Bezel Width (off Bezel) (mm)9.5mm/9.5m/15mm
Dimensions with stand(WxHxD)59.6" X 35.4 X 12.4"
Weight (with stand)67.2 Ibs
Dimensions without stand (WxHxD)57.6” x 33.5” x 2.3”
Weight (without stand)63.9 lbs
Carton61.0” x 37.2” x 7.6”
Weight (with carton)80.5 Ibs
VESA™ Standard Mount Interface400mm x 400mm
Flame RetardentYes
ColorDark Titan
ACCESSORIES
CablePower cord (1.5m, Angle Type)
REQUIRED LISTING (Certification)
RoHS CompliantYes
SafetycUL, UL, FCC, NOM
Energy Star 6.1Yes
UPC
65LY540S7 19192 91619 7
WARRANTY
Warranty2 Year Limited Warranty (Parts/Labor)
