42" class (41.92" diagonal) Full HD Display

  • 42LS55A-5B

Key Features

  • HIGH PERFORMANCE AND COST EFFECTIVE SOC ENHANCED FAIL OVER
  • SLIM, SLEEK AND STYLISH DESIGN
  • 450 nit Display - 24/7 Operation
  • REMOTE CONTROL VIA RS232C & NETWORK

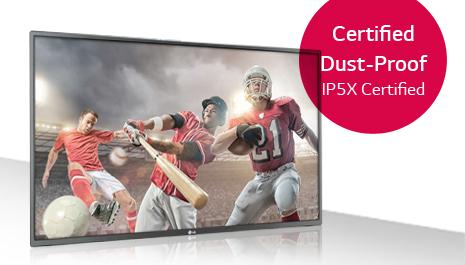

<span>IP5X Dust-Proof Certification</span>

IP5X Dust-Proof Certification

The LS55A passed the rigorous dust ingress test to receive IP5X certification to be certified dust-proof. It has complete protection against contact and is made to resist dust build up, which means better performance and less heat generation.

HIGH PERFORMANCE AND COST EFFECTIVE SOC- High performance SoC

LS55A delivers optimized SoC that has powerful performance to play various contents and additional 8GB internal storage.

<span>HIGH PERFORMANCE</span> AND <span>COST EFFECTIVE</span> SOC- High performance SoC

HIGH PERFORMANCE AND COST-EFFECTIVE SOC

LS55A eliminates the need for an external media player to reduce the cost of total ownership.

<span>HIGH PERFORMANCE</span> AND <span>COST-EFFECTIVE</span> SOC
SLIM, SLEEK AND STYLISH DESIGN

SLIM, SLEEK AND STYLISH DESIGN

ENHANCED FAIL OVER

• Switches signals from first player to second player • Switches signals from an external player to internal memory in case of a player’s failure * Auto signal switching from external player to internal memory on player failure * It can be assign max 5 of input interface (HDMIx2, DP, DVI, Internal Memory)

<span>ENHANCED FAIL OVER</span>
<span>REMOTE CONTROL</span> VIA RS232C & NETWORK

REMOTE CONTROL VIA RS232C & NETWORK

Our advanced self-diagnosis function allows you to check the screen status with a pixel sensor provided optionally and supports the SNMP standards for compatibility with 3rd party solutions.

PANEL
Panel Size42" class (41.92" measured diagonally)
Brightness450 cd/m^2
Panel TypeIPS
Viewing Angle (H x V)178°/178°
Response Time11ms (G to G BW), 8ms (WOT)
Contrast Ratio (Typ.)1,200:1
Dynamic CR (DCR)500,000:1
Native Resolution1920 x 1080 (FHD)
OPTIONAL ACCESSORIES
StandST-421T
SpeakerSP-2100
Pixel SensorKT-SP0
SIGNAL (OUTPUT)
DigitalDisplay Port (1)
AnalogExternal Speaker (1)
External ControlRS232C (1)
CABINET
Bezel WidthFlat Bezel : 8.5mm(L/R/U), 14mm(B) After Curvature : 13.3mm(L/R/U), 18.8mm(B)
ColorBlack
DIMENSIONS
Monitor (W x H x D)39.3”x 22.0”x 2.1”
Weight (lbs)20.0
Monitor w/opt stand39.3”x 24.0”x 8.5”
Weight w/ Monitor & opt stand (lbs)20.5
Monitor w/opt std/spk39.3”x 24.0”x 8.5”
Weight w/ opt std & spk(lbs)22.2
Weight with Carton (lbs) 26.0
Carton41.7”x 25.9”x 5.9”
VESA Standard Mount Interface400mm x 400mm
SPECIAL FEATURES
IPS PanelLow Screen Temperature on Standard Mode, High Resistance to Blackening Defect, Wide Viewing Angle
High-Performace & Cost-Effective SolutionEmbeded Media Player, Enhanced Failover to Internal Memory, Supports SNMP (Simple Network Management Protocol), Pixel Sensor for Screen Failure Detection
Internal Memory8GB (System 4GB + Available 4GB)
webOS for signage platformWeb Centric Platform, Simple Customization, Intuitive UX, Simple management
ENVIRONMENT CONDITIONS
Operation Temperature0°C-40°C (32°F-104°F)
Operation Humidity10%~80%
POWER
Normal On (Typ.)90W
Smart Energy Saving Off/On65W
STANDARD CERTIFICATIONS
SafetyUL / cUL / CB / TUV / KC
EMCFCC Class "A" / CE / KCC
ErP/Energy StarYes / Yes (Energy Star 6.0)
WARRANTY
Warranty3-Year Limited Warranty (Parts/Labor/Backlight)
UPC Code
42LS55A-5D7 19192 19542 4
MEDIA PLAYER COMPATIBILITY
External Media Player AttatchableYes (MP500/MP700)
SIGNAL (INPUT)
DigitalHDMI (2), Display Port (1), DVI (1)
USBYes (1)
ACCESSORIES
AccessoriesRemote Controller(include battery 2ea), Power Cord, IR/Light sensor receiver, CD(Owner's Manual, SuperSign Program / Manual), HDMI Cable
SOFTWARE COMPATIBILITY
SuperSign Elite-cYes (SuperSign software is available from website.)
SuperSign Elite-w liteYes, Editing, Scheduling, Distribution & Play, Control
