49" class (48.5" diagonal) SL5B Standard Essential

  • 49SL5B

Key Features

  • SIMPLE NETWORK MANAGEMENT PROTOCOL
  • WI-FI SUPPORT
  • USB CONTENT SCHEDULING

WI-FI SUPPORT

SL5B Series support Wi-Fi USB dongle connection for convenient content distribution.

WI-FI SUPPORT
SIMPLE NETWORK MANAGEMENT PROTOCOL

SIMPLE NETWORK MANAGEMENT PROTOCOL

SNMP support ensures convenient network management.

USB CONTENT SCHEDULING

Play and schedule contents with a USB connection-no server connection required.

USB CONTENT SCHEDULING

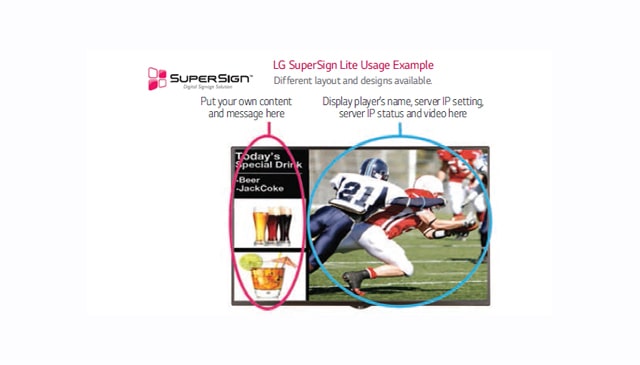

LG SUPERSIGN

LG SUPERSIGN

Run messages on up to 50 display screens in the form of a billboard without any additional hardware. Advertisements, information and broadcast content can be arranged on the same screen to attract attention and deliver specific messaging to your customer base.

CONFORMAL COATING

Conformal coating helps protect against water, dust and iron powder deposits which accumulate in harsh environments, saving on expensive installation and added enclosure costs.

<span>CONFORMAL COATING</span>

Visit our SuperSign Software Center for all the latest software needs

Click here to download SuperSign Software

EXTENDED CARE

Extend the protection on your LG products for up to three years with LG Premium Care.

ENERGY STAR® Qualified

ENERGY STAR® Qualified

ENERGY STAR® certified monitors meet stringent energy efficiency requirements set by the US Environmental Protection Agency in On, Sleep, and Off Modes. On average, monitors that have earned the ENERGY STAR® are 25% more energy efficient than standard options.

PANEL
Panel TechnologyIPS
Aspect Ratio16 : 9
Native Resolution1920 x 1080 (FHD)
Brightness450cd/m2
Contrast Ratio1,100:1
Dynamic CR500,000:1
Viewing Angle (H x V)178°/178°
Surface TreatmentHard Coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.))
OrientationPortrait & Landscape
Panel Size49" class (48.5" diagonal)
Pixels (H x V x 3)6,220,800
Response Time12ms(G to G BW)
Color Depth16.7 Million
Operation Hours18 Hr
Life time (Typ.)50,000 Hrs
Color Gamut68%
INPUT
AudioYes (1)
HDTV FormatsHDMI : 720p, 1080i, 1080p
USBYes (2)
Analog RGBYes (1)
IR Cap ReceiverYes (1)
HDMIYes (1)
DVIYes (1)
DPNo
Pixel SensorNo
RS232C InYes (1)
RJ35Yes (1)
CABINET
Bezel ColorBlack
Bezel Width11.9mm (T/R/L), 18mm (B)
(W x H x D)43.4”x25.1”x1.5”
Weight31lbs
Carton (WxHxD)47.1”x29.9”x6.5”
Carton Weight37.9lbs
w/Optional Stand (WxHxD)43.4” x 27.4” x 8.6”
w/Optional Stand Weight38.4lbs
w/Optional Stand & Speakers (WxHxD)43.4”x27.4”x8.7”
w/Optional Stand & Speakers Weight39.46lbs
VESA™ Compatible300 mm x 300 mm
SPECIAL FEATURES
Temp SensorYes
Screen Off ScheduleYes
Time Sync ClockYes
PM modeYes
Holiday ScheduleYes
Firmware Update (LAN)Yes
Local Auto TimeYes
Overlay touchYes
Still Image DiagnosisYes
HDMI-CECYes
Limited ModeInput source change, Menu Display, OSD Display
Power on DefaultInput source, A/V Setting, Aspect Ratio
Wake on LANYes
Digital Audio InputYes
Power on Delay0~255
Fail OverUSB, RGB, DVI, HDMI
SuperSign Server SetupPlayer name, Server IP setting, Server IP Status
No Signal image (Up to 5MB)Yes
Power Indicator On/OffNo
LanguageEnglish, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek
Tile ModeYes (Up to 15x15)
Natural Mode @ Tile ModeYes
Source SelectionRGB, HDMI, DVI, USB1, USB2
Brightness / Contrast / BacklightYes
Position / SizeYes
Auto Config / PhaseYes
AdvancedDynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma
TimeClock, On/Off Time, Auto Off, Automatic Standby
Key OperationIR operation, Local key operation
Calibration modeYes
DSTYes
Input LabelYes (PC / DTV)
USB CloningLogo image download, EzDownload, Sent to USB, Receive from USB
Easy Brightness ControlYes
Content schedulingUSB
Power on StatusStandard, PWR, LST
ISM MethodNormal, White Wash, Color Wash, Orbiter, inversion, Washing Bar, User image
DPM Wake UpYes
File Play with USBYes
Wi-FiDongle Ready
Energy SavingYes(Minimum, Medium, Maxium, Screen off)
DPM SelectYes
Wake On LANYes
Intelligent AutoYes
SetID SetupManual, Auto
ENVIRONMENT CONDITIONS
Operation Temperature32 °F to 104 °F
Operation Humidity10 % to 80 %
POWER
Power Supply100-240V~, 50/60Hz
Power TypeBuilt-In Power
POWER CONSUMPTION
DPM0.7W
Power Off0.5W
Typical75W
OUTPUT
DVINo
AudioYes
External Speaker OutYes (L/R)
RS232CYes (1)
AUDIO
BalanceYes
Audio Power20W (10W x 2) for External Speaker
Sound ModeStandard, News, Music, Cinema, Sport, Game
Clear Voice IIYes
Virtual SurroundYes
EqualizerYes
CERTIFICATION
SafetyUL / cUL / CB / TUV / KC / FCC Class "A" / CE / KCC / Yes / Yes (ENERGY STAR® Qualified)
EPEAT GoldYes
OTHER
UPC7 19192 19670 4
MEDIA PLAYER COMPATIBILITY
External Media Player AttatchableYes (MP500/MP700)
OPS Type CompatibleNo
ACCESSORIES
BasicRemote Controller (includes 2 batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
SOFTWARE COMPATIBILITY
SuperSign Elite-cYes
SuperSign-w liteYes
