55" class (54.6”/ 1,387mm diagonal) Smart Platform with a Powerful Embedded System-on-Chip

  • 55SM5B

Key Features

  • QUAD CORE SOC
  • CONFORMAL COATING (PROTECTION IN HARSH ENVIRONMENTS)
  • BUILT-IN WI-FI
  • OPS(OPEN PLUGGABLE SPECIFICATION) KIT OPTION

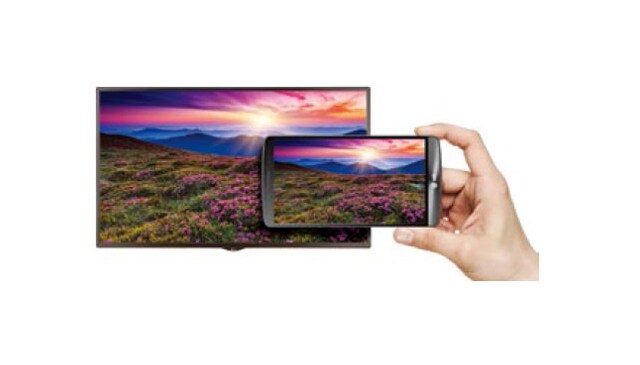

Mirroring<!--Mirroring-->

Mirroring

Content sharing is more convenient on a Wi-Fi network.

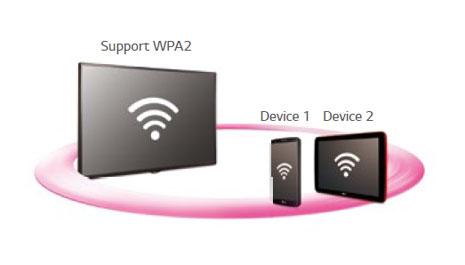

SoftAP

The SM5B with SoftAP software can operate as a wireless access point for mobile devices.

SoftAP <!--SoftAP-->
Simple Installation <!--Simple Installation-->

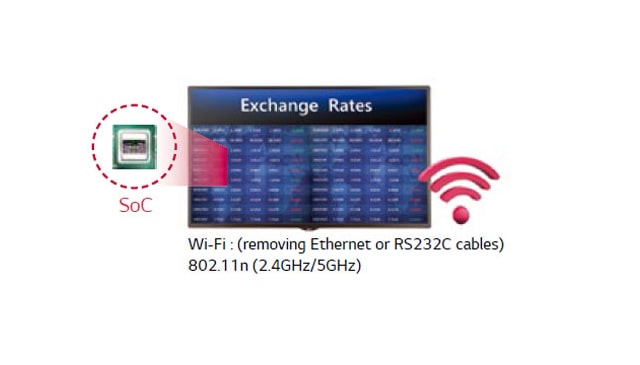

Simple Installation

Installation has been simplified by removing the external media player and Ethernet/RS232C cables.

Dust & Humidity Protection

Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

Dust & Humidity Protection <!--Dust-->
Advanced Failover <!--advanced failover-->

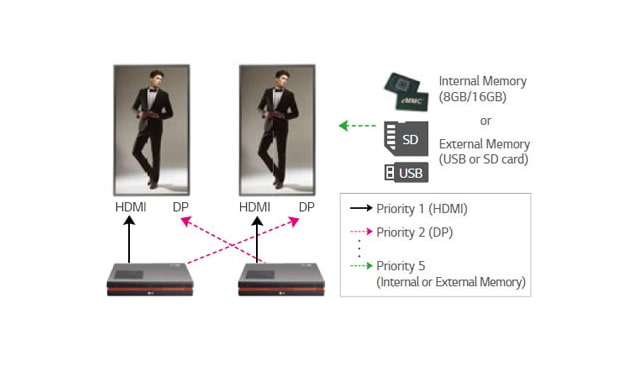

Advanced Failover

Enables content in the internal or external memory to be displayed without dead spots when none of the external inputs is working. The monitor performs the signal switching automatically.

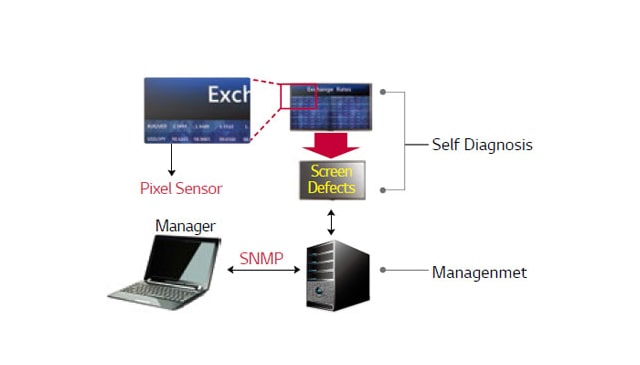

Screen Fault Detection

Detects screen failure and sends an alert log by email.

Screen Fault Detection <!--Screen Fault Detection-->
Beacon <!--Beacon-->

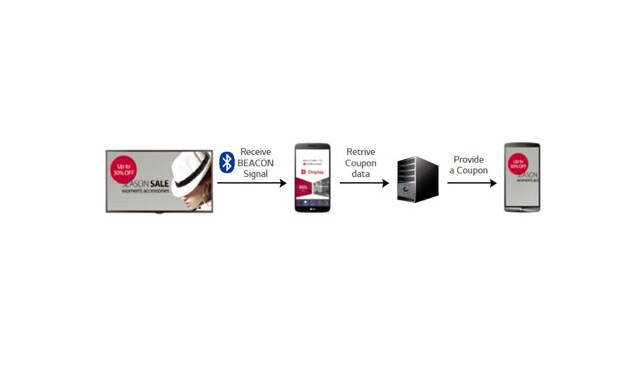

Beacon

With BEACON and Bluetooth Low Energy (BLE) supported by SM5B, retail stores can provide coupons and information in real-time.

Visit our SuperSign Software Center for all the latest software needs

Click here to download SuperSign Software

EXTENDED CARE

Extend the protection on your LG products for up to three years with LG Premium Care.

PANEL
Screen Size55" class (54.6"/1386.84m m diagonal)
Panel TechnologyIPS
Aspect Ratio16 : 9
Native Resolution1920 x 1080 (FHD)
Brightness450cd/m2
Contrast Ratio1,300:1
Viewing Angle (H x V)178°/178°
OrientationPortrait & Landscape
Pixels (H x V x 3)6,220,800
Response Time12ms (G to G)
Dynamic Contrast Ratio4,000,000:1
Color Depth16.7 Million
Life time (Typ.)50,000 Hrs
Recommended Use24hrs/7 days
Color Gamut68%
INPUT
RS232CYes (1)
HDTV FormatsHDMI : 720p, 1080i, 1080p
Analog RGBYes (1)
IR Cap ReceiverYes (1)
External ControlRJ45
Digital HDMIHDMI1.4b/HDCP2.2
Digital DVI-DHDCP2.2
Digital DPDP1.2a
Pixel SensorYes (1)
Audio InRGB/DVI
USB3.0Yes (1)
SD Card (Full Size)Yes (1)
CABINET
Bezel ColorBlack
Bezel Width11.9mm (T/R/L), 18mm (B)
(W x H x D)48.7”x28.1”x1.5” (1238mm x 714.9mm x 38.6mm)
Weight45.4lbs
Carton52.4”x32”x5.9” (1330mm x 813mm x 151mm)
Weight (Carton)74lbs
VESA™ Compatible11.8” (300mm x 300mm)
SPECIAL FEATURES
Content Scheduling USB, Internal memory, SD Card
PM ModeYes
Savings Time Yes
Image DiagnosisYes
Firmware Update (LAN)Yes
Digital Audio InputYes
Power on Delay0~255
OSD Portrait Mode0, 90
intelligent AutoYes
Password ChangeYes
Set ID SetupManual, Auto
Configuration SetupUSB auto Playback
Lock ModeUSB
Fail OverUSB, SDcard, RGB, DP, OPS, DVI, HDMI, Internal Memory
SuperSign Server SetupSignage name, Server IP setting, Server IP Status
External Media Player AttachableYes (MP500/MP700)
SuperSign-w liteYes
SuperSign-cYes
LanguageEnglish, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek
Tile ModeUp to 15x15
Natural Mode @ Tile ModeYes
Temperature SensorYes
Cooling FANNo
Auto Brightness Cap SensorYes
Source SelectionRGB, HDMI, DVI-D, DP, OPS, USB, SD Card
Brightness / Contrast / BacklightYes
Position / SizeYes
Auto Config / PhaseYes
AdvancedDynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma
TimeClock, On/Off Timer, Auto Off, Automatic Standby
Key OperationIR, Local
Calibration modeYes
Input LabelPC/DTV
USB CloningLogo image download, Sent to USB, Receive from USB
Contents Rotation0,90
Power on StatusStandby, Power, LST
ISM MethodNormal, White Wash, Color Wash, User image, Scheduling
File Play with USBYes
Internal Memory8GB (System 4GB + Available 4GB)
Wi-Fi802.11n combo built-in
Energy SavingAuto, Minimum, Medium, Maxium, Screen off
DPM SelectYes
Wake On LANYes
Sync ModeTime sync, Content sync
Local Time Auto SettingYes
OPS PC Power ControlSync On, Sync On/Off, Disable
Check ScreenYes
ENVIRONMENT CONDITIONS
Operation Temperature0 °C to 40 °C
Operation Humidity10 % to 80 %
POWER
Power Supply110 ~ 240V, 50/60Hz, Normal (Typical) 102W, Stand-by: 0.5W
Power Consumption Typ.120W
Power TypeBuilt-In Power
DPM0.7W
Power off0.5W
OUTPUT
External ControlRS232C
External Speaker OutYes (L/R), 6 ohm
DP OutSST/DP1.2a
Audio OutYes
AUDIO
BalanceYes
Audio Power20W (10W x 2) for External Speaker
Sound ModeStandard, News, Music, Cinema, Sport, Game
Clear Voice IIYes
Virtual SurroundYes
EqualizerYes
STANDARD (CERTIFICATION)
SafetyUL / cUL / CB / TUV / KC
EMCFCC Class "A" / CE / KCC
ErP / Energy StarYes / Yes, ENERGY STAR® Qualified
EPEAT GoldYes
WARRANTY
Warranty3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available
UPC
UPC 7 19192 19665 0
ACCESSORIES
BasicRemote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
OptionalSpeaker(SP-5000), Stand(ST-652T), Pixel sensor(KT-SP0), Media player, OPS Kit(KT-OPSA), HD Base T(EB-B100)
