55" class (54.6" diagonal) SM5KB Enhanced Smart Platform
- QUAD CORE SOC
- BUILT-IN SPEAKERS
- BUILT-IN WI-FI
- OPS(OPEN PLUGGABLE SPECIFICATION) KIT OPTION

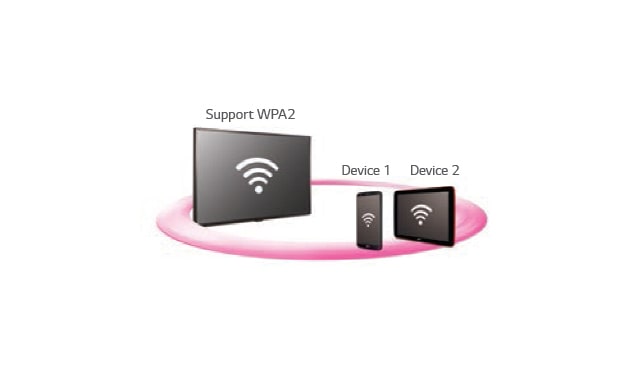

Content sharing is more convenient on a Wi-Fi network.
The SM5KB with SoftAP software can operate as a wireless access point for mobile devices.
Installation has been simplified by removing the external media player and Ethernet/RS232C cables.
Dust & Humidity Protection
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Enables content in the internal or external memory to be displayed without dead spots when none of the external inputs is working. The monitor performs the signal switching automatically.
Screen Fault Detection
Detects screen failure and sends an alert log by email.
With BEACON and Bluetooth Low Energy (BLE) supported by SM5B, retail stores can provide coupons and information in real-time.
Conformal coating helps protect against water, dust and iron powder deposits which accumulate in harsh environments, saving on expensive installation and added enclosure costs.
Visit our SuperSign Software Center for all the latest software needs
Click here to download SuperSign Software
Extend the protection on your LG products for up to three years with LG Premium Care.
|Aspect Ratio||16 : 9|
|Viewing Angle (H x V)||178°/178°|
|Surface Treatment||Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))|
|Orientation||Portrait & Landscape|
|Panel Size||55" class (54.6” diagonal)|
|Pixels (H x V x 3)||6,220,800|
|Response Time||12ms(G to G BW)|
|Contrast Ratio (Typ.)||1,100:1|
|Color Depth||16.7 Million|
|Operation Hours||24 Hr|
|Life time (Typ.)||50,000 Hrs|
|HDTV Formats||HDMI : 720p, 1080i, 1080p|
|HDMI||Yes (1), HDMI /HDCP2.2|
|DVI-D||Yes (1), HDCP2.2|
|DP||Yes (1), DP /HDCP1.3|
|Pixel Sensor||Yes (1)|
|RS232C In||Yes (1)|
|Audio In||Yes (1), RGB/DVI|
|SD Card (SDHC/Full Size)||Yes (1)|
|Bezel Width||11.9mm (T/R/L), 18mm (B)|
|(W x H x D)||48.7” x 28.1” x 2.1”|
|Carton (WxHxD)||52.4” x 31.8” x 6.7”|
|w/Optional Stand (WxHxD)||48.7” x 30.5” x 8.7”|
|w/Optional Stand Weight||45.4lbs|
|VESA™ Compatible||300 mm x 300 mm|
|Timer||Clock, On/Off Timer, Auto Off, Automatic Standby|
|Still Image Diagnosis||Yes|
|Wake on LAN||Yes|
|Digital Audio Input||Yes|
|Power on Delay||0~255|
|OSD Portrait Mode||0, 90, 270|
|Set ID Setup||Manual, Auto|
|Configuration Setup||USB auto Playback|
|Fail Over||USB, SDcard, RGB, DP, OPS, DVI, HDMI, Internal Memory|
|SuperSign Server Setup||Signage name, Server IP setting, Server IP Status|
|No Signal image (Up to 5MB)||No (Use Internal memory fail over)|
|Language||English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek|
|Tile Mode||Yes (Up to 15x15)|
|Natural Mode @ Tile Mode||Yes|
|Auto Brightness Cap Sensor||Yes|
|Source Selection||RGB, HDMI, DVI, USB1, USB2|
|Brightness / Contrast / Backlight||Yes|
|Position / Size||Yes|
|Auto Config / Phase||Yes|
|Advanced||Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma|
|Key Operation||IR operation, Local key operation|
|Beacon||On/Off (Will be supported from '15.July)|
|Input Label||Yes (PC / DTV)|
|USB Cloning||Logo image download, EzDownload, Sent to USB, Receive from USB|
|Content scheduling||USB, Internal memory, SD Card|
|Power on Status||Standard, PWR, LST|
|ISM Method||Normal, White Wash, Color Wash, User image, (User video, Orbiter, Inversion, Washing Bar will be supported from '15.July) * Scheduling is supported additionally|
|DPM Wake Up||(Analog: Sync only, Digital: Clock / Clock+Data selectable)|
|File Play with USB||Yes|
|Internal Memory||8GB (System 4GB + Available 4GB)|
|Wi-Fi||802.11n combo built-in|
|Energy Saving||Yes (Auto, Minimum, Medium, Maximum, Screen Off)|
|Frameware Update (LAN)||Yes|
|Media Share||Mirroring, (SoftAP will be supported from'15.July)|
|Check Screen (Via Pixel Sensor)||Yes|
|OPS Power Control||Sync On, Sync On/Off, Disable|
|Embedded Template||Yes (Will be supported from '15.July)|
|Operation Temperature||32 °F to 104 °F|
|Operation Humidity||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|DP Out||Yes (1), SST/DP1.2a|
|RS232C OUT||Yes (1)|
|Audio Out||Yes (1)|
|Audio Power||20W (10W x 2) for Internal Speaker (6 ohm)|
|Sound Mode||Standard, News, Music, Cinema, Sport, Game|
|Clear Voice II||Yes|
|Safety||UL / cUL / CB / TUV / KC / FCC Class "A" / CE / KCC / Yes / Yes (ENERGY STAR® Qualified)|
|Warranty||3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available|
|UPC||7 19192 19744 2|
|External Media Player Attatchable||No|
|OPS Type Compatible||Yes|
|Basic||Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover|
|Optional||Stand (ST-652T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)|
