43” Pro:Centric® Hospitality LED TV with Integrated Pro:Idiom®

  • 43LW560H

Key Features

  • The LW560H Pro:Centric Application Platform
  • Pro:Centric TVs - PCS200S HEAD END SYSTEM
  • Pro:Centric TVs - Hotel Costs For FTG Channel Management

The LW560H Pro:Centric Application Platform

The LW560H Pro:Centric Application Platform

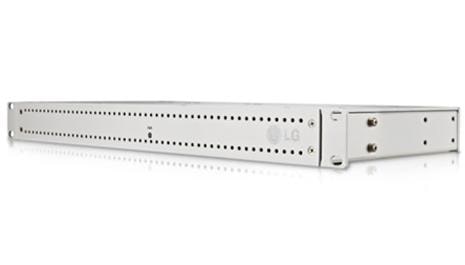

Pro:Centric - TVs PCS200S HEAD END SYSTEM

Pro:Centric - TVs PCS200S HEAD END SYSTEM

Remote management functions are supported via the Pro:Centric server. The Pro:Centric Application software can be remotely added at a later date to deliver the benefits of LG’s Pro:Centric Application features (Weather, EPG, Billboards, etc)

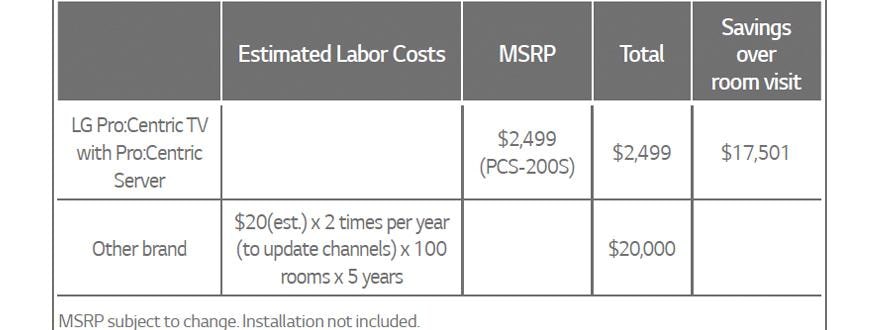

Pro:Centric TVs - Hotel Costs For FTG Channel Management

LG’s FTG COST EFFECTIVE SOLUTION When using LG televisions in FTG hotel installations,the Pro:Centric server (PCS200S) supports remote management of TV settings. With remote management, individual room visits are no longer required for TV configuration updates, including FTG Channel Map and FTG Installer Menu settings updates, thereby saving labor costs.

Pro:Centric TVs - Hotel Costs For FTG Channel Management
GENERAL FEATURES
Pro:Centric ® TypeSingle Tuner
Pro:Centric ® ApplicationPCA 3.5 or later
Pro:Centric ® RF1 Tuner
Pro:Centric ® HCAP (SDK)GEM / Flash
ManagementSelf Diagnostics via USB / EZ-Manager Wizard (for Initial Confi guration)
InteractivityHTNG / HDMI-CEC
Digital Rights ManagementPro:Idiom
Anti-theft SystemKensington Lock, Credenza / Security Screw Hole, Lock Down Plate, Commercial Grade Stand
USB MediaMoving Picture Playback (DivX HD), Picture (JPEG), Audio Codec (AC3, EAC3, AAC, Mpeg, MP3, PCM)
Advanced Setting OptionAuto Off / Auto Sleep, Smart Energy Saving, Motion Eye Care
BROADCASTING SYSTEM
AnalogNTSC
DigitalATSC / VSB / Clear QAM
DISPLAY
TypeDirect LED
Resolution1,920 x 1,080 (FHD)
Response Time (G to G)9 ms
Frame Rate60 Hz
Viewing Angle Degree178°/178°
Dynamic Contrast Ratio1,000,000:1
Static Contrast Ratio1,200:1
VIDEO
Dynamic Color EnhancerYes
Triple XD EngineYes
Real Cinema 24p (3:3 pull down)Yes
Aspect Ratio5 Modes (16:9/Just Scan/Set By Program/4:3/Zoom)
AUDIO
Audio Output / Speaker System10W + 10W / 2.0 ch
Clear VoiceYes
Sound Mode6 modes (Standard, News, Music, Cinema, Sport, Game)
Optical Sound SyncYes
Sound Optimizer3 modes (Normal, Wall-Mount Type, Stand Type)
INTERFACE
SideHDMI In (2), USB 2.0
POWER
Typical (Watts)29.7
Voltage, Hz100V - 240V, 50/60 Hz
Stand-by (Watts)< 0.5
DIMENSIONS
Bezel Width (L/R, U, B) : on bezel based0.5", 0.5", 0.6"
Bezel Width (L/R, U, B) : off bezel based0.4", 0.4", 0.5"
Vesa (mm)300 x 300
WxHxD / weight (with stand)38.4" x 24.4" x 12.8" / 27.8 lb
Stand(±20/45/90°) Swivel
WxHxD / weight (w/o stand)38.4" x 22.5" x 2.8" / 20.3 lb
WxHxD / weight (Carton)45.2" x 28.7" x 6.9" / 34.0 lb
ACCESSORIES
YesPower Cable (5.9 ft., Angle Type), Owner's Manual / Easy Setup Guide
STANDARD APPROVAL
SafetyUL
Etc.FCC
EnvironmentRoHS, cUL, NOM, Energy Star 7.0
UPC
43LW560H719192918313
