65” Pro:Centric Hospitality LED TV with Integrated Pro:Idiom and b-LAN

  • 65LV570H

Key Features

  • Integrated Pro:Idiom® Digital Rights Management Technology
  • Pro:Centric Application Support
  • RJP Compatibility
  • External Speaker Out Compatibility (Speaker Sold Separately)
  • Commercial Grade Stand (except 65LV570H)
  • Integrated b-LANTM for Sonifi VOD compatibility

Commercial Grade Stand

Expand the range of comfort for guests with a commercial grade stand. This allows guests to watch a TV from any angle. Also, for security purposes, the stand may be secured to its table.
*except 65LV570H

Welcome Screen

Have a warm greeting message with your hotel name and its logo on the TV when it is turned on. The welcome screen provides an inviting, personalized experience for your guests.

Self Diagnostics via USB

The TV stores diagnostic data, which can be saved to a USB memory device, thus enabling service engineers to analyze the data and identify technical issues quickly and easily.

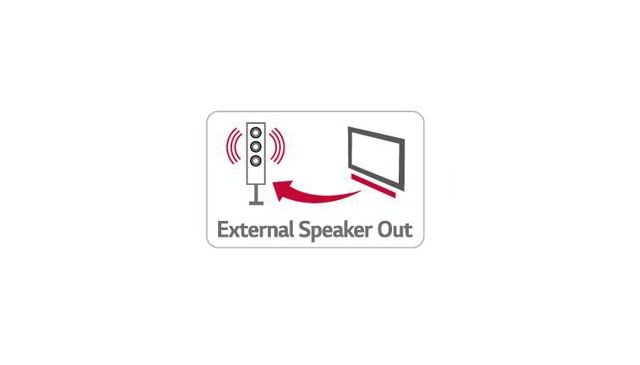

External Speaker Out Compatibility
(Speaker Sold Separately)

Enhance the in-room guest experience by adding an external speaker (sold separately) for improved audio performance.

USB Cloning

Clone all commercial TVs with astonishing speed and ease. The USB Cloning feature allows you to simply copy and transfer TV settings from a designated Master TV to all target TVs using a USB memory device.

Multi IR

Multi IR allows for the use of unique IR codes based on “bed number” in a multi-TV single room installation.

Diagonal Size64.8"
TypeEdge LED
Resolution1,920 x 1,080 (FHD)
Dynamic Contrast Ratio1,000,000:1
Static (panel) contrast ratio1,400 : 1
Viewing Angle Degree178°/178°
Response Time (G to G)9
Frame Rate60 Hz
DigitalATSC / VSB / Clear QAM
Triple XD EngineYes
Real Cinema 24p (3:3 pull down)Yes
Picture ModeYes 5 modes (Vivid, Standard, APS, Cinema, Sports, Game)
Aspect RatioYes 5 modes (16:9, Just Scan, Set By Program, 4:3, Zoom)
Audio Output / Speaker System10W + 10W / 2.0 ch
Sound ModeYes 6 modes (Standard, News, Music, Cinema, Sport, Game)
Clear VoiceYes
Optical Sound SyncYes
Pro:Centric ® TypeSingle Tuner
Pro:Centric ® ApplicationPCA 3.7.5
Pro:Centric ® ServerPCS200S
Pro:Centric ® RF1 Tuner
Pro:Centric ® HCAP (SDK)GEM / Flash
Digital Rights ManagementPro:Idiom
ManagementWake on RF, Self Diagnostics via USB, TVLink Interative, IR Out (MPI Jack), Multi IR Code
InstallationEZ-Manager Wizard Installation (for Initial Configuration), USB Cloning
InteractivityHTNG / HDMI-CEC
USBUSB Auto playback+, Moving Picture Playback (.asf, .wmv, .divx, .avi, .mp4, .m4v, .mov, .mpg, .mpeg, .mpe, etc.), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (MP3, AAC, M4A, WMA, WMA 10 pro, OGG)
Advanced Setting OptionAuto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Anti-theft SystemKensington Lock, Credenza / Security Screw Hole, Lock Down Plate
YesInstaller Menu,, Welcome Screen (Splash Image), Logical Channel Map (LCM), External Speaker Out, Instant On, RJP Compatibility, b-LANTM embedded
SideHDMI In (2), USB 2.0
RearRF In, AV In, Digital Optical Audio Out, HDMI Input, RGB In, PC Audio Input, RJ45(2), TV link Confi guration (Phone Jack Type), External Speaker Out, MPI Port, Debug
ColorBlack Coffee
YesPower Cable (5.9 ft., Angle Type), Owner's Manual / Easy Setup Guide
Vesa (mm)300 x 300
WxHxD / weight (without stand)57.5" x 33.4" x 1.5" / 63.5lb
WxHxD / weight (with stand)57.5" x 35.4" x 11.6" / 75.0lb
WxHxD / weight (Carton)63.1"x39.5"x6.9" / 90.4lb
Voltage Hz110 ~ 240V, 50/60Hz
Typical (Watts)46.1
Stand-by (Watts)< 0.5
Etc.RoHS, UL, NOM, Energy Star® Qualified
65LV570H 719192919808
