79” class (80.1" diagonal) UX970H Premium Ultra High Definition Smart TV with Pro:Centric® and b -LAN™

  • 79UX970H

Key Features

  • Pro:Centric® Smart SDK
  • Prime Design
  • Ultra HD TV
  • Advanced Connectivity

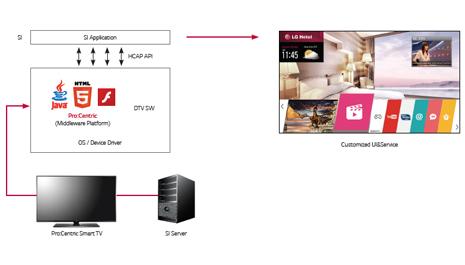

Pro: Centric Smart SDK

Pro: Centric Smart SDK

LG Pro:Centric SMART offers extended customizable tools; HTML5, Java and Flash. With these, the partners can optimize Commercial TVs to edit and develop their own enhanced service design. Also, it gives visual impact on and delivers messages to customers as users intend.

Prime Design

Prime Design

ULTRA HD TV

ULTRA HD TV

ADVANCED CONNECTIVITY

ADVANCED CONNECTIVITY
PANEL
Screen Size79” class (80.1" diagonal)
Response Time (G to G)6 (G to G)
Viewing Angle Degree178x178(TBD)
Backlight TypeEdge
Resolution3840 x 2160 (UHD)
Frame RateT240Hz
Contrast Ratio1,000,000:1(TBD)
Static (Panel) Contrast Ratio1,200 :1(TBD)
REAR
TV link Configuration (Phone Jack Type)1
PTC Configuration (phone jack type)1
USB 2.01(2.0)
External Speaker Out (3.5mm Phone Jack)1
RF In1
RJ45 (RJP interface)1
RS-232C(D-Sub 9pin)1 (Phone Jack)
Digital Audio Out1 (Optical)
LAN Port2
AV In1 (Sharing with Component in)
PC Audio Input1 (Sharing with Component Audio in)
MPI Jack (RJ-12)1
Component in (Y,Pb,Pr) + Audio1
HDMI/HDCP Input1 (2.0)
SIDE
HDMI In 2 (2.0)
USB (2.0)1 (3.0)
BROADCASTING SYSTEM
CableClear QAM
TerrestrialVSB
Analog/DigitialYes (NTSC) / Yes (ATSC)
VIDEO
Tru 4K UpsacalerYes
UHD StreamUSB/IP/HDMI
Sound OptimizerYes 3 modes(Normal, Wall-Mount Type, Stand Type)
Dynamic Color EnhancerYes
Triple XD EngineYes
Real Cinema 24p (3:3 pull down)Yes
Aspect RatioYes 6 modes(Standard, News, Music, Cinema, Sport, Game)
AUDIO
Audio Output12W + 12W
Clear VoiceYes
Sound ModeYes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
Speaker System2.1 ch
Optical Sound SyncYes
Sound OptimizerYes, 3 Modes (Normal, Wall-Mount Type, Stand Type)
SPECIAL FEATURES
Bluetooth Sound SyncYes
AlljoynYes (TBD)
Soft APYes
Instant ONYes
Commercial Smart UX (Smart Home / Input)yes
HCAP Input device driver supportYes(USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)
Hybrid Streaming (IP & RF)MultiCast/HTTP Data CarouselYes
Wi-FiYes (Built-in type)
Commercial Smart HomeYes
Auto ConfigurationYes (EzManager)
b-LanYes
HDMI-CECYes
HTNG-CECYes
Remote DiagnosisYes
Welcome Screen (Splash Image)Yes
Moving Picture Playback(SD/HD/Plus HD)Divx HD
Remote App CompatibilityYes
Pro:CentricYes (Smart)
Audio CodecAC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM, DTS
Multicast/Unicast readyYes
IP StreamingYes(RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support (Smartshare) (IGMPv3 SSM Support)
APP. (P:C Smart)Yes (Commercial CP/Apps)
Smart Energy SavingYes
Motion eye careYes
Multi IR CodeYes
IR OutYes (MPI Jack)
RF(1/2Tuner)Yes (2 Tuner)
HCAP (GEM/FLASH/HTML) Service Carousel (TLX)GEM / Flash / HTML
Auto Off / Auto SleepYes
Pro:Centric ApplicationYes (PCA 3.0)
RJP CompatibilityTeleadapt (RJ45, HDMI CEC), G-Link(HDMI-CEC)
Web BrowserYes
RJP InterfaceYes (RJ45, HDMI)
External Speaker OutYes(Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8)
Hotel Mode / PDM / Installer MenuYes
USBYes (USB 2.0)
Smart ShareYes
WiFi DirectYes
DIALYes
DLNA(Movie/Photo/Music)Yes (Smart Share)
USB CloningYes
PictureJPEG
Pro:IdiomYes
Miracast (Mobile to TV)Yes
SI Compatible (TVLink Protocol)Yes (MPI protocol)
3DYes (Except for 79")
One Channel Map/Logical Channel MapYes
WiDi (PC to TV)Yes
DIMENSION
Weight (with stand)120.2lbs
Weight (W/O Stand/Packing,kg)115.4lbs
WxHxD (Packing, mm)74.2”x45.6”x10”
WxHxD (with stand, mm)69.7”x42.6”x12.5"
Weight (Packing)143.5lbs
WxHxD (w/o stand, mm)69.7”x40.4”x2.3”
AUDIO
Sound ExpansionYes
Sound Mode6 modes (Standard, News, Music, Cinema, Sport, Game)
Smart Sound ModeYes
Optical Sound SyncYes
Sound Optimizer3 modes(Off, Wall-Mount Type, Stand Type)
Speaker System2.0 ch
Audio Output10W + 10W
Clear VoiceYes
Wireless Sound SyncReady
3D
3D Picture ModeYes
2D to 3D Convert SourceYes
Depth Control0~+20 (default : 10)
3D Viewpoint Control-10~+10 (default : 0)
3D Image CorrectionYes
3D TypeFPR (SG/FPR/AR/GPR/Non-Glass)
3D Depth ControlYes
Supporting FormatS/S, T/B, C/B, F/S
3D to 2D Convert SourceYes
3D formatYes
Viewpoint Control-10~+10 (default : 0)
2D to 3D ModeYes
Format Auto DetectionYes
POWER
Voltage, Hz100V - 240V, 50/60 Hz
Typical (Watts) (Based on Energy Star 7.0)105.7W
Stand-by0.5W
WARRANTY
WARRANTY2-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available
TOOL DESCRIPTION
Flame RetardentYes
Bezel Width (Left/Right, Upper, Bottom): On bezel10.4mm, 15.7mm, 28.9mm
Bezel Width (Left/Riight, Upper, Bottom): Off Bezel11.4mm, 16.7mm, 29.9mm
VESA Compatible400mm x 600mm
CERTIFICATION
Safety / EMC / ETC.UL / FCC / RoHS, cUL, NOM, Energy Star 7.0
OTHER
UPC7 19192 91812 2
Warranty2-Year Limited Warranty Parts/Labor/Backlight/Extended warranty options are also available
