34" class (34.0” measured diagonally) QHD IPS Monitor

  • 34UC87M-B

Key Features

  • 4-SCREEN SPLIT FEATURE
  • LARGER ON-SCREEN VIEWING
  • MULTIPLE DISPLAY SOLUTIONS

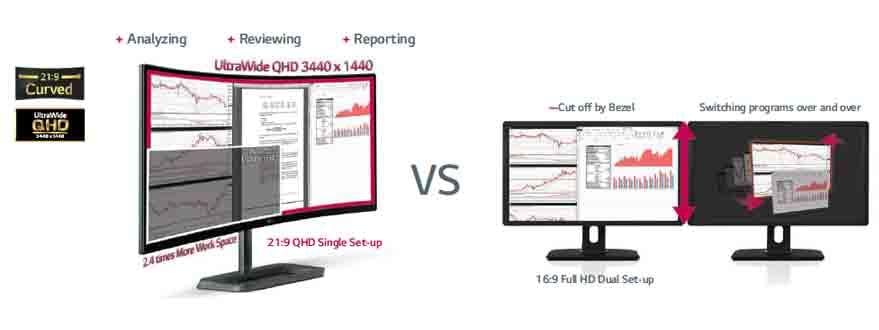

STRETCHING THE LIMITS OF DISPLAY REAL-ESTATE

LG’s single 21:9 Curved Display is 2.4 times wider than a standard 16:9 configuration. Boasting of 3440x1440 QHD resolution, this display offers a wide work space to view multiple files at once without the bezel distortion caused by a normal dual monitor set-up.

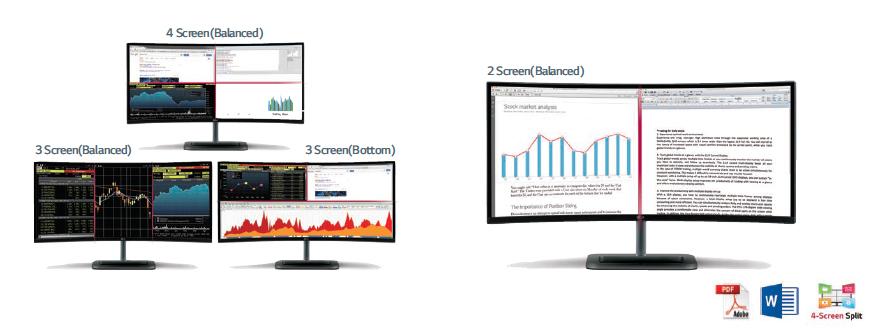

4-SCREEN SPLIT ORGANIZES THE SCREEN SPACE

Efficiently run several programs and have multiple active windows on the screen at
the same time. With a standard 16:9 Full HD display, it is painfully tiresome to adjust
each active window continually while you are working on them. With the 4-Screen
Split feature, multiple active programs can be divided up effortlessly on a single
screen, which automatically re-size to fit available spaces with a simple click or drag.
Working with real-time data, research, and writing analysis reports are made easier
and more efficient.

How to Install & Use the
4-Screen Split Feature
1. Install the 4-screen split software from the CD included in the package.
2. Locate the 4-Screen Split icon [<- ->] located on the task bar .
3. Select the Screen Split layout desired.

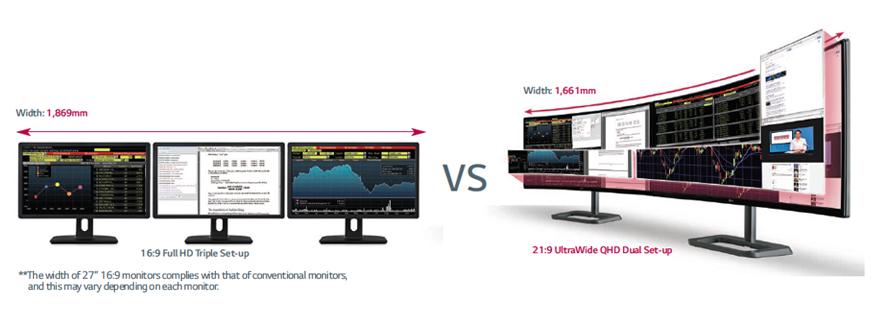

LG's DUAL MONITOR SETUP PROVIDES A LARGER WORK SPACE THAN A TRIPLE 16:9 STANDARD MONITOR SETUP

A triple 16:9 Full HD display setup may provide more screen information than a single monitor, but the desk space needed is inconvenient and inefficient. LG’s dual 21:9 UltraWide Curved display setup takes up less desk space while providing a significantly greater amount of display real estate. When comparing LG’s 34UC87M dual monitor setup to that of a conventional 16:9 Full HD triple monitor configuration, the width of the 34UC87M is 89 of a conventional triple monitor setup while delivering an impressive 159 of on-screen working space.

+ 59 LARGER ON-SCREEN WORK SPACE
- 11 LESS ACTUAL MONITOR WIDTHS ON DESK

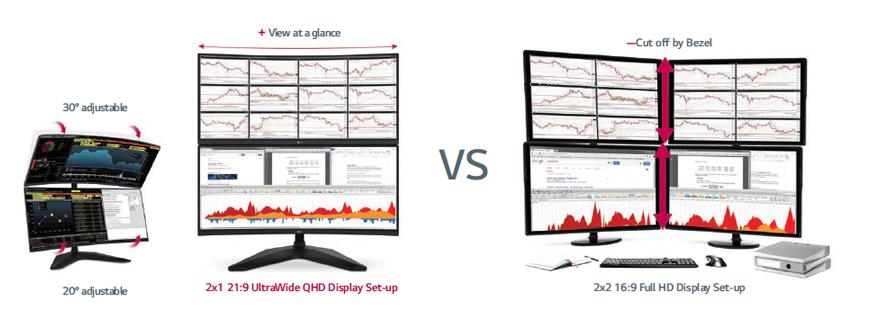

TRACK THE GLOBAL TRENDS AT-A-GLANCE WITHOUT ANY INTERRUPTIONS BY A BEZEL

A 2x2 Multi-Display setup is a good option for analysts who have to continuously monitor and analyze the global trends and stock markets. With a 2x2 standard 16:9 Full HD setup, the displays are interrupted by a bezel that causes visual distractions and discomfort. With a 2x1 34UC87M Multi-Display configuration, analyzing long charts without interruption from a bezel is possible. It is one of the best solutions for analysts providing a wider working space.

THE MULTI-DISPLAY SOLUTION FOR YOUR OPTIMAL TRADING WORKSTATION

To keep track of the continuously changing stock market, it is essential to add multiple monitors in the office to be more productive. With standard 16:9 monitors, taking in all the information causes eye fatigue from thick disrupting bezels. Also, trying to align the data to avoid it from being cut-off is difficult. The 2x3 multi-display setup of the 34UC87M consists of 6 displays that seamlessly connect feeling like a single screen. Analyzation of information can be made all at once allowing for easier trading decisions resulting in profitable opportunities.

PANEL
Panel Size34" class (34.0” measured diagonally)
Panel TypeIPS
Color Gamut (CIE 1931)sRGB 99%
Color Depth (Number of Colors)10bit
Pixel Pitch(mm)0.2325 (H) x 0.2325 (V)
Aspect Ratio21:9
Native Resolution3440 x 1440
Brightness300 cd/m^2
Contrast Ratio (Typ.)1,000:1
Dynamic CR (DFC)Mega
Response Time14ms (on/off), 5ms (G to G)
Viewing Angle (CR≥10)R/L 178° (Typ.), U/D178° (Typ.)
Surface TreatmentHard Coating (3H) Anti-glare
Curved3800R
SIGNAL (INPUT)
HDMI2
Display Port1
Thunderbolt2
OthersIR In
SIGNAL (OUTPUT)
OthersIR Out
AUDIO (OUTPUT)
Headphone OutYes
SPEAKER
Type2ch (L/R)
Audio Output (Watt)7W x 2
SPECIAL FEATURES
USB Up1
USB port2
PCYes
VideoYes
SoundYes
sRGBYes
DDC/CIYes
HDCPYes
PBPYes
Reader ModeYes
Flicker SafeYes
Six Axis ControlYes
Factory CalibratedYes
Plug & PlayYes
Others 1Screen Split (S/W)
Others 2Picture ID/Set ID
CABINET
ColorBlack
Stand/Base ColorDark Silver
Monitor w/stand32.7” x 9.5” x 18.1”
Monitor Weight22.0 lbs
Monitor w/o stand32.7” x 3.1” x 14.6”
Weight w/o stand17.6 lbs
Carton Dimensions 35.6” x 6.4” x 20.2”
Packed Weight28.7 lbs
Base DetachableYes
Tilt (Angle)-5°~15°
Height (mm)140mm
VESA™ Standard Mount Interface100mm x 100mm
POWER
Power TypeAdapter
Power Supply100 -240V
FREQUENCY
HDMI (H-Frequency)30~90kHz
HDMI (V-Frequency)56~61Hz
DisplayPort (H-Frequency)30~90Hz
DisplayPort (V-Frequency)56~61Hz
Thunderbolt (H-Frequency)30~90Hz
Thunderbolt (V-Frequency)56~61Hz
RESOLUTION
DisplayPort (PC)3440 x 1440
Thunderbolt (PC)3440 x 1440
HDMI (Video)3440 x 1440
STANDARD CERTIFICATIONS
UL(cUL)Yes
TUV-GSTUV-Type
EPEAT GoldYes
FCC-B, CEYes
CCC, BSMIYes
EPA, ErPYes
Windows 8Yes
DisplayPortYes
USB3.0Yes
OthersThunderbolt
WARRANTY
Yes3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
34UC87M-B7 19192 19615 5
ACCESSORIES
Power CordYes
DisplayPortYes
HDMIYes
S/W Install CDScreen Splitter
