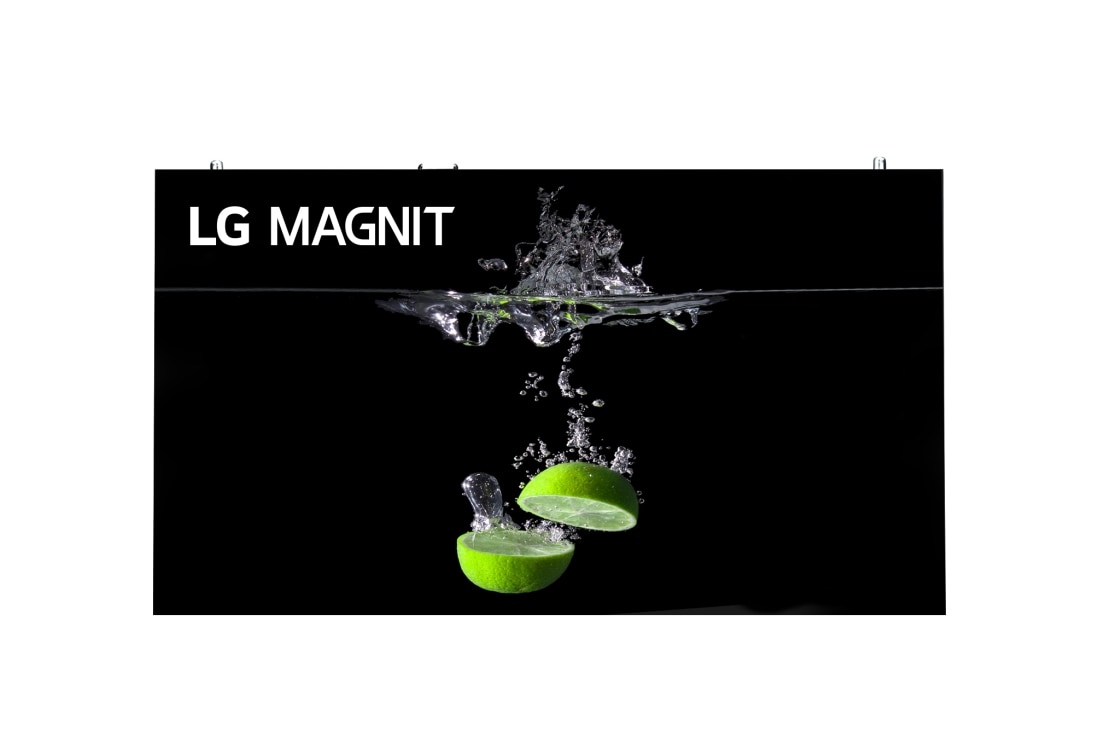

- Micro-LED-Display
- Chip-on-Board-Technologie
- Pixelabstand: 0,9 mm
- Helligkeit: 1.200 Nit (Spitze), 600 Nit (max.)
- Kontrastverhältnis (10 Lux): 150.000: 1
- Bilddatenübertragung via Funk und kabelfreie Stromübertragung innerhalb des LED-Bildschirms
Alle Spezifikationen
PHYSISCHE PARAMETER
Pixelkonfiguration
1R, 1G, 1B (Chip on Board)
Pixelabstand (mm)
0,938
Modulauflösung (B x H)
160 x 180
Abmessungen des Moduls (B x H, mm)
150 x 168,8
Gewicht pro Modul (g)
150
Anzahl Module pro Cabinet (B x H)
8 (4x2)
Auflösung Cabinet
640 x 360
Abmessungen des Cabinets (B x H x T, mm)
600 x 337,5 x 44,9
Oberfläche des Cabinets (㎡)
0,203
Gewicht pro Cabinet (kg/Cabinet)
7,0
Gewicht pro Quadratmeter (kg/㎡)
34,6
Physikalische Pixeldichte (Pixel/㎡)
1,137,778
Oberflächenhomogenität des Cabinets (mm)
±0,5
Cabinetmaterial
Druckguss Aluminium
Servicezugang
Vorderseite und Rückseite
ZERTIFIZIERUNG
Zertifizierung
Safety 60950-1, EMC Class A, BS476 Part 7 Class 1
OPTISCHE SPEZIFIKATIONEN
Farbtemperatur
7,300/3,200~9,300K (Adjustable via LG LED Assistant on PC)
Betrachtungswinkel (Horizontal)
160
Betrachtungswinkel (Vertikal)
140
Helligkeitshomogenität
95%
Farbhomogenität
±0,02Cx,Cy
Kontrastverhältnis
6,000
Farbtiefe (Bit)
20
ELEKTRISCHE SPEZIFIKATIONEN
Stromverbrauch (W/Cabinet, Max.)
125
Stromverbrauch (W/Cabinet, durchschn.)
85
Stromverbrauch (W/㎡, Max.)
617
Stromverbrauch (BTU/h/Cabinet, Max.)
2104
Eingangsspannung (V)
100 bis 240
Bildwiederholungsrate (Frame-Rate) (Hz)
50 / 60
Bildaktualisierungsrate (Refresh-Rate) (Hz)
3,840
BETRIEBSSPEZIFIKATIONEN
Betriebstemperatur (℃)
0 bis +40
Betriebsluftfeuchtigkeit
10 bis 80 % relative Feuchtigkeit
UMWELT
Umwelt
RoHS
LED-CONTROLLER
LED-Controller
CSAB-009X
