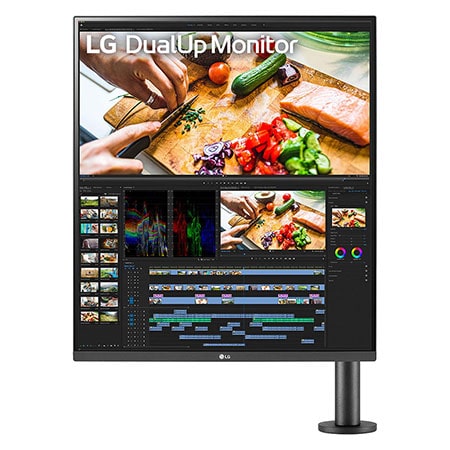

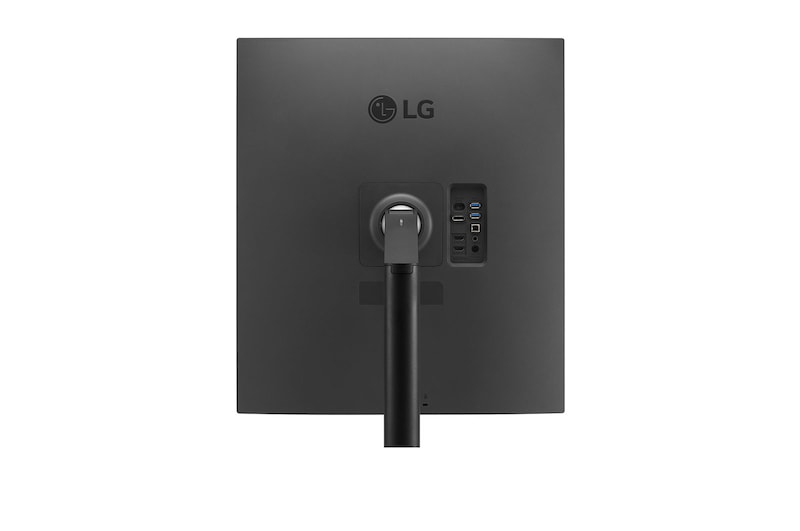

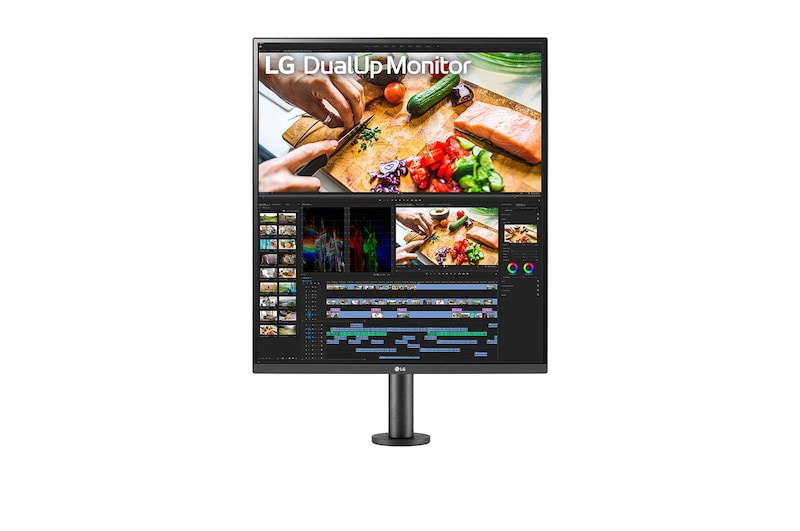

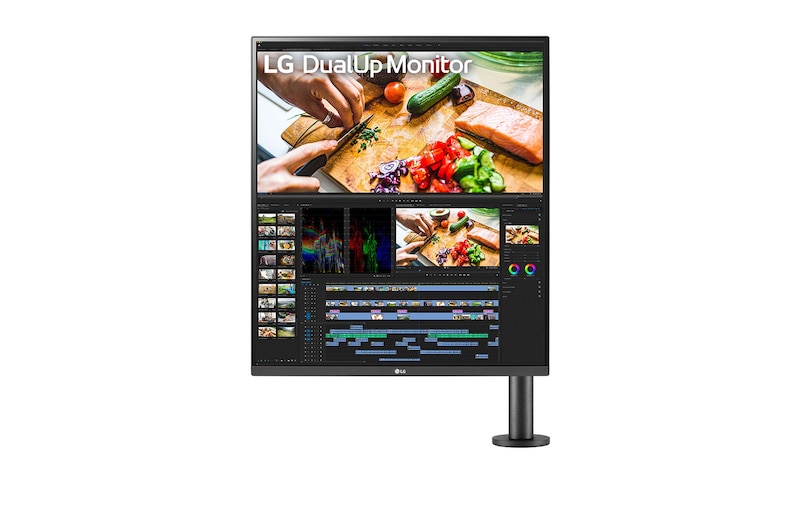

LG 27.6 inch 16:18 DualUp Ergo Monitor with Stand & USB Type-C™

28MQ780-B

Key Features

27.6-inch SDQHD (2560 x 2880) Nano IPS Display
DCI-P3 98% (Typ.) with HDR10
Ergo Stand with C-Clamp
USB Type-C™ (90W Power Delivery)
Ambient Light Sensor

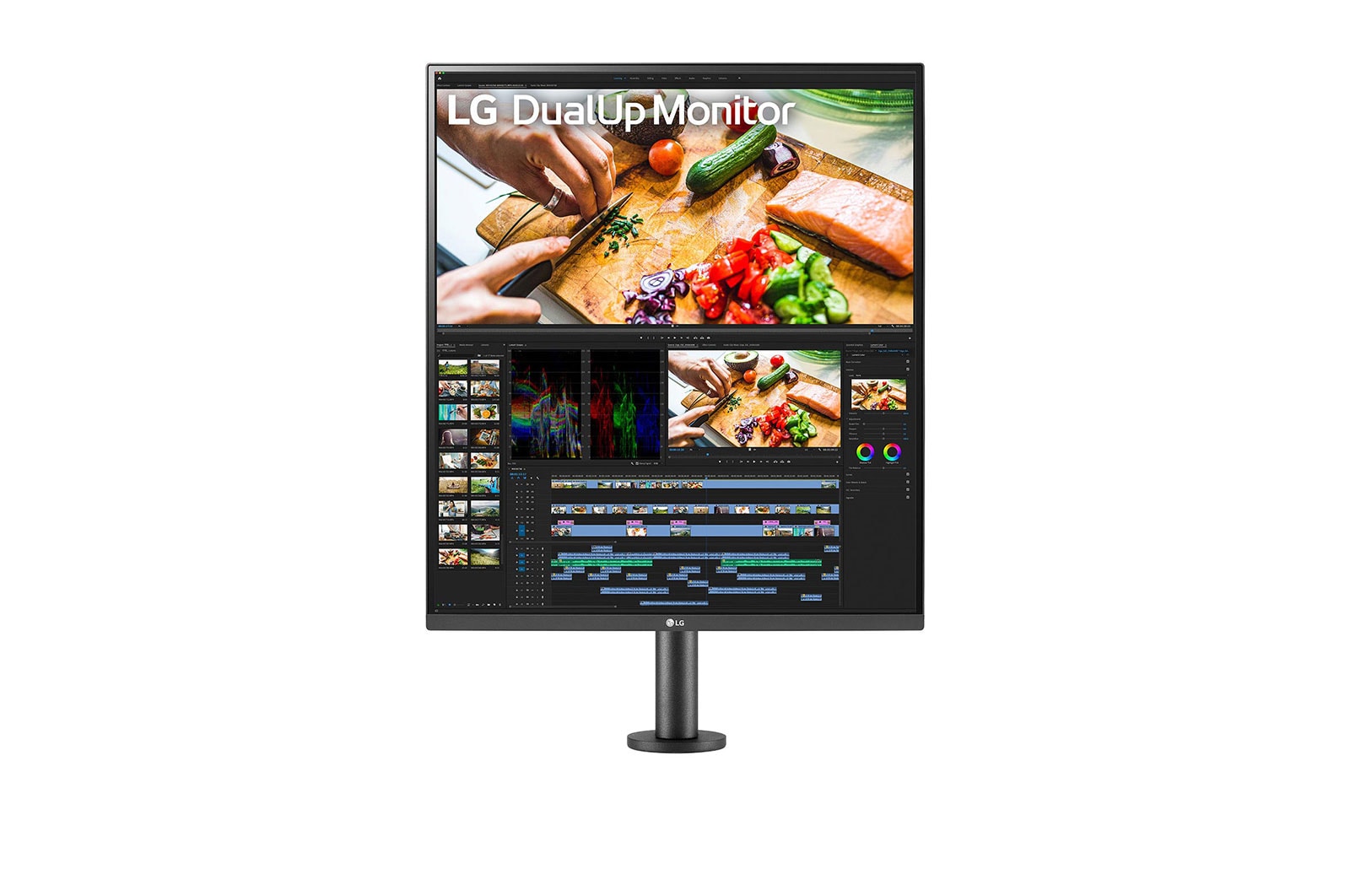

Double the Screen, Twice the Experience

Enhance your efficiency with a new format of 16:18 aspect ratio SDQHD display.

*Image shown on screen for demonstration purposes only.

Stunning Image Quality

SDQHD (2560 x 2880) Nano IPS
DCI-P3 98% (Typ.) & HDR10

Ergo Stand

Ergonomic Stand with C-Clamp

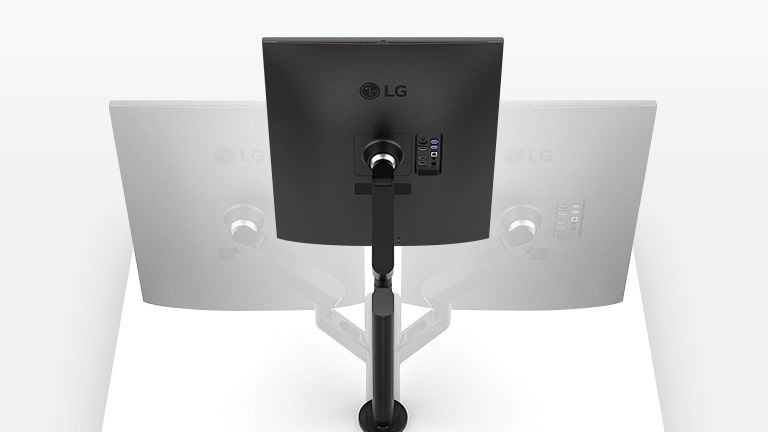

Various Movement of Display

User Convenience

USB Type-C™
Easy Installation

*Images are simulated for feature communication and understanding.

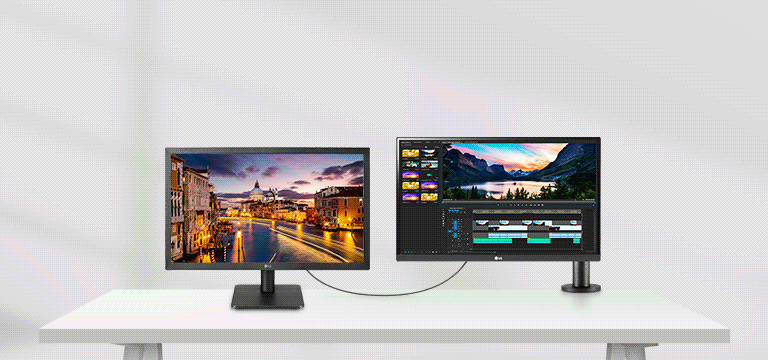

More Screen and Less Desk Space

The 16:18 aspect ratio of the DualUp monitor provides approximately the same screen real estate as two separate 21.5 inch monitors (16:9 aspect ratio) to enable viewing of 2 applications at the same time for added productivity.

DualUp monitor only occupied compact space for one monitor but this 16:18 aspect ratio monitor support, two 21.5-inch monitors (16:9 aspect ratio), at one screen. It enhances work efficiency and productivity at the same time.

*Images are simulated for feature communication and understanding.

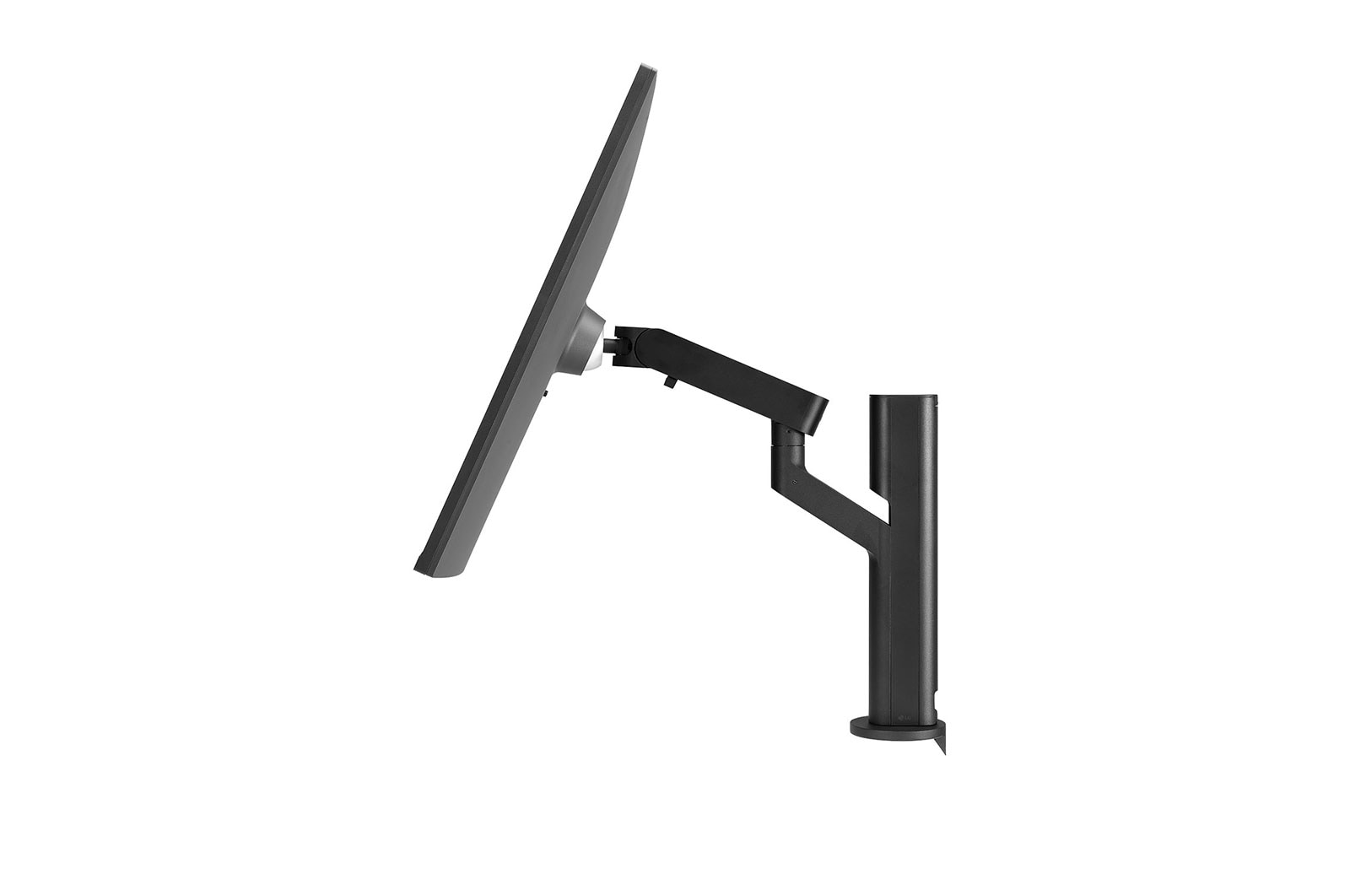

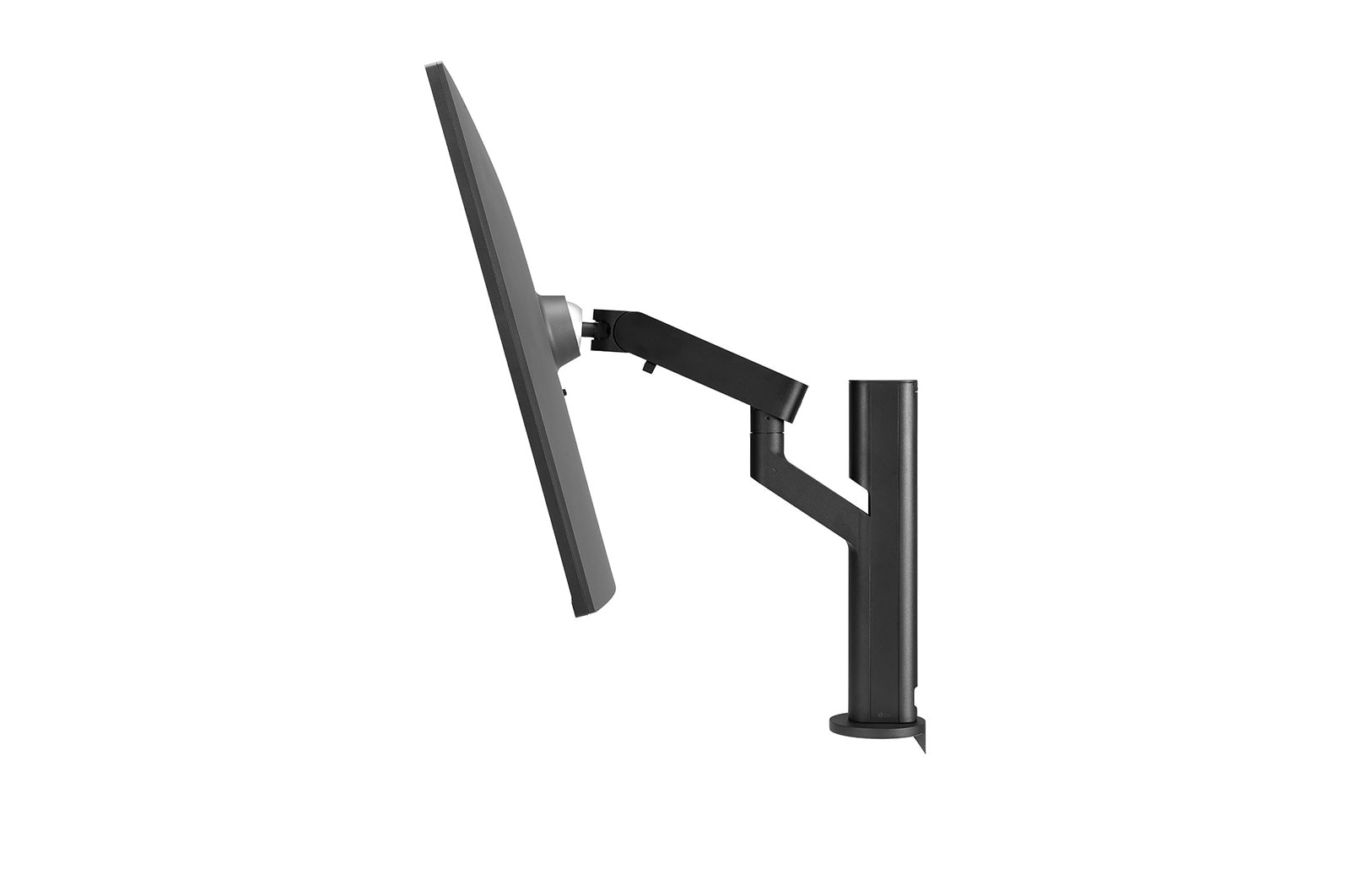

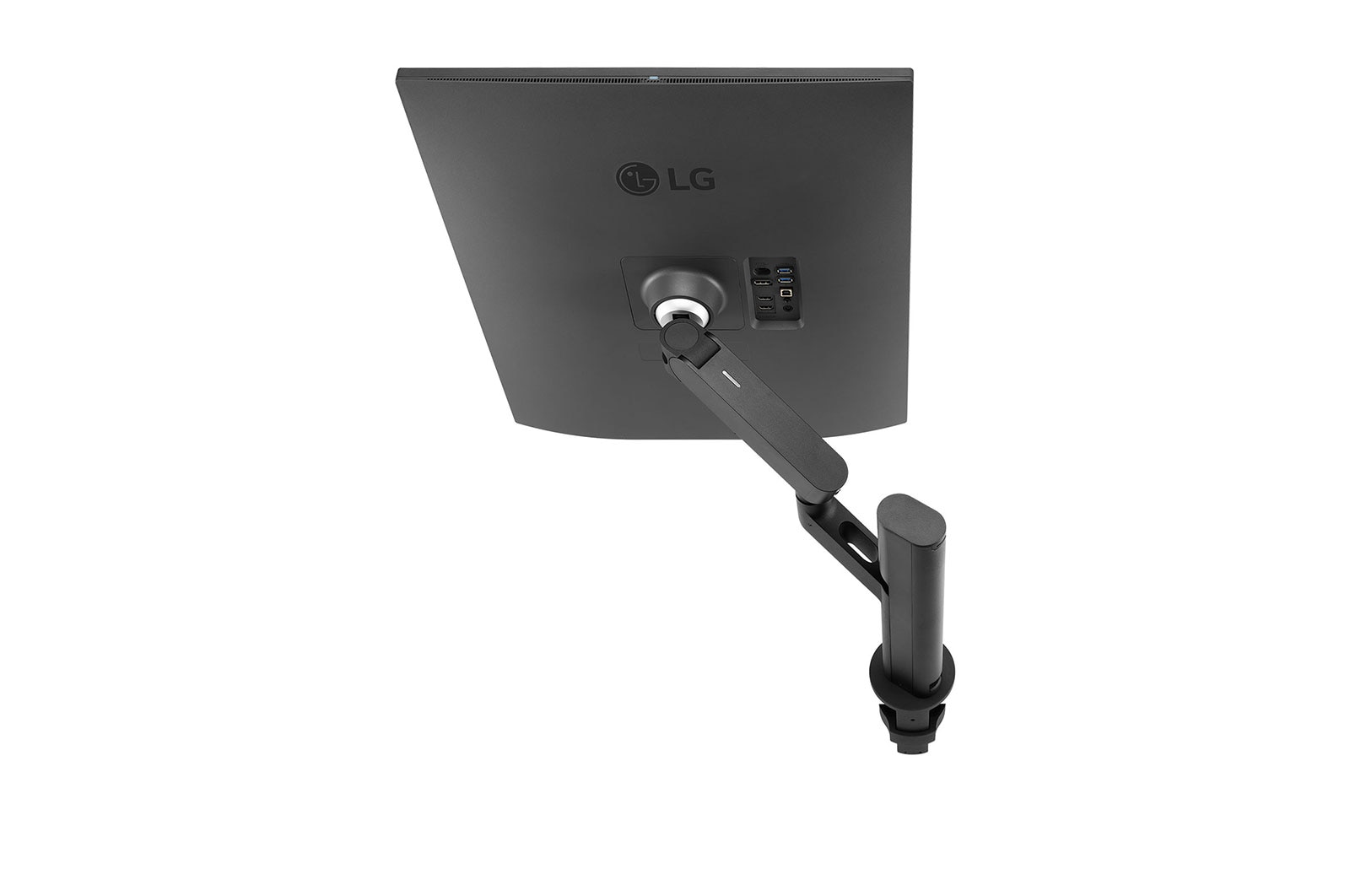

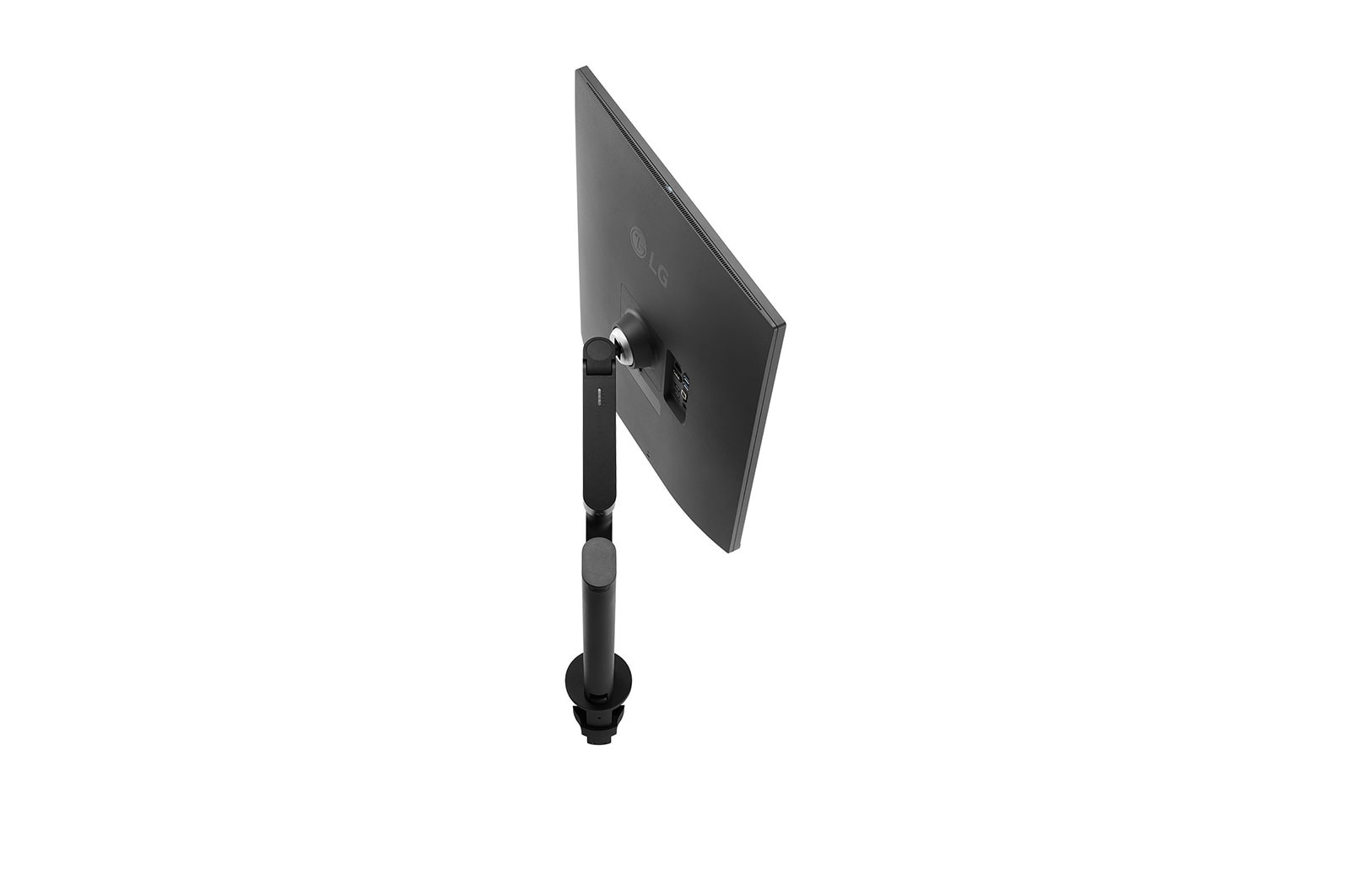

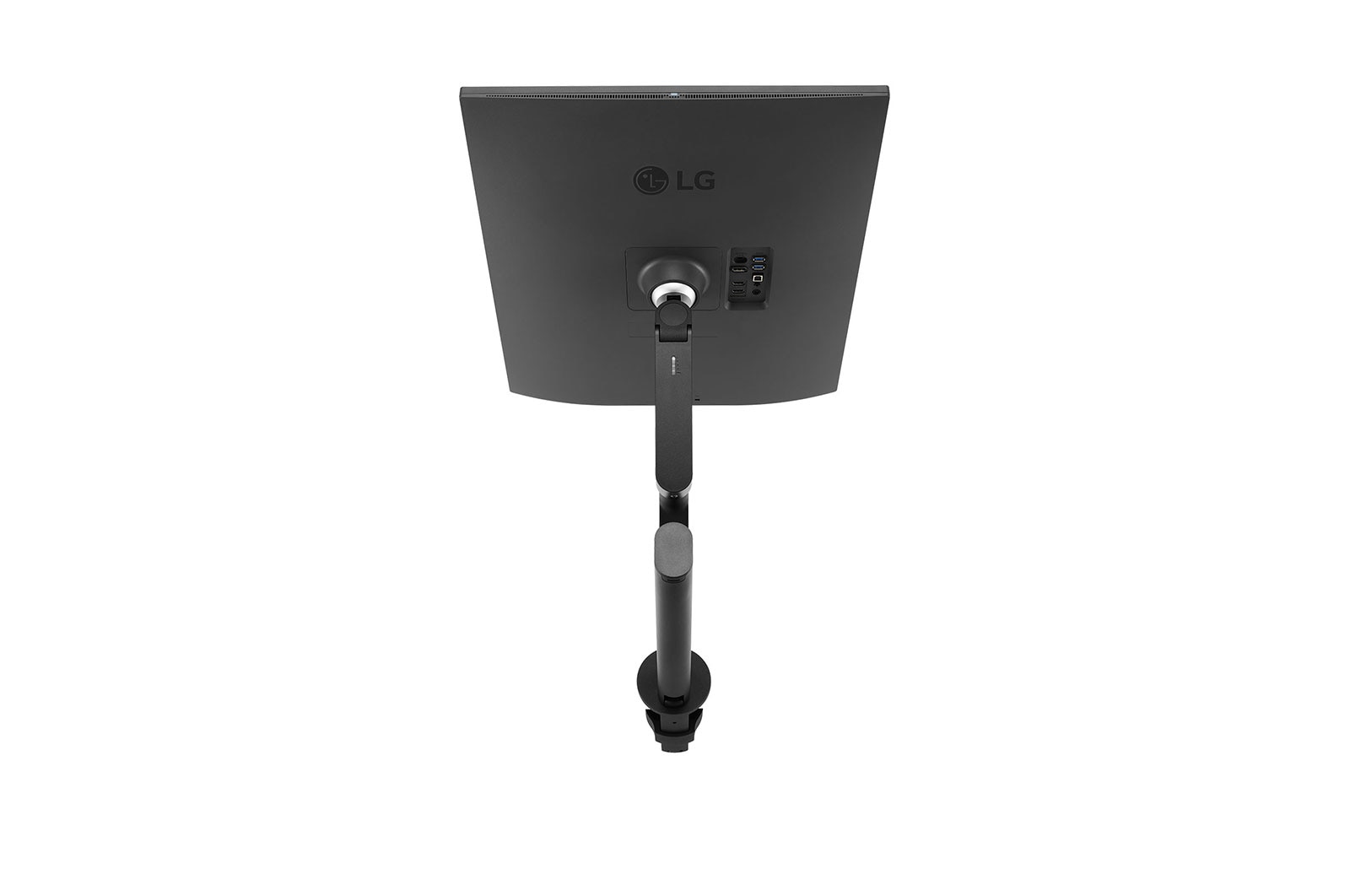

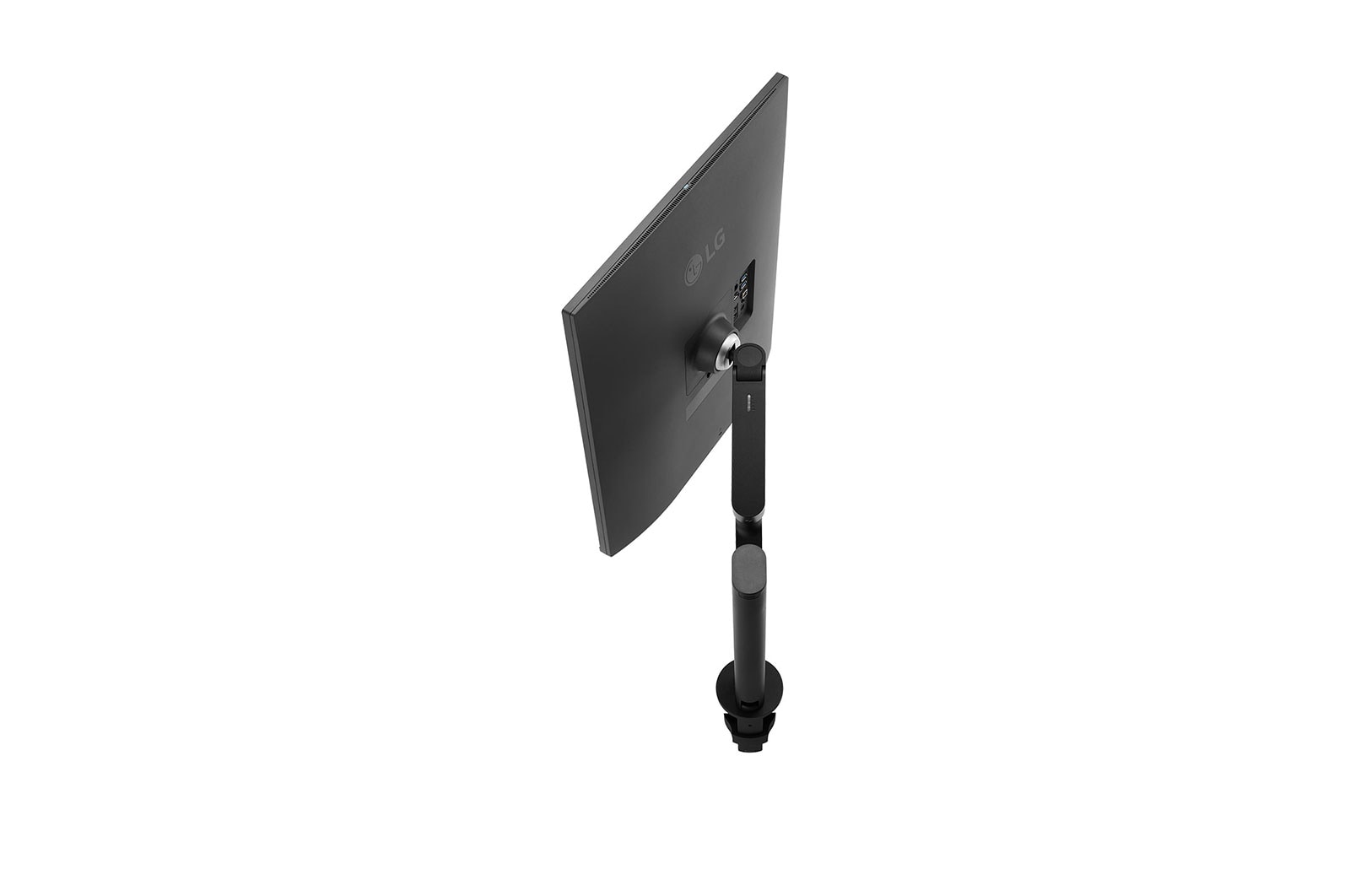

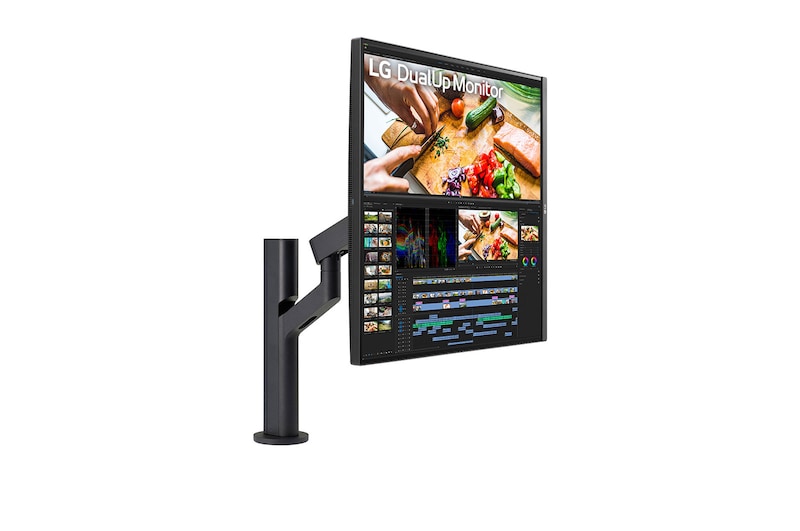

Ergo Stand

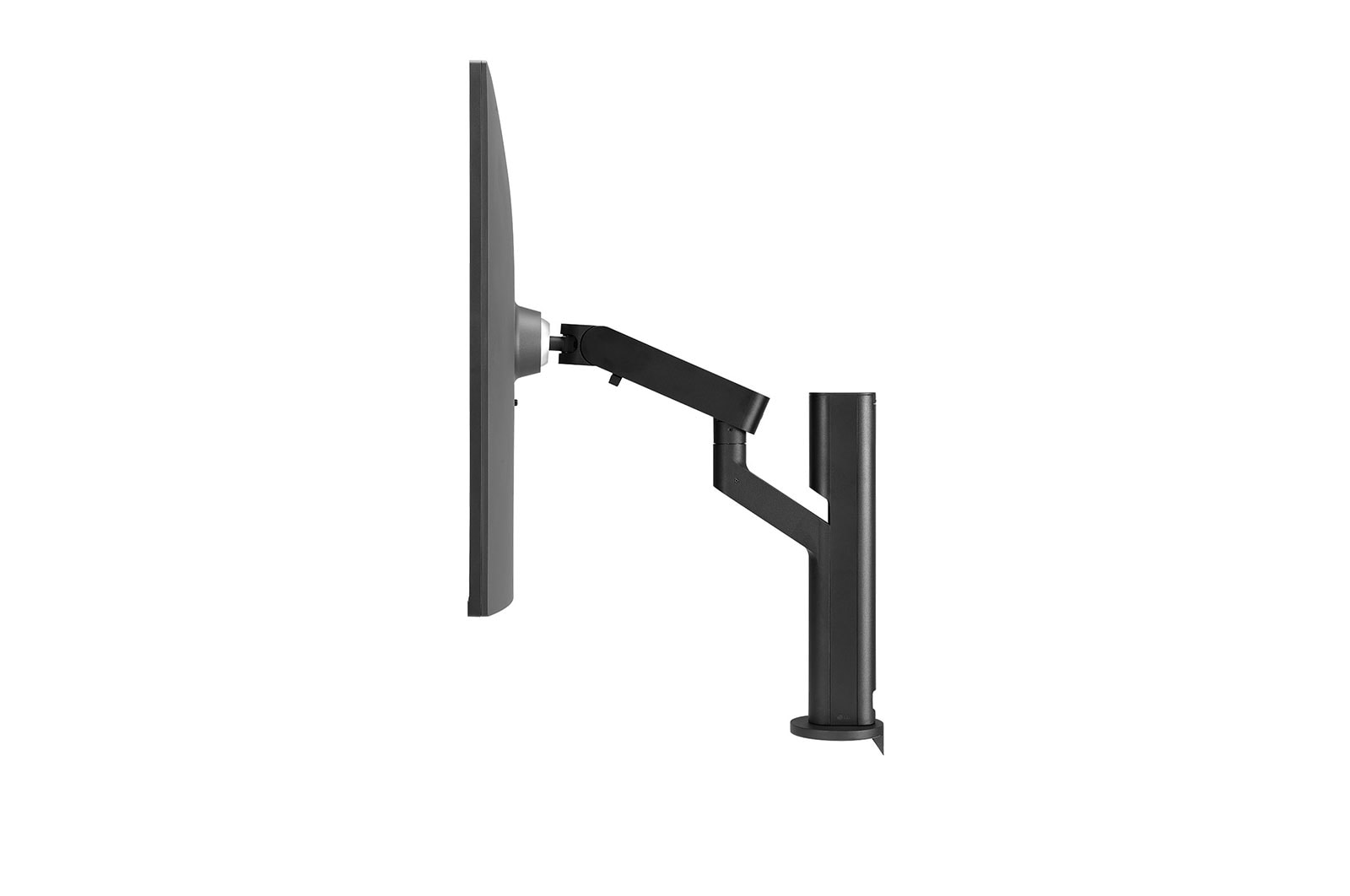

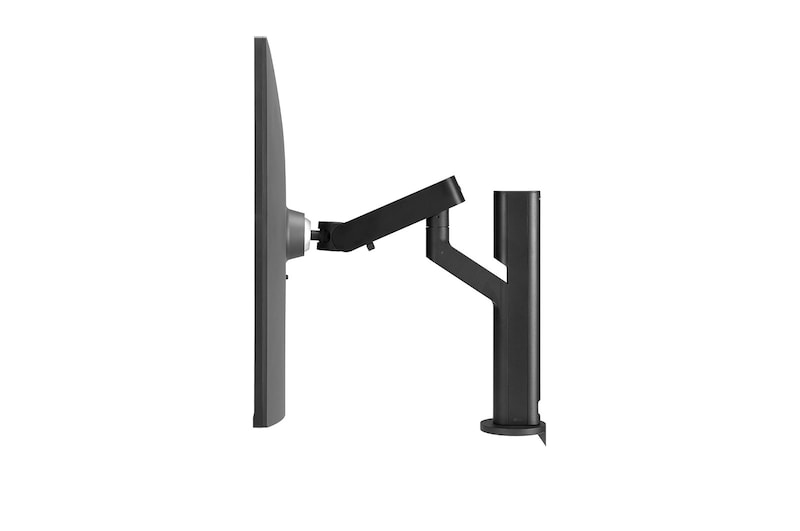

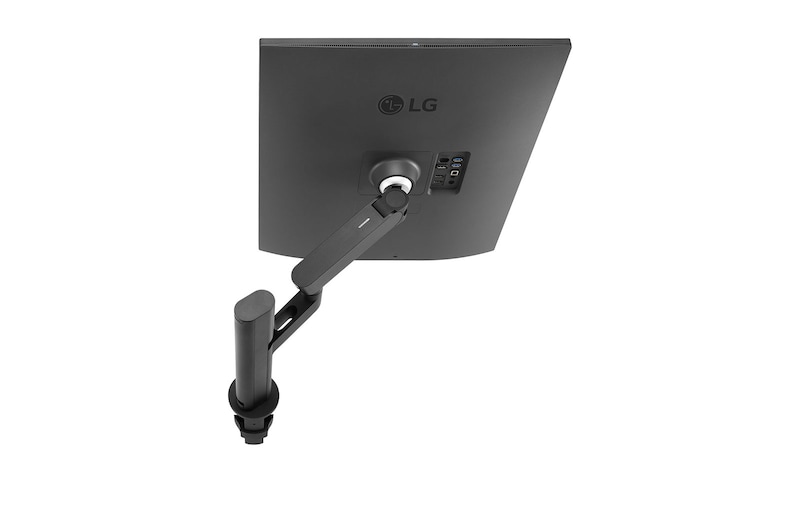

The Ergo stand offers the flexibility to extend, retract, swivel, pivot, raise, lower and tilt the location of the screen to achieve the desired and comfortable viewing position.

*Ergo Stand: Extend/Retract 210mm, Swivel ±335°, Pivot 90° (Counterclockwise), Height 130mm, Down Height 35mm, Tilt ±25°
**The product images in the video are for illustrational purpose only and might differ from the real product.

Nano IPS display supports a wide color spectrum, 98% of DCI-P3 color gamut, and offers vibrant color reproduction with the support of HDR10.

SDQHD Nano IPS Display

Stunning Image Quality

The 27.6-inch SDQHD (2560 x 2880, 16:18 aspect ratio) Nano IPS display supports a wide colour spectrum, 98% of DCI-P3 colour gamut, and offers vibrant colour reproduction with the support of HDR10.

*Images are simulated for feature communication and understanding.

The sensor reacts to light, making the screen brighter in bright areas and darker in the dark.

Ambient Light Sensor

Auto Brightness Control

The sensor measures the ambient light in the surrounding environment and adjusts the screen brightness accordingly.

*Images are simulated for feature communication and understanding.

Create – Develop - Multitask

Boost your efficiency and productivity. See more information at a glance and run two applications at the same time.

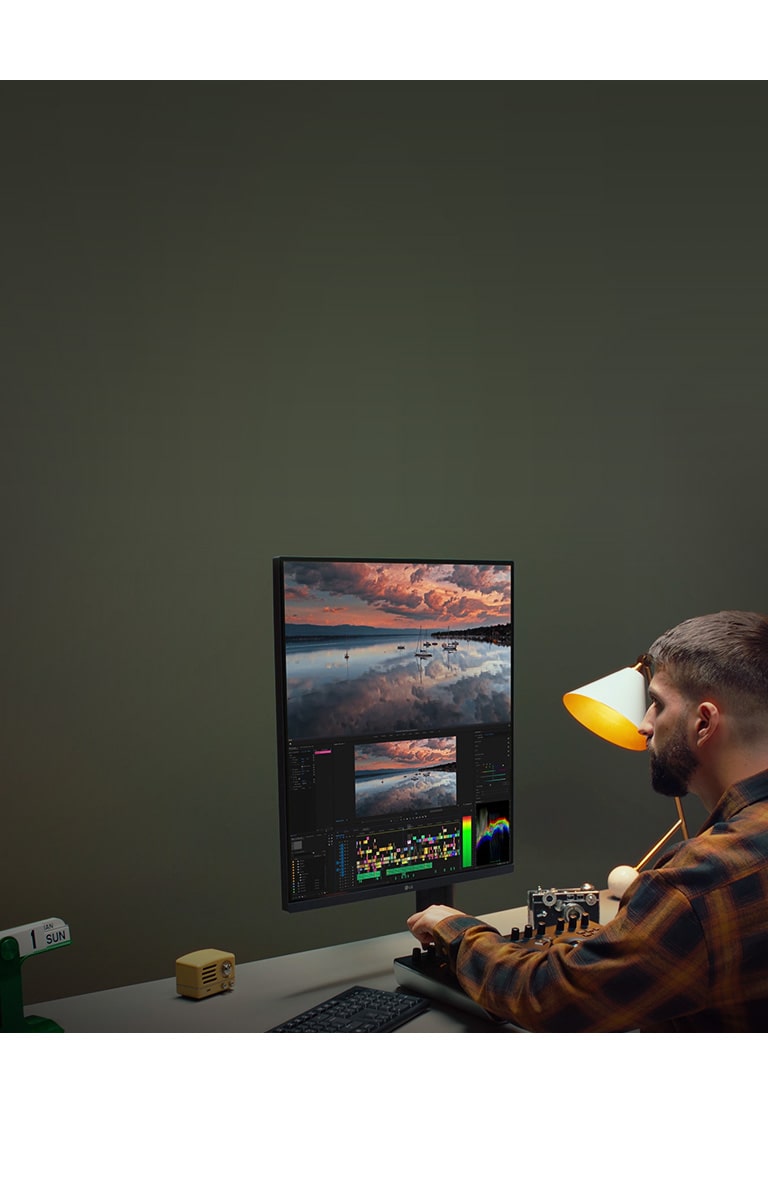

For the Content Creator

Stream content and edit video content in two apps displayed on the same screen.

For the Designer

Work more creatively with the large screen design and stand that helps free up desk space.

For the Office Worker

Work more efficiently when you can see more information in one place.

*Images are simulated for feature communication and understanding.

USB Type-C™

Connectivity and Power

The USB Type-C™ port enables charging (up to 90W) and display connectivity at the same time over a single cable to a compatible laptop.

Display

Power Delivery

Data

USB Type-C™ offering easy control and connectivity

*To work properly, the USB Type-C™ cable included in the package is required to connect the USB Type-C™ port to the monitor.

How to Utilise DualUp Monitor Set-up Options

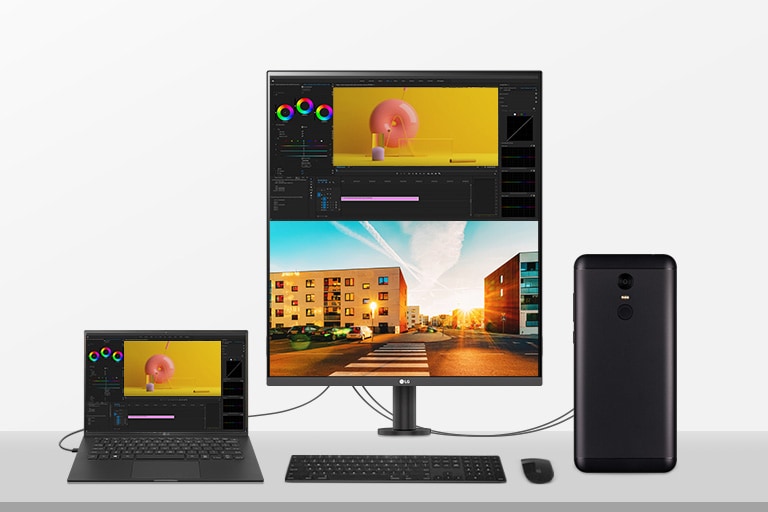

PBP & Built-in KVM*

The DualUp monitor lets you control the on screen content from 2 separate computers with the picture-by-picture feature. The built in KVM features helps manage this on screen content with a single keyboard and mouse.

By connecting two cables, you can utilize a dual monitor setup.

1 Source PBP**

By connecting two cables, out of HDMI, DisplayPort, and USB Type-C™, you can utilize a dual monitor setup. It helps to control two screens easily without using software or shortcut keys.

*KVM: Keyboard, Video Monitor, and Mouse.
**It can be connected via the USB Type-C™ cable, HDMI cable, and USB2.0 upstream cable included with the package.
**DisplayPort cable is NOT included with the package.

Space-saving and Flexible Workstation Setup

The compact design takes up very little desk surface and also contributes to easier installation.

Easy Workstation Setup

Fully Use Your Desk

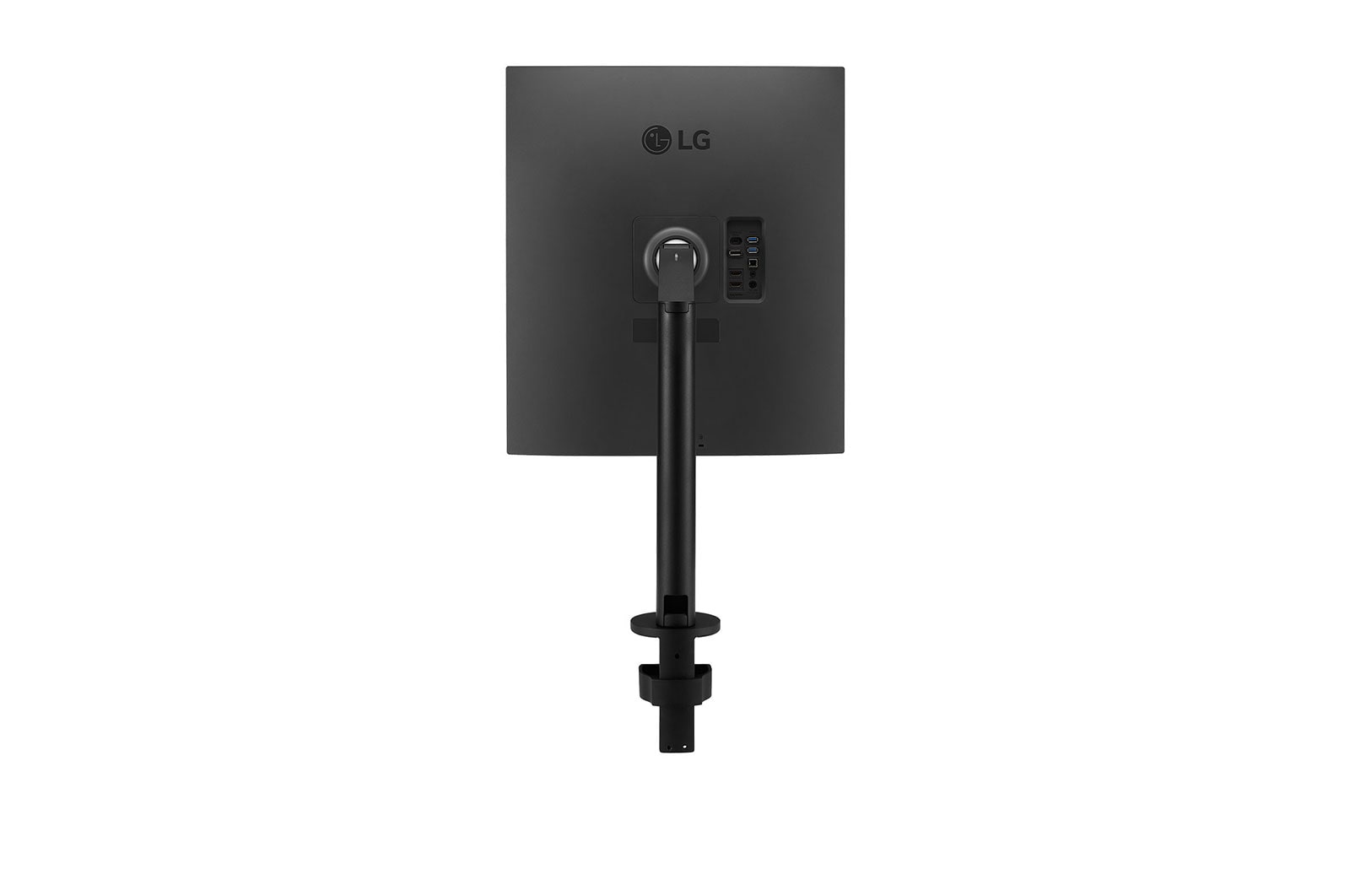

The DualUp monitor, with its C-Clamp mounting point design enables installation of the adjustable screen on the rear of desk, removing the screen and stand from the desk surface freeing up valuable space for other items.

C-Clamp & Grommet

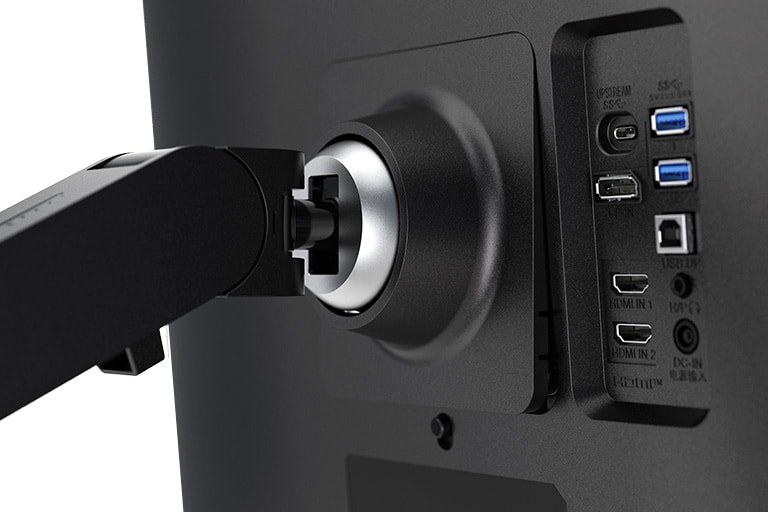

One Click Mount

*For detailed installation instructions, see the product manual at LG.com Support page.
*The product images in the video are for illustrational purposes only and might differ from the real product.

27.6-inch SDQHD (2560 x 2880) Nano IPS Display
DCI-P3 98% (Typ.) with HDR10
Ergo Stand with C-Clamp
USB Type-C™ (90W Power Delivery)
Ambient Light Sensor

Key Specs

Size [Inch]
27.6
Resolution
2560 x 2880
Panel Type
IPS
Aspect Ratio
16:18
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Brightness (Typ.) [cd/m²]
300
Refresh Rate (Max.) [Hz]
60
Response Time
5ms (GtG at Faster)
Display Position Adjustments
Tilt/Height/Swivel/Pivot/Extend/Retract

All Spec

DISPLAY

Size [Inch]
27.6
Aspect Ratio
16:18
Panel Type
IPS
Response Time
5ms (GtG at Faster)
Resolution
2560 x 2880
Pixel Pitch [mm]
0.18195 x 0.18195
Color Depth (Number of Colors)
1.07B
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
300
Contrast Ratio (Typ.)
1000:1
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Color Gamut (Min.)
DCI-P3 90% (CIE1976)
Refresh Rate (Max.) [Hz]
60
Brightness (Min.) [cd/m²]
240
Contrast Ratio (Min.)
700:1
Size [cm]
70.1

CONNECTIVITY

Built-in KVM
YES
HDMI
YES(2ea)
DisplayPort
YES(1ea)
DP Version
1.4
USB-C
YES(1ea)
Headphone out
3-pole (Sound Only)
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(1ea/ver2.0)
USB-C (Data Transsmission)
YES
USB-C (Max. Resolution at Hz)
2560x2880 at 60Hz
USB-C (Power Delivery)
90W

FEATURES

HDR 10
YES
Auto Brightness
YES
Color Weakness
YES
Color Calibrated in Factory
YES
PBP
2PBP
Flicker Safe
YES
Dynamic Action Sync
YES
Black Stabilizer
YES
Others (Features)
Low Blue Light
Reader Mode
YES
Super Resolution+
YES
Nano IPS™ Technology
YES
User Defined Key
YES
Auto Input Switch
YES
HDR Effect
YES

MECHANICAL

Display Position Adjustments
Tilt/Height/Swivel/Pivot/Extend/Retract
Wall Mountable [mm]
100 x 100

SOUND

Maxx Audio
YES
Speaker
7W x 2

DIMENSIONS/WEIGHTS

Dimension in Shiping (W x H x D) [mm]
745 x 240 x 557
Dimension with Stand (W x H x D) [mm]
481.5 x 843.2 x 461.3
Dimension without Stand (W x H x D) [mm]
481.5 x 549.5 x 44.9
Weight in Shipping [kg]
13.2
Weight with Stand [kg]
9
Weight without Stand [kg]
4.3

INFO

Product name
DualUp
Year
2022

POWER

Power Consumption (Max.)
190W
Power Consumption (Energy Star)
28.31W
Power Consumption (Sleep Mode)
Less than 0.5W
Power Consumption (Typ.)
40W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)

ACCESSORY

HDMI
YES
Others (Accessory)
DC Extension cable 1.4m Black, Ergo+ stand, Body cable cover, Body top cover, Wrench
USB A to B
YES
USB-C
YES

SW APPLICATION

Dual Controller
YES
OnScreen Control (LG Screen Manager)
YES

STANDARD

RoHS
YES
