R1 Compressor AC Desktop
E.S.P. control function enables control of air volume easily with a remote controller. The Brushless DC (BLDC) motor can control fan speed and air volume regardless of the external static pressure. Set RPM by simple touch on remote control to change airflow
Auto ESP Diagram Desktop
AUTO ESP Zone Control Diagram Desktop
Minimised Height
Corrosion resistance desktop
The indoor temperature can be checked using the thermistors in the remote controller as well as from the indoor unit. There may be a significant difference between ceiling and floor air temperature. Two thermistors can optimised indoor air temperature for a more comfortable environment.
Two Thermistors Control Desktop
E.S.P. (External Static Pressure) Control1
High Head Drain Pump1
Smart Wifi features
*LG ThinQ® app available from Google Play Store or Apple App required, for this feature, compatible with Android or iOS smartphones required (Android OS 7.0 or higher, iOS 14.0 or higher).Phone and Home Wi-Fi Data connection and product registration with LG ThinQ® required. Visit lg.com/au/lg-thinq for features, system compatibility and service availability which may vary by model.
Image used for illustrative purposes only. Actual user interface may differ with updates to ThinQ app from time to time
Get a quote

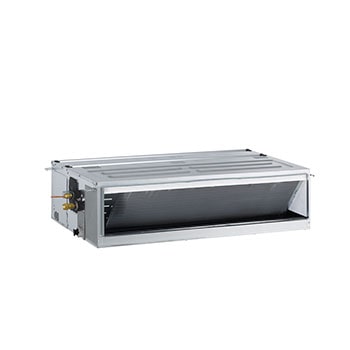

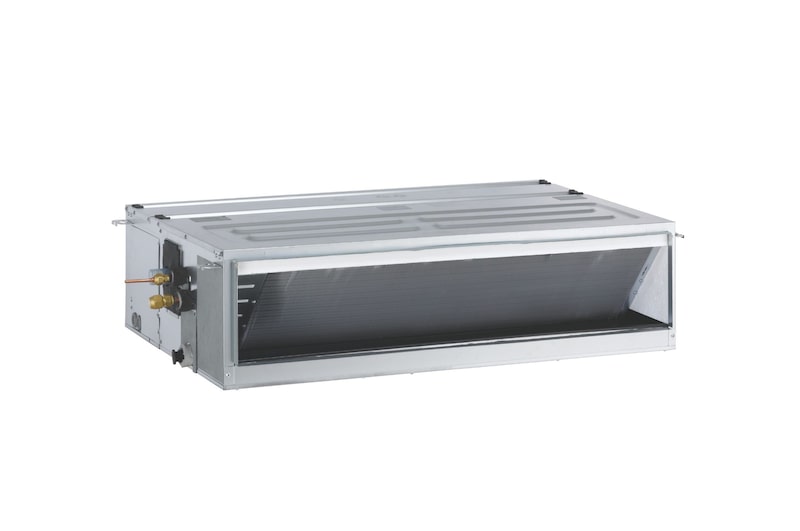

Indoor Unit Dimension_WxHxD(mm)
1,250 x 270 x 700
Cooling Capacity Rated/Min(W)
4800
Heating Capacity Rated/Min(W)
5400
Indoor Unit Weight(kg)
36.5

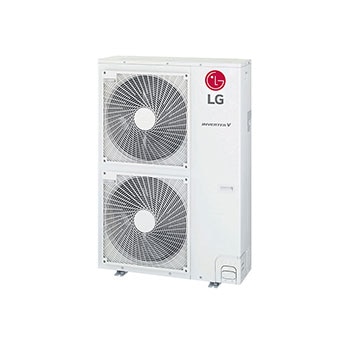

Outdoor Unit Dimension_WxHxD(mm)
950 x 1,380 x 330
Outdoor Unit Weight(kg)
89
Product Dimension_WxHxD(mm)
950 x 1,380 x 330
Product Weight(kg)
125.5
Rated Input Voltage(V, Hz)
220-240 V 50 Hz
Refrigerant Type
R32
AEER / ACOP
3.416 / 3.561
Cooling (Min. ~ Rated ~ Max.) (kW) (T1)
4.80 ~ 14.04
Cooling (Min. ~ Rated ~ Max.) (Btu/h) (T1)
16,370~47,880
Heating (Min. ~ Rated ~ Max.) (Btu/h)
18,410~53,880
Heating (Min. ~ Rated ~ Max.) (kW)
5.40 ~ 15.80
Cooling (°C (DB))
(-15 ~ 48)
Heating (°C (WB))
(-18 ~ 180)
Remote Controller
wired
ThinQ(Wi-Fi)
optional
TCSPF (Hot/Average/Cold)
4.583 / 4.175 / 4.276
HSPF (Hot/Average/Cold)
4.419 / 3.676 / 3.164
Full Load Amps (A)
28
Fin Type
Wide Louver Plus
Corrosion Protection (Coating)
Black 2
Power Supply (V, Ø, Hz)
Supplied from ODU
Dimensions Net (W × H × D) (mm)
1,250 x 270 x 700
External static pressure High Mode_Factory Set
58.8
Fan Air Flow Rate (H / M / L) (m3/min)
- / 38.0 / 33.0 / 28.0
Fan Motor Type
BLDC
Net Weight (kg)
36.5
Sound Pressure Level Cooling (H / M / L) (dB(A))
- / 38.0 / 36.0 / 34.0
Sound Pressure Level Heating (H / M / L) (dB(A))
- / 38.0 / 36.0 / 34.0
Piping Connections Liquid (Outer Dia.) (mm (inch))
Φ9.52 (3/8)
Compressor Type
Inverter Scroll
Dimensions Net (W × H × D)(mm)
950 x 1,380 x 330
Drain Pipe(Natural Drainage) (mm(inch))
Ø 25.4(1) / 19.4(3/4)
Fan Motor Type
BLDC
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) (m (ft))
30
Net Weight (kg)
89
Piping Connections Gas (Outer Dia.) (mm (inch))
Φ15.88 (5/8)
Piping Length (Max.) (m)
85
Power Supply (V , Ø , Hz)
220-240 V 1Ø 50 Hz
Pre-charge Length
20
Refrigerant Type
R32
Sound Pressure Level Cooling (Rated) (dB(A))
69.0 / -
Sound Pressure Level Heating (Rated) (dB(A))
69.0 / -
Cooling (Rated) (kW) (T1)
12.3
Heating (Rated) (kW) (HVAC)
13.5
Cooling (A)
15.3
Heating (A)
16.4
Supply (W x H, Flange) (mm)
197 x 1,206
Return (Oval) (mm)
230 x 1,205
