Split Type Dual Inverter Deluxe Aircon

Specs

Reviews

Support

Split Type Dual Inverter Deluxe Aircon

Split Type Dual Inverter Deluxe Aircon

HSN09APX
  • Front View
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
Front View
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX
LG Split Type Dual Inverter Deluxe Aircon, HSN09APX

Key Features

  • Ultrafine Dust Remover
  • UVnano™
  • Faster Cooling
  • Energy Saving
  • Less Noise
  • DUAL Inverter Compressor™
More

Summary

Print

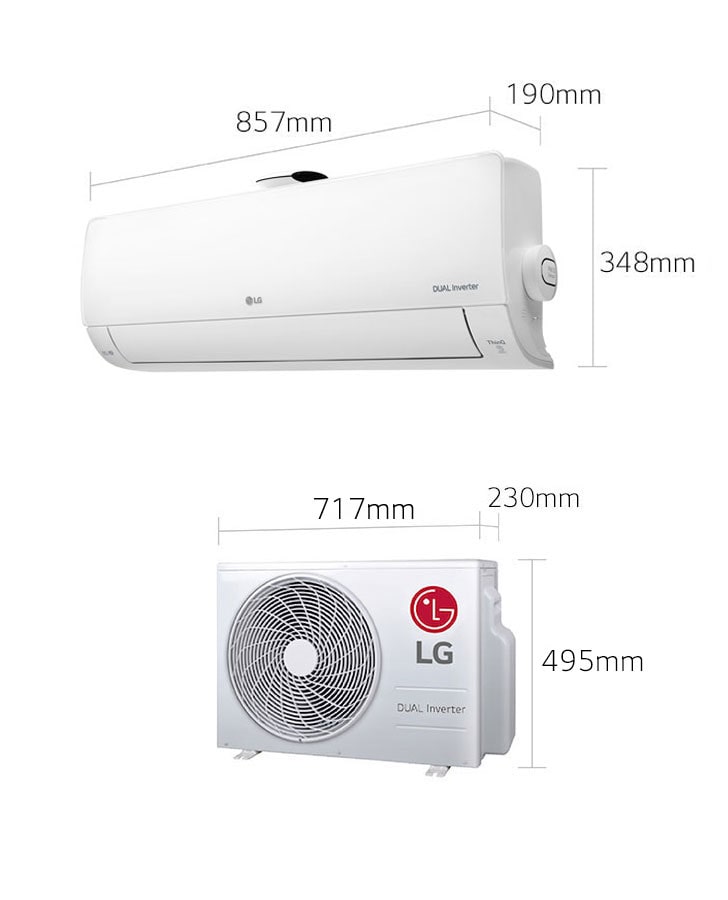

DIMENSIONS

Capacity
1HP
Dimensions Net W x H x D (mm) Indoor / Outdoor
857 x 348 x 190 / 717 × 495 × 230
Main Technology
Dual Inverter
Additional Benefit
Air Purifier

All Spec

CAPACITY

  • Cooling (Min ~ Rated ~ Max)

    0.94 ~ 2.60 ~ 2.89 kW
    3,194 ~ 8,871 ~ 9,858 Btu/h
    3,370 ~ 9,359 ~ 10,400 kJ/h

  • Capacity

    1.0HP

POWER INPUT

  • Cooling (Min ~ Rated ~ Max)

    215 ~ 640 ~ 750 W

RUNNING CURRENT

  • Cooling (Min ~ Rated ~ Max)

    1.30 ~ 3.70 ~ 4.50 A

EER

  • EER

    4.06 W/W
    13.86 (Btu/h)/W
    14.62 (kJ/h)/W

POWER SUPPLY

  • Power Supply

    1, 230, 60 (Ø, V, Hz)

  • Available Voltage Range

    187 ~ 276 V

  • Power Factor - Cooling

    81%

  • Moisture Removal

    1.25 l/h

INDOOR

  • Air Flow Rate - Cooling, Max/H/M/L

    10.5/9/6.6/4.2 m³/min

  • Sound Pressure Level - Cooling, Max/H/M/L/SL

    -/39/33/27/21 dB(A)

  • Dimensions (W × H × D) - Net

    857 × 348 × 190 mm

  • Dimensions (W × H × D) - Shipping

    915 × 401 × 251 mm

  • Weight - Net

    9.6kg

  • Weight - Shipping

    10.9kg

  • Exterior Color Code

    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max

    28.0 m³/min

  • Sound Pressure Level - Cooling, Rated

    50 dB(A)

  • Dimensions (W × H × D) - Net

    717 × 495 × 230 mm

  • Dimensions (W × H × D) - Shipping

    839 × 532 × 324 mm

  • Weight - Net

    22.7kg

  • Weight - Shipping

    24.4kg

  • Max. Fuse Size

    20A

  • Exterior Color Code

    Munsell 9.54Y 8.34/1.31 (RAL 9001)

  • Operation Range - Cooling

    18 ~ 48 °C DB

CIRCUIT BREAKER

  • Circuit Breaker

    15A

  • Power Supply Cable

    3 x 1 No. x mm²

  • Power Supply to Unit

    Indoor

  • Power and Communication Cable

    4 x 1 No. x mm²

PIPING

  • Size - Liquid

    ø 6.35 mm

  • Size - Gas

    ø 9.52 mm

  • Connections Method - Indoor/Outdoor

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5, 16.0 mm

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max

    3/7.5/20 m

  • Piping Length - No Change

    12.5 m

  • Max. Elevation Difference

    15m

  • Piping Connection Heat Insulation

    Both liquid and gas pipes

REFRIGERANT

  • Type

    R32

  • Pre Charge

    450g

  • Additional Charge

    15g/m

  • Control

    Capillary

  • Global Warning Potential

    675

  • t-CO₂ eq

    0.304

  • Tool Code (Chassis) - Indoor/Outdoor

    SJ/UA3

COMPRESSOR

  • Type

    Twin Rotary

  • Model

    DST066MAA

  • Motor Type

    BLDC

  • Oil Type / Maker

    PVE (FW68D)/IDEMITSU

  • Oil Charge

    220cc

  • Manufacturer / Country of Origin

    LG Electronics/China

FAN(INDOOR)

  • Type

    Cross Flow Fan

  • Motor Output

    30W

FAN(OUTDOOR)

  • Type

    Propeller, Fan

  • Motor Type

    AC

  • Motor Output

    28W

  • Motor Insulation

    Class E

  • Motor Enclosure / Ingress Protection

    TEAO/IP24

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin

    Cu/Al

  • Evaporator - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 15 x 21 x 616.8) x 1

  • Evaporator - Corrosion Protection

    PCM

  • Evaporator - Fin Type

    Slit

  • Condenser - Material, Tube / Fin

    Cu/Al

  • Condenser - (ø x Row x Column x FPI x L) x Qty.

    (ø5 x 2 x 22 x 21 x 686) x 1

  • Condenser - Corrosion Protection

    Gold

  • Condenser - Fin Type

    Louver
