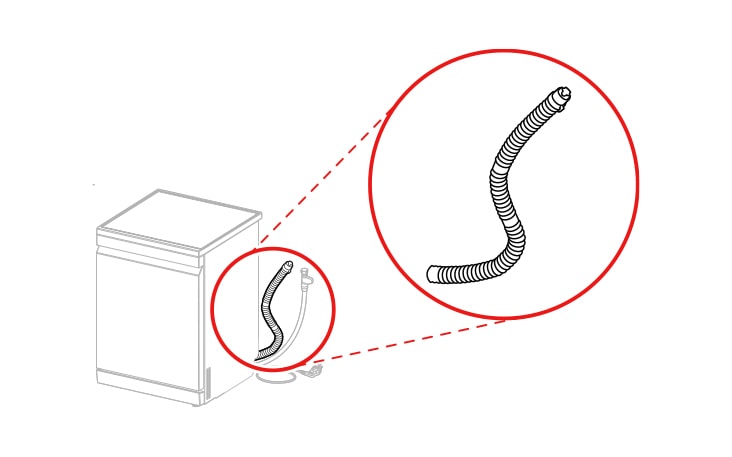

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

The dishwasher drain hose is mounted on the bottom of the back of the product.

How to Install

For more detailed information, please refer to the product manual for your model.

Install the Drain Hose

If the end of the drain hose does not fit to the drain line, use a drain extension kit (optional) that is resistant to heat and detergent.

To prevent siphoning, one of the following methods must be used.

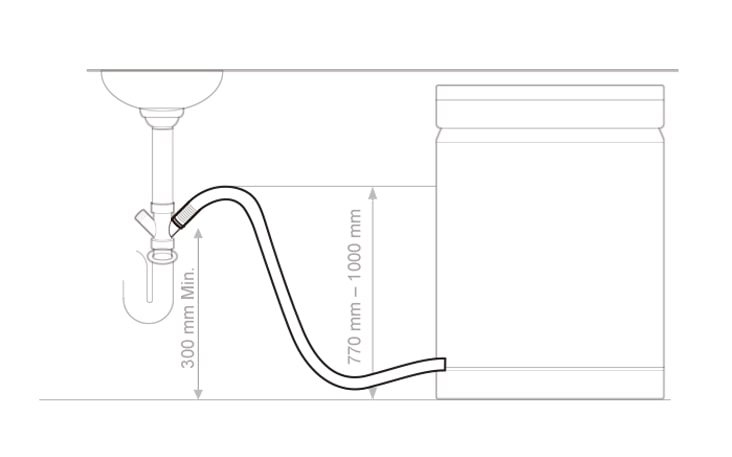

Method 1

When the drain hose is connected to a waste spigot, the hose must be looped up to the underside of the bench top and secured.

When the drain hose is connected to a waste spigot the hose must be looped up to the underside of the bench top and secured

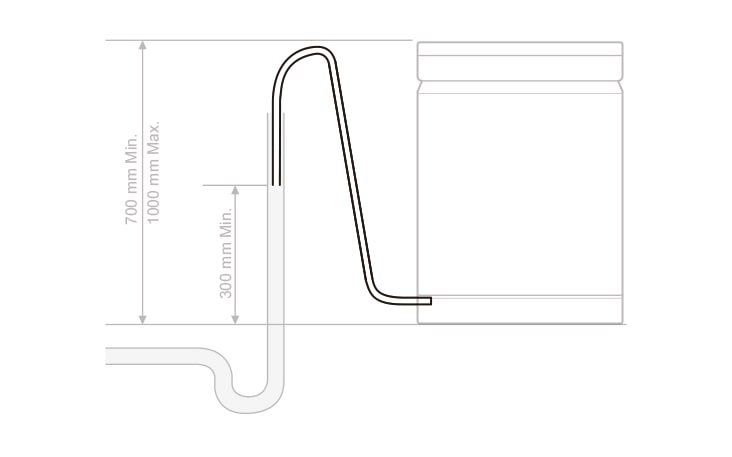

Method 2

When the drain hose is connected to a separate standpipe, it is essential that an airtight connection be made. If not, it can induce odors.

When the drain hose is connected to a separate standpipe it is essential that an airtight connection be made. If not it can induce odors

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

SUMMARY

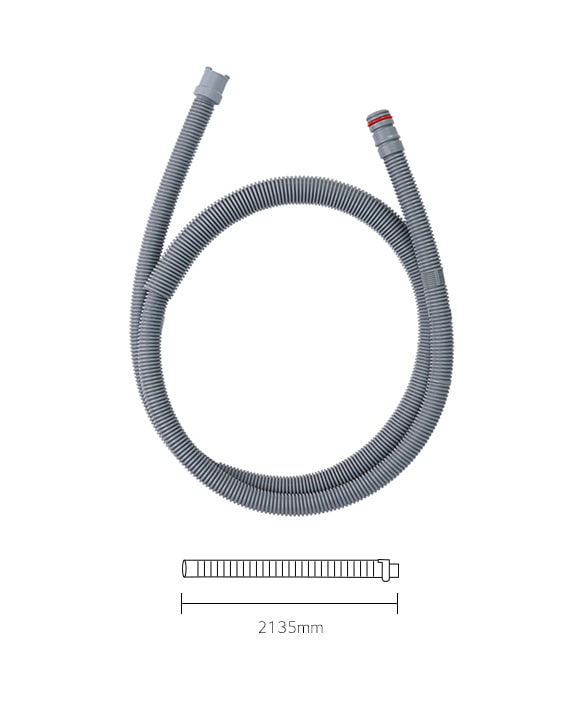

DIMENSIONS

All Spec

GENERAL

  • Part Number

    AEM74333102

DIMENSIONS & WEIGHTS

  • Length (cm)

    213.5

  • Diameter (cm)

    Right: 2.5, Left: 2.5

  • Net Weight (g)

    220
