Key Features

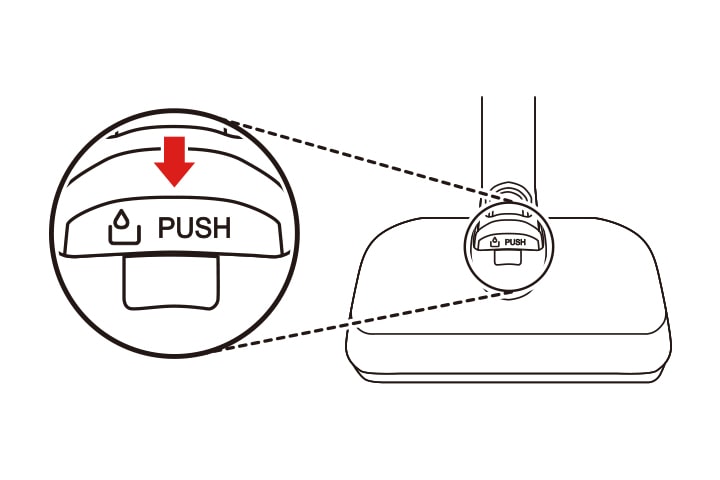

Press the PUSH button to remove the water tank from the mop nozzle.
STEP

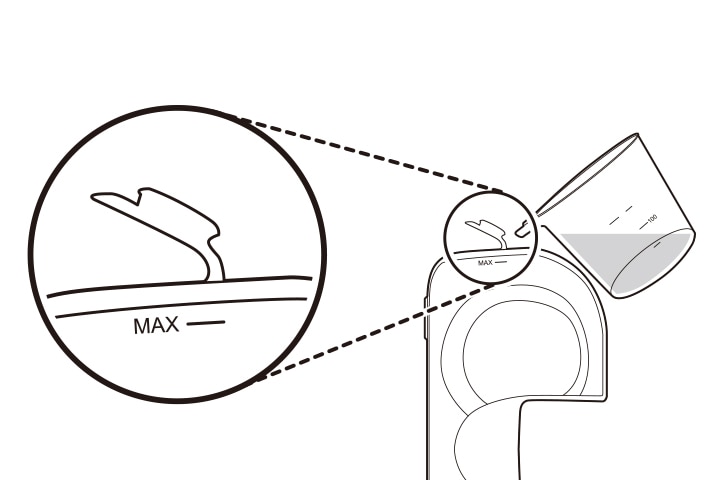

Open the water inlet cap on the side of the water tank and fill the tank with water using the measuring cup.
- Open only one water inlet cap to fill the water.
Opening both caps may cause the water to flush.
- Do not fill the tank over the MAX line.
- Do not put liquid other than water and hot water in the water tank.
STEP

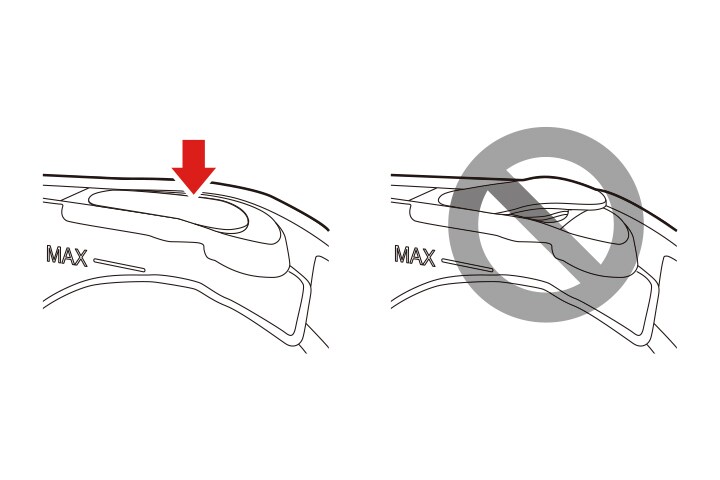

Close the water inlet cap tightly.
- If the water inlet cap is not closed properly, water may leak.
STEP

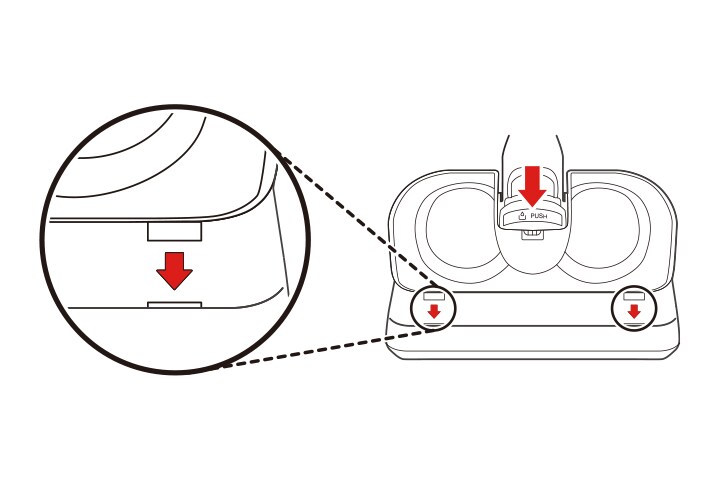

Attach the water tank to the mop nozzle again.
- Insert the 2 tabs at the front of the water tank into the slots on the top of the mop nozzle.
Press down at the centre to lock the tank in place.
STEP

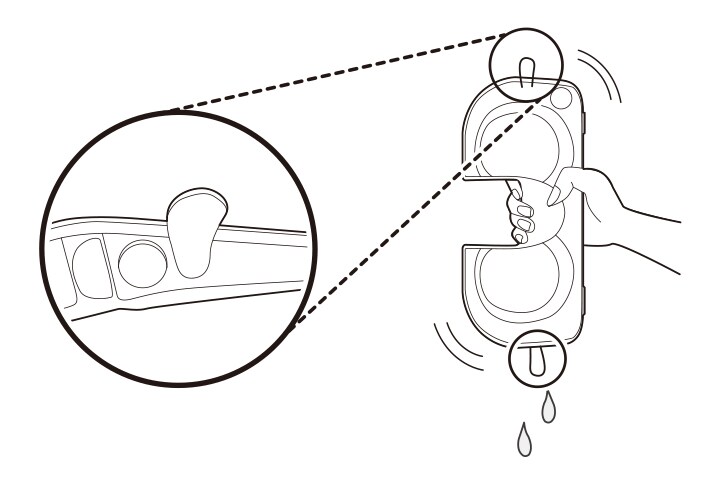

Open the 2 water inlet caps on the side of the water tank and empty the water tank.
Shake the water tank to remove the remaining water.
STEP
Leave the 2 water inlet caps open and allow the water tank to dry in a well-ventilated area out of direct sunlight for at least 24 hours.
- Keep the water tank after water is completely empty and dry.
Moisture or residual water in the tank may cause odour.
STEP

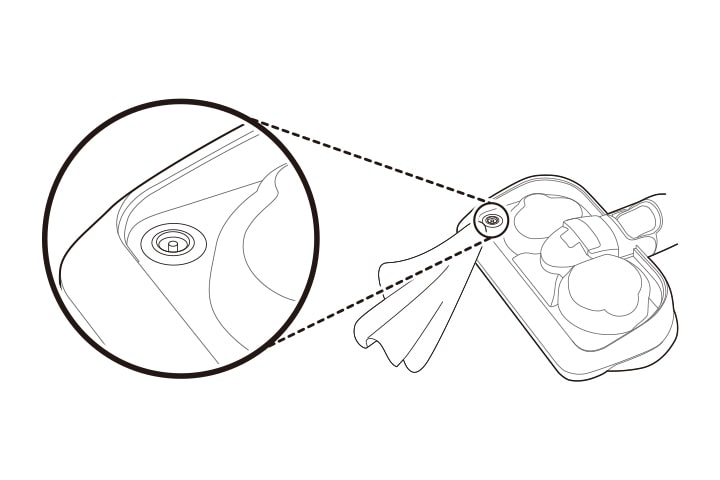

After cleaning, wipe off any remaining water on the water supply inlet on the mop nozzle with a soft cloth.
The water could drip onto the floor and damage it.
Do not pull or stretch the rubber gasket on the water supply inlet.
Doing so may tear or damage it.
Cleaning the Mop Nozzle

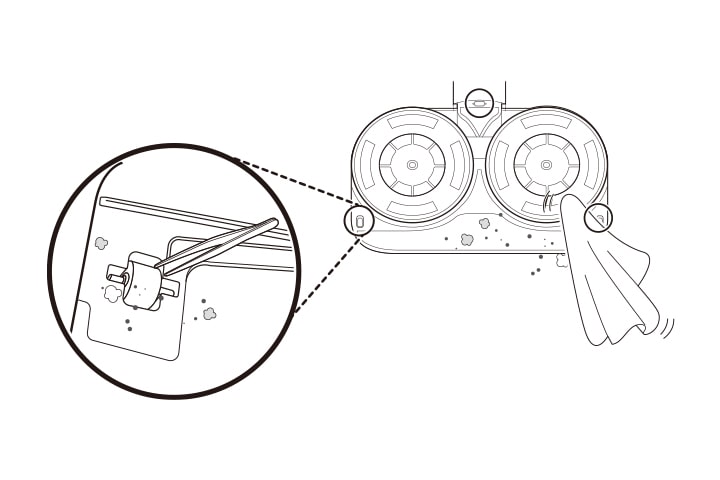

Press the nozzle release button to remove the mop nozzle from the extension pipe and turn the nozzle upside down.
Use a damp towel or cloth to remove any remaining foreign objects and dust from the bottom of the mop nozzle.
Remove foreign objects, debris and hair from all Rollers of the nozzles using tweezers.
Cleaning the Mop Nozzle
* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.
* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.
* The performance of the product may vary depending on the usage environment, and availability may vary by store.

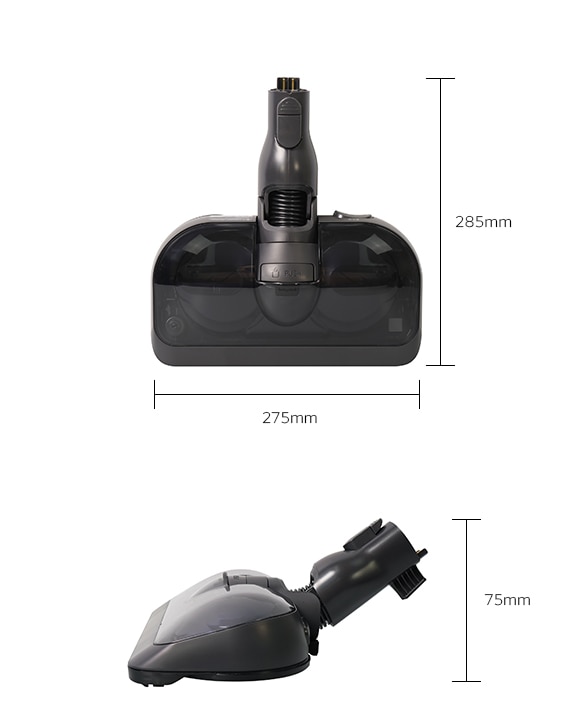

Product Dimension (W x H x D, mm)
275 x 75 x 285
Net Weight (g)
1180
Part Number
AGB74392439
