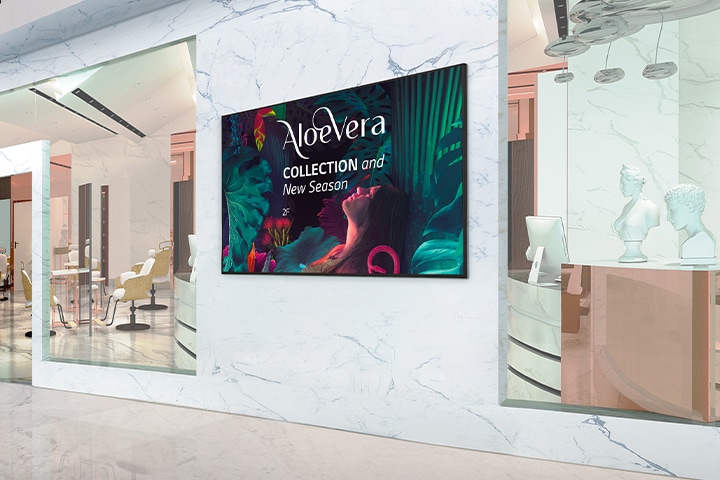

Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* All images in this page are for illustrative purposes only.
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.

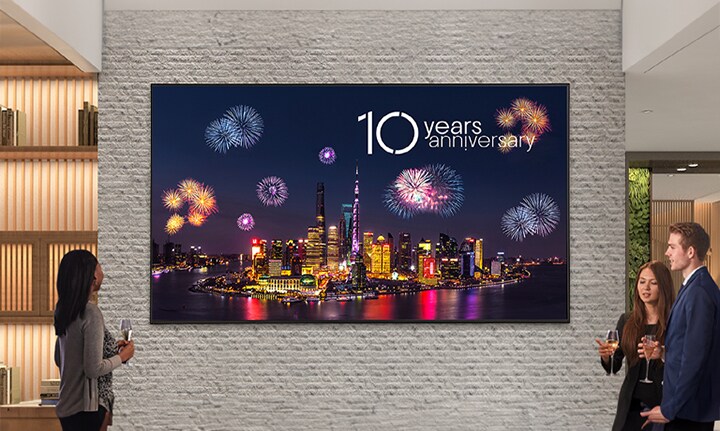

The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention.

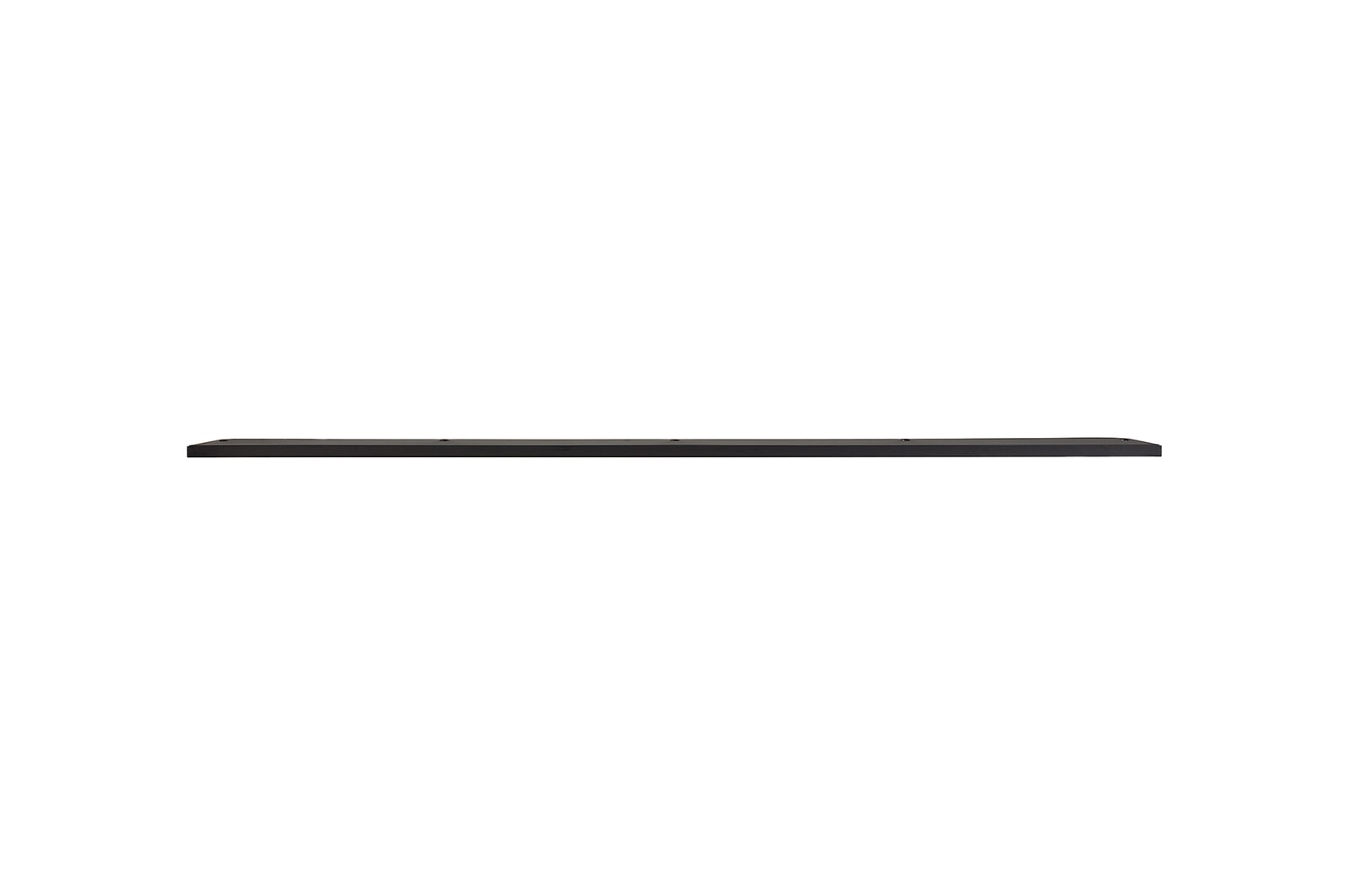

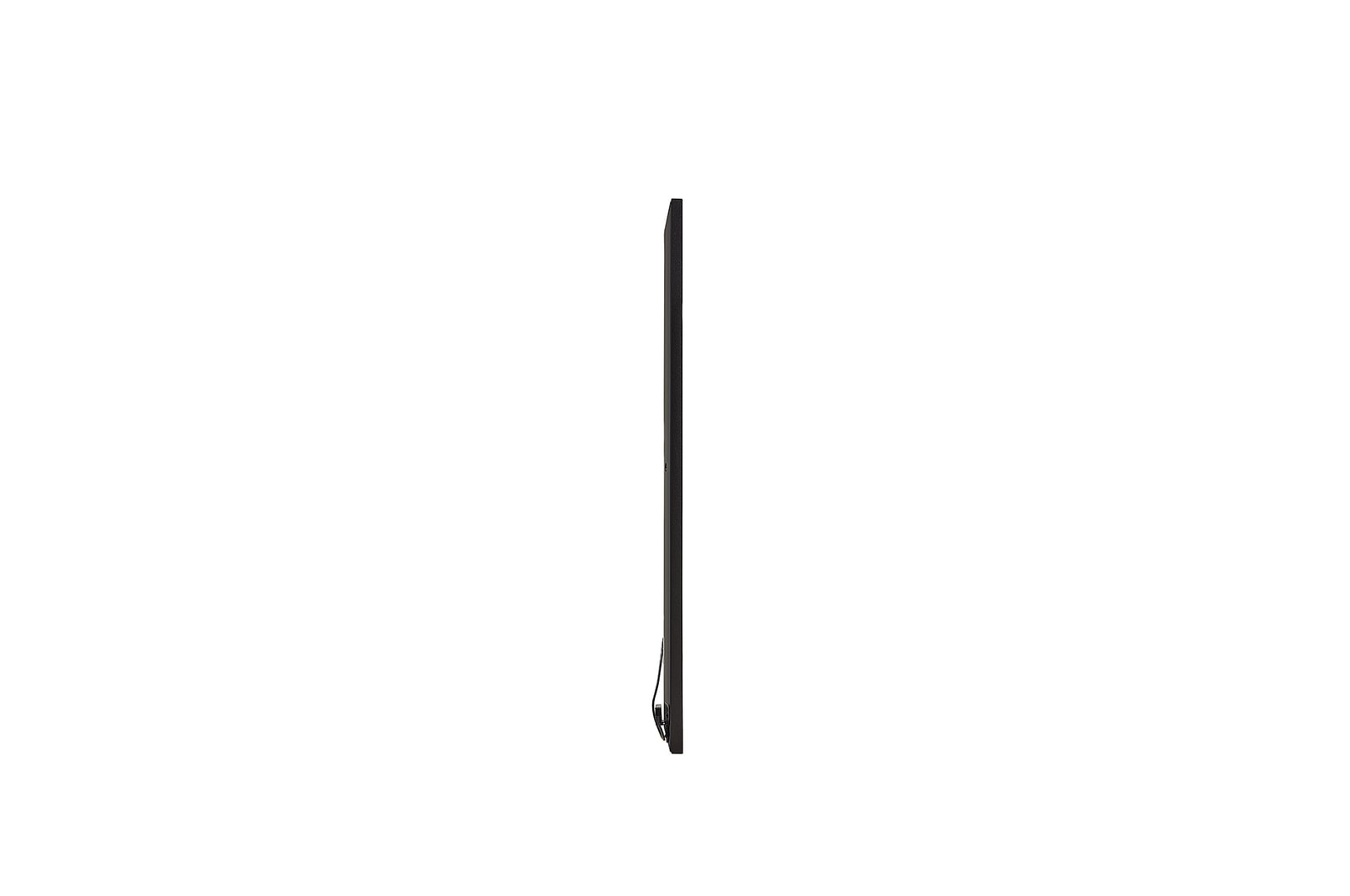

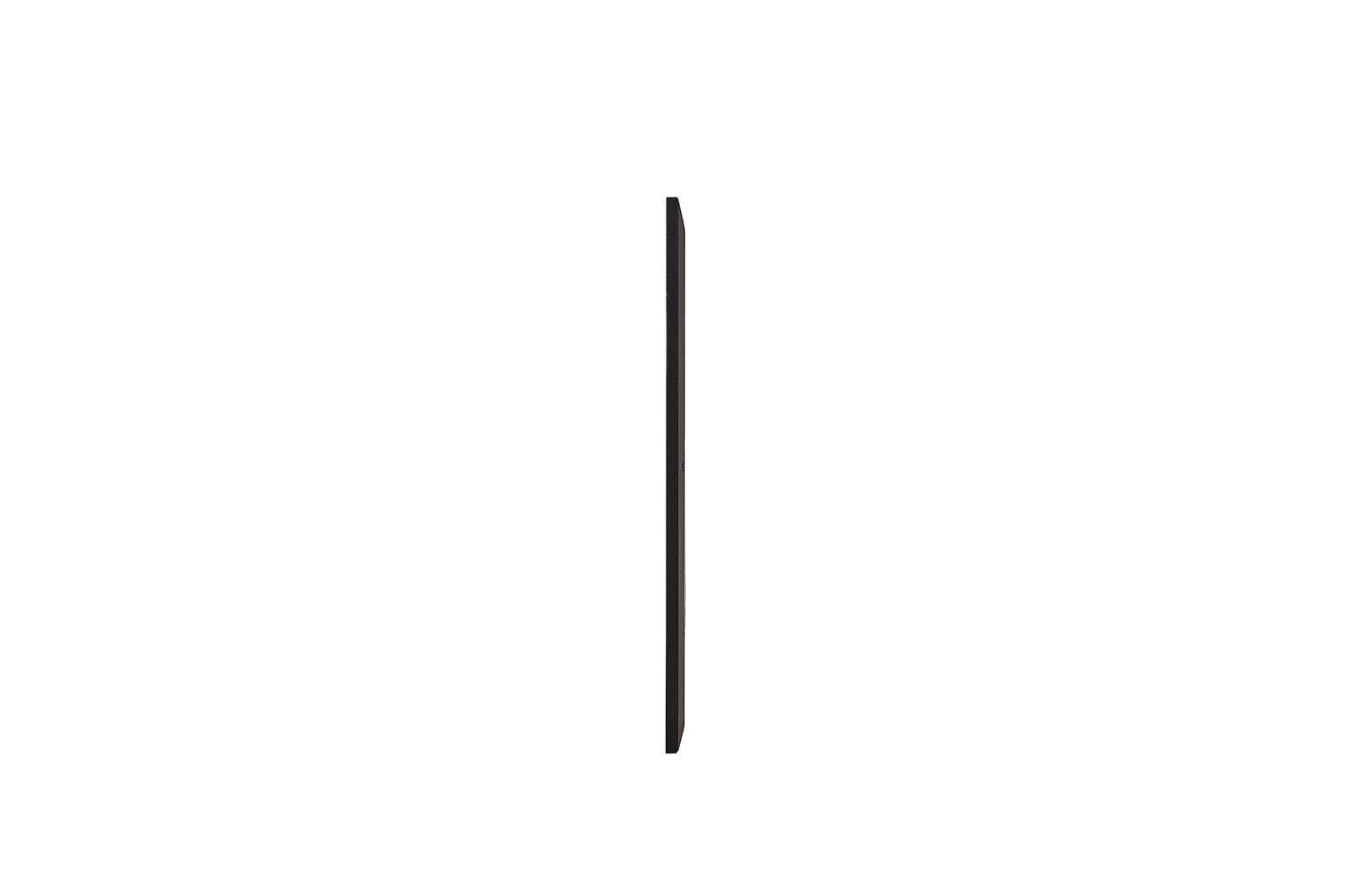

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

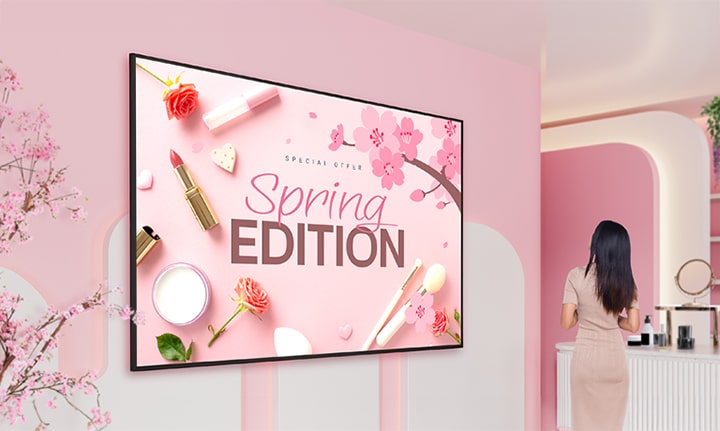

In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior.
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously.
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

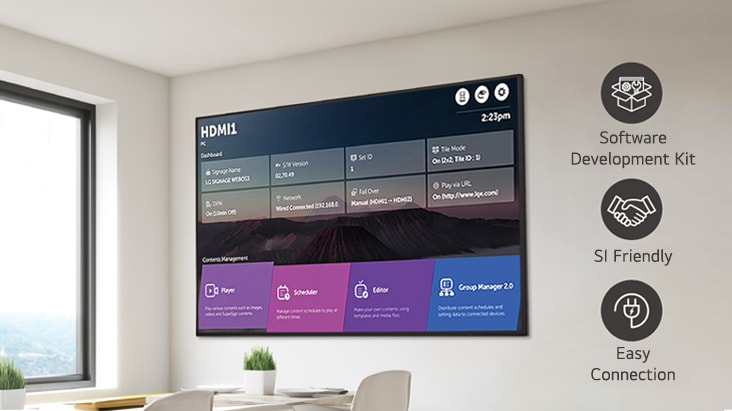

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
| Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation. |

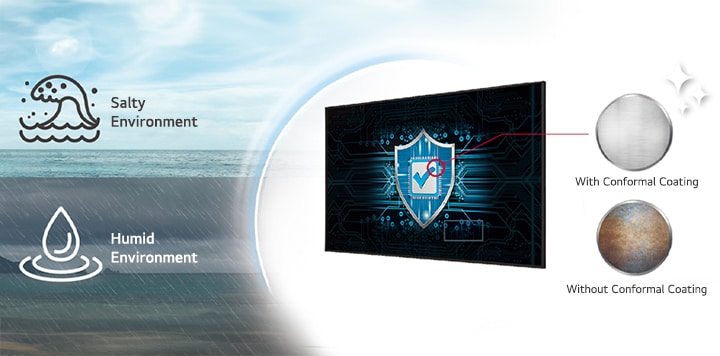

The UH5N-M has conformal coating to protect the display even in salty or humid environments.
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
The UH5N-M provides security features to protect important data from external access or attacks.
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Basic
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Optional
Wall Mount (LSW640A/B)
EMC
FCC Class "B" / CE / KC
ePEAT(US only)
Yes / Carbon "Measured" (TBD)
ERP / Energy Star
N/A / Yes
Safety
CB / NRTL
Audio Out
Yes (1)
DP In
Yes(1), 3840x2160@60Hz, HDCP 2.2/1.3
HDMI In
Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
IR In
Yes (1)
IR Out
No (Support IR daisy chain via RS232C IN/OUT)
RJ45(LAN) In
Yes (1)
RS232C In
Yes (1), 4pin Phone-jack
RS232C Out
Yes (1), 4pin Phone-jack
USB In
USB2.0 Type A(2)
Operation Temperature
0°C to 40°C
Acceleration(Gyro) Sensor
Yes
Auto Brightness Sensor
Yes(IR)
Internal Memory (eMMC)
16GB
Local Key Operation
Yes
Temperature Sensor
Yes
Wi-Fi/BT (Built-in)
Yes
Auto Set ID
Yes
Beacon
Yes
Booting Logo Image
Yes
Cisco Certification
Yes (TBD)
Control Manager
Yes
Crestron Connected
Yes
External Input Rotation
Yes
Fail over
Yes
Gapless Playback
Yes
Group Manager
Yes
HDMI-CEC
Yes
ISM Method
Yes
Local Contents Scheduling
Yes
Local Network Sync
Yes
Network Ready
Yes
No Signal Image
Yes
OS Ver. (webOS)
webOS6.0
PBP
Yes
PIP
Yes
Play via URL
Yes
PM mode
Yes
Pro:Idiom
Yes
RS232C Sync
Yes
Screen Rotation
Yes
Screen Share
Yes
Setting Data Cloning
Yes
SI Server Setting
Yes
Smart Energy Saving
Yes
SNMP
Yes
Status Mailing
Yes
Tile Mode Setting
Yes (Max. 15x15)
USB Plug & Play
Yes
Video Tag
Yes
Wake on LAN
Yes
webRTC
Yes
Bezel Color
Black
Bezel Width
12.9mm (Even)
Handle
Yes
Monitor Dimensions (W x H x D)
1679.5 x 958.7 x 29.7 mm (without IR, Handle)
Monitor Dimension with Stand (W x H x D)
1820 x 1115 x 200 mm
Packed Weight
44 kg
VESA Standard Mount Interface
600 x 400
Weight (Head)
35.7 kg
Aspect Ratio
16:9
Back Light Type
Edge
Brightness
500nit (Typ.)
Color Depth (Number of Colors)
1.07G (8bits + FRC)
Color Gamut
BT709 95%
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Life time
50,000Hrs (Min.)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
ADS
Portait / Landscape
Yes / Yes
Refresh Rate
60Hz
Response Time
8ms (G to G)
Screen Size (Inch)
75
Surface Treatment (Haze)
25%
Viewing Angle (H x V)
178 x 178
Power Type
Built-In Power
BTU (British Thermal Unit)
546 BTU/Hr(Typ.), 843 BTU/Hr(Max)
DPM
0.5W
Max.
247W
Power off
0.5W
Smart Energy Saving (70%)
112W
Typ.
160W
Connected Care
Yes
Mobile CMS
Yes
SuperSign Cloud
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
Speaker (Built-in)
Yes (10W X 2)
Conformal Coating (Power Board)
Yes (Partial space coating)
Tilt (Face down)
IP5X
