KEY FEATURES

  • IP Streaming Protocol
  • Secure Communication Protocol
  • Proxy Server
  • Mirroring

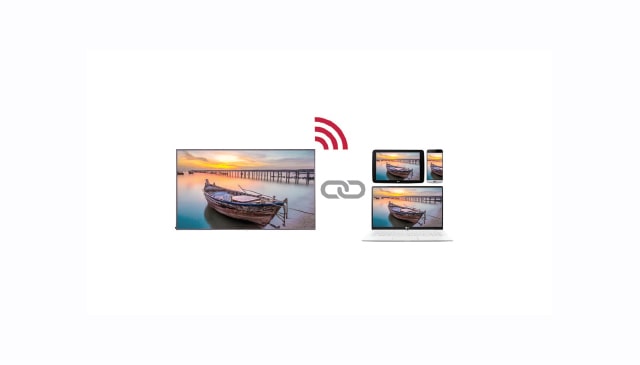

  • SoftAP
  • Enhanced Connectivity
49” class (48.5” diagonal) Standard Performance Digital Signage - SM5KD Series

PANEL

    • Response Time
    • 12 ms (G to G BW), 10.1 ms (WOT)
    • Brightness
    • 450 cd/m2
    • Screen Size
    • 49"
    • Panel Technology
    • IPS
    • Aspect Ratio
    • 16 : 9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Viewing Angle (H x V)
    • 178°/178°
    • Surface Treatment
    • Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.))
    • Guaranteed Operating Hour
    • 24 Hours
    • Orientation
    • Portrait & Landscape

WARRANTY

    • Limited Warranty
    • 2-Year Limited Warranty Parts/Labor

CONNECTIVITY

    • Input
    • HDMI (2), DP, DVI-D, RGB, Audio, USB 3.0
    • Output
    • DP, Audio
    • External Control
    • RS232C in/out, RJ in, IR Receiver, Pixel Sensor

SPECIAL FEATURES

    • Yes
    • Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM Wake Up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Fail Over, Mirroring, SoftAP, BEACON, Embedded Template

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C / 32°F to 104°F
    • Operating Humidity Range
    • 10 % to 80 %

POWER

    • Power Supply
    • 100-240 V~, 50/60 Hz
    • Power Type
    • Built-In Power
    • Power Switch
    • No
    • Power Consumption (Smart Energy Saving)
    • 60 W
    • Power Consumption-Typ
    • 85 W

ACCESSORIES

    • Basic
    • Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    • Optional
    • Stand (ST-492T), Pixel Sensor (KT-SP0), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T490)

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 11.9 mm (T/R/L), 18 mm (B)
    • Packed Weight
    • 38.4 lbs
    • Monitor Dimension (W x H x D)
    • 43.4" x 25.1 x2.1"
    • Weight (Head)
    • 31.5 lbs
    • Weight (Head + Stand)
    • 38.8 lbs
    • VESA TM Standard Mount Interface
    • 300mm x 300mm
    • Carton Dimensions (W x H x D)
    • 47.1" x 29.9" x 6.5"
    • Monitor w/opt. Stand Dimensions (W x H x D)
    • 43.4" x 27.4" x 8.6"

STANDARD CERTIFICATIONS

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC

SOFTWARE COMPATIBILITY

    • SuperSign Premium
    • Yes
    • SuperSign Link
    • Yes

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attatchable
    • Yes (MP500/MP700)
    • OPS Type Compatible
    • Yes

SOUND

    • Speaker
    • 20 W (10 W x 2) for Internal Speaker (6 ohm)
