32SM5KE

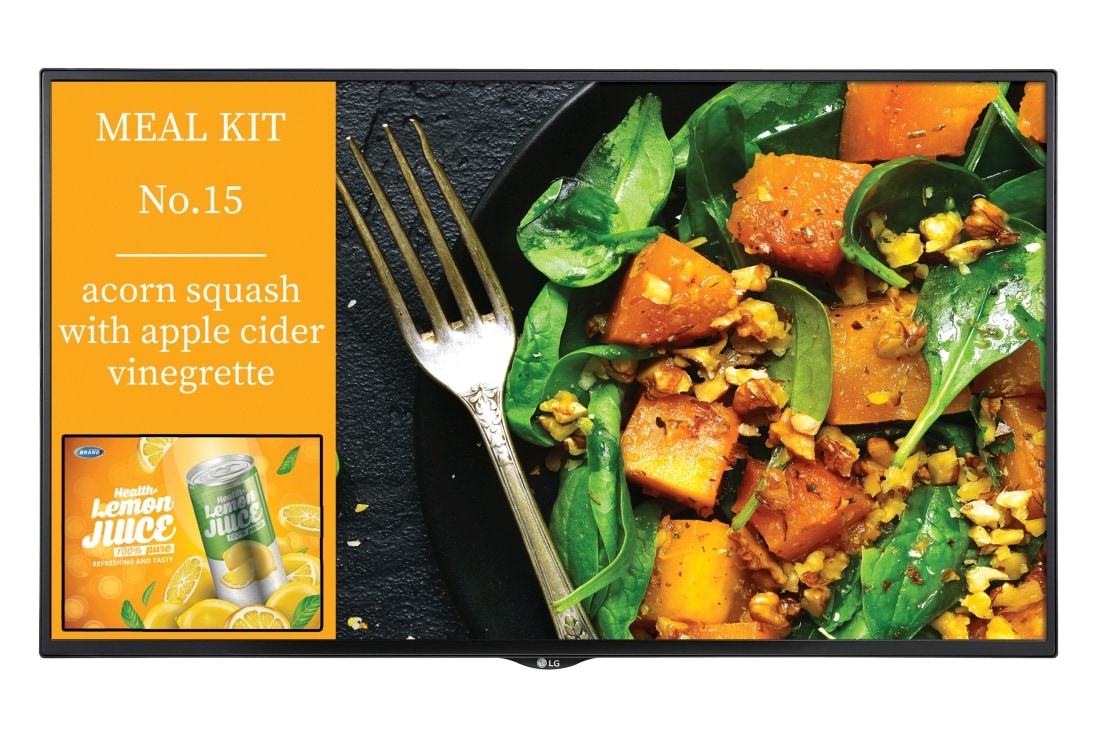

32” class - Versatile Signage with a User-friendly Smart Platform

MSRP
$756.00

KEY FEATURES

  • User-Friendly Smart Platform
  • Content Display and Management
  • Powerful Wireless Capabilities
  • Reliable Operation
  • Value-added Offerings
  • Industrial Design
32” class - Versatile Signage with a User-friendly Smart Platform
$ 756.00



The SM5KE series provides dynamic content with clear picture quality, enhancing advertising effectiveness and helping to generate demand for your brand and products. LG webOS 4.0 Smart Platform has not only been optimized to develop and run a variety of customized apps, but user convenience has been enhanced with intuitive UI and value-added functions.

Simple Set-up & Customization

The LG webOS 4.0 smart signage platform supports HTML5 as a web-based platform and offers an SDK (Software Development Kit), so System Integrators can easily build and execute their own apps. Also, it is easy to use with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one menu.

Embedded Content Management

The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signage via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.

Multi Screen Mode

PBP (Picutre-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 2 divided split screen on landscape or portrait display format. This gives great flexibility to users to allocate space for each content source.

Video Streaming

SM5KE series can play real-time streaming content by supporting various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast*. This easy-to-manage content system is free from capacity limits for content playback and can provide live broadcasts in real time.

* RTSP (Real-Time Streaming Protocol)
RTP (Real-Time Transport Protocol)
HLS (HTTP Live Streaming)
UDP (User Datagram Protocol) Multicast

Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in realtime.

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.

Wireless Access Point

The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.

Quick Web Access via Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Secured Network Communication

HTTPS* protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on digital signage, so owners can protect their critical business assets from unwelcome pirates.

* HTTPS: Hypertext Transfer Protocol over Secure Socket Layer

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. This can function as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

* Supported model: NIPPON PRIMEX (NP-3511, NP-3611)

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
*ConnectedCare is the brand name of LG Signage365Care Service. Availability differs by region.

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sound can be played from built-in speakers, giving advertisements greater impact.

Conformal Coating

Electronics products can be often unavoidably exposed to dust and water during maintenance. LG applies a conformal coating on major circuit boards to minimize such circumstances by protecting against dust, iron powder, humidity, etc.

BIM File

PANEL

    • Screen Size
    • 32"
    • Panel Technology
    • IPS
    • Contrast Ratio
    • 1,100:1
    • Response Time
    • 10 ms (G to G BW), 7.1 ms (WOT)
    • Brightness
    • 400 nits
    • Aspect Ratio
    • 16 : 9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Viewing Angle (H x V)
    • 178°/178°
    • Orientation
    • Landscape & Portrait
    • Lifetime (Typ.)
    • 50,000 Hrs
    • Operation Hours
    • 24 Hrs
    • Surface Treatment (Haze)
    • Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))

CONNECTIVITY

    • Input
    • HDMI (3), DP, DVI-D, Audio, USB 3.0
    • Output
    • DP (SST), Audio (Off/Fixed/Variable)
    • External Control
    • RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 13 mm (T/R/L), 18 mm (B)
    • Monitor Dimension (W x H x D)
    • 28.7” x 16.9” x 2.2” / 729.4 x 428.9 x 55.5 mm
    • Weight (Head)
    • 11.9 lbs / 5.4 kg
    • Monitor w/opt. Stand Dimensions (W x H x D)
    • 28.7” x 18.9” x 6.1” / 729.4 x 481 x 154.2 mm
    • Weight (Head + Stand)
    • 13.7 lbs / 6.2 kg
    • Carton Dimensions (W x H x D)
    • 31.2” x 20.1” x 5.2” / 810 x 510 x 132 mm
    • Packed Weight
    • 14.8 lbs / 6.7 kg
    • VESA TM Standard Mount Interface
    • 200mm x 200mm

KEY FEATURES

    • Yes
    • Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15x15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C / 32°F to 104°F
    • Operating Humidity Range
    • 10 % to 80 %

POWER

    • Power Supply
    • 100-240V~, 50/60Hz
    • Power Type
    • Built-In Power
    • Power Consumption (Smart Energy Saving)
    • 45 W (TBD)
    • Power Consumption (Typ./Max)
    • 60 W (TBD) / 85 W

STANDARD CERTIFICATIONS

    • Safety
    • IEC 60950-1 / EN 60950-1 / UL 60950-1
    • EMC
    • FCC Class "A" / CE / KCC

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attatchable
    • Yes
    • OPS Type Compatible
    • Yes

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign CMS
    • Control and Monitoring Software
    • SuperSign Control+/Control

ACCESSORIES

    • Basic
    • Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
    • Optional
    • Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T32E)

WARRANTY

    • Limited Warranty
    • 3-Year Limited Warranty
