75UT770H

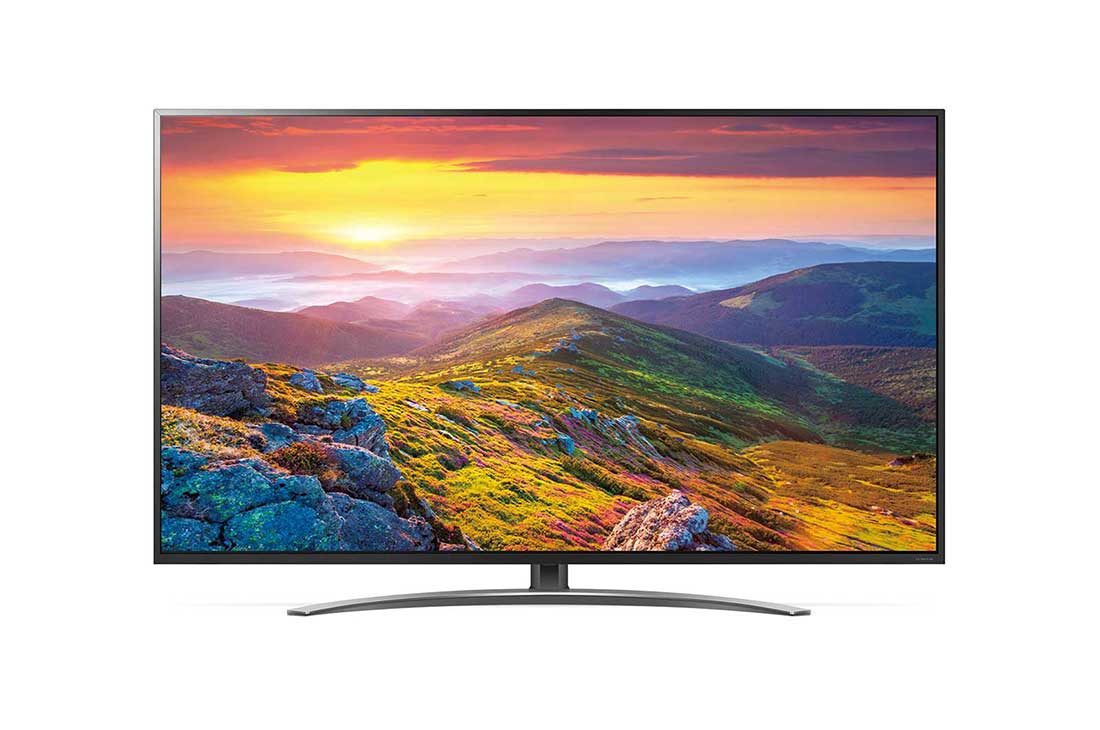

75” UT770H Series Pro:Centric® Smart Hospitality Slim UHD TV with NanoCell Display
  • Pro:Centric® Hotel Management Solution
  • NanoCell Display Panel
  • Smart Share & Screen Share
  • Embedded b-LAN™
  • Pro:Idiom®
  • webOS 4.5
75” UT770H Series Pro:Centric® Smart Hospitality Slim UHD TV with NanoCell Display
$
*Customized UI may be a little different.
*In RF Case, two-way communication not available.
**Actual UI may differ.
***When PCS400R and PCD 2.0 are used, it is able to have PCD feature even in RF infrastructure.
*TV native Control.
*Server Based control.
*Magic Motion Remote is required (sold separately).
*SoftAP should be set in installation menu after TV is on.
*Smart Mirroring may not be operated at the same time.
*Actual In-screen image may slightly differ.
*AUX LAN (LAN out) ID: Set a VLAN ID to be assigned to external devices connected to the LAN out port.(An AUX LAN is used for assigning a VLAN ID.)
*VLAN ID: Created a separate Virtual LAN group with IDs (tagging).

DESIGN

  • Stand Type
    1 pole (Fixed)
    Front Color
    Black

DISPLAY

  • Inch
    75
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Edge
    Brightness
    400 nit

BROADCASTING SYSTEM

  • Digital
    ATSC / Clear QAM/VSB, Analog NTSC

VIDEO

  • HDR (Dolby Vision / 10 Pro / HLG)
    Yes / Yes / Yes

AUDIO

  • Audio Output
    20W + 20W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    Yes
    One Touch Sound Tuning
    Ready
  • LG Sound Sync
    Bluetooth required

HOSPITALITY SOLUTION

  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming ( IP & RF )
    Yes
  • HCAP (GEM/FLASH/HTML) ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
    Yes
  • Multicast / Unicast ready
    Yes / Yes
    webRTC (Real Time Communication)
    Yes
  • Pro: Centric Application (version)
    PCA3.8
    Pro: Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media

SMART FEATURE

  • Feature
    webOS 4.5, Smart Home (Launcher Bar), Quick Access, Web Browser, Pre-loaded App, SDP Server compatibility, Magic Remote Compatibility (Ready), Clock (World Clock / Alarm), Soft AP, Wi-Fi (802.11ac, Built-in type), Screen Share (Miracast), Smart Share (DLNA), LG TV Plus App Compatibility, DIAL, Bluetooth Audio Playback, LG Sound Sync / Bluetooth, Mobile Connection Overlay, Voice Recognition (Standalone / Solution), IoT, EzManager (Simplicity), USB Cloning, Wake on RF, Wake on LAN, SNMP, Diagnostics (IP Remote), SI Compatible (TVLink Interactive, MPI, RS232C), HTNG-CEC (1.4), Simplink (HDMI-CEC, 1.4), IR Out (RS-232C, HDMI), Multi IR Code, Anti-theft System (Kensington Lock), Chromecast Dongle Anti-theft Cover (Optional)

HOSPITALITY FEATURE

  • Hospitality
    Hotel Mode(Installer Menu), Welcome Screen(Splash Image), Insert Image, One Channel Map(LCM), External Speaker Out (Int / Ext Variable / Fixed), Instant ON, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care

JACK INTERFACE

  • Set Side
    HDMI In 2.0(2), USB 2.0
    Set Rear
    RS-232C (Control & Service, Phone Jack Type) RJ45 (Usage Purpose : 1 (Ethernet)), RF In(Dual b-Lan), Digital Audio Out (Optical), External Speaker Out (3.5mm Phone Jack) : 1 (Spk-out fixed 0.01W~1.00W and line out), TV link Configuration(phone jack type) : 1 (b-LAN Service), MPI Port(RJ12 jack), Debug (Phone Jack Type) : 1(CPU/PTC)

DIMENSION(UNIT: MM/KG)

  • Vesa
    600 x 400
    W x H x D / Weight (with stand)
    1,683 x 1,043 x 369.8 / 41.6
  • W x H x D / Weight (without stand)
    1,683 x 974 x 35.1(65.2) / 38.8
    W x H x D / Weight (Shipping)
    1,839 x 1,166 x 231 / 52.2

POWER(UNIT : WATTS)

  • Power Supply (Voltage, Hz)
    AC 120 V ~ 50 / 60 Hz
    Typical
    183.3W
  • Stand-by
    Under 0.5W
