49VM5C
49” class (48.50” diagonal) - Ultra-Narrow Bezel Video Wall
  • Narrow Bezel
  • Built-in SoC* and Synced Playback
  • webOS 2.0
  • Clear Viewing Angle
  • Uniform Brightness
49” class (48.50” diagonal) - Ultra-Narrow Bezel Video Wall
$ 3,625.00



With their slim bezels and virtually borderless designs, 49VM5C video walls offer maximum immersion. Their quad-core SoC system plays various types of content without the need for an external media player, with easy and efficient management tools. These video walls have been designed to raise engagement in areas such as museums, airports, galleries and large retail spaces.

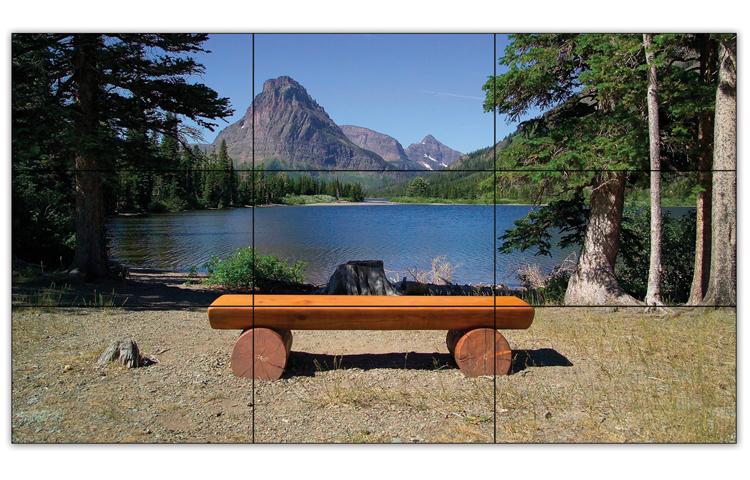

Narrow Bezel 1

Narrow Bezel

Borderless design with its 0.9mm even panel bezel* and 1.8mm BtB(Bezel to Bezel)** size, verified by Nemko***, enables immersive and near seamless viewing experiences on assembled video wall screens.

*Panel Bezel : The black matrix section where an image is not displayed on the front panel. **BtB (Bezel to Bezel) : Panel Bezel + Panel Bezel (Borderless type, no metal bezel)

***Nemko (Nogerois Elektriske Materiellkontroll) was established in 1933 as an institution for mandatory safety testing and national approval of electrical equipment to be marketed and sold in Norway. Since it was transformed into independent, self-owned foundation in 1991, it has provided worldwide testing and certification.
Built-in SoC* and Synced Playback1

Built-in SoC* and Synced Playback

The optimized built-in quad-core SoC in the 49VM5C can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.
*System-on-Chip
webOS 2.01

webOS 2.0

The webOS 2.0 platform provides easy and convenient tools to create contents. LG’s SDK* and technical supports make content development and management easier.
Clear Viewing Angle1

Clear Viewing Angle

The 55VH7B, 55VM5B and 49VM5C ensure clear picture quality, even when installed in arrays of more than four, ideal for installations in large spaces.

*The angle from the center of the screen to have 50 of the initial luminance.
Uniform Brightness1

Uniform Brightness

LG’s LED backlight technology provides high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the 49VM5C generates high visibility and a consistent brightness across the whole screen.
Video Wall Image Creation1

Video Wall Image Creation

Through Video Wall Image Creation (VIC) technology; color and brightness differences are compensated for by an algorithm within the circuitry that gives the panels the same characteristics, enabling the video wall to maintain a consistent white balance from panel-to-panel.
Image Gap Reduction 1

Image Gap Reduction

The 49VM5C includes an image-improvement algorithm that can adjust to images moving within the boundaries of the bezels, enabling a seamless viewing experience from screen-to-screen.
LAN Daisy Chain Performance1

LAN Daisy Chain Performance

The LAN daisy chain allows you to execute commands to control and monitor the screens, and even update their firmware.
Guide Bracket / Classified Port1

Guide Bracket / Classified Port

A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.
Control Buttons1

Control Buttons

With 8 control buttons, it’s easy to operate various functions of the 49VM5C, such as   controlling the OSD (On Screen Display) and changing the input source.

PANEL

  • Screen Size
    49"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Dynamic CR
    500,000 : 1
    Contrast Ratio
    1,300:1
  • Response Time
    8 ms (G to G)
    Brightness
    500 cd/m^2
  • Panel Technology
    IPS
    Aspect Ratio
  • Viewing Angle (H x V)
    178 x 178
    Surface Treatment
    Hard Coating (3H), Anti-Glare Treatment of the Front Polarizer (Haze 10%)
  • Guaranteed Operating Hour
    24 Hours
    Orientation
    Portrait & Landscape

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB3.0, RGB
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver

PHYSICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width
    0.9 mm (Top/Bottom/Left/Right even bezel) / 1.8 mm *B to B : Panel Bezel + Panel Bezel
  • Dimension (Monitor) (W x H x D)
    1,075.6 x 605.8 x 86.2 mm
    Weight (Head)
    17.5 kg
  • Dimension (Carton) (W x H x D)
    1,214 x 775 x 263 mm
    Packed Weight
    23.2 kg
  • VESA™ Standard Mount Interface
    600 x 400mm

SPECIAL FEATURES

  • USB Cloning
    Yes
    Smart Energy Saving
    Yes
  • Tile Mode
    Yes (Up to 15x15)
    Energy Saving
    Yes
  • Temperature Sensor
    Yes
    Internal Memory
    8GB (System 4GB + Available 4GB)
  • Fail Over
    Yes
    Wi-Fi
    WiFi Dongle Ready
  • Contents Scheduling
    Yes
    File Play With USB
    Yes
  • Natural Mode @Tile Mode
    Yes
    Yes
    Temperature Sensor, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory (8 GB, System 4 GB + Available 4 GB), Wi-Fi Dongle Ready, USB Cloning, Content Scheduling, Fail over (USB, RGB, DVI, HDMI, Internal Memory)

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attachable
    Yes (MP500/MP700)
    OPS Type Compatible
    Yes

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0 °C to 40 °C
    Operating Humidity Range
    10% to 80%

POWER

  • Power Supply
    100–240V~, 50/60Hz
    Power Type
    Built-in Power
  • Power Consumption (Typ)
    120W
    Power Consumption-Smart Energy Saving On
    70W

CERTIFICATIONS

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC

SOFTWARE COMPATIBILITY

  • SuperSign-C
    Yes
    SuperSign W-Lite
    Yes

ACCESSORIES

  • Basic
    Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)
