Bist du dir sicher, dass du die Prämie entfernen möchtest?

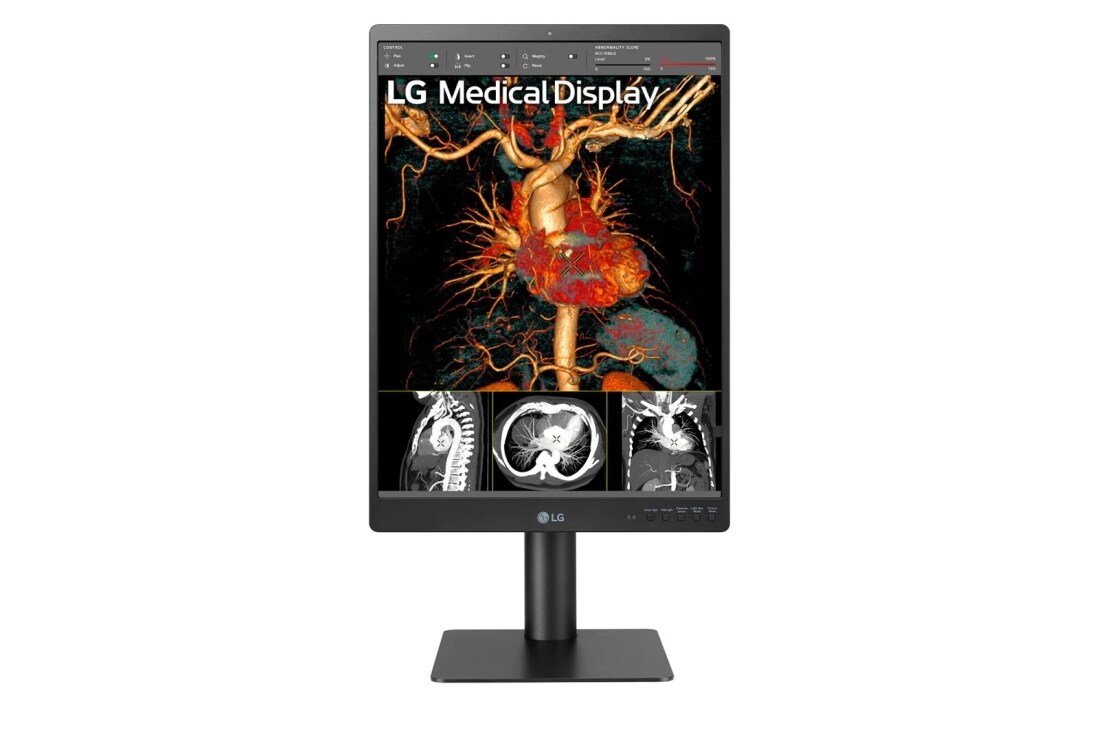

- 21,3 Zoll IPS-Display mit 3 MP
- 1.100 cd/m² (typ.)
- Pathologiemodus, Fokusansichtsmodus
- Beleuchtung (Abwärts-/Wandbeleuchtung)
- Ergonomisches Design
Alle Spezifikationen
ABMESSUNGEN/GEWICHTE
Gewicht mit Standfuß [kg]
7
Gewicht ohne Standfuß [kg]
5
Gewicht mit Verpackung [kg]
10.5
FEATURES
HDR 10
NEIN
HDR Effect
NEIN
DICOM-kompatibel
JA
Hot Key
JA (6 Tasten)
HW-Kalibrierung
JA
Stabilisierung der Helligkeit
JA
Automatischer Helligkeitssensor
JA
Flicker Safe
JA
Anwesenheitssensor
JA
Vorderer Sensor
JA
Lese-Modus
JA
Color Temperature
6500K/7500K/9300K/Manual(5000K~10000K)
Pathologie-Modus
JA
Super Resolution+
JA
Rotations- und Spiegelungsmodus
NEIN
Failover Input Switch
NEIN
Focus View
JA
Light Box Mode
JA
Lighting
JA
Black Stabiliser
JA
PBP
NEIN
PIP
NEIN
Smart Energy Saving
JA
POWER
Typ
Externe Stromversorgung (Adapter)
Strom Ausgang
19V, 6.32A
AC-Eingang
100~240V (50/60Hz)
Leistungsaufnahme (max.)
120W
Leistungsaufnahme (DC aus)
Weniger als 0,3 W
STANDARD
KGMP
JA
KC (for Rep. of Korea)
NEIN
RoHS
JA
REACH
JA
WEEE
JA
MFDS
JA
IP(Front/Except for front)
NEIN
Vandalismussicher
NEIN
UL (cUL)
JA
IEC (IEC 60601-1 / IEC 60601-1-2)
JA
EN (EN 60601-1 / EN 60601-1-2)
JA
IEC (IEC 60950-1 / IEC 55032, 55024)
JA
EN (EN 60950-1 / EN 55032, 55024)
JA
CE
JA
FDA
Class II
ISO13485
JA
GMP
JA
DISPLAY
Größe [Zoll]
21.3
Auflösung
1536 x 2048
Bildformat
`3:4
Pixelabstand [mm]
0.2115 x 0.2115
Helligkeit (Typ.) [cd/m²]
1100
Colour Gamut (Typ.)
NTSC 72% (CIE1931)
Colour Bit
10bit
Kontrastverhältnis (Typ.)
1800:1
Oberflächenbehandlung
Anti-Glare
Reaktionszeit
5 ms (GtG bei Faster)
Betrachtungswinkel (CR≥10)
178º(R/L), 178º(U/D)
SW-ANWENDUNG
Qubyx
JA
LG Calibration Studio (True Colour Pro)
NEIN
Dual Controller
JA
KONNEKTIVITÄT
3G-SDI
NEIN
12G-SDI
NEIN
Composite (Auflösung)
NEIN
S-Video
NEIN
Component (Auflösung)
NEIN
RS-232
NEIN
D-Sub
NEIN
DVI-D
JA (1 Stück)
HDMI
NEIN
DisplayPort
JA (2x In / 1x Out)
Thunderbolt
NEIN
Daisy Chain
JA (3 MP / 60 Hz)
USB Upstream-Anschluss
JA (2 Stück/ver3.0)
USB Downstream-Anschluss
JA (2 Stück/ver3.0)
Kopfhörerausgang
NEIN
MECHANISCH
Randloses Design
Normal
Mechanischer Netzschalter
JA
OneClick Standfuß
JA
Einstellungen der Anzeigeposition
Kippen/Höhe/Schwenken
Wandmontage möglich [mm]
100 x 100
ZUBEHÖR
Netzkabel
JA
Adapter
JA
Kalibrierungsbericht (Papier)
JA
DVI-D (Farbe/Länge)
JA
HDMI (Farbe/Länge)
NEIN
USB 3.0 Upstream-Kabel
JA
D-Sub
NEIN
DisplayPort
JA
Compliance-Informationen
