8.3 Mega Pixels Real 4K UHD
DCI-P3 97% Dual Laser (Red & Blue)
2,000,000:1 Contrast Ratio Black Level.
Brightness Optimizer
- Iris Mode
- Adaptive Contrast
webOS
WISA
Auto Calibration (w/CalMan)
Real 4K UHD
Dual Laser (Red & Blue)
Contrast Ratio Black Level
*The rate may vary by picture modes.

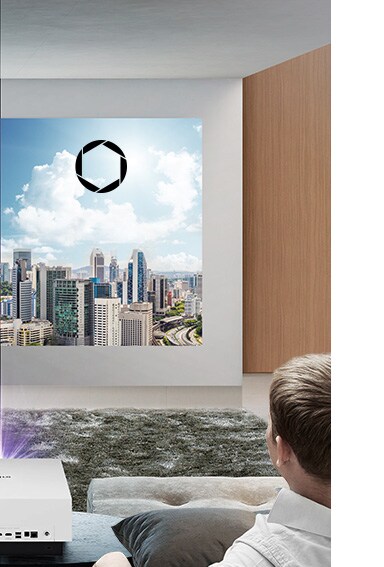

Depending on lighting condition of viewing environment, you can change iris mode.
← Iris’s maximum apertur
Iris’s minimum aperture →
Optimized brightness for dark room. Recommended white brightness + lowest (best) black level with iris's min. aperture.
White and black goes up together, which makes picture visible and vivid with iris's max. aperture.
HDR pro improves quality by making the bright part brighter and the dark part darker while using the dark side details. So it is compatible with almost HDR industry standards.
*HDR pro covers almost all HDR specifications, including HDR10, Dynamic Tone Mapping, HLG, HGiG and other specifications.
AirPlay + Miracast® + Bluetooth
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
2700
Type
Dual Laser (B LD+G-rap Phophor, R LD)
Contrast Ratio
2,000,000:1
Digital Keystone Correction
V-Keystone
Output
5W + 5W Stereo
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)

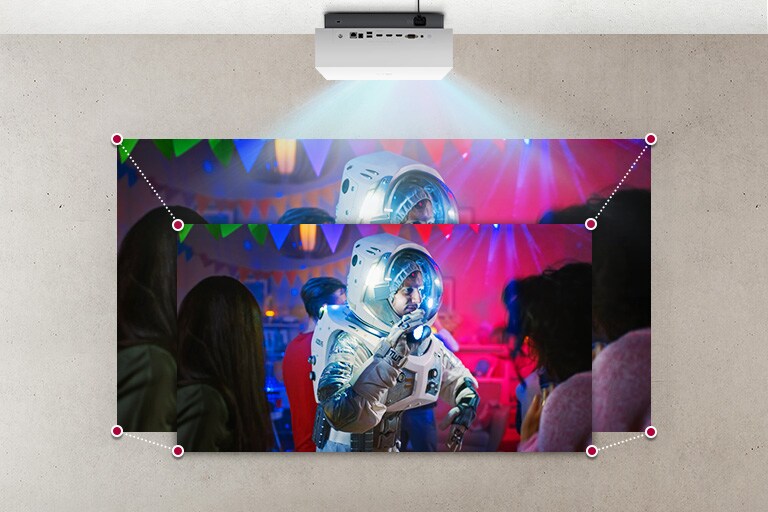

Zoom
1.6x
Lens Shift
V +-60% / H +-24%
Projection System
DLP
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
2700
Contrast Ratio
2,000,000:1
Energy Saving Max. (Eco)
26dB(A)
Energy Saving Med.
27dB(A)
Energy Saving Min. (Bright)
28dB(A)
Uniformity (JBMMA 9 Point)
85%↑
Focus (Auto / Manual)
Manual
Zoom
1.6x
Screen Size
40" ~ 300"
Standard (lens to wall)
150"@4.3~6.9m, 100"@2.9~4.6m, 40"@1.1~1.8m
Throw Ratio
1.3 - 2.08
Lens Shift
V +-60% / H +-24%
Projection Offset
0% (+110% ~ -110%)
Life Hours
20,000 Hrs
Type
Dual Laser (B LD+G-rap Phophor, R LD)
Aspect Ratio Control
16:9/Original/Full Wide/4:3/Vertical Zoom
Clear Voice
YES (Clear Voice lll)
Dolby Atmos compatible
YES (Pass through)
Output
5W + 5W Stereo

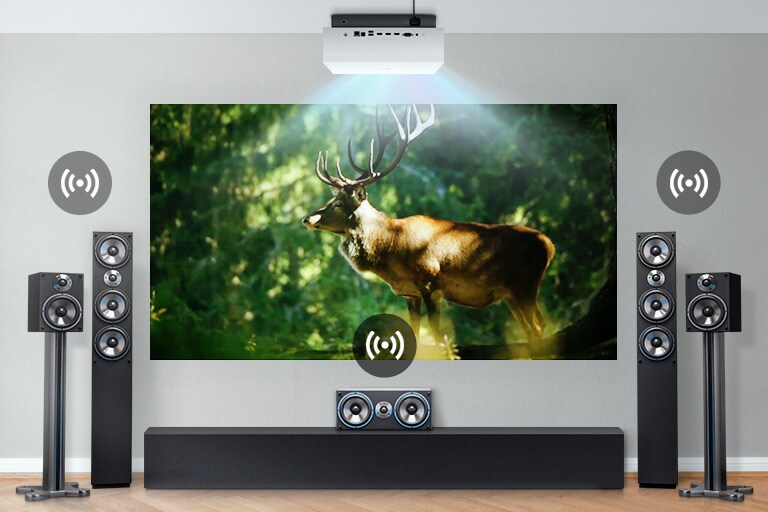

WiSA Ready (Dongle)
YES (EU : up to 5.1Ch MEA : 2.0Ch only) (Dongle and Speakers sold separately)
Net Size (mm) (W x D x H)
337 x 410 x 145
Net Weight (kg or g)
11
Power Consumption (Max.)
300W
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
Stand-by Power
<0.5W
Operation Temperature
0 ~ 40℃

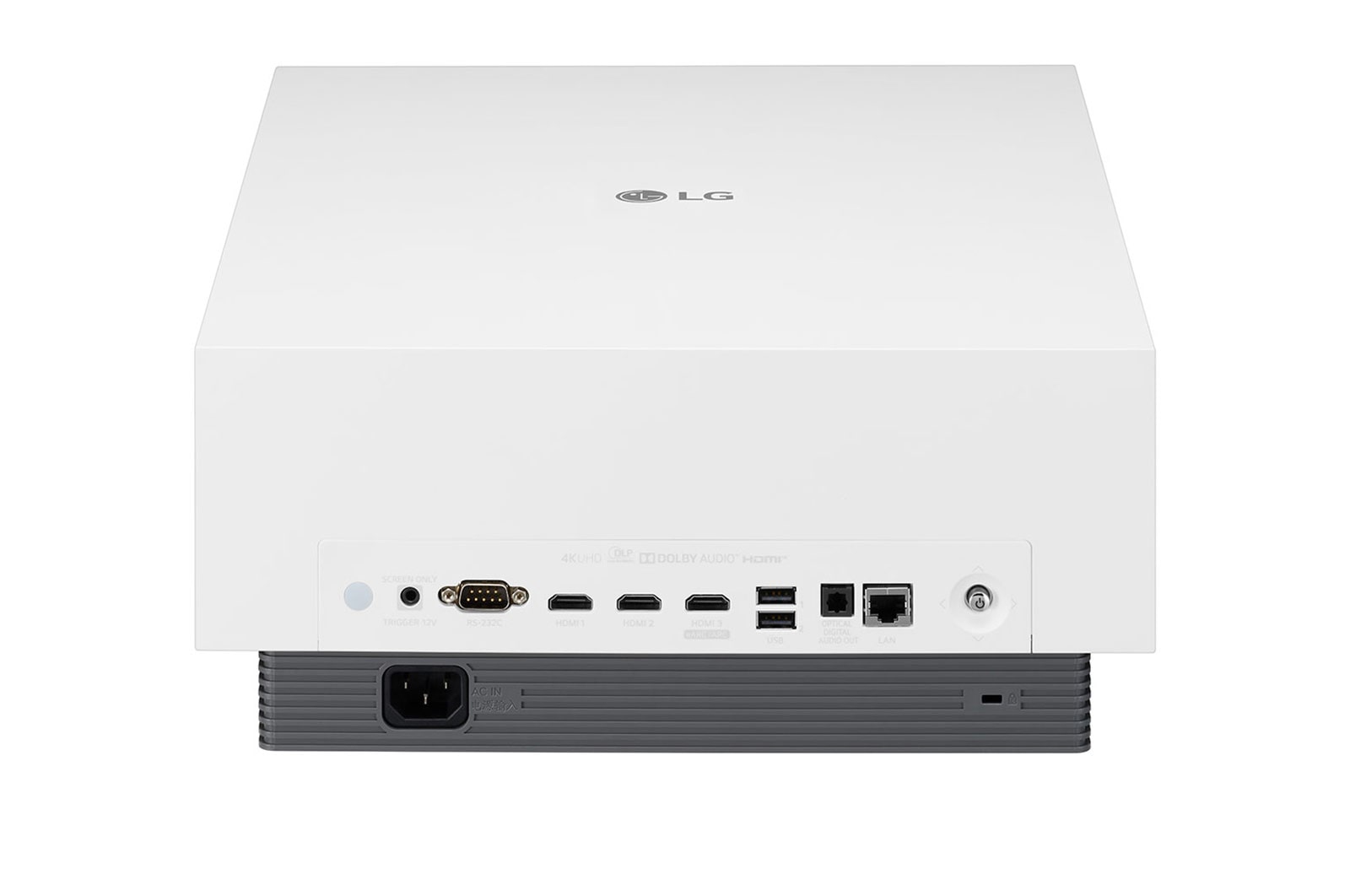

Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
12V Trigger
YES
Audio out
S/PDIF 1(Optical)
HDMI
3
IP control
YES
RJ45
1
RS-232C
YES
USB Type-A
2 (USB2.0)
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
AI Speaker Compatibility
Apple Homekit works-with
Background Image
YES
Black Level Control
YES
Bluetooth AV Sync Control
YES
Bluetooth Sound out
YES
Brightness Optimizer - Adaptive Contrast
YES (High / Medium / Low / Off)
Brightness Optimizer - Iris Mode
YES (BrightRoom / Medium / Darkroom / User)
Callibration II (Auto Calibration / CalMan)
YES
Color gamut setting (Expert control)
YES
Color Management System (Expert control)
YES
Color Temperature Adjustment
YES
Contents Sharing (with DLNA supporting device)
YES
Contents Store / LG Smart World (App Store)
YES
Contents Suggestion
YES
Digital Keystone Correction
V-Keystone
Dynamic Color (Expert control)
YES
Dynamic Contrast (Expert control)
YES
Eco Function - Automatic Standby / Auto Power Off
YES
Eco Function - Auto Off / Auto Sleep
YES
Eco Function - Energy Saving Mode
YES (Min/Med/Max)
Eco Function - HDD Eco Mode
YES
Eco Function - Sleep Timer
YES
Eco Function - Time Power On/Off
YES (On / Off)
FILMMAKER mode
YES
Gamma Correction (Expert control)
YES
HDCP
HDCP 2.2 (HDCP2.3 compatible)
HDMI ARC(Audio Return Channel)
YES (eARC)
HDMI simplink(CEC)
YES
HDR
HDR10, HLG
HDR Effect
YES
HDR Tone Mapping
YES (Auto, Dynamic/frame by frame)
HGiG (HDR Gamming Interest Group) mode
YES
HID (Keyboard/Mouse/GamePad Connection Thru USB)
YES
Home Dashboard (Input, IoT with OFC device)
YES (OCF/UEI IoT not supported)
Image Flip
YES (Horizontal/Vertical)
Internet Browser
YES
LG Sound Sync(with Sound Bar)
YES
Noise Reduction
YES
Platform (OS, UI)
webOS 5.0 (Smart)
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
YES
Premium CP
YES
Processor
Quad Core
Quick(Instant) Power on/off
YES (on 12 Sec ↓ / off 2 Sec)
Real Cinema
YES (up to 4096x2160)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
Self Diagnosis
YES
Setting Guide
YES (Bean Bird)
Smooth Gradation
YES
Store Mode
YES
Super Resolution (Expert Control)
YES (4K)
TruMotion
YES (up to 4096x2160)
Upscaler
YES (4K)
USB Host (Movie, Music, Photo)
YES
White balance setting (Expert control)
YES
Wireless Contents Share (with Android, iOS)
YES (Thru TV Plus App)
Cabinet Color
White
Ceiling mount hole (for bracket)
YES
Kensington Lock
YES
Leg-Stand
YES
Local Key
Joystick
Conformances(Regulation)
CE/CB
Manual (Full or Simple Book)
Simple Book
Remote Control - Motion
YES (Magic Lighting Remote)
Warranty Card
YES
