Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
3000

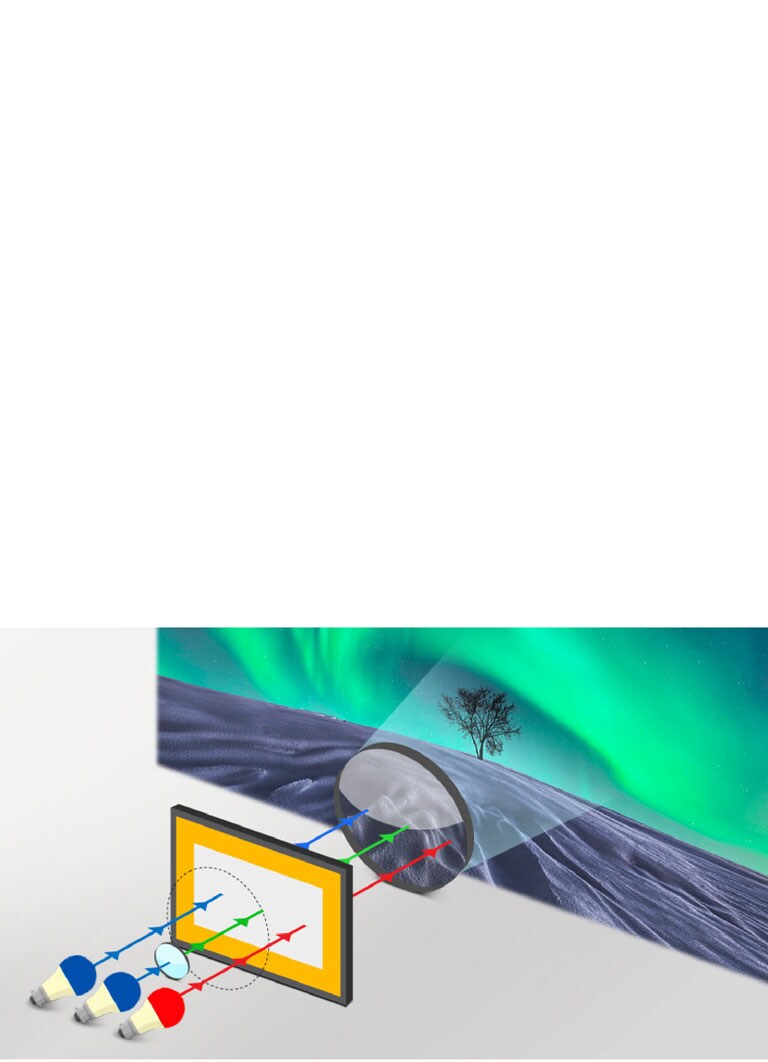

Type
3Ch Laser
Contrast Ratio
2,000,000:1
Digital Keystone Correction

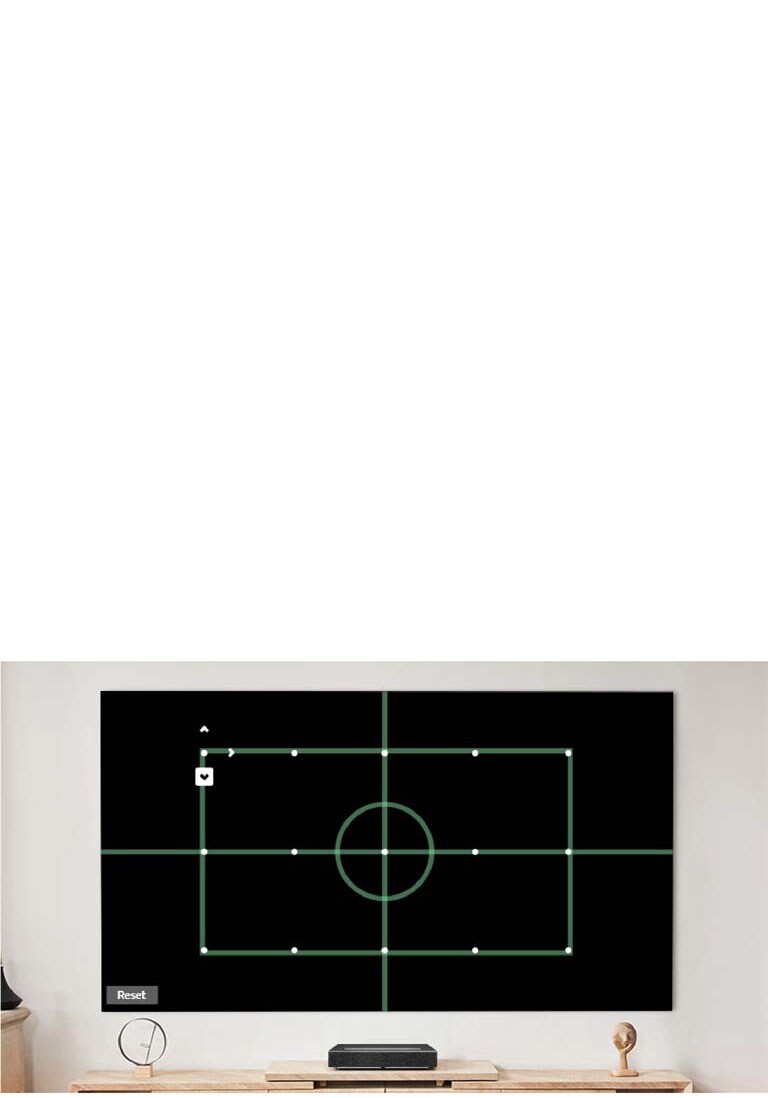

Edge Adjustment (4/9/15 Point Warping)
Output
40W (2.2ch)

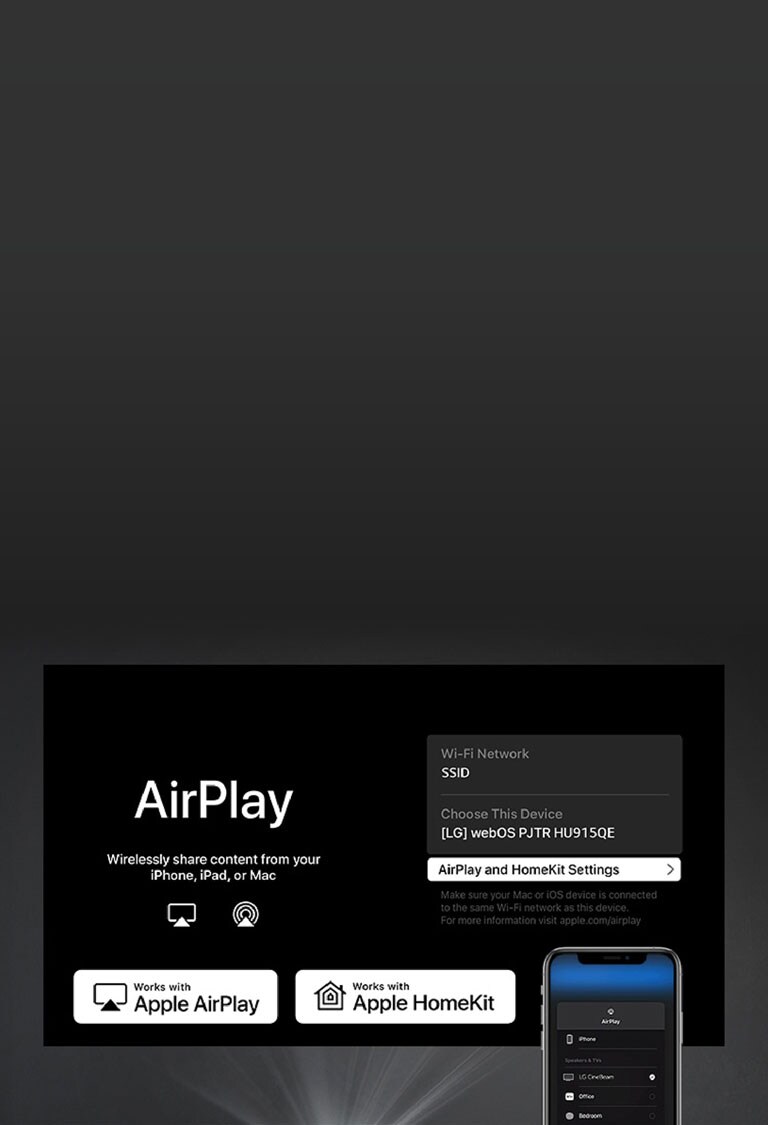

Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
Zoom
Fixed
Projection System
DLP
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
3000
Contrast Ratio
2,000,000:1
Energy Saving Max. (Eco)
26dB(A)
Energy Saving Med.
28dB(A)
Energy Saving Min. (Bright)
30dB(A)
Uniformity (JBMMA 9 Point)
85%↑
Focus (Auto / Manual)
Manual
Zoom
Fixed
Screen Size
90" ~ 120"
Standard (lens to wall)
Set to wall: 100"@10cm, Standard: 100"@42cm
Throw Ratio
0.19
Projection Offset
1.2
Life Hours
20,000 Hrs
Type
3Ch Laser
Aspect Ratio Control
16:9/Original/4:3/Vertical Zoom/All-Direction Zoom
Clear Voice
YES (Clear Voice lll)
Dolby Atmos compatible
YES (Pass through)
Output
40W (2.2ch)
Net Size (mm) (W x D x H)
680 x 347 x 128
Net Weight (kg or g)
13.1
Power Consumption (Max.)
350W
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
Stand-by Power
<0.5W
Operation Temperature
0 ~ 40℃
Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
AI Speaker Compatibility
Apple Homekit works-with
Background Image
YES
Black Level Control
YES
Bluetooth AV Sync Control
YES
Bluetooth Sound out
YES
Brightness Optimizer - Adaptive Contrast
YES (High / Medium / Low / Off)

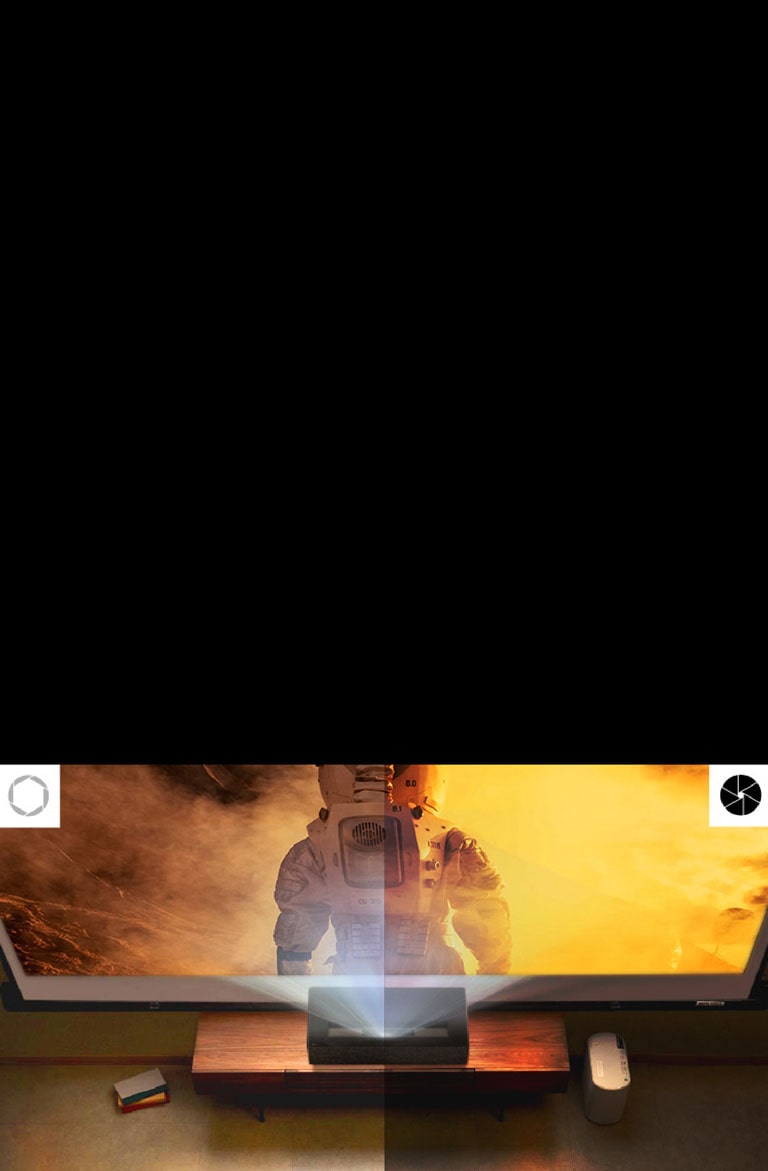

Brightness Optimizer - Iris Mode
YES (BrightRoom / Medium / Darkroom / User)
Color gamut setting (Expert control)
YES
Color Management System (Expert control)
YES
Color Temperature Adjustment
YES
Contents Sharing (with DLNA supporting device)
YES
Contents Store / LG Smart World (App Store)
YES
Contents Suggestion
YES
Digital Keystone Correction
Edge Adjustment (4/9/15 Point Warping)
Dynamic Black
YES
Dynamic Color (Expert control)
YES
Dynamic Contrast (Expert control)
YES
Eco Function - Automatic Standby / Auto Power Off
YES
Eco Function - Auto Off / Auto Sleep
YES
Eco Function - Energy Saving Mode
YES (Min/Med/Max)
Eco Function - Sleep Timer
YES
Eco Function - Time Power On/Off
YES (On / Off)
FILMMAKER mode
YES
Gamma Correction (Expert control)
YES
HDCP
HDCP 2.2
HDMI ARC(Audio Return Channel)
YES (eARC)
HDMI simplink(CEC)
YES
HDR
HDR10, HLG
HDR Tone Mapping
YES (Auto, Dynamic/frame by frame)
HGiG (HDR Gamming Interest Group) mode
YES
HID (Keyboard/Mouse/GamePad Connection Thru USB)
YES
Home Dashboard (Input, IoT with OFC device)
YES (OCF/UEI IoT not supported)
Image Flip
YES (Horizontal/Vertical)
Internet Browser
YES
LG Sound Sync(with Sound Bar)
YES
Noise Reduction
YES
Platform (OS, UI)
webOS 6.0 (Smart)
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
YES
Premium CP
YES
Processor
Quad Core
Quick(Instant) Power on/off
YES (on 12 Sec ↓ / off 2 Sec)
Real Cinema
YES (up to 4096x2160)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
Self Diagnosis
YES
Setting Guide
YES (Bean Bird)
Smooth Gradation
YES
Store Mode
YES
Super Resolution (Expert Control)
YES (4K)
TruMotion
YES (up to 4096x2160)
Upscaler
YES (4K)
USB Host (Movie, Music, Photo)
YES
Voice Recognition - Buit-in
LG ThinQ
White balance setting (Expert control)
YES
Wireless Contents Share (with Android, iOS)
YES
Cabinet Color
Astro black
Ceiling mount hole (for bracket)
YES
Kensington Lock
YES
Leg-Stand
YES (4 Leg)
Local Key
YES
Conformances(Regulation)
KCC, KC, FCC, ETL, CE/CB, PSE
Manual (Full or Simple Book)
Simple Book
Quick User Guide (Quick Set-up Guide)
YES
Remote Control - Motion
YES (Magic Lighting Remote)
Warranty Card
YES

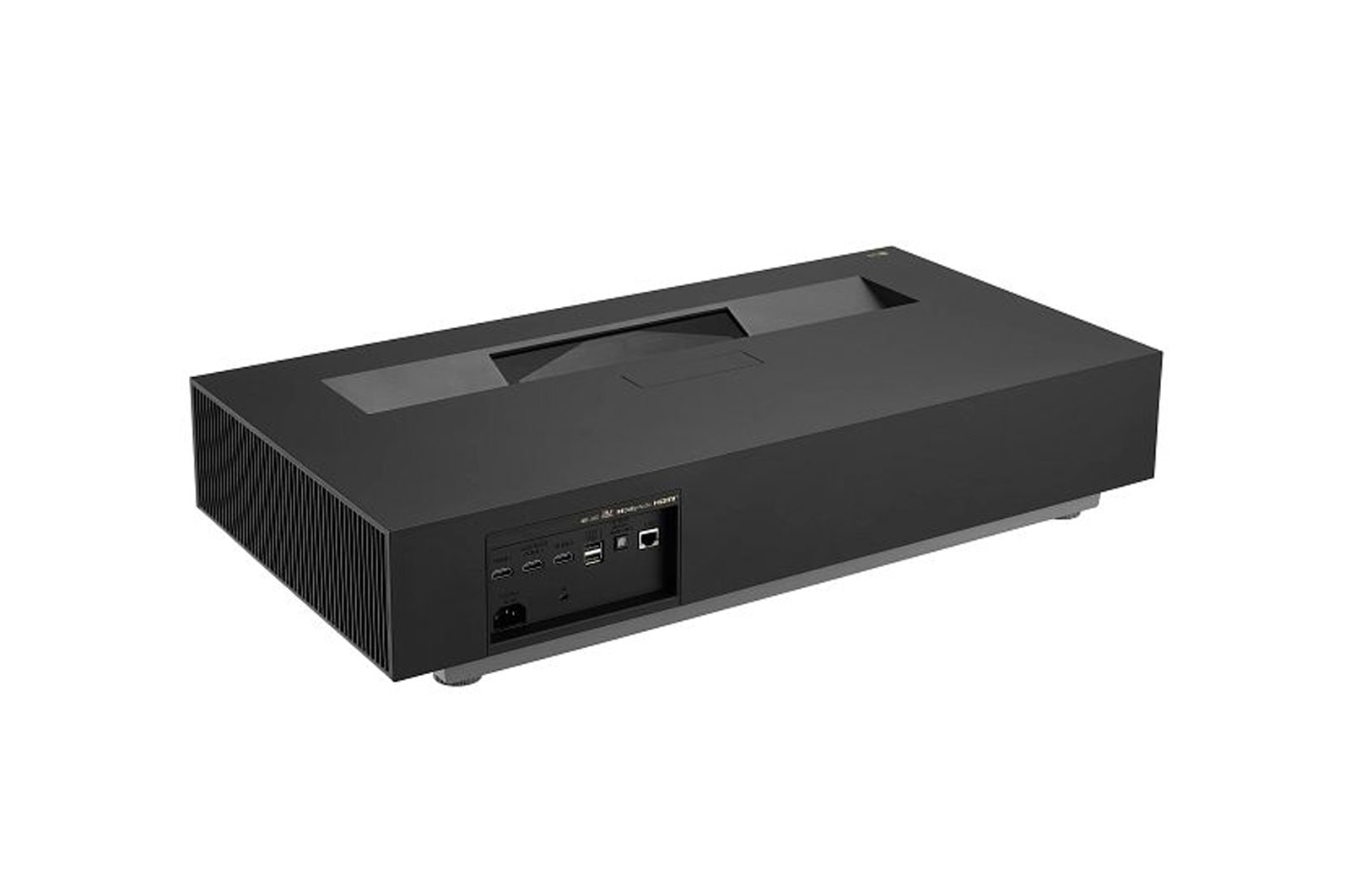

Audio out
S/PDIF 1(Optical)
HDMI
3
IP control
YES (Control 4, Crestron, Savant, URC, ELAN)
RJ45
1
USB Type-A
2 (USB2.0)
