8.8 Cu.Ft Built-in Fridge | Smart Inverter
8.8 Cu.Ft Built-in Fridge | Smart Inverter
NEOM1
()
Key Features
- Built-in design
- Humidity controlled crisper
- Less frost
Ready for a kitchen that serves?
Sleek design
Flawless kitchen aesthetic
Sliding door panels with matching materials add the finishing touch to your modern kitchen interior.
Built-in bottom freezer installation guide
Click for further details on how the built-in bottom freezer fits into your space, including a guide to measuring and other criteria to heed.
1. Installation precautions
The fridge and cabinet doors should open to a 90-degree angle. Make sure there is a 40 mm gap for ventilation between the wall and installation cabinet.
Image of refrigerator installation precautions
2. Secure installation
To keep the refrigerator in place, make sure to securely install it using the side cover gasket, plastic top bracket, furniture screws, and plastic bracket screws.
Image of refrigerator fixation and related parts
3. Securing refrigerator door to cabinet panel
Secure the refrigerator door to the cabinet panel at four different points. Temporarily attach the door guide with a screw, attach a door rail with two furniture screws, remove the door guide, and fasten the third door rail screw. Then, cover the screw holes with a door rail cover.
Image of refrigerator door to cabinet panel connection and related parts image
*This video is for product size and installation, and the design may be different from the actual product.
Parts & accessories
View details of the parts you’ll receive for installation.
Image of refrigerator installation and parts to be provided
Download the manual for instructions on product usage and settings.
You may also like
Complete your kitchen with the full built-in experience.
SUMMARY
DIMENSIONS

All Spec
BASIC SPEC
Product Type
Built-In
MATERIAL & FINISH
Finish (Door)
Panel Ready
FEATURES
Door Cooling+
No
LINEAR Cooling
No
Deodorizer
No
Reversible door
Yes
InstaView
No
ICE & WATER SYSTEM
Water Only Dispenser
No
Automatic Ice Maker
No
PERFORMANCE
Compressor Type
Smart Inverter Compressor (BLDC)
SMART TECHNOLOGY
Smart Diagnosis
Yes
ThinQ (Wi-Fi)
No
REFRIGERATOR COMPARTMENT
Refrigerator Light
Top Soft LED (Faced)
Shelf_Tempered Glass
4
Shelf_Folding
No
Bottle(Wine) Rack
No
Vegetable Box
Yes (1)
Vegetable Box (Fresh Converter)
No
Fresh 0 Zone
No
Egg tray/Egg basket
No
CAPACITY
Storage Volume Total (L)
250
Storage Volume Freezer (L)
52
Storage Volume Refrigerator (L)
198
Freezer Capacity (cu. ft)
1.8
Refrigerator Capacity (cu. ft)
7.0
DIMENSIONS & WEIGHT
Product Weight (kg)
62
Packing Weight (kg)
69
Depth without door (mm)
523
Depth without handle (mm)
565
Product Dimension (WxHxD, mm)
554 x 1775 x 565
FREEZER COMPARTMENT

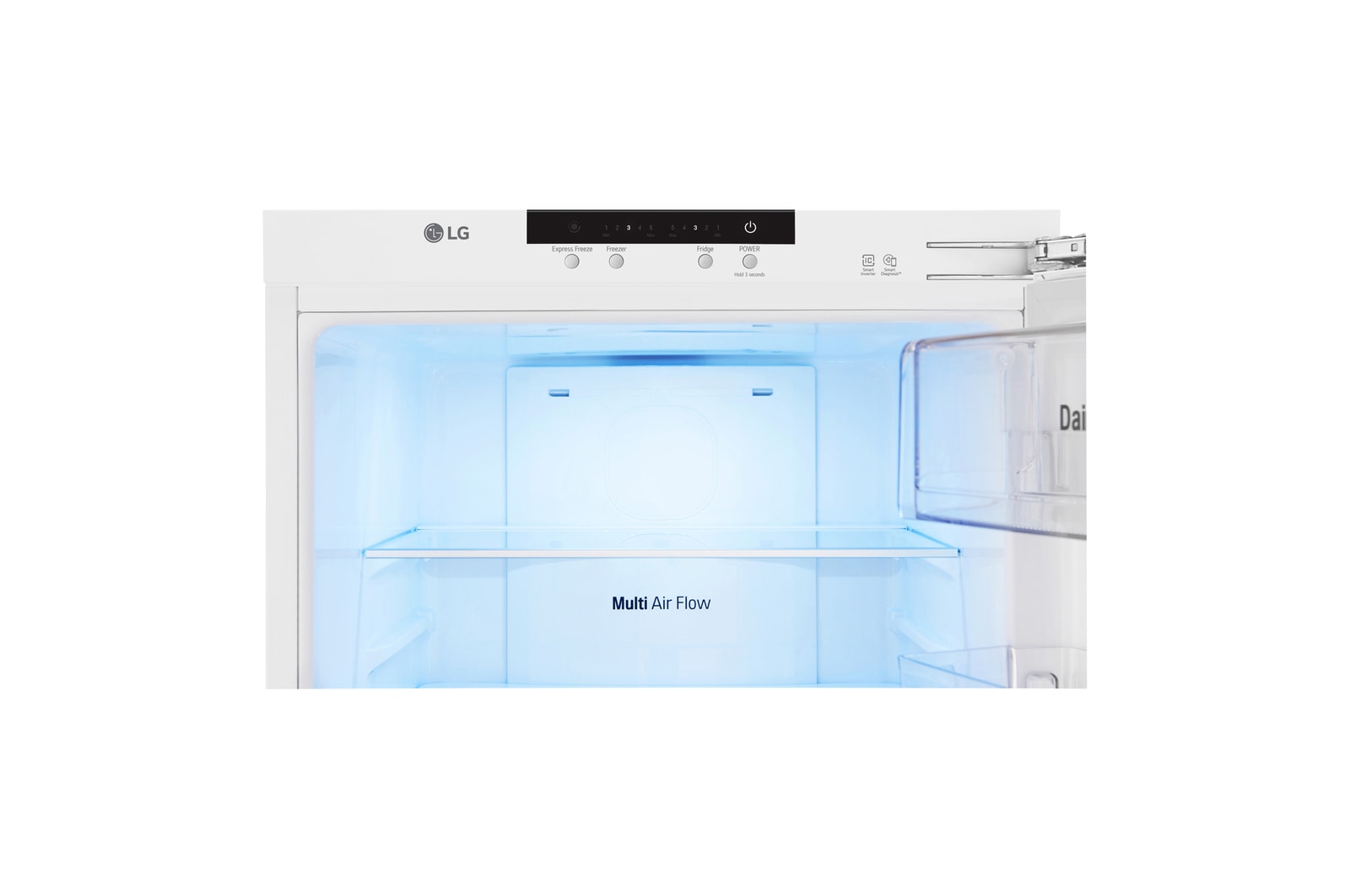

Multi-Air Flow
Yes
What people are saying
FAQs
What is the benefit of a Door-in-Door refrigerator?
LG’s Door-in-Door system provides easy access to everyday essentials without opening the whole Fridge door. Store regularly used drinks and snacks like milk, juice, butter, fruit and yoghurts in the easy to reach compartment, designed to minimise cool air loss and thus helps reduce energy usage in your smart tech LG Fridge.
What do I need to plumb in a French Door fridge freezer?
You must engage a qualified service personnel to complete the installation of your plumbed French Door fridge freezer, in accordance with the Owner Manual.Incorrect installation by a non qualified service personnel may result in product not working properly or failure.
What do I need to plumb in a Side by Side fridge freezer?
You must engage a qualified service personnel to complete the installation of your plumbed Side by Side fridge freezer, in accordance with the Owner Manual.Incorrect installation by a non qualified service personnel may result in product not working properly or failure.
How do I change the temperature setting on my LG Fridge Freezer?
Use the Control Panel on the door or inside the fridge to set or adjust the temperature for your fridge or freezer. For models with ThinQ functionality, you can also use the LG ThinQ App to change the temperature setting remotely via your smartphone for supported models.
What to consider when buying a fridge freezer?
LG offers a broad range of stylish, energy-efficient Fridge Freezers with multiple clever features. From roomy French Door, Quad Door Style and convenient Multi-Door, to InstaView Door-in-Door technology, and Slim models, LG offers the perfect Fridge Freezer for every household. If you are designing a kitchen from scratch, it’s easy to integrate your dream appliance; if you have an existing gap to fill, you may find your choice is dictated by space. Once you’ve decided on a Fridge Freezer that best suits your lifestyle, look at storage space, innovative cooling technologies that helps keep your food items fresher for longer, convenient features like UVNano auto-cleaning water and ice dispenser, folding shelves and FRESHBalancer drawer system. Don’t forget to check for the appliance's energy efficiency and product warranty.
What is the difference between a plumbed and non-plumbed ice and water dispenser fridge?
LG offers the choice of plumbed and non-plumbed fridge models. A plumbed fridge is connected directly to the water supply to feed the ice and water dispenser. A non-plumbed fridge has a built-in refillable water tank connected to the door-mounted dispenser. Simply keep the water tank topped up to enjoy the luxury of chilled water on tap.
What size fridge freezer do I need?
Although it depends on your lifestyle, for a good rule of thumb for capacity: 200-300L is perfectly designed for apartments and smaller households of 1+ people; 340-400L is normally sufficient for a small household of 1-2 people; 500-600L suit a family of 3-4; for a larger family, we recommend 600L+. French Door models provide extra-wide space for storage of items such as trays or platters. At LG we want every customer to get the Fridge Freezer that suits them best, so we offer a selection of sizes within each range.
Will an LG fridge freezer make a lot of noise?
Our LG fridge freezers utilise a Smart Inverter Compressor or Inverter Linear Compressor, designed to ensure the fridge generates low noise by adjusting cooling power and fridge temperatures based on its environment. The Smart Inverter Compressor or Inverter Linear Compressor helps to make your kitchen a quiet, relaxing place to enjoy.
Does a lower fridge freezer capacity mean it is lower quality?
No, our range of fridges are all designed to deliver high quality functionality, across a range of sizes to suit our customer’s needs. Although our smaller sized fridges generally have less features due to their size, this does not take away from the quality features they possess. Specifically, our low capacity fridges utilise the multi air flow feature, where air vents located in the rear of the fridge/freezer direct cold air into the fridge cavity to help keep food fresh. With this feature and many more, all LG fridge freezers are designed to offer high quality results, to suit the needs of all consumers.
