Refrigerator Water Filter (6 month)

Features

Gallery

Specs

Reviews

Support

Refrigerator Water Filter (6 month)

Refrigerator Water Filter (6 month)

ADQ32617703

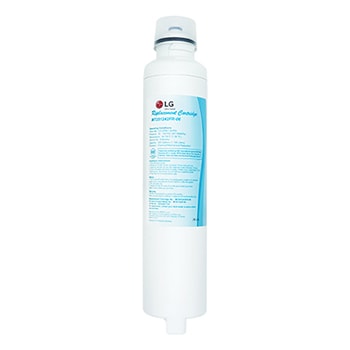

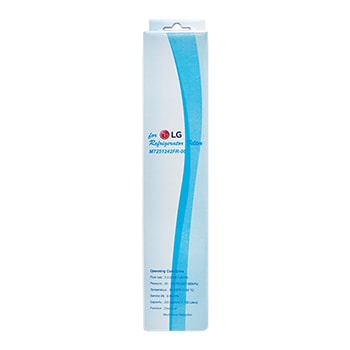

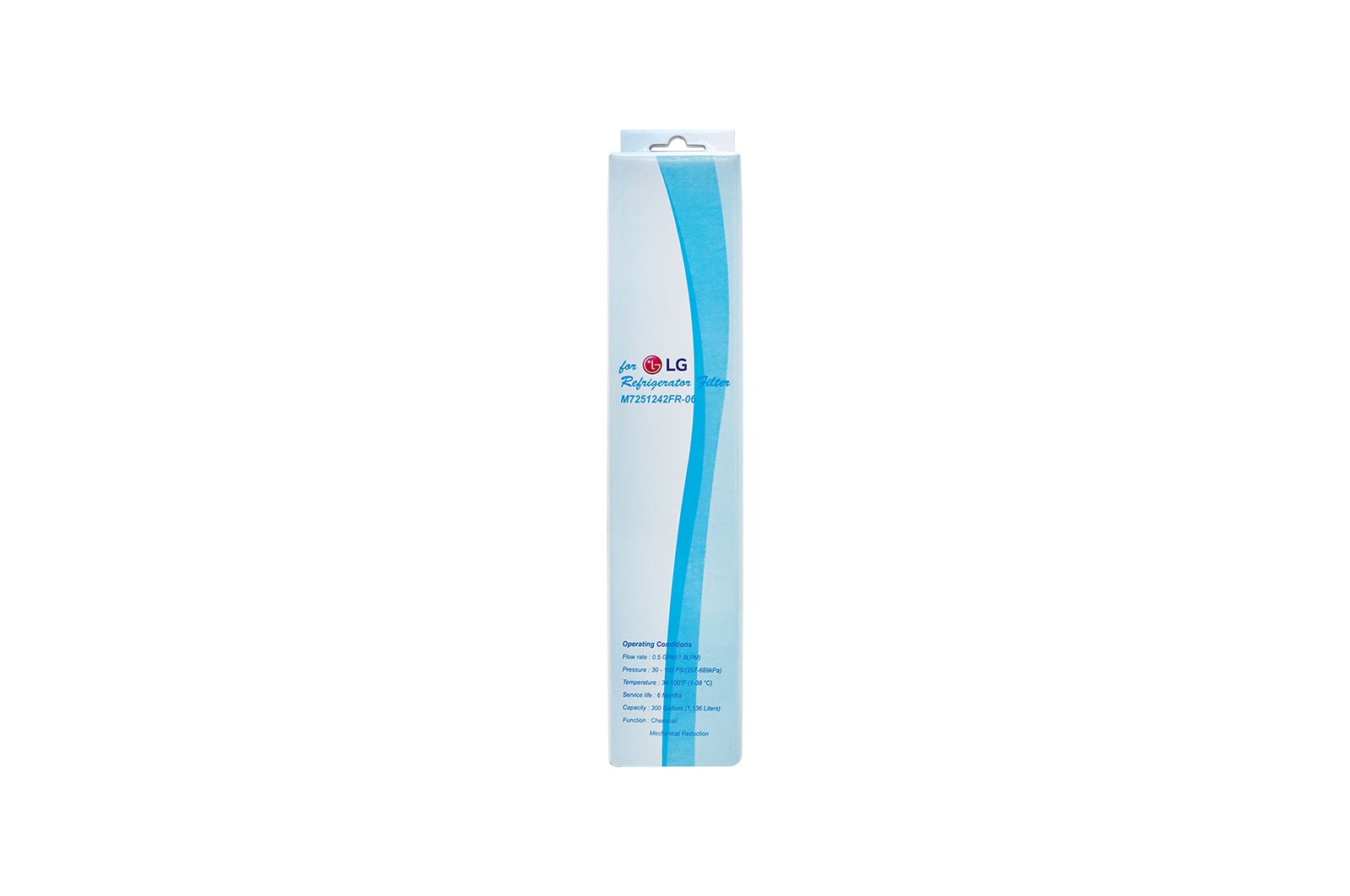

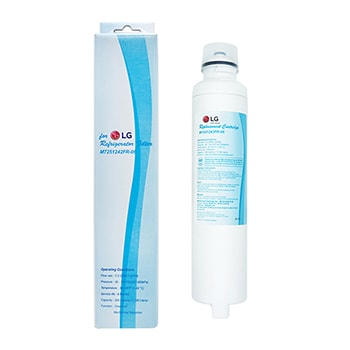

  • front view 1
  • front view 2

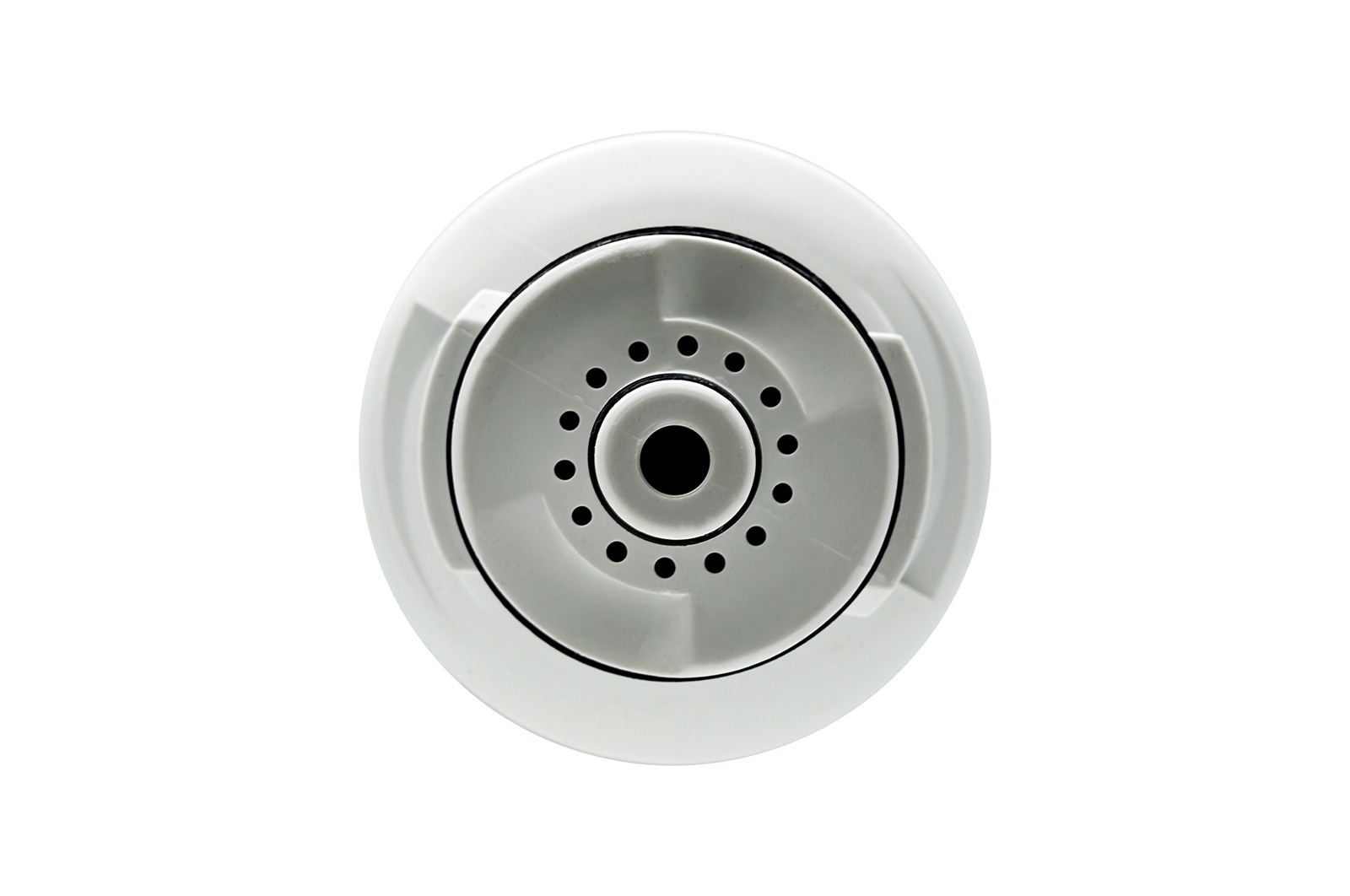

  • close up view 1
  • close up view 2
  • close up view 3
  • front view 3

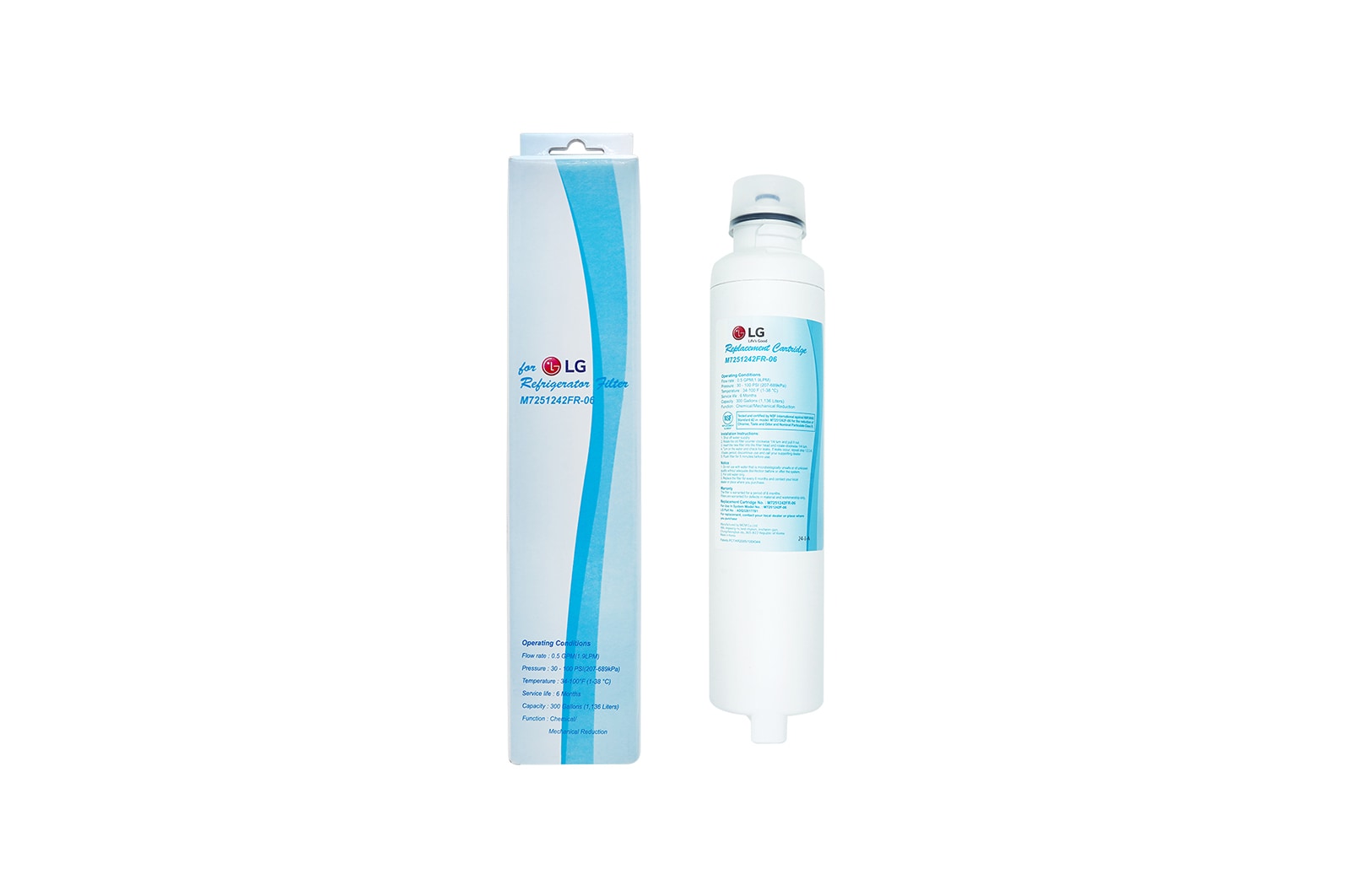

front view 1
front view 2

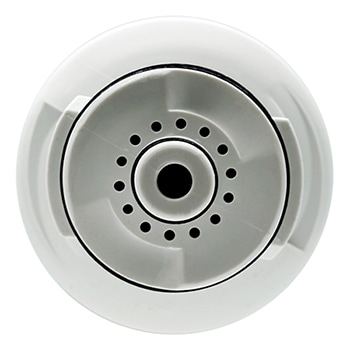

close up view 1

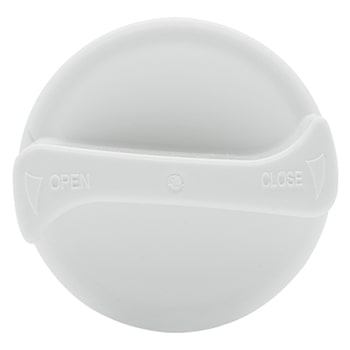

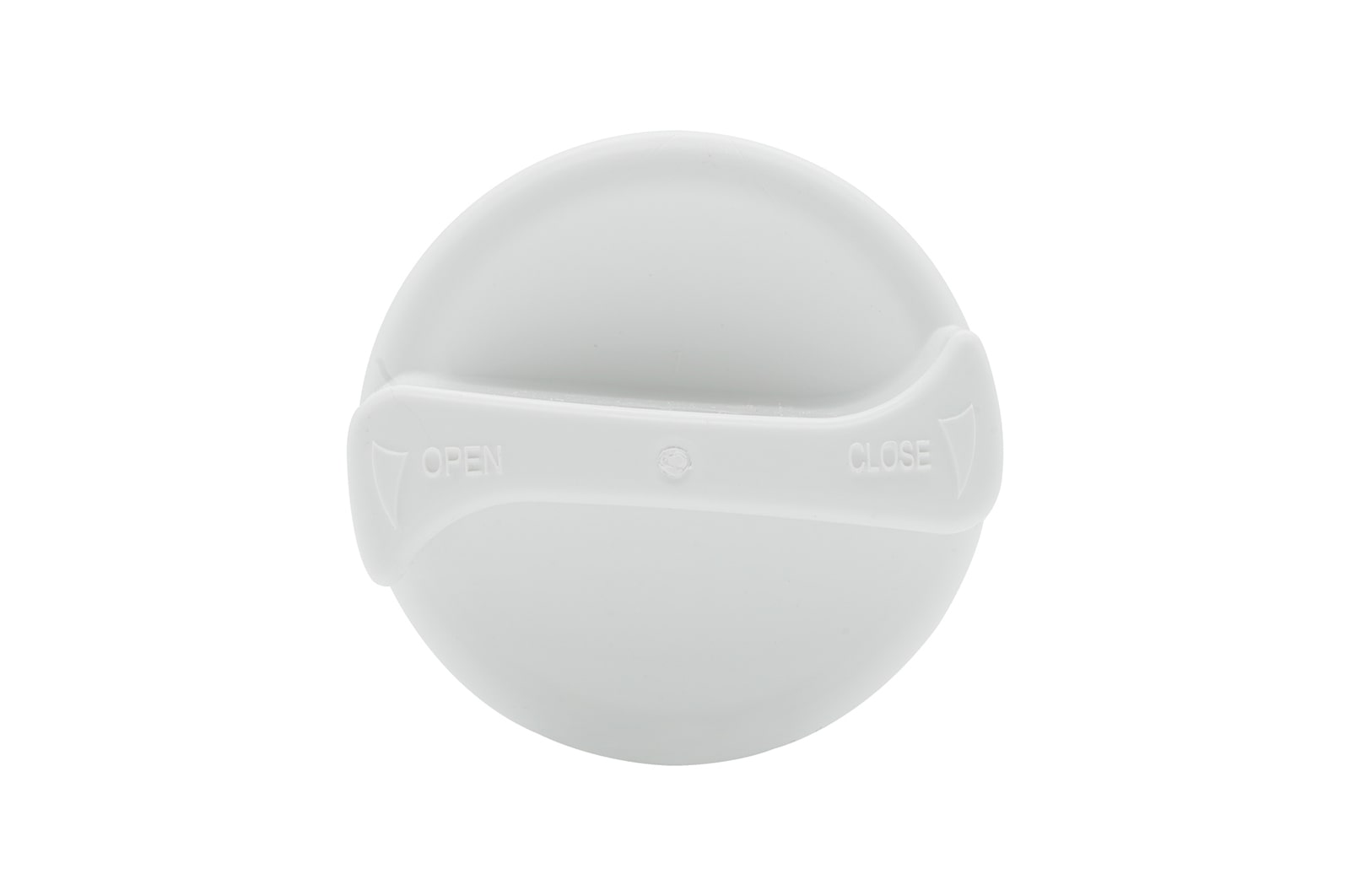

close up view 2

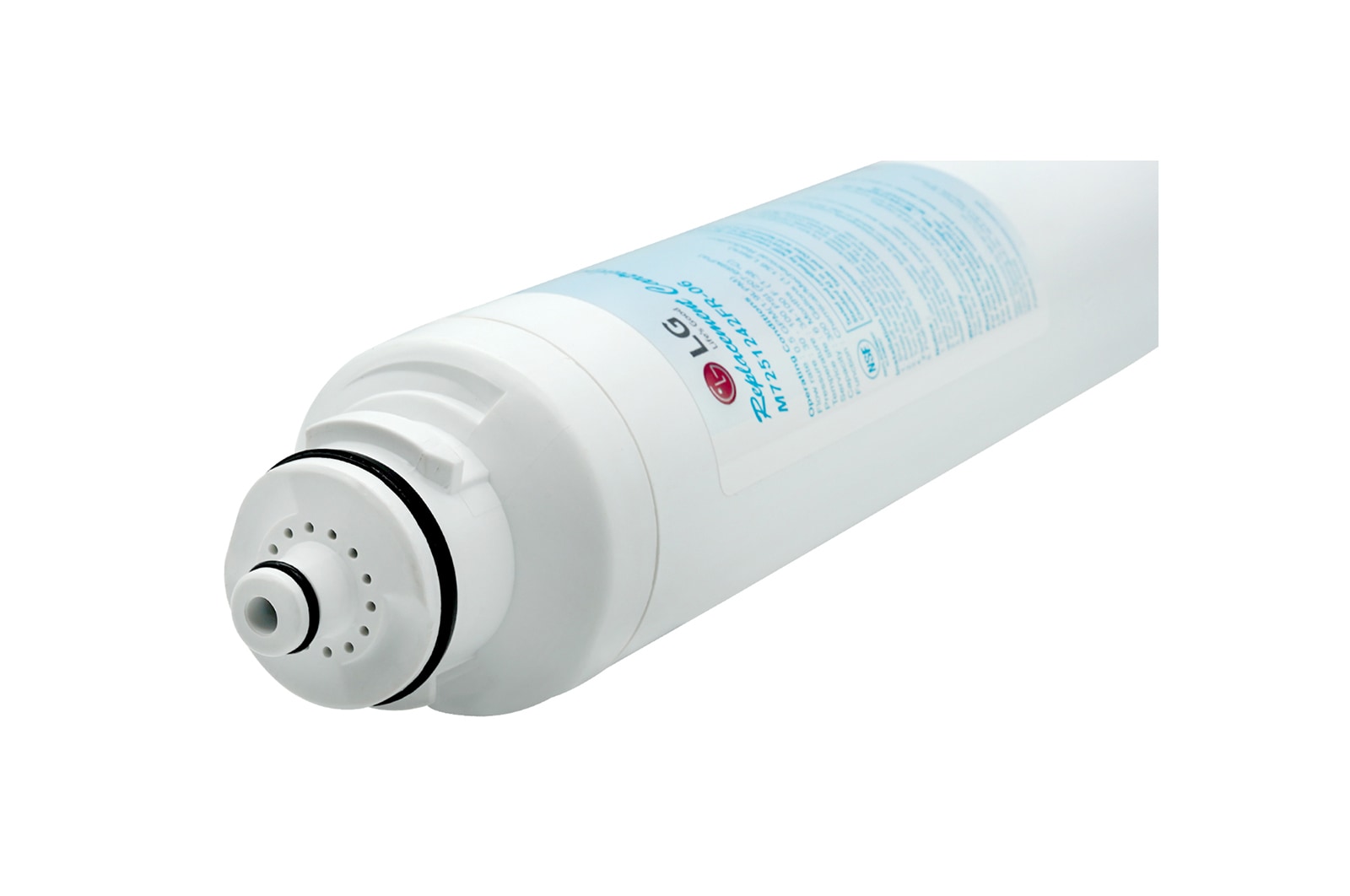

close up view 3
front view 3

Key Features

  • Replacement LG Refrigerator Water Filters
  • Effective Filtration
  • Genuine LG Refrigerator Water Filters
  • Easy reach, easy replacement
More

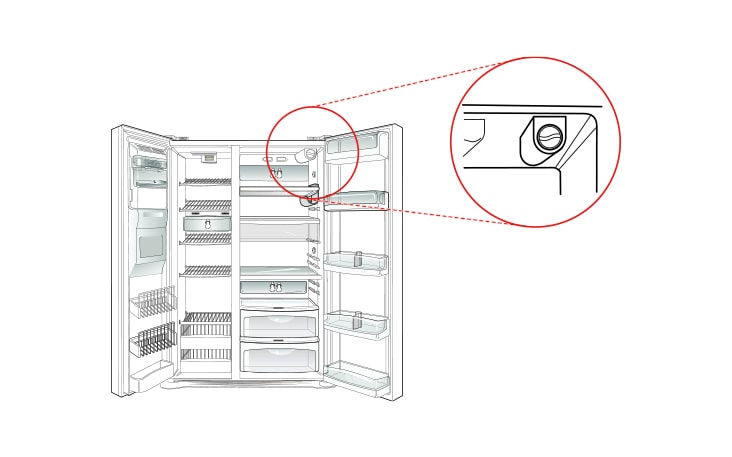

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

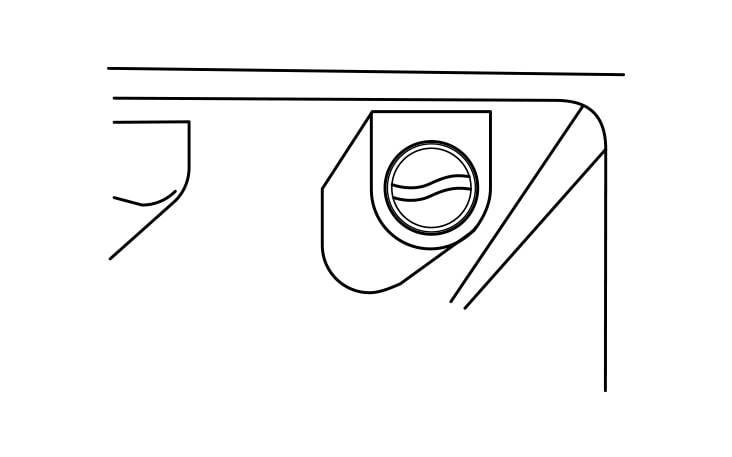

There's a water filter in the upper right corner of the refrigerator

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

STEP 1
Remove the old cartridge

Rotate the knob of the cartridge counter clockwise. When the cartridge is removed, you will feel it click out of place. Pull of the cartridge.



- NOTE: Replacing filter causes small amount of water (around 25cc) to flow out. Please put up a cup under the hole to prevent it.

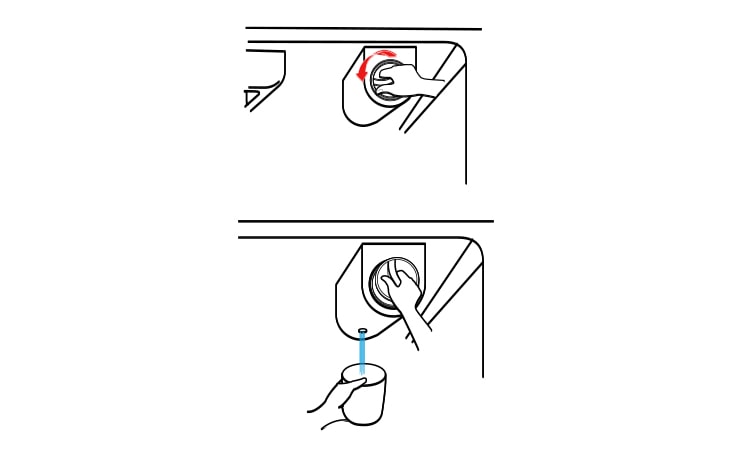

Illustration showing hand turning knob to release liquid into a cup from a dispenser.

STEP 2
Replace with a new cartridge

Take the new cartridge out of it’s packaging and remove protective cover from the o-rings. With cartridge knob in the vertical position, push the new filter cartridge into the cover until it stops.



If you can turn the filter from side to side, it isn’t fully inserted. Push it in firmly and twist it into place. You will hear the snap when it clicks into place. Using it’s handle, twist the cartridge clockwise about 1/4 turn. You will hear the snap when it clicks into place.

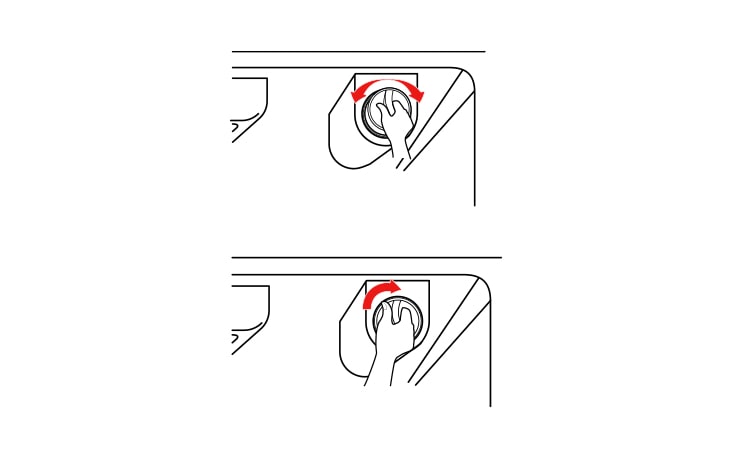

Hand adjusting a control knob in two steps with red arrows indicating rotation on a device panel.

STEP 3
Flushing the water system after replacing filter

To clean the system dispense 2.5 gallons (9.46 L) of water through filter before use (dispense for approximately 5 minutes).

Hand installing water filter into the refrigerator compartment with an inset showing filter removal instructions.

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

Summary

Print

Dimensions

All specs

GENERAL

  • Part Number

    ADQ32617703

  • Category

    Water Filter

DIMENSIONS & WEIGHTS

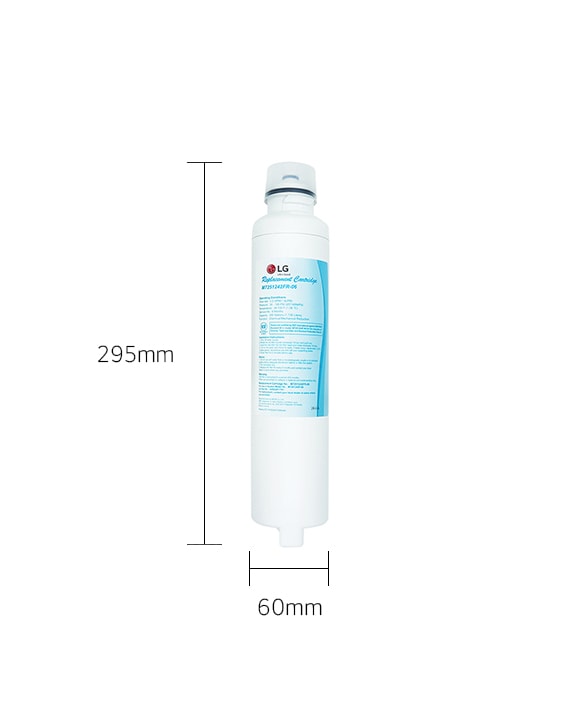

  • Product Dimension (W x H x D, mm)

    296 x 59 x 59

  • Diameter (cm)

    6

  • Inner Diameter (mm)

    5

  • Length (cm)

    29.5

  • Net Weight (g)

    442

  • Outer Diameter (mm)

    13
